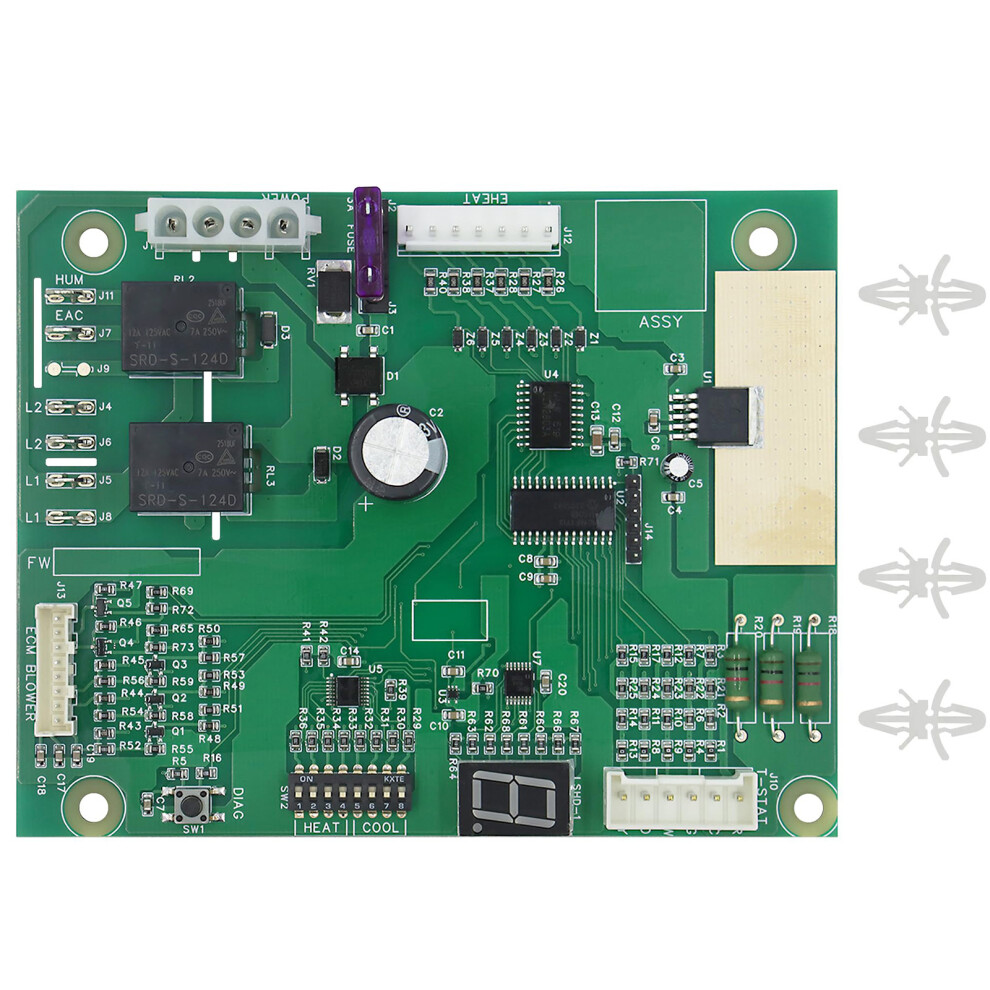

Control Module 1006801R For Furnace And Air Handler for E7EB E7EM Models

Control Module 1006801R For Furnace And Air Handler for E7EB E7EM Models Description

Features: Compatible Replacement Control Board: Direct replacement for Nordyne 1006801R and Global HVAC 100.6800/1 control boards, designed for Intertherm, and other major furnaces brands with EHEAT/FSHE single stage electric heat systems. Wide Compatibility: Works with E7 series electric furnaces (10kW 23kW) including E7EB/E7EM/E7EU models and B6 series air handlers manufactured after 1. 1st, 2017, ensuring proper integration with existing HVAC equipment. Advanced Diagnostic Features: Equipped with 7 segment LED display for clear operating mode indication and fault code reading, enabling quick troubleshooting and maintenance of your heating systems. Precise Configuration Option: Features DIP switches setting for accurate blower speed adjustment 1-4 pins for heating and 5-8pins for cooling/heat pumps operations, providing customized airflows control. Reliabled Control: Serves as the main control module coordinating heating and blower operating,through precise IC manufacturing for durability performances in residential/commercial applications. Specifications: Component: PCB Process: High-precisions integrated circuit manufacturing Size: 14.2x11.2cm/5.6x4.41in for Nordyne Intertherm furnaces Replacement model 1006800/1, suitable for E7 and B6 series electric stove Practicality: Used to replace the air handler control panel to ensuring the normal operations of HVAC equipment Package Includes: 1Set 1006801R control panel note: Please allow 1-2cm errors due to manual measurement. Pictures may not reflect actual color due to different monitors.
