Coolant Pump Lubrication Spray System for Machine Tools - Oil Mist Sprayer & Cooler FP

Coolant Pump Lubrication Spray System for Machine Tools - Oil Mist Sprayer & Cooler FP Description

Item features:
Name: fully sealed machine tool cooling sprayer
Fuel tank height: 150MM
Universal flexible shaft length: 300MM
Diameter of air inlet: 8MM
Diameter of liquid inlet: 4MM
Length of liquid inlet: 1.5M
Minimum flow rate: 2.5ML/MIN
Maximum flow rate: 575ML/MIN
Applicable liquid: water, diesel, kerosene, alcohol, cutting liquid, saponification liquid, etc.
Package size: 30x18x20CM
Weight: about 2KG
Properties:
The refrigeration machine sprayer is injected through the gas inlet and liquid inlet, the gas flow enters the interior of the inlet chamber through the gas supply pipe, the liquid flows through the liquid nozzle into the liquid groove, and then is ejected through the liquid outlet. The liquid escaping from the nozzle is then atomized by the gas pressure into a mist and sprayed onto the workpiece. This results in a larger area for atomizing a small amount of liquid by the gas, which saves more liquid and improves the cooling effect.
*Pure black spray tube with high precision grinding tool, compact connection with high friction for better shaping and fixing, no air leakage.
*Use of higher cost black epoxy resin filled with rare earth strong magnets, making the adsorption force stronger and more solid.
*High quality black cardan joint, good sealing, no air leakage. Repeatedly used, no air leakage and no slipping after several unplugging.
*Copper joint, non-slip design of joint, easy to use.
*Pure copper filter nozzle that filters impurities in the liquid and prevents the line from clogging.

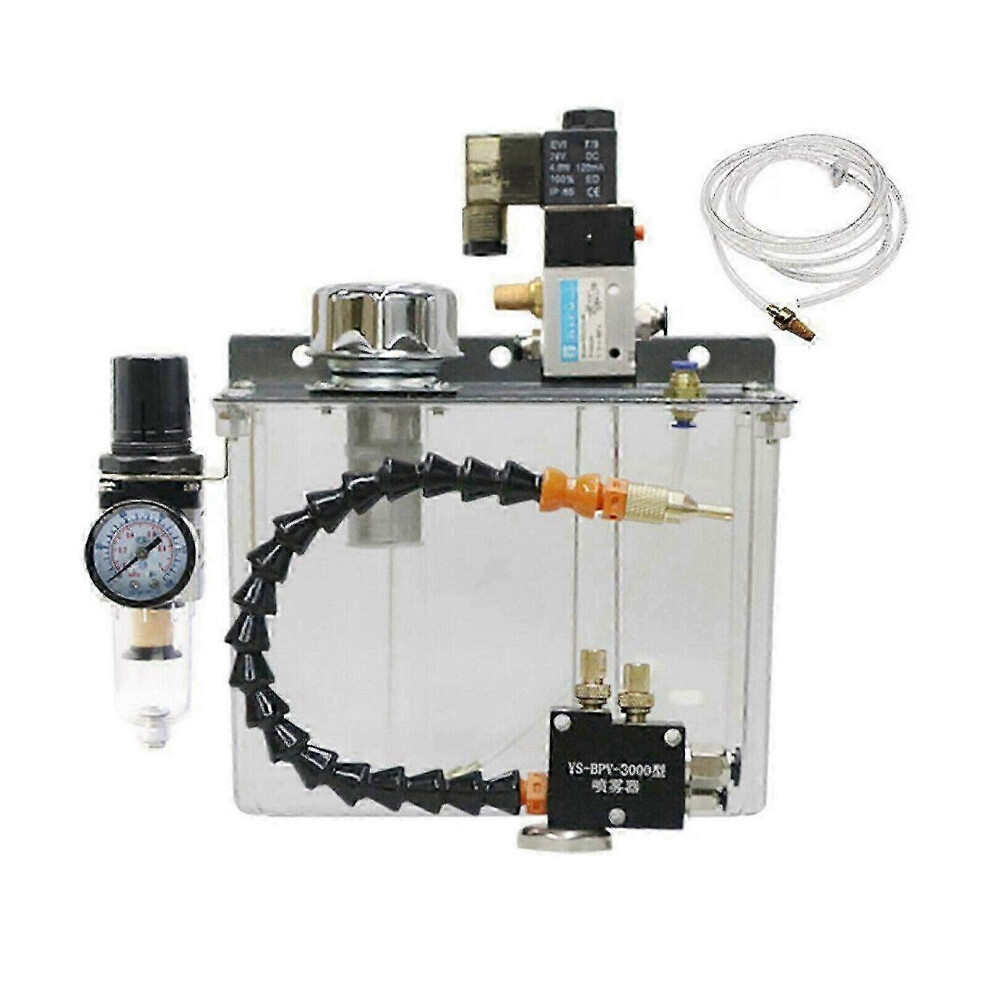

Scope of delivery:

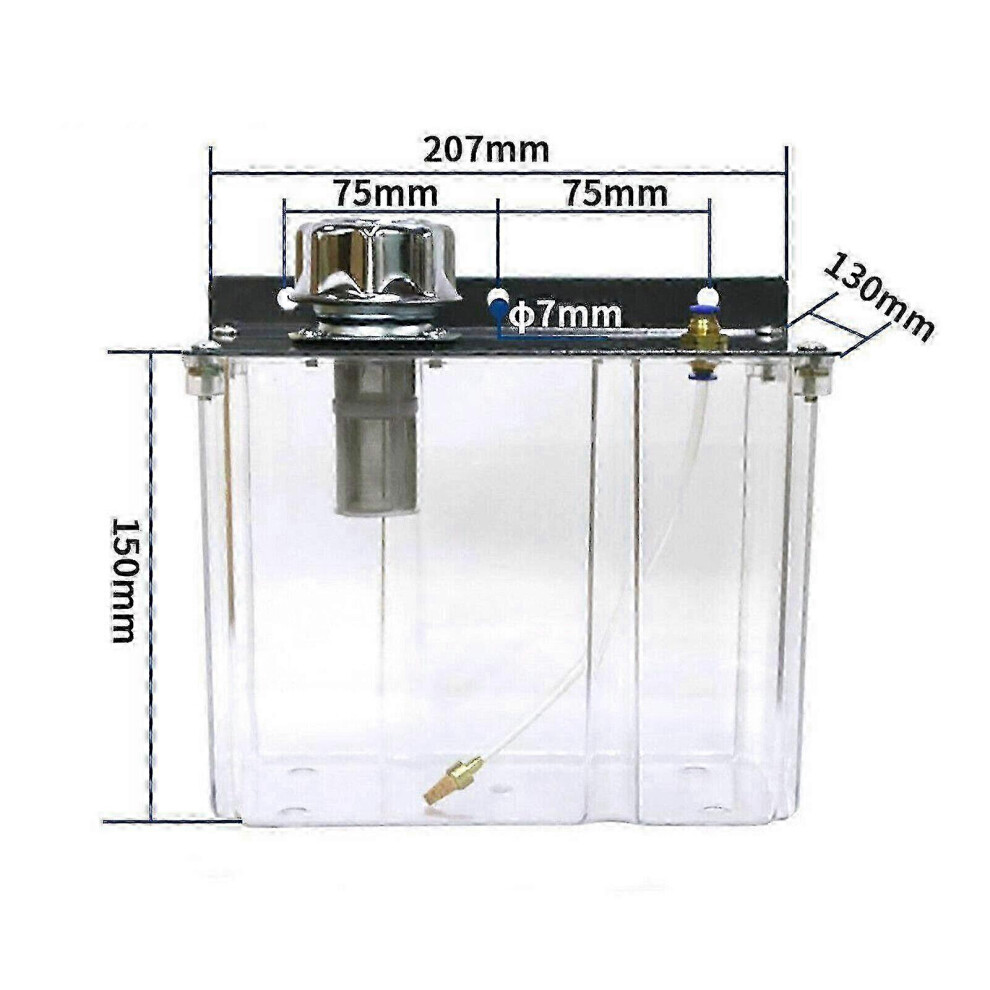

1 x 3L fuel tank
1 x universal flexible wave base (with strong magnetic base)

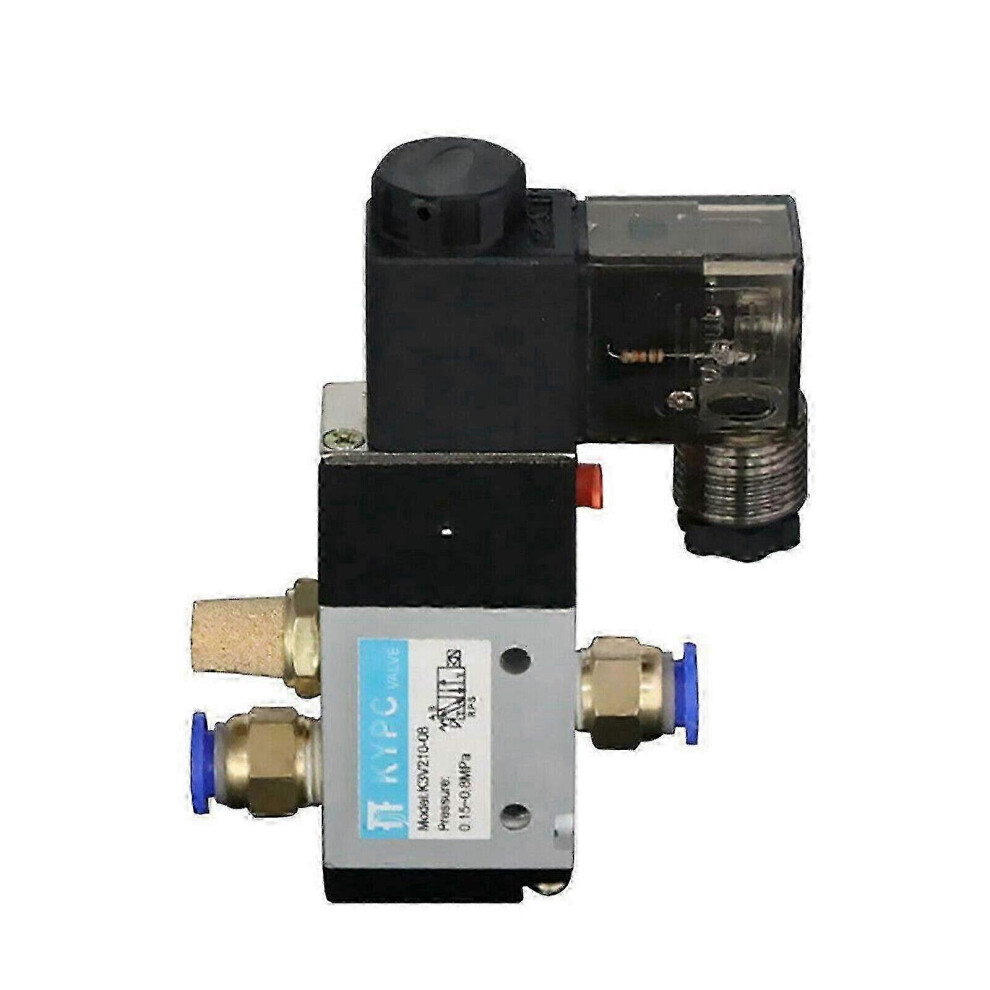

1 x Solenoid valve (24V/110V/220V)

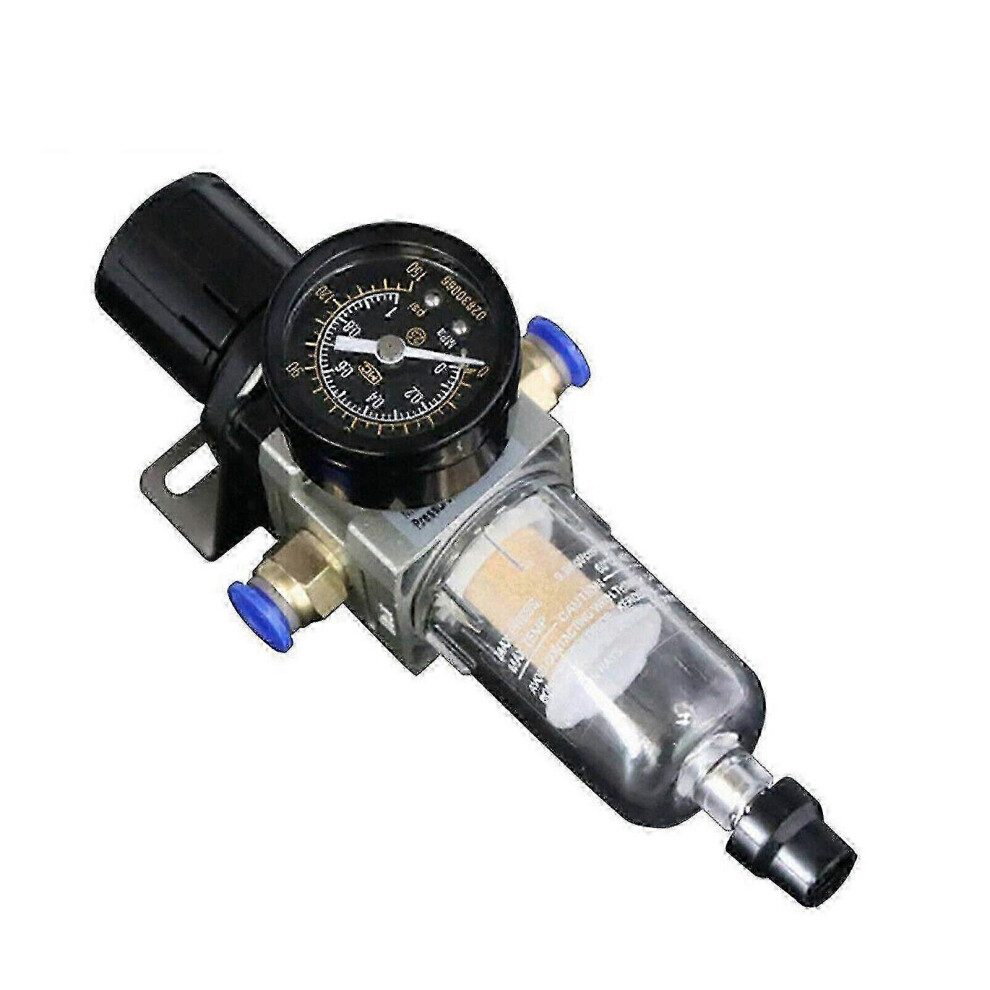

1 x Pressure regulator
1 x Water pipe
