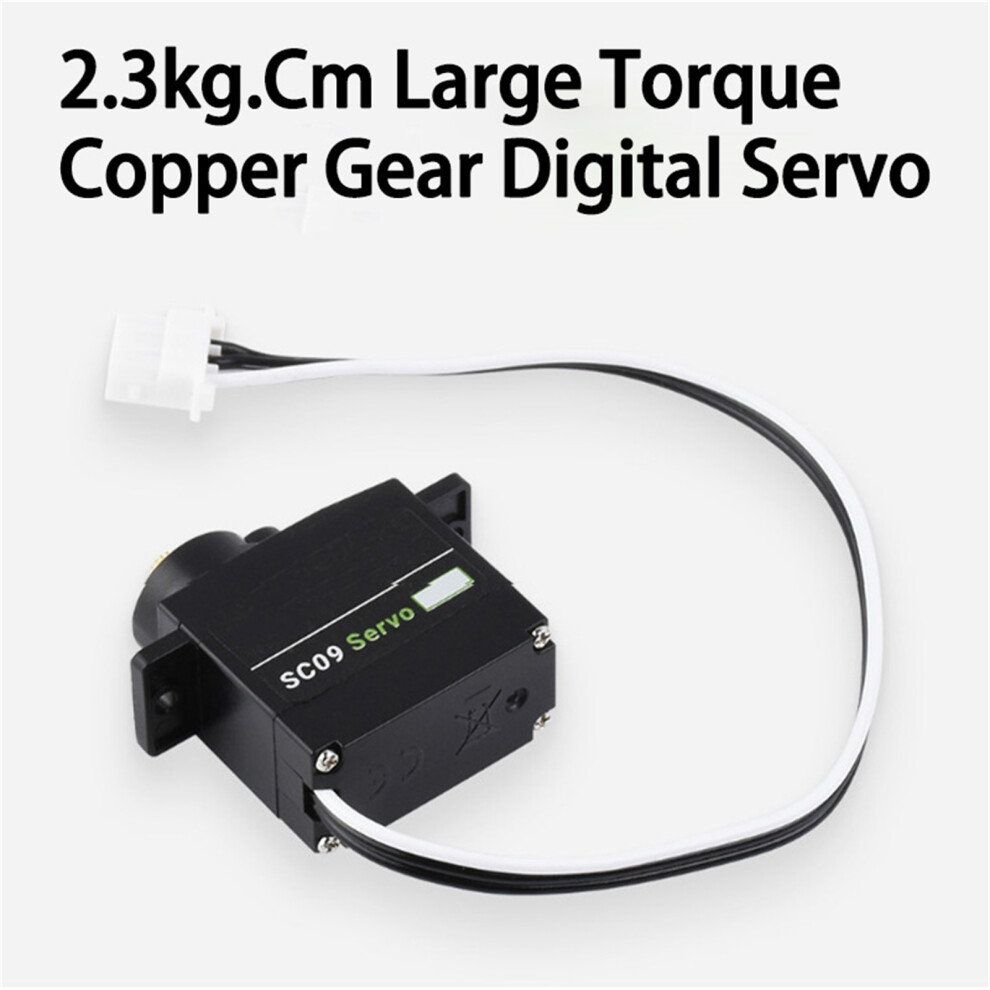

Copper Gear Digital Servo High-Reliability 180 2.3kg.Cm Large Torque Compact

Copper Gear Digital Servo High-Reliability 180 2.3kg.Cm Large Torque Compact Description

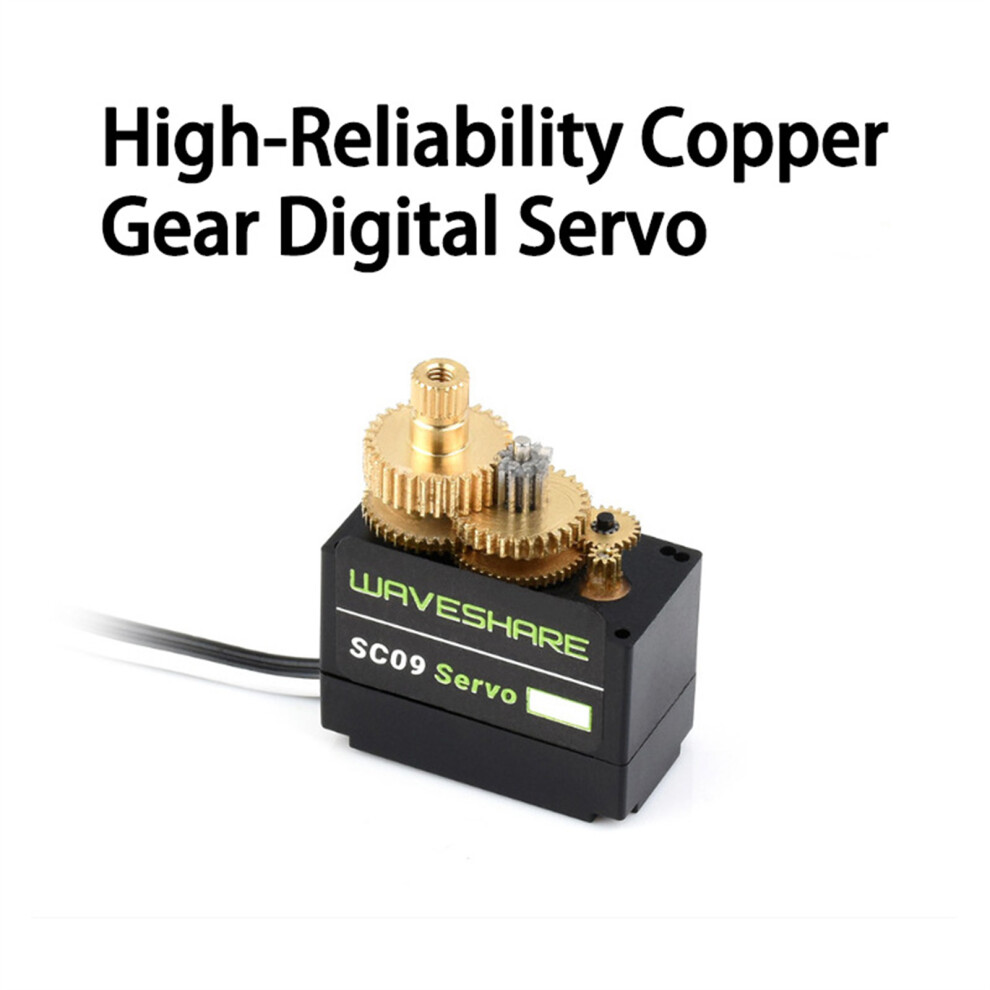

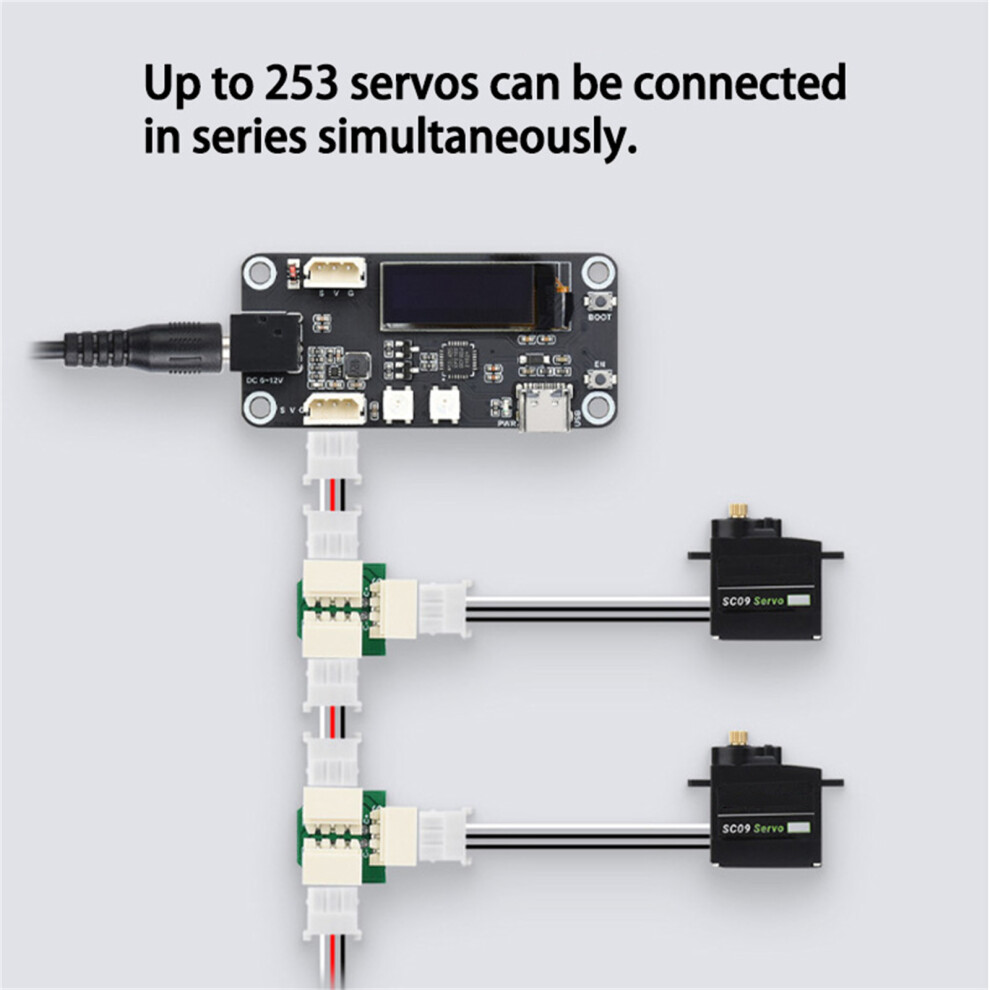

Features: Brand new and high quality Equipped with a digital comparator control system, it achieves precise angle control and positioning, ensuring accurate and stable movement. Built-in metal gears and ball bearings provide durability and reliability, suitable for prolonged and frequent operations. It is suitable for various fields, including robotics, model making, aviation modeling, smart homes, and more. High flexibility with a 180-degree rotation angle and adjustable control parameters to accommodate various needs. The compact and sleek design enhances the aesthetic appeal of the product. Specifications: Stall Torque: 2.3kg.cm@6V Rateds Torque: 0.7kg.cm@6V Rotations Angle: 300 (0~1024) No-load Current: 150mA@6V Stall Current: 1.0A No-load Speed: 0.1sec/60 (100RPM)@6V Operating Voltage: 4.8~8.4V Position Sensor Resolution: 0.293 (300/1024) Mechanical Limit Angle: Unlimiteds Gear Type: High-precisions Metals Gear Motor Type: Cores Motor Bearing Type: Non-balls Bearing Output Shaft: 20T/OD3.95mm Encoders Type: Carbon Film Potentiometer Control Signal: Digital Signal Protocol Type: Half-Duplexs Asynchronous Serials Communication Bauds Rate: 38400bps~1Mbps ID Range: 0~253 Neutral Position: 150 (511) Feedback: Position, Load, Speed, Input Voltage Package Includes: 1PC x 2.3KG SC09 Servo note: No retail package. Please allow 1cm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
