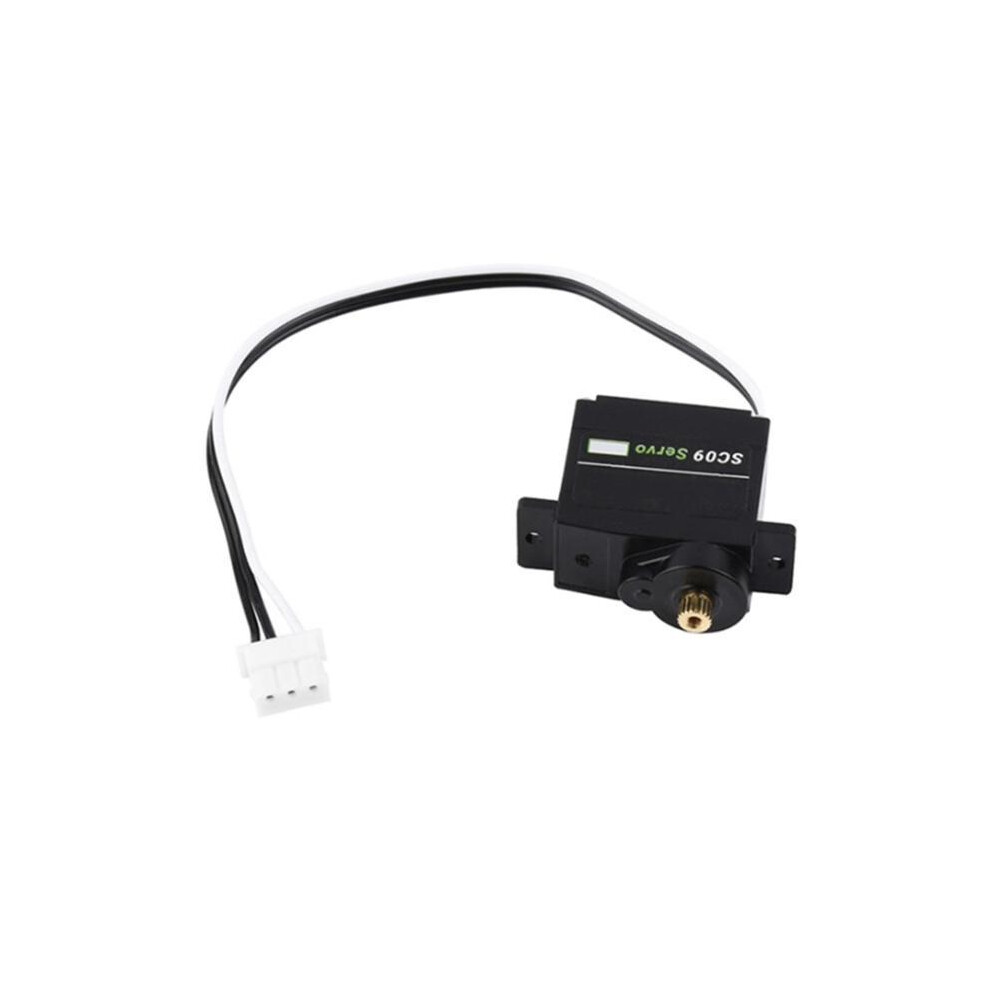

Copper Teeth Design SC09 Servo Compact and Lightweight Design with Fast Response Speed for Robotics

Copper Teeth Design SC09 Servo Compact and Lightweight Design with Fast Response Speed for Robotics Description

High-concerned chemical : None

Model Number : Y1UB13AC1200497

Brand Name : peacefair

Certification : None

Origin : Mainland China

Features:

Brand new and high quality

Equipped with a digital comparator control system, it achieves precise control and positioning, ensuring accurate and stable movement.

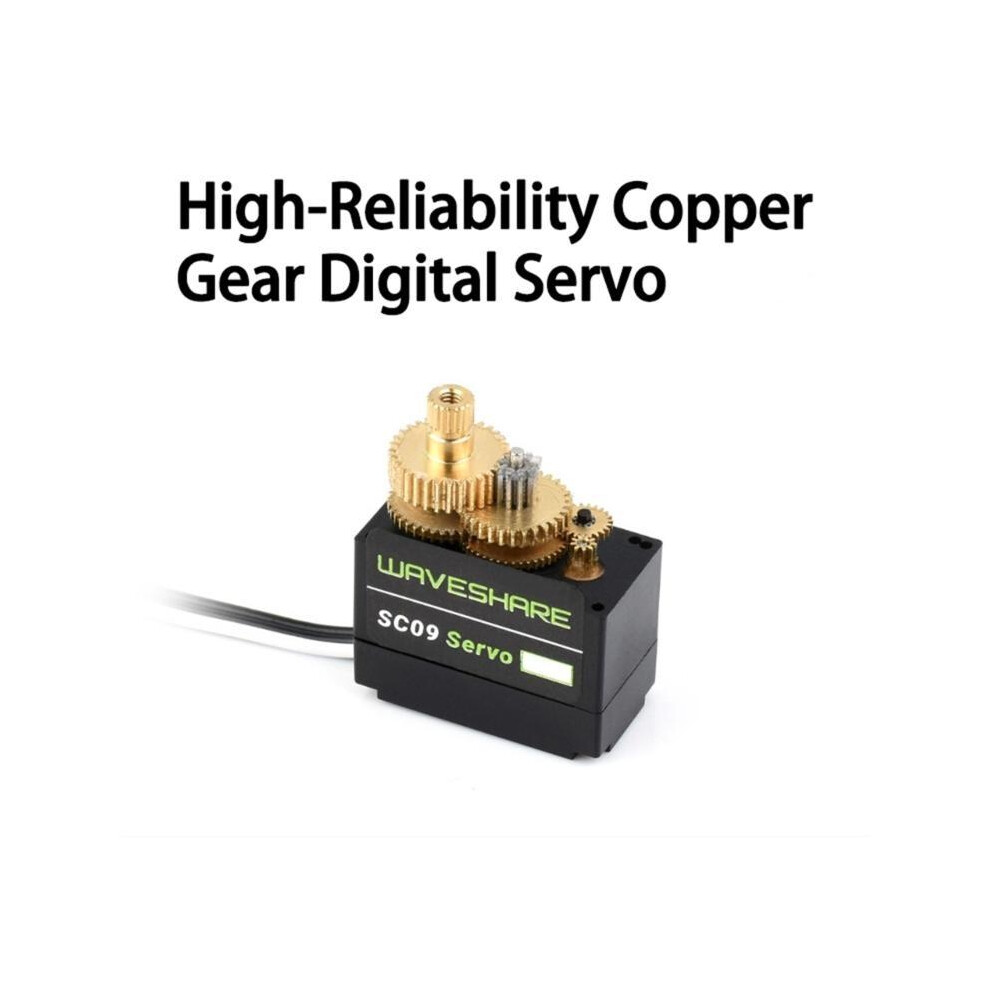

Built-in metal gears and ball bearings provide durability and reliability, suitable for prolonged and frequent operations.

It is suitable for various fields, including robotics, model making, aviation modeling, homes, and more.

High flexibility with a 180-degree rotation and adjustable control parameters to accommodate various needs.

The compact and sleek design enhances the aesthetic appeal of the product.

Specifications:

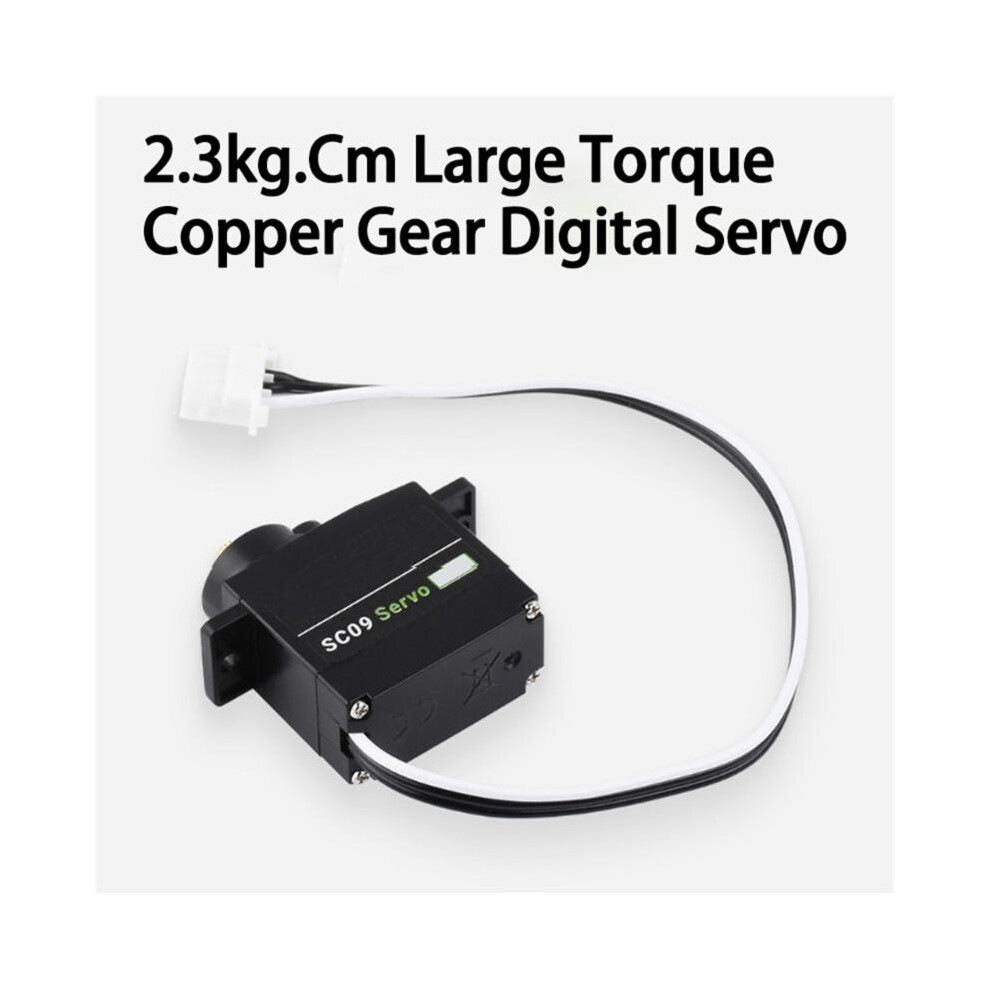

Stall Torque: 2.3kg.cm@6V

Rateds Torque: 0.7kg.cm@6V

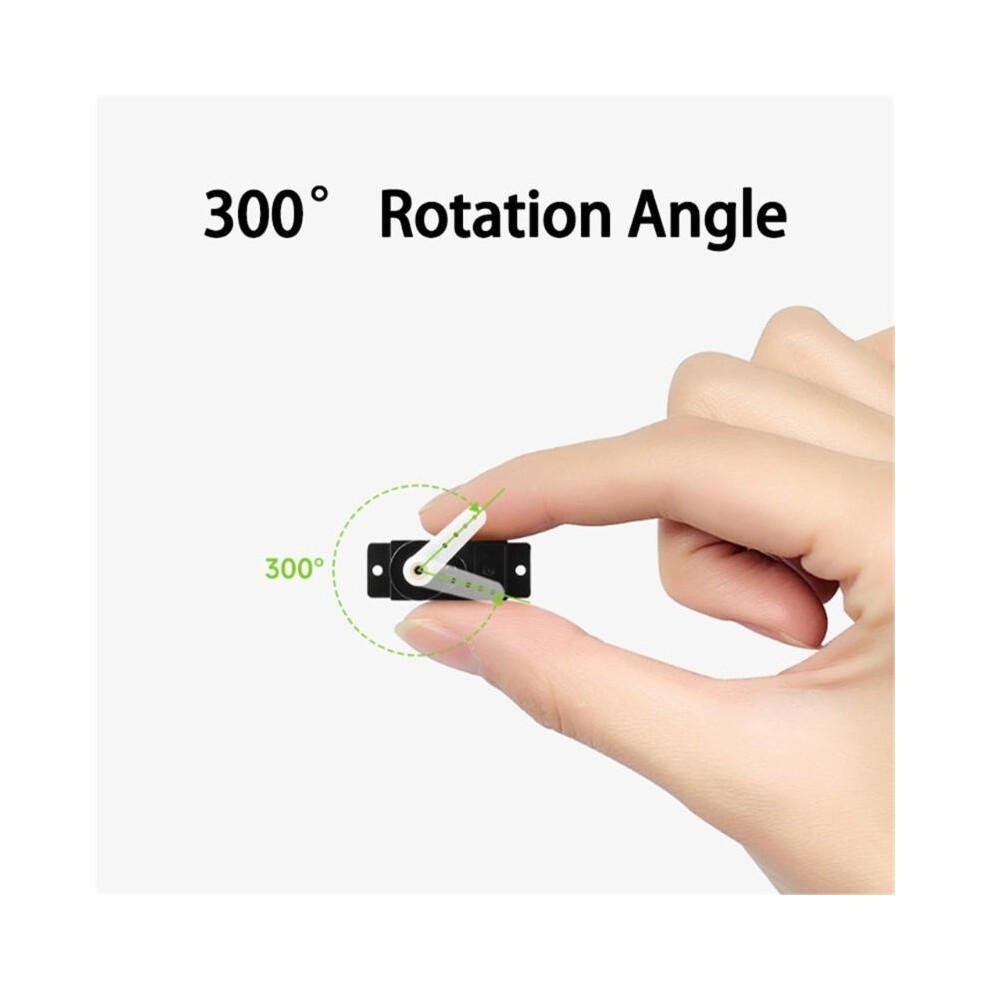

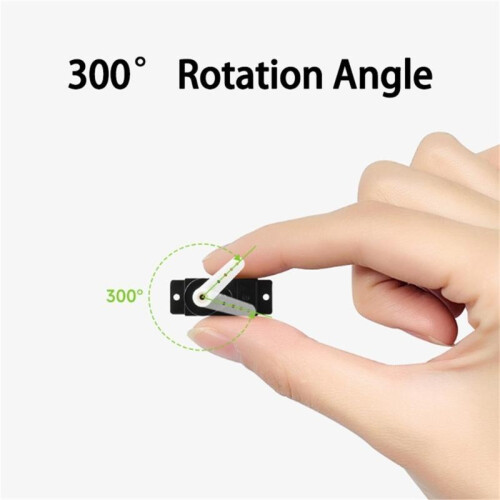

Rotations 300 (01024)

No-load Current: 150mA@6V

Stall Current: 1.0A

No-load Speed: 0.1sec/60 (100RPM)@6V

Operating 4.88.4V

Position Resolution: 0.293 (300/1024)

Mechanical Limit Unlimiteds

Gear Type: High-precisions Metals Gear

Motor Type: Cores Motor

Bearing Type: Non-balls Bearing

Output Shaft: 20T/OD3.95mm

Encoders Type: Carbon Film Potentiometer

Control Digital

Type: Half-Duplexs Asynchronous Serials Communication

Bauds Rate: 38400bps1Mbps

0253

Neutral Position: 150 (511)

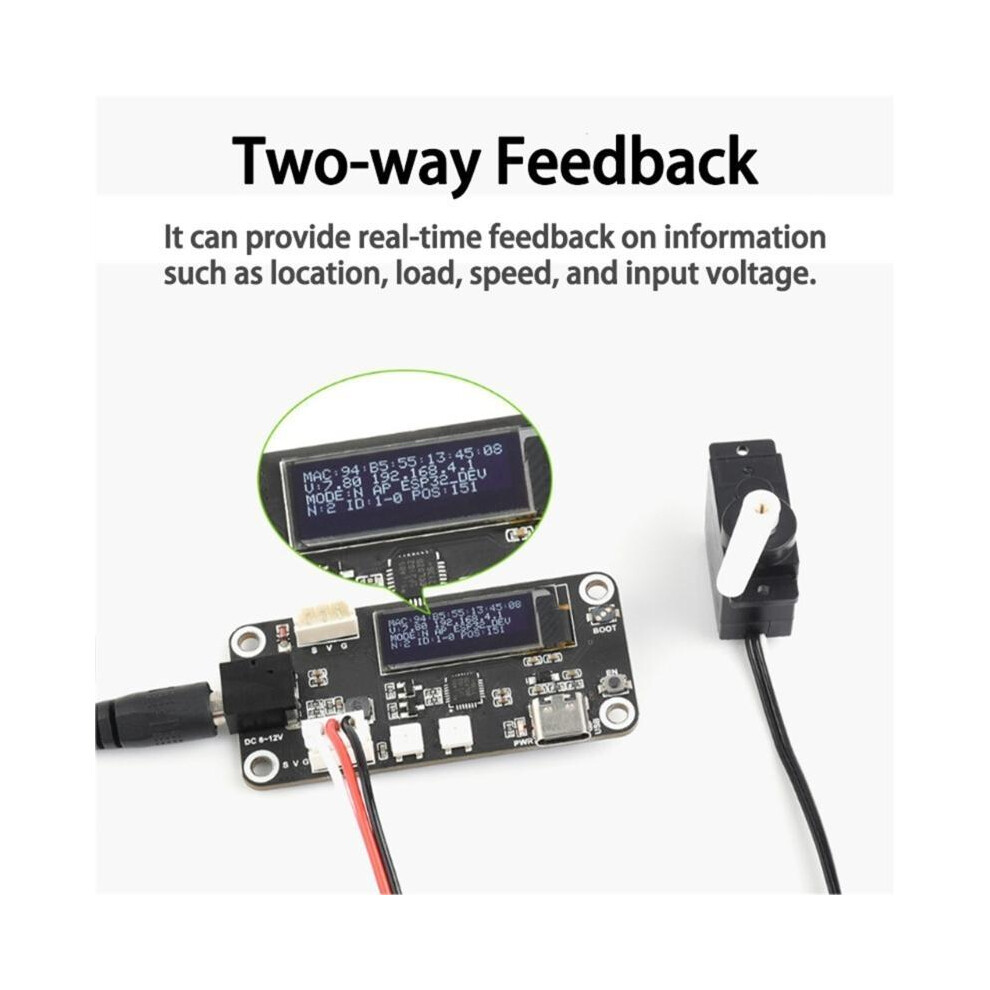

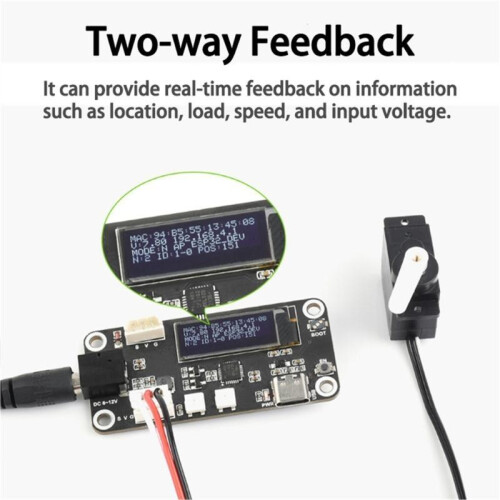

Feedback: Position, Load, Speed, Input

Package Includes:

1PC x 2.3KG SC09 Servo

Note:

No retail package.

Please allow 1cm error due to manual measurement. pls make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
