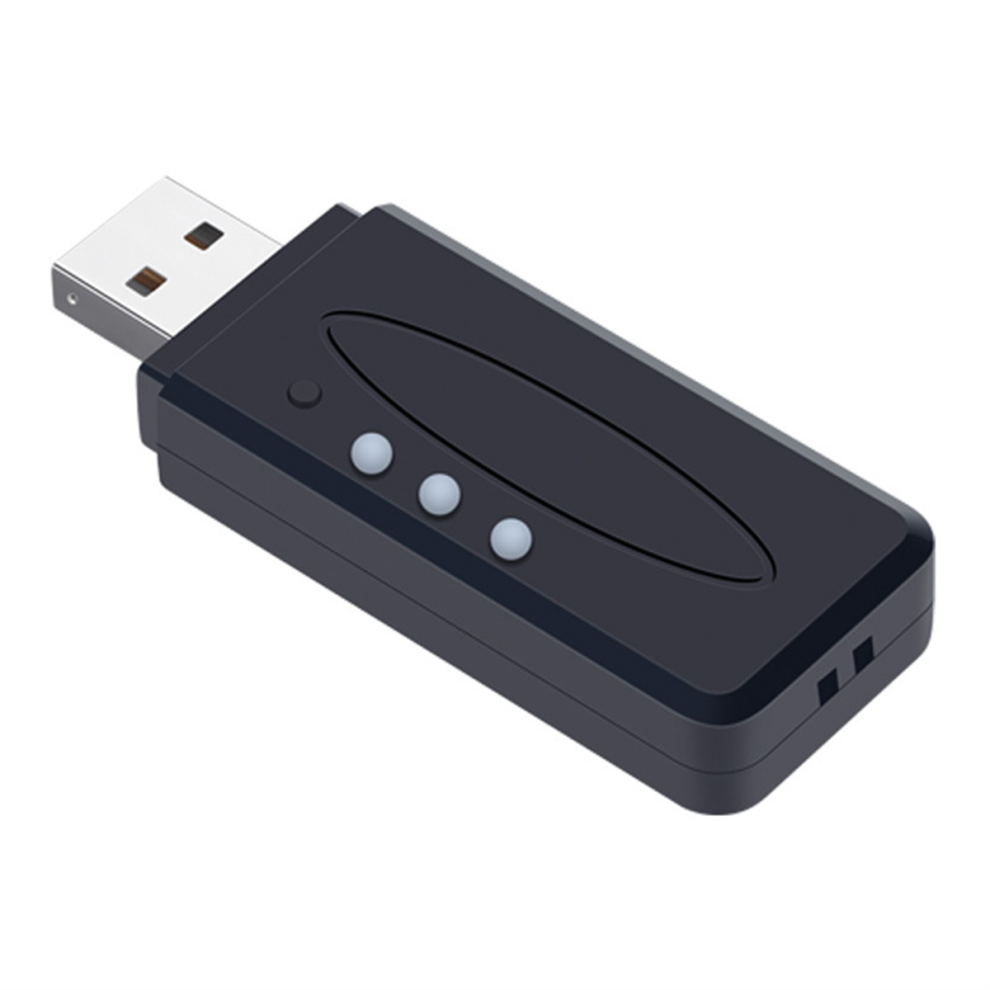

CP11 Slave Bluetooth USB to TTL Serial Adapter Built in Ble 5.1 Module Long Range Transceiver for Android/IOS

CP11 Slave Bluetooth USB to TTL Serial Adapter Built in Ble 5.1 Module Long Range Transceiver for Android/IOS Description

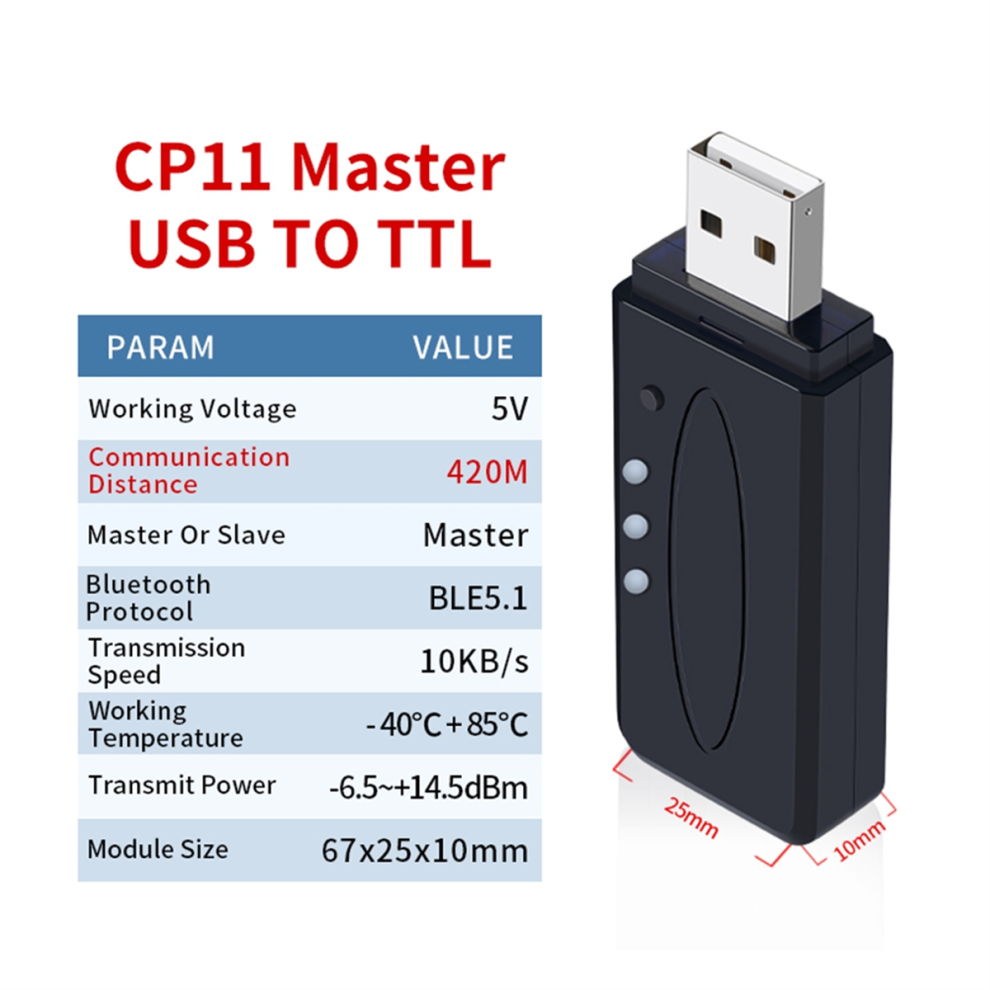

Module name:DX-CP11Master+Slave; interface type:USB; Bluetooth:BLE 5.1; Visible distance:420 m; Module size:67 x 25 x 10mm; Applicable scenarios:Wireless transparent data transmission

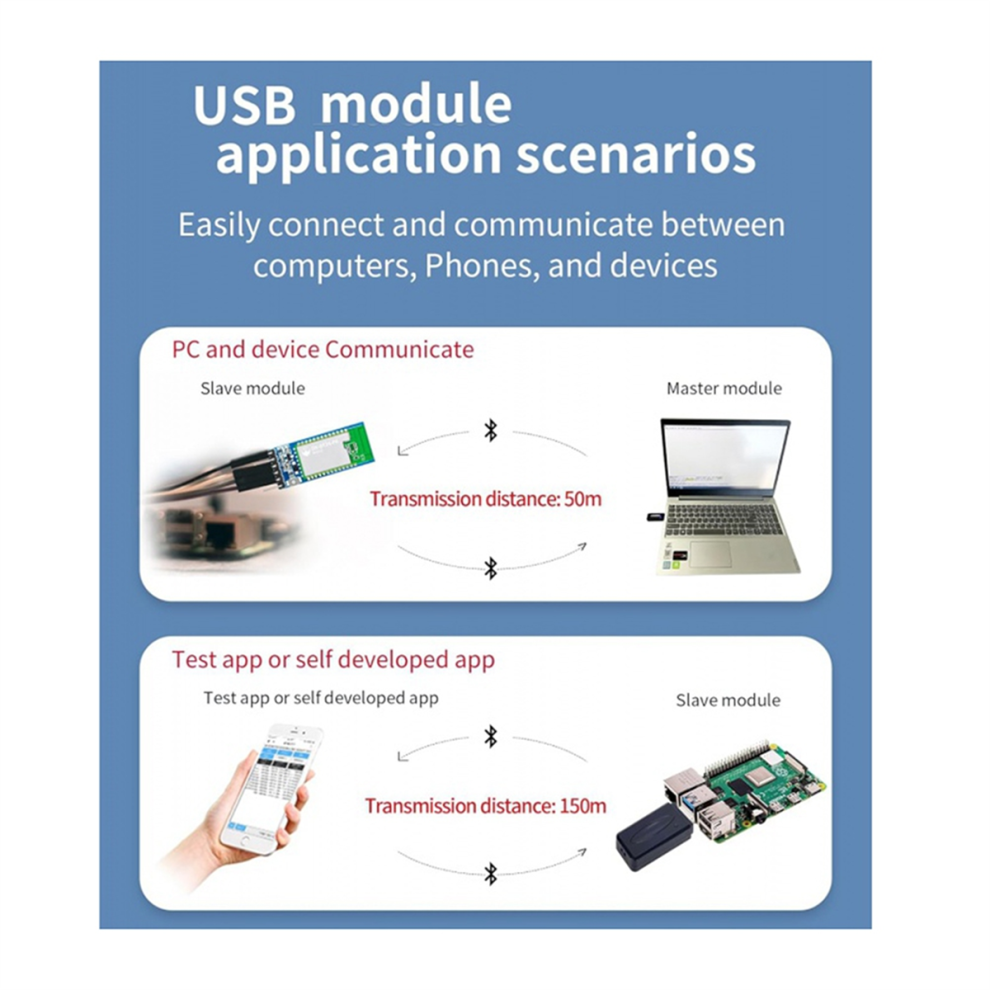

Products Using Tutorials; CP11 Bluetooth Adapter Features; Hibernation Power Consumption as low as 2uA; With housing dustproof and anti-static; Standard USB port solid and reliable; USB Bluetooth Module Application Scenarios; Easy to connect and communicate between computers, mobile phones and devices
PCs and devices communicate with each other; Mobile phones and devices communicate with each other.; Mobile phones and PCs communicate with each other; Devices communicate with each other
Stable transmission over long distances; Master-slave connection up to 600 metres; Mobile phone connectivity up to 240 metres

Test Cases
Test Equipment: Master-Slave Module
Test site: Along the river highway
Frequency:2405-2480MHZ
Weather conditions: Cloudy
Real-time temperature: 28C
Modules voltage: 3.3V
Antenna height: l metre
Antenna gain: 0.5dBi
Testing distance: 600 metres
Packet loss: no more than 5%
How to use the KEY button
Slave module
Module Status: and hold for 200ms to disconnect * Connection Status: and hold to enter pairing mode release after being connected. Standby Status
Master module
Connected Status: and hold for 200ms to disconnect * Standby Status: and hold for 7 seconds to clear the memory address code
Multi-function status indicator
Built-in four kinds of status lights, respectively indicate different working conditions
unconnected:Red light flashing
connected:Red light is always on When sending instructions:Green light blinks for successful transmission blue light blinks for successful reception Upon sending andreceiving data:Green light blinks for successful transmission blue light blinks for successful reception
Color: Black
Material: plastic

Package Contents:
1 * CP11 Adapter

Only the above package content, other products are not included.
