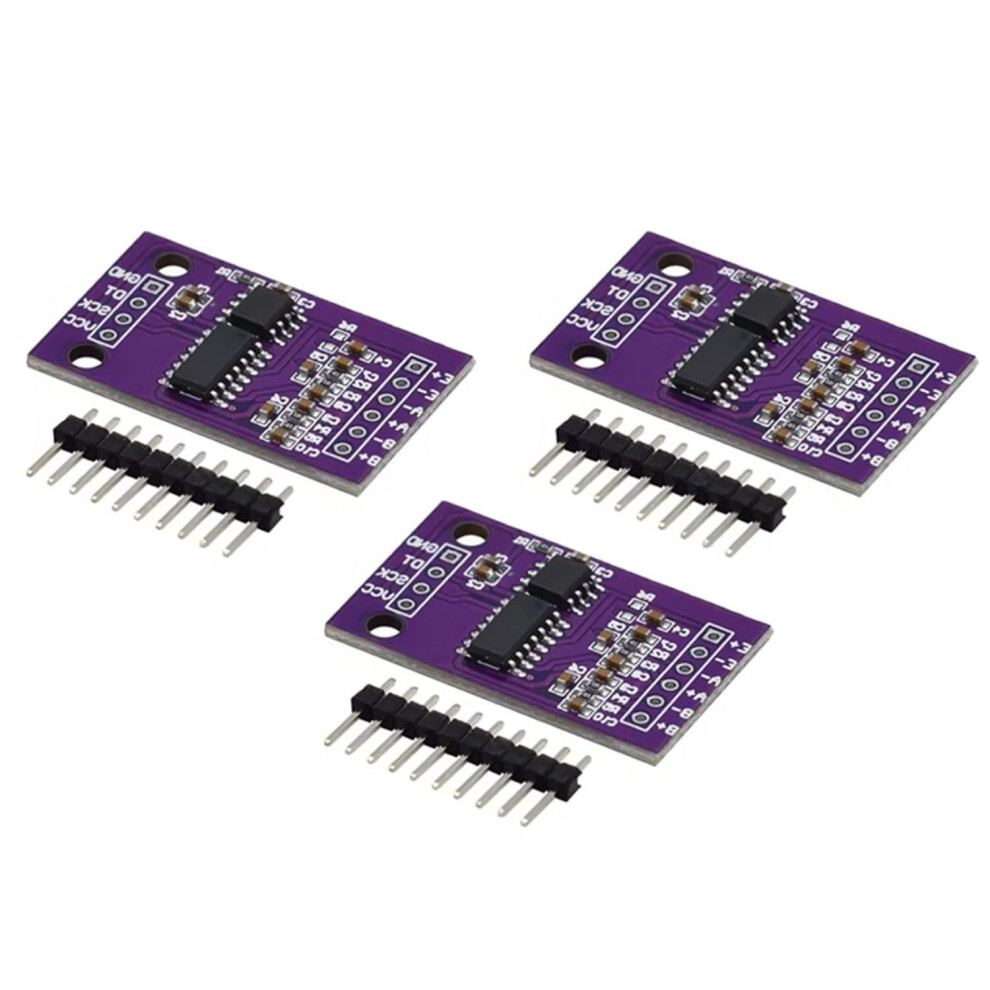

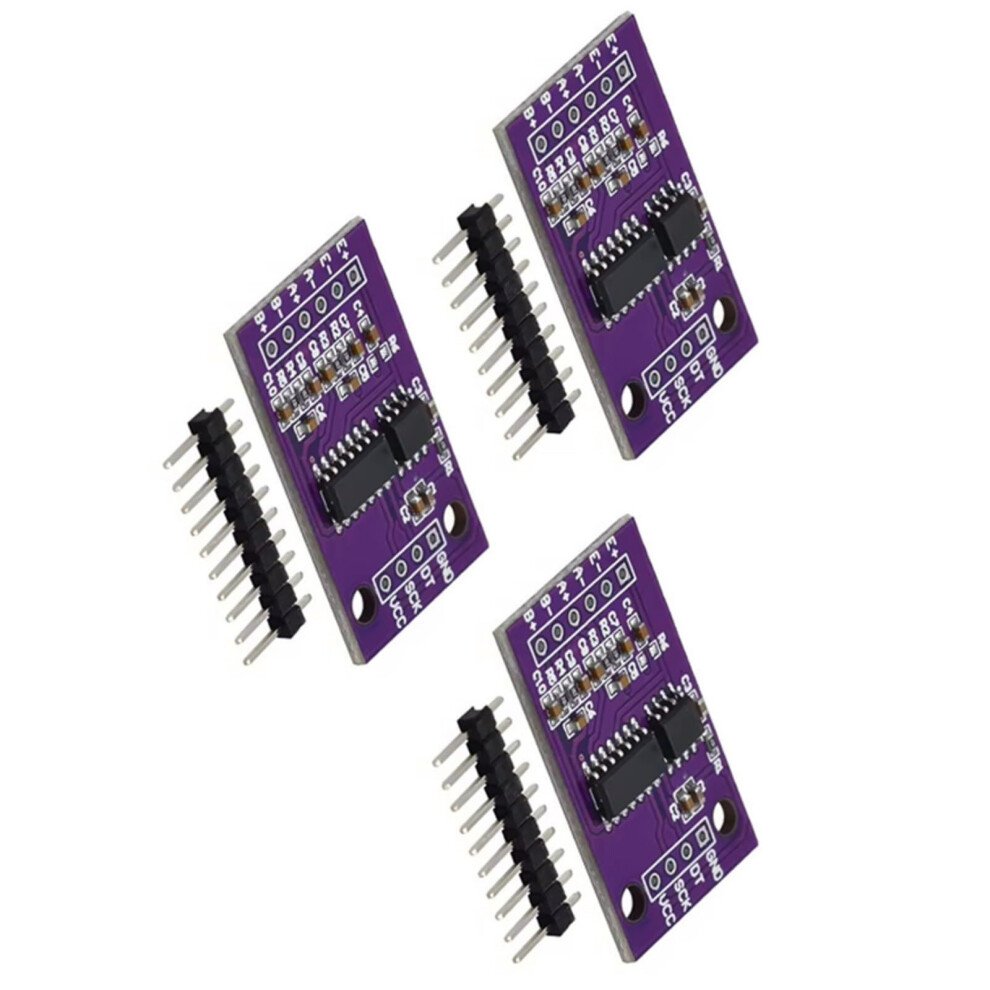

CS1238 24 Bit ADC Module Dual Channel Precision Weight Sensor Board for Industrial Automation 3 Sets

CS1238 24 Bit ADC Module Dual Channel Precision Weight Sensor Board for Industrial Automation 3 Sets Description

precision 24bit weighing sensing module with dualchannel input, designed for accurate weight and sensor measurements. Key benefits Stable reference and low drift: builtin TL431 voltage reference ensures consistent performance and improved stability across temperature variations. Flexible gain control: programmable PGA with selectable gains 1x, 2x, 64x, and 128x to match a wide range of sensor sensitivities and signal levels. Configurable sampling rates: selectable output/sample rates of 10 Hz, 40 Hz, 640 Hz, and 1.28 kHz to balance noise performance and response time for different applications. Dualchannel input: accepts two sensor inputs for independent measurements, differential sensing, or redundant/averaged readings to improve accuracy. Laboratorygrade conversion: 24bit resolution ADC provides precision required by developers, industrial automation engineers, and measurement technicians. Function and compatibility Converts analog sensor signals (for example from load cells or weighing sensors) into resolution digital measurements for downstream processing or logging. Programmable gain and selectable sampling rates make the module adaptable to a variety of sensor types and signal conditions without changing external hardware. Designed to integrate into development, test, and industrial systems where precise analogtodigital conversion is required. Performance and reliability 24bit resolution for fine measurement detail and repeatability. TL431 voltage reference and selectable sampling rates help maintain stable measurements across temperature changes and longterm operation. Dualchannel architecture supports multisensor setups or differential measurement configurations to reduce commonmode errors. Typical applications Bench testing and calibration of load cells and precision sensors in R&D or quality control labs. Industrial weighing systems and automation where accurate weight monitoring and multichannel sensing are required. Embedded measurement systems and data acquisition setups that require resolution analogtodigital conversion for process monitoring or control. Who should use it Developers building sensor interfaces or embedded measurement systems. Industrial automation engineers integrating accurate weighing or force sensing into control systems. Precise measurement technicians and laboratory staff needing reliable, resolution analogtodigital conversion.
