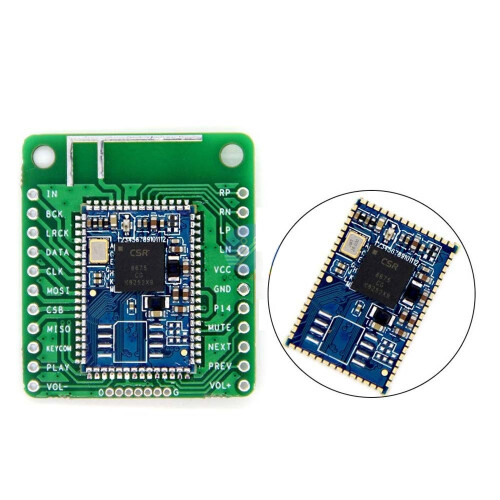

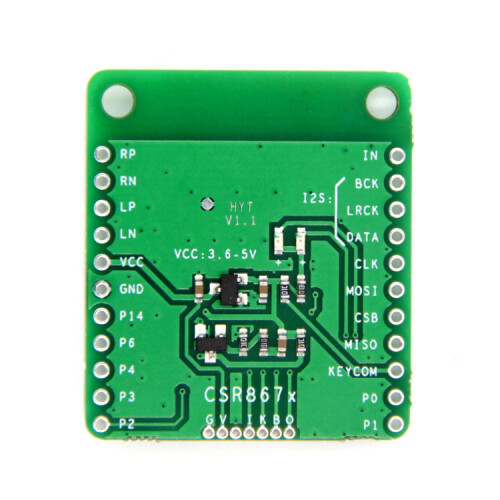

CSR8675 bluetooth 5.0 Audio Module Wireless Digital bluetooth Speaker Sound Audio Board Analog Output Low Power

CSR8675 bluetooth 5.0 Audio Module Wireless Digital bluetooth Speaker Sound Audio Board Analog Output Low Power Description

Description: It can support up to 24-bit/48 kHz audio, which means that we will be able to use wireless devices to hear better-quality music. Compared to the traditional 352 kbps ratio, it's increased bit rate to 576 kbps is undoubtedly more advantageous. Specification: Model Number: CSR8675 Power supply: DC 5V input Weight: about 10g Size: 3.1cm*3.5cm*0.5cm Master CSR8675 Bluetooth version V5.0 stereo audio module 1.Analog output (RP, RN, LPt LN), I2S output (BCK, LRCK, DATA), SPDIF output (DATA) 2.Function keys: KEYCOM, PLAY, VOL+, VOL-, PREV NEXTP high level 3.3V is valid. The button functions are described as follows: PLAY: play/pause (short press); re-pair (long press 2.5S); clear pairing list (long press 5S) VOL+: volume plus (short press, long press continuous volume plus) VOL-: Volume reduction (short press, long press continuous volume reduction) PREV: Previous song (short press) NEXT: next song (short press) KEYCOM: Button Common LED light: pairing status, double lights alternately flash; pairing is successful, single light flash Always in pairing when there is no connection, no standby Control external amplifier mute foot MUTE (with sound: output high 3.3V, no sound: output low level) Support AAC, for APTX,for APTX-LL,forAPTX-HD decoding Package included: 1 x Bluetooth V5.0 Audio Module
