Cubecell Series LoRa Node AM01 Module with SX1262 and ASR6502 Chip for and LoRaWAN Protocol Communication B

Cubecell Series LoRa Node AM01 Module with SX1262 and ASR6502 Chip for and LoRaWAN Protocol Communication B Description

Lorax Stream Long Communication Range:Boasts a robust communication range, ensuring reliable data transmission over vast distances.
High Receive Sensitivity:Equipped with a high-sensitivity receiver for optimal signal reception in challenging environments.
Low Power Consumption:Designed for efficiency, minimizing power consumption for extended battery life.
for Wireless Compatibility:Seamlessly integrates with for , offering versatile wireless connectivity for IoT projects.
LoRaWAN Protocol Support:Enables easy integration with LoRaWAN networks, facilitating device registration and management.

Specifications: B: 433-510Mhz
MCU: ASR6502 (48-MHz ARM Cortex-MO+ CPU, 16KB )
LoRa chip: Internally integrated Semtech LoRa Transceiver SX1262
Power consumption: Deep sleep 3.5uA
LoRa maximum output power: 2ldB 1dB

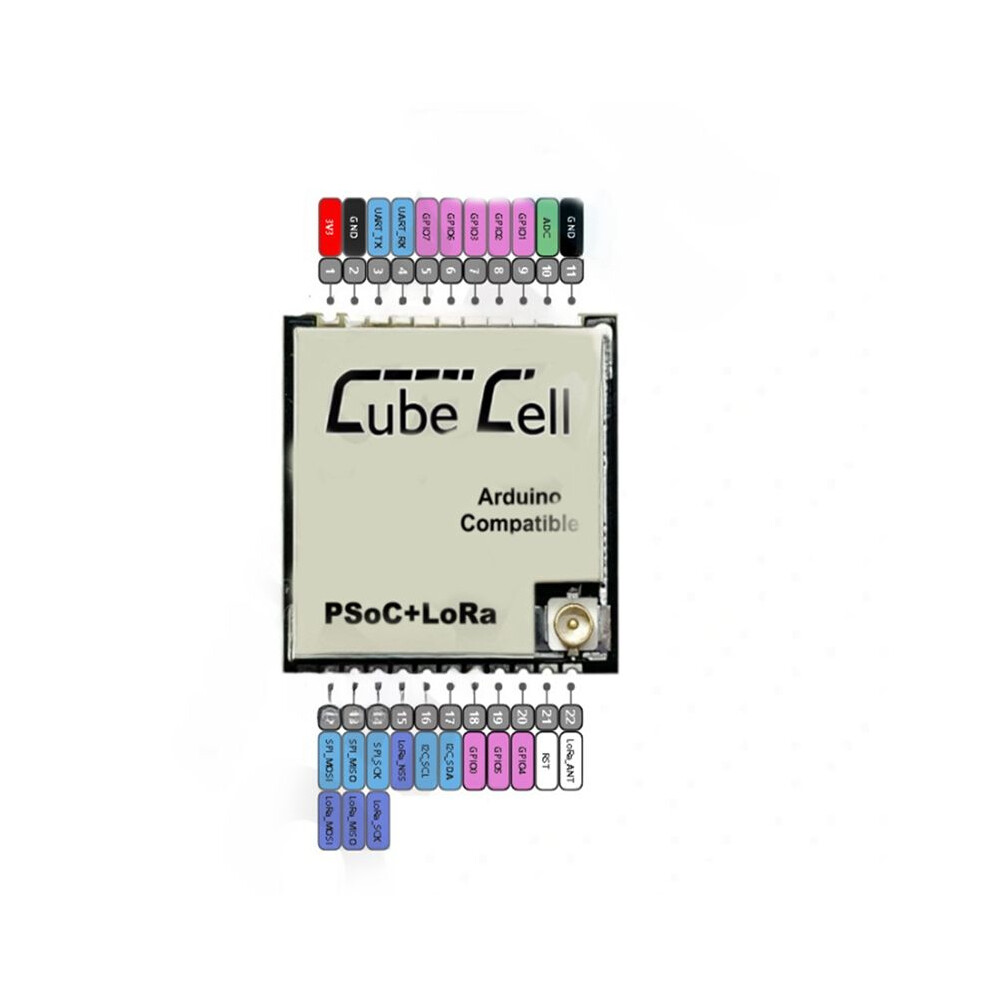

Hardware resources: UARTx1; SPIx1; I2Cx1; SWDx1
1x12-bits ADC; 8-channel DMA engine
8x general GPIO; 2xPWM
FLASH: 128KB Flash
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1 x LoRa Module
