CX-SF5B Voice Playback Module, Support TF Card U-Disk A

CX-SF5B Voice Playback Module, Support TF Card U-Disk A Description

1. 3.3-5.2VDC power supply, 3.7V and above is recommended
2. Support MP3, WAV decoding format, support audio file sampling rate up to 48KHz

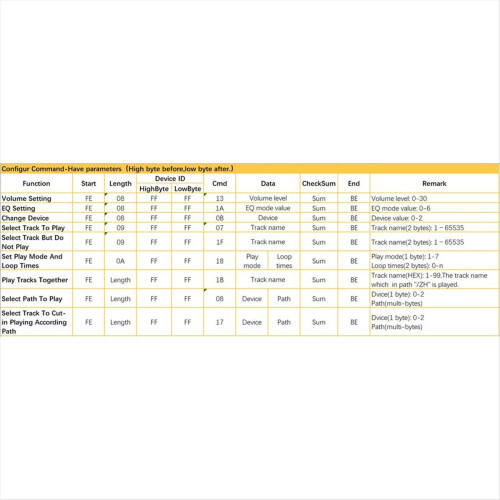

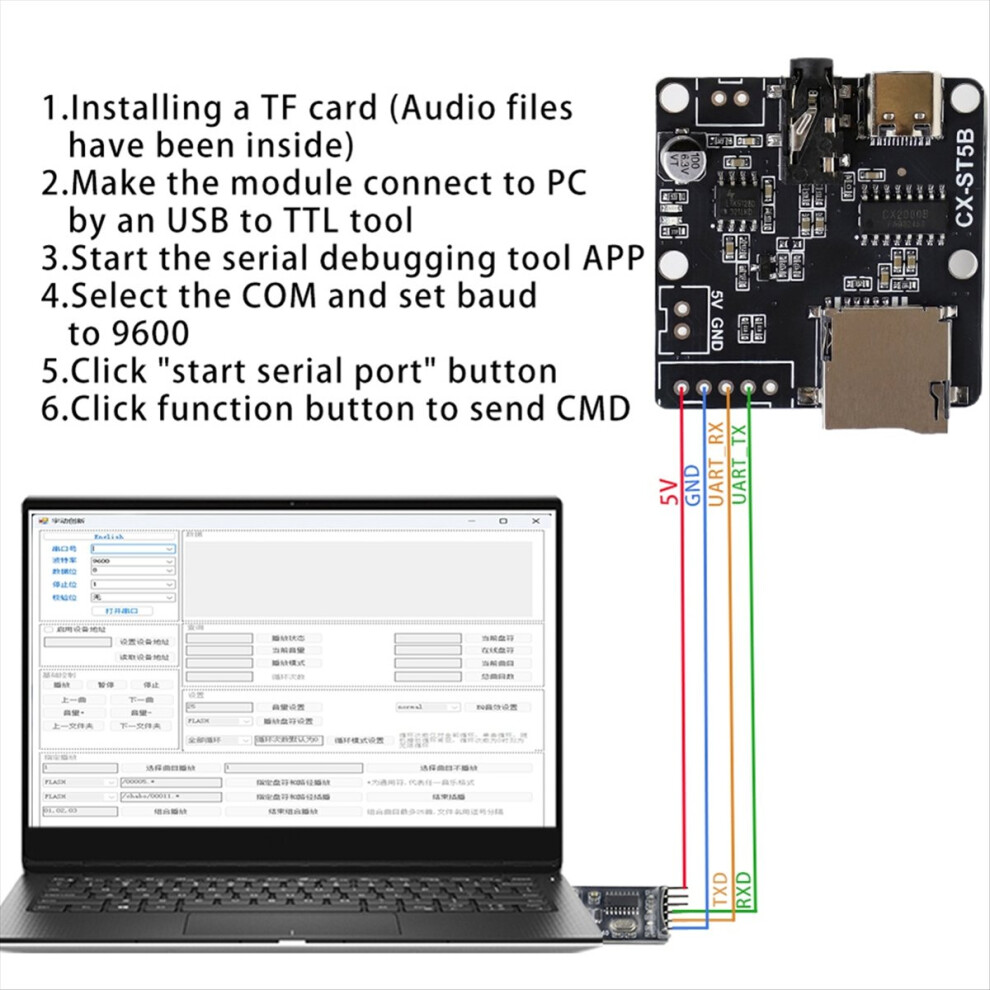

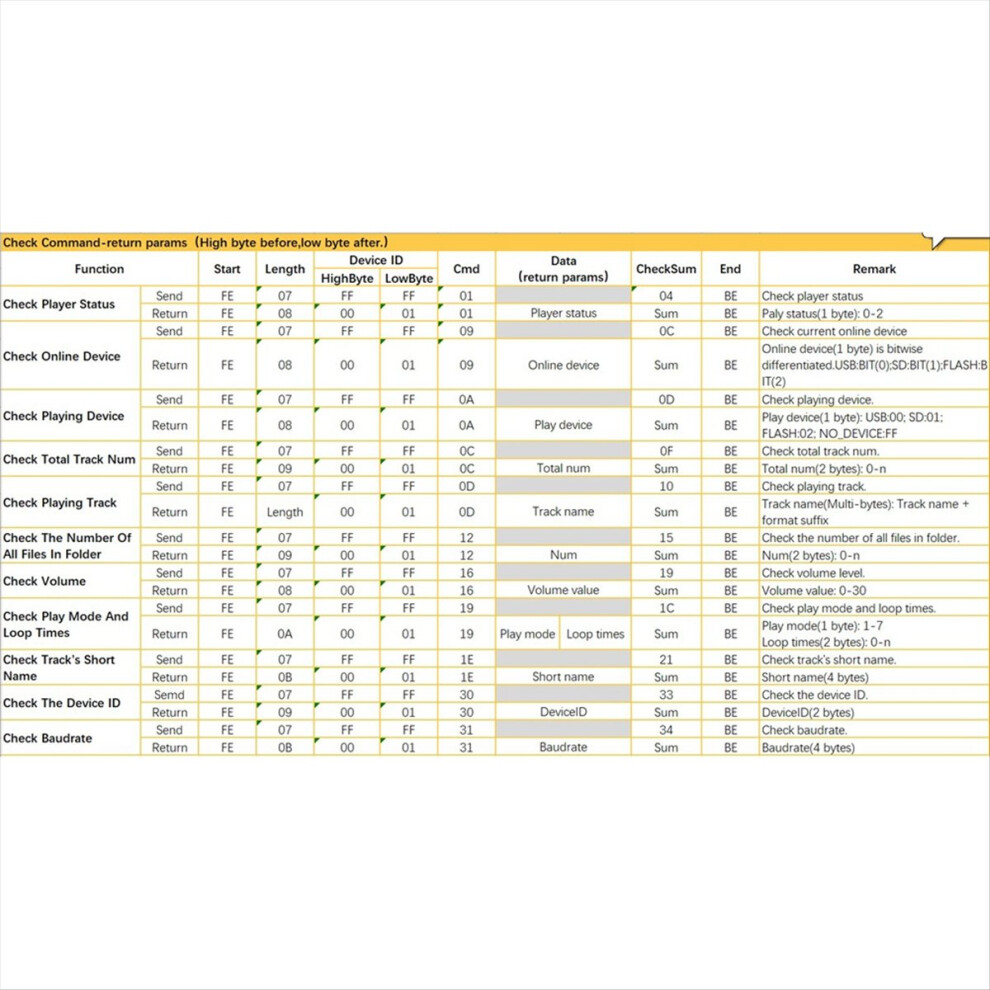

3. Support UART asynchronous serial port control, support play, pause, up and down songs, volume increase and decrease, EQ mode switch, song selection, specified path play, specified path insert and other functions
4. Comes with 5W Class D amplifier, can directly drive 3W-5W speakers
5. Support TF card (memory card), U disk; capacity within 32G, FAT32 format

6. Support custom audio files
CX-ST5B is a compact serial port (UART) controlled voice playback module that supports MP3 and WAV decoding formats.
3.3-5.2VDC wide voltage power supply, direct drive 4-8Ω speakers, maximum output power 5W.
Support TF card, U disk, connect to the computer via USB data cable to change audio files, suitable for many scenarios.
Colour:black
Material:PCB
style: B Welding terminal board
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use

Package Contents:
1 * Voice Playback Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
