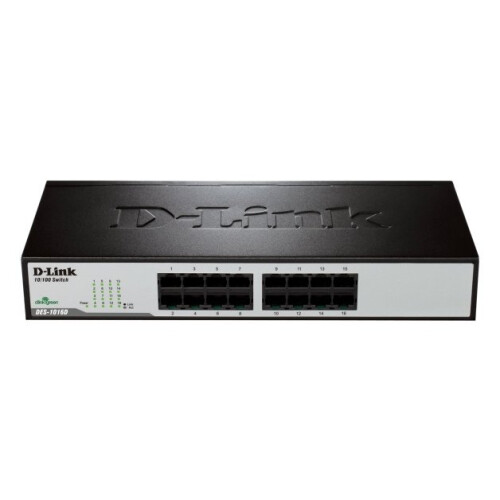

D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black

D-Link DES-1016D Unmanaged Fast Ethernet (10/100) Black Description

The DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.

Ideal for Basic Networking Tasks
With the D-Link DES-1016D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode.

Auto-Sensing 10/100 Ports
The DES-1016D use auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to 10 or 100 Mbps devices to create an integrated network. Each port automatically adjusts for straight-through or crossover cables to make the right link.

Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full.

Quality of Service (QoS)
The switches provide 802.1p priority queues for QoS, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection.

Save on Energy Costs
The switches support IEEE802.3az EEE which enables the switches to reduce power consumption when the switches are at low utilization, allowing users to save on power usage and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations.

Management features Switch type Unmanaged network switch Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 16 Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) Copper ethernet cabling technology 100BASE-TX,10BASE-T Networking Auto-sensing Yes Networking standards IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes 10G support No Data transmission MAC address table 8000 entries Switching capacity 3.2 Gbit/s Store-and-forward Yes Maximum data transfer rate 0.2 Gbit/s Protocols Supported network protocols CSMA/CD Design Colour of product Black LED indicators Activity, Link, Power, Power Certification FCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL Case design Freestanding Rack mounting No Performance Stackable No Mean time between failures (MTBF) 2266559 h Internal memory 2 MB Power AC input voltage 100-240 V AC input frequency 50/60 Hz Power consumption (typical) 2.89 W Technical details Colour of product Black Stackable No Mean time between failures (MTBF) 2266559 h Case design Freestanding Rack mounting No Power over Ethernet (PoE) Power over Ethernet (PoE) No Certificates Certification FCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL Memory Internal memory 2 MB Indication LED indicators Activity, Link, Power, Power Operational conditions Storage temperature (T-T) -10 - 70 °C Storage relative humidity (H-H) 5 - 90% Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 90% Heat dissipation 9.86 BTU/h Weight & dimensions Width 280 mm Depth 125.8 mm Height 44 mm
