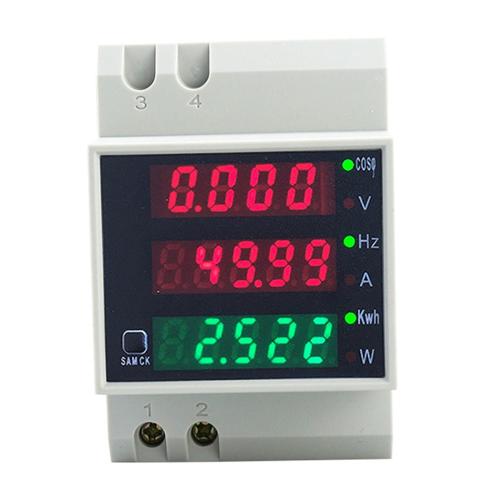

D52-2058 Wattmeter Volt Current Meter Power Factor Digital Meter,B

D52-2058 Wattmeter Volt Current Meter Power Factor Digital Meter,B Description

Measurement accuracy: 1% 2 characters.
Frequency: 45.00-6500HZ. Power factor: 1.000-0000
Measurement speed: about 2 times per second

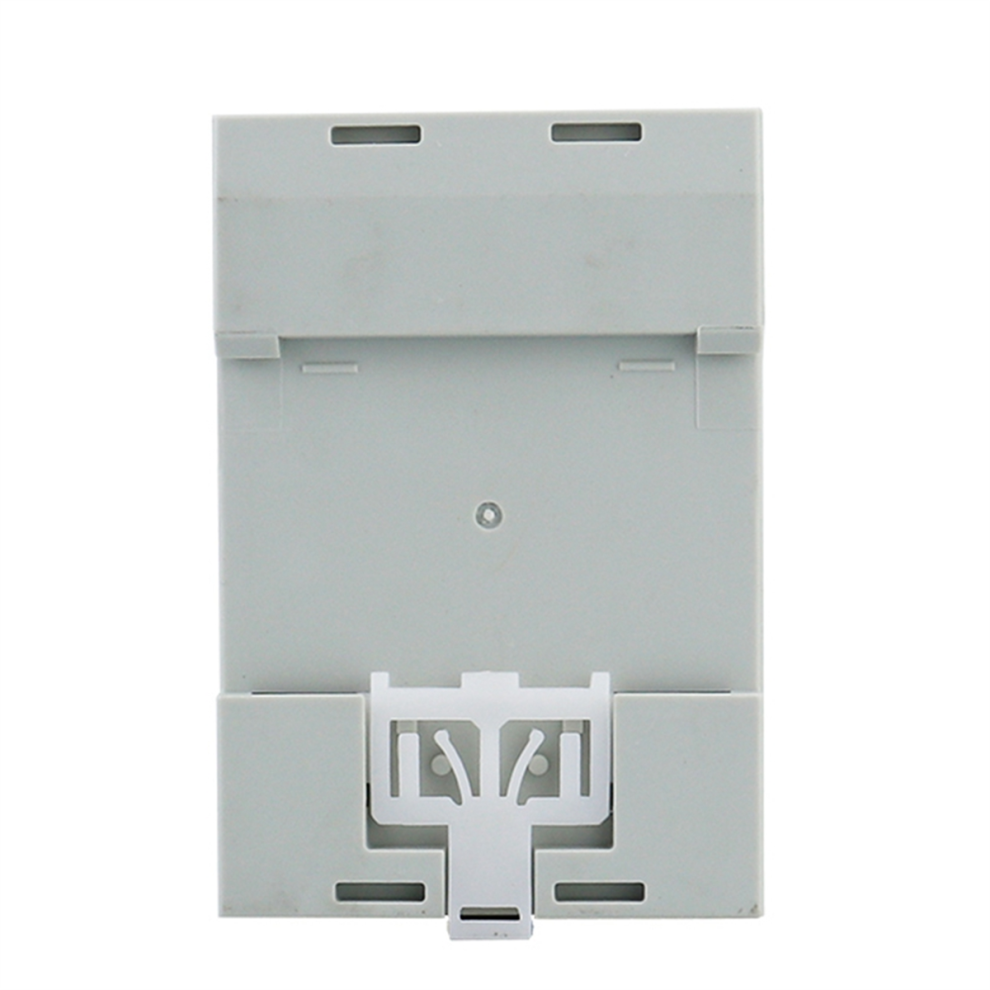

Installation method: track type (common guide rail in the market)

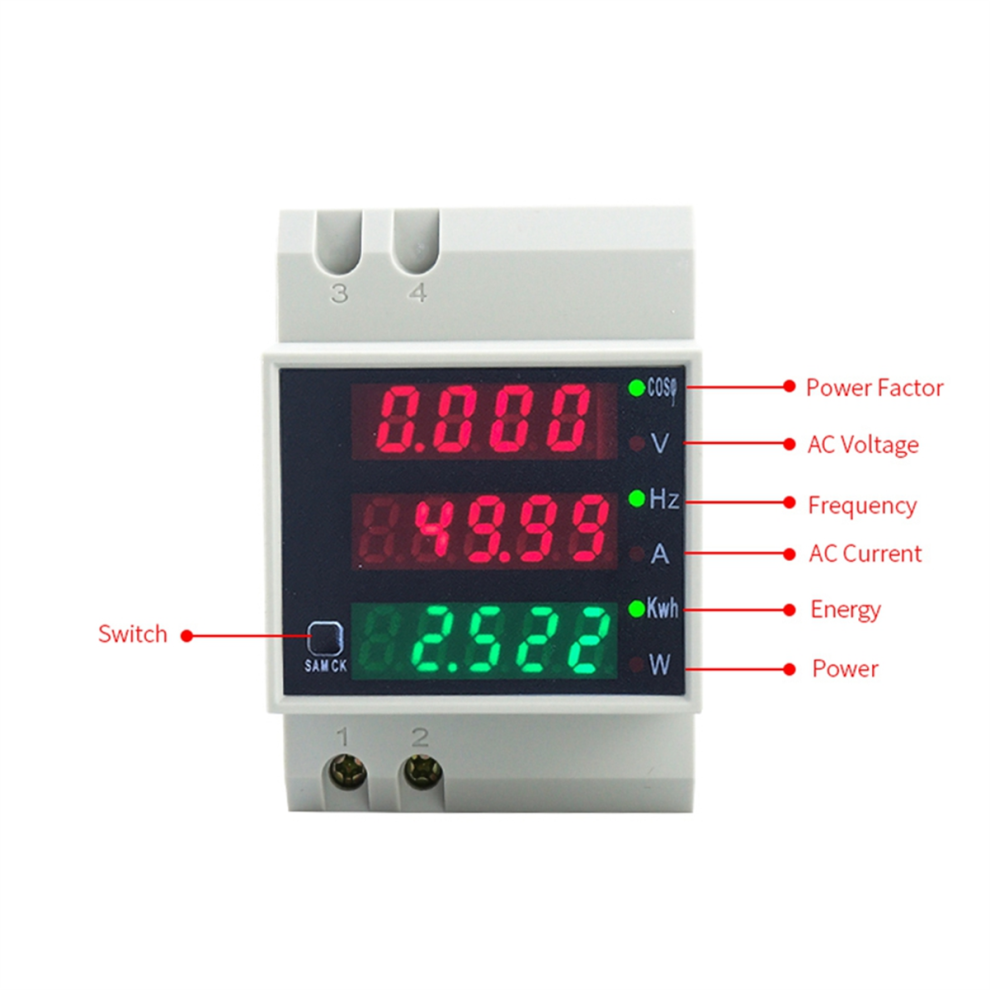

Display: Voltage display 4-digit red 0.31-inch LED digital tube, Current and frequency display use 5-digit red 0.31-inch LED digital tube, active power, electric energy (electricity) display use 5-digit, green 0.31-inch LED digital tube.

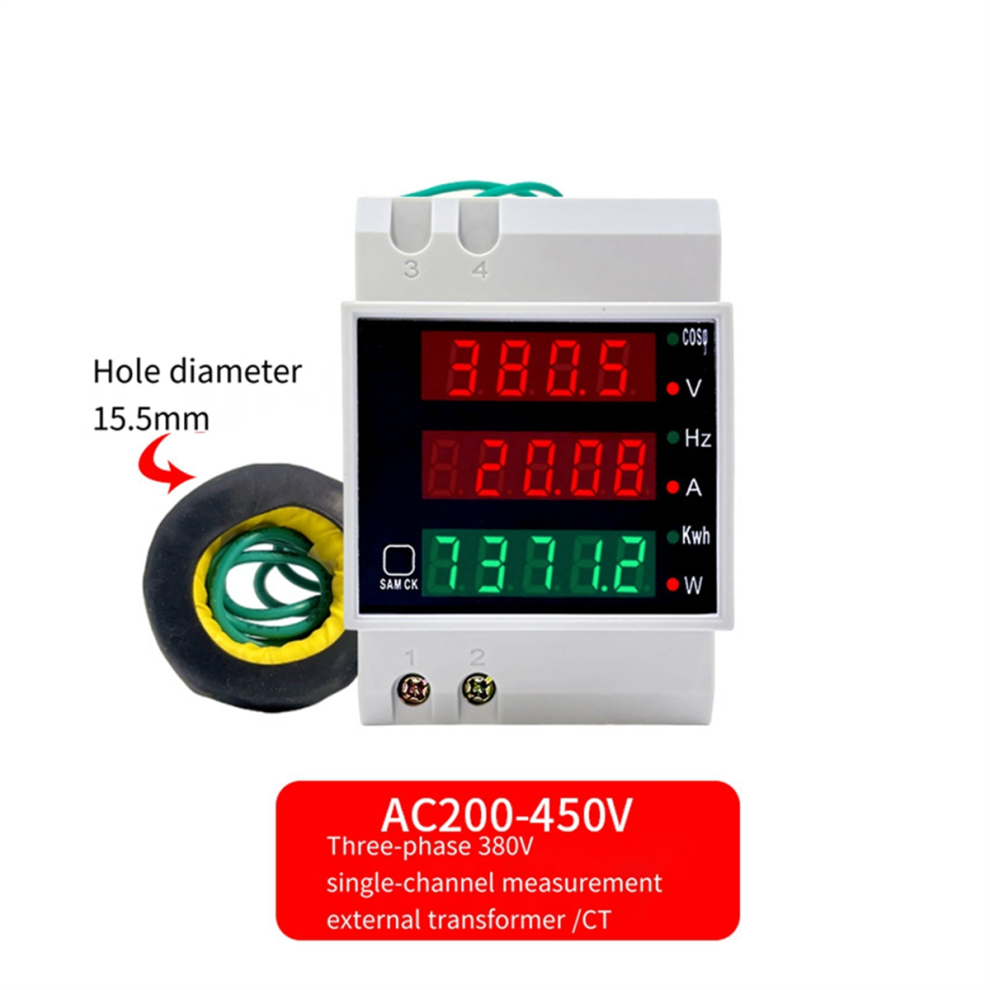

Measuring range: AC voltage: AC80.0-300.0V, (or AC200.0-450.0V, users should propose according to their needs when ordering) AC current: AC0-100.0A, when the measured current is less than 100A, the current display resolution is 0.01A, when the measured current is 100A, the current display resolution is 0.1A, and the range is automatically converted. Active power: (measurement voltage AC80.0-300.0V) 0.0-30000W (AC200.0-450.0V: 45000W) Electric energy: 0.000-99999kwh, decimal point automatic conversion.

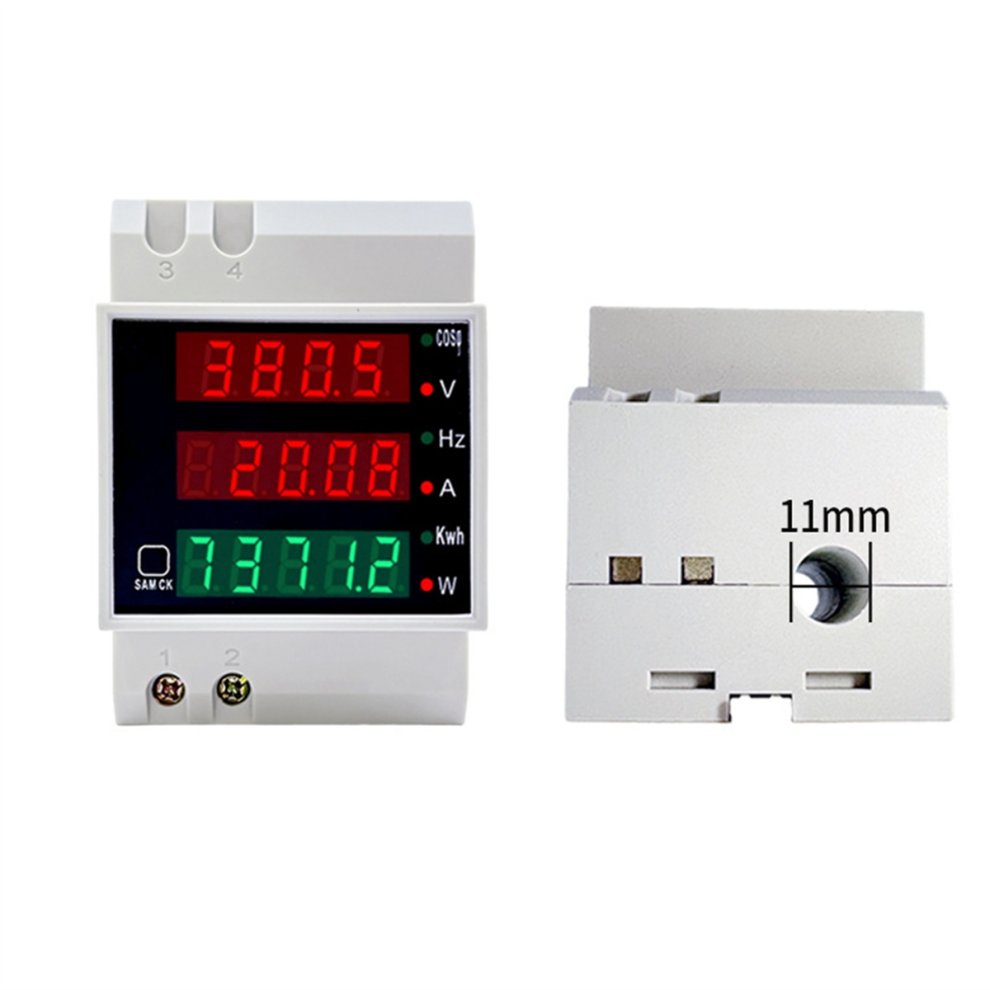

Built-in transformer: The wire of the measurement loop passes through the round hole on the right side of the instrument (the round hole diameter 11MM can pass through standard 12 square (mm) standard copper wire/can pass through the full load current of 100A) Note: The load passes through the round hole of the instrument from above or below, which does not affect the current measurement accuracy.
Extreme working conditions:
Working temperature: -10 - +60
Working humidity: 10-80% (no condensation)
Working air pressure: 80-106kPa
Sunlight exposure: no direct exposure
Specifications:B:Hole Diameter 11mm (Built-in Transformer)
Colour:White
Material:ABS

Package Contents:
1 * power tester

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
