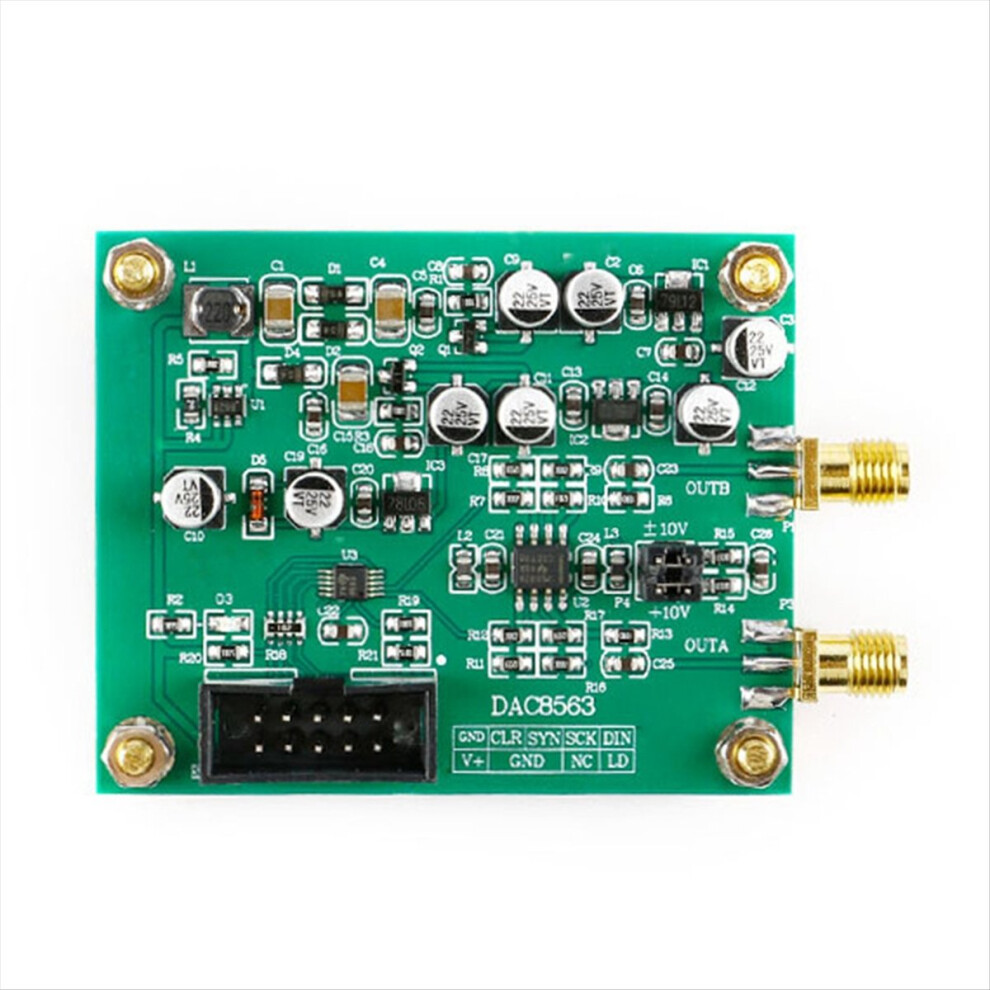

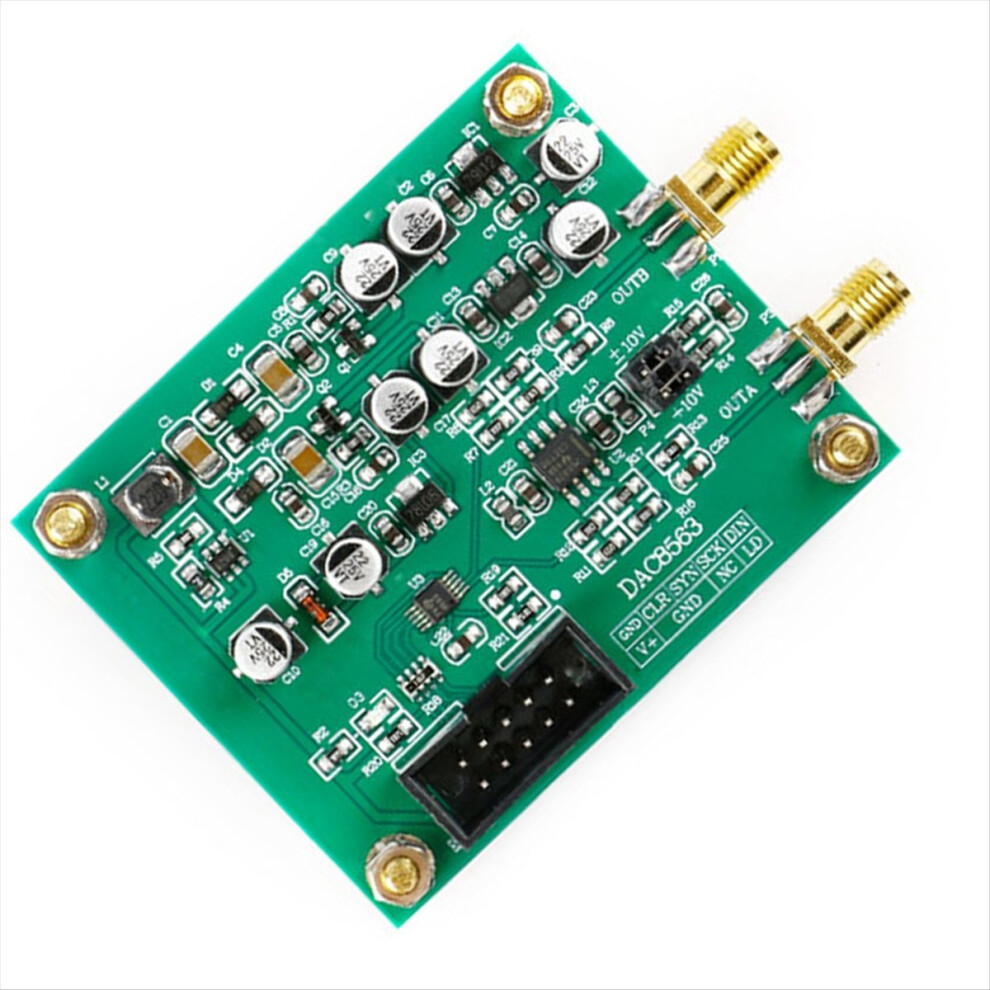

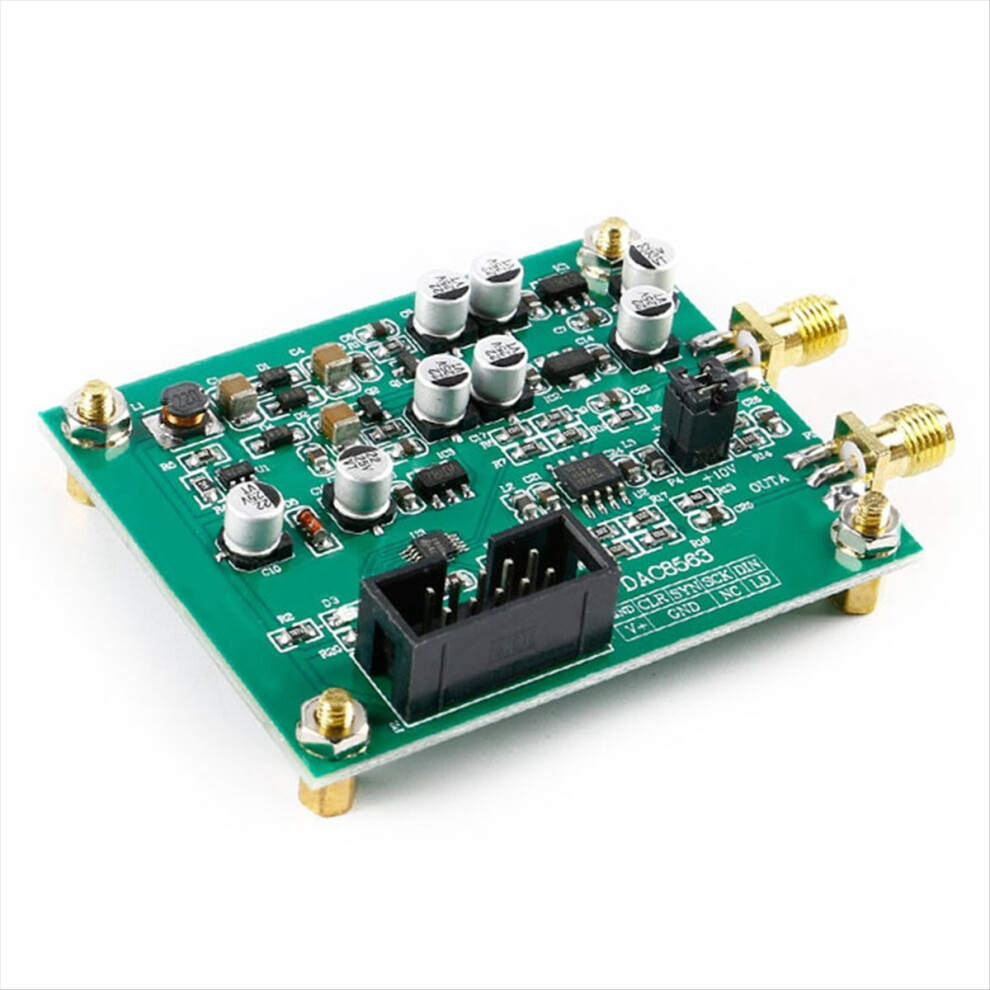

DAC8563 Digital to Analog Conversion Module Data Acquisition Dual 16-Bit Adjustable 10V Voltage Board

DAC8563 Digital to Analog Conversion Module Data Acquisition Dual 16-Bit Adjustable 10V Voltage Board Description

Module model: DAC8563
Module type: digital-to-analog conversion module
Module power supply: DC3V-5V
Module current: 100mA (MAX)
Module communication protocol: SPI serial

Module provides routines: STM32F103RBT6
Routine platform: STM32F103X-M3; KEIL5 version source code
Module output voltage range: 10V or 0-10V
resolution digits: 16
Number of output channels: 2 channels
Module output interface: SMA; 24-hour salt anti-oxidation
Module output signal: voltage; OPA1602 chip output, with a certain driving capacity, within 20mA
Reference voltage: 2.5V; internal 2.5V reference
Voltage settling time: 10uS
output analog bandwidth: 100KHz
Module features: multiple; with output buffer amplifier, ultra-low AC crosstalk, fast settling time
Module application: multiple; programmable voltage source, instrument and control system, sensor excitation, motion process control
Module interface type: SMA signal output and external reference input, DC5.5 power socket
XH2.54 pin data interface.
Colour:Green
Material:ABS

Package Contents:
1x Digital to Analog Conversion Module

Only the above package content, other products are not included.

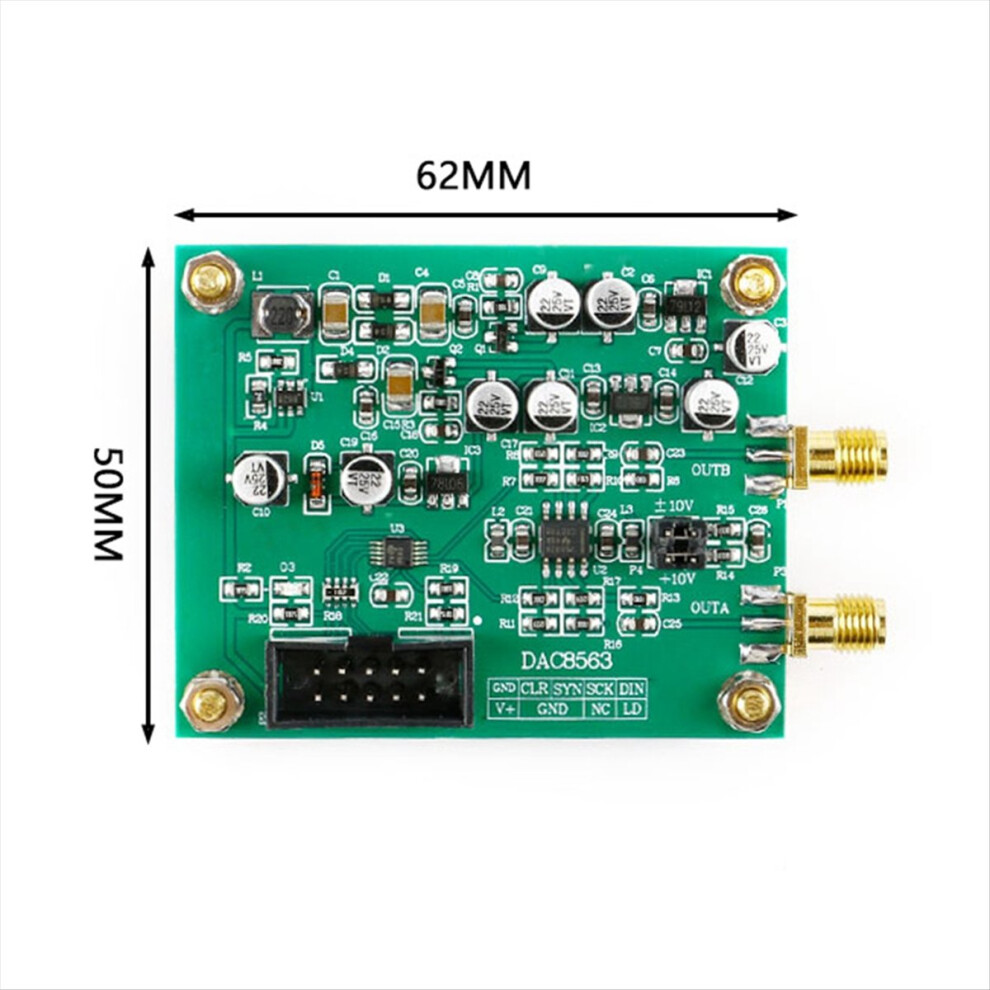

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
