DAM H2 Karaoke Reverb Board Pre-Effects Mic Microphone with Bluetooth USB Decoding Support TWS Pair Connection B

DAM H2 Karaoke Reverb Board Pre-Effects Mic Microphone with Bluetooth USB Decoding Support TWS Pair Connection B Description

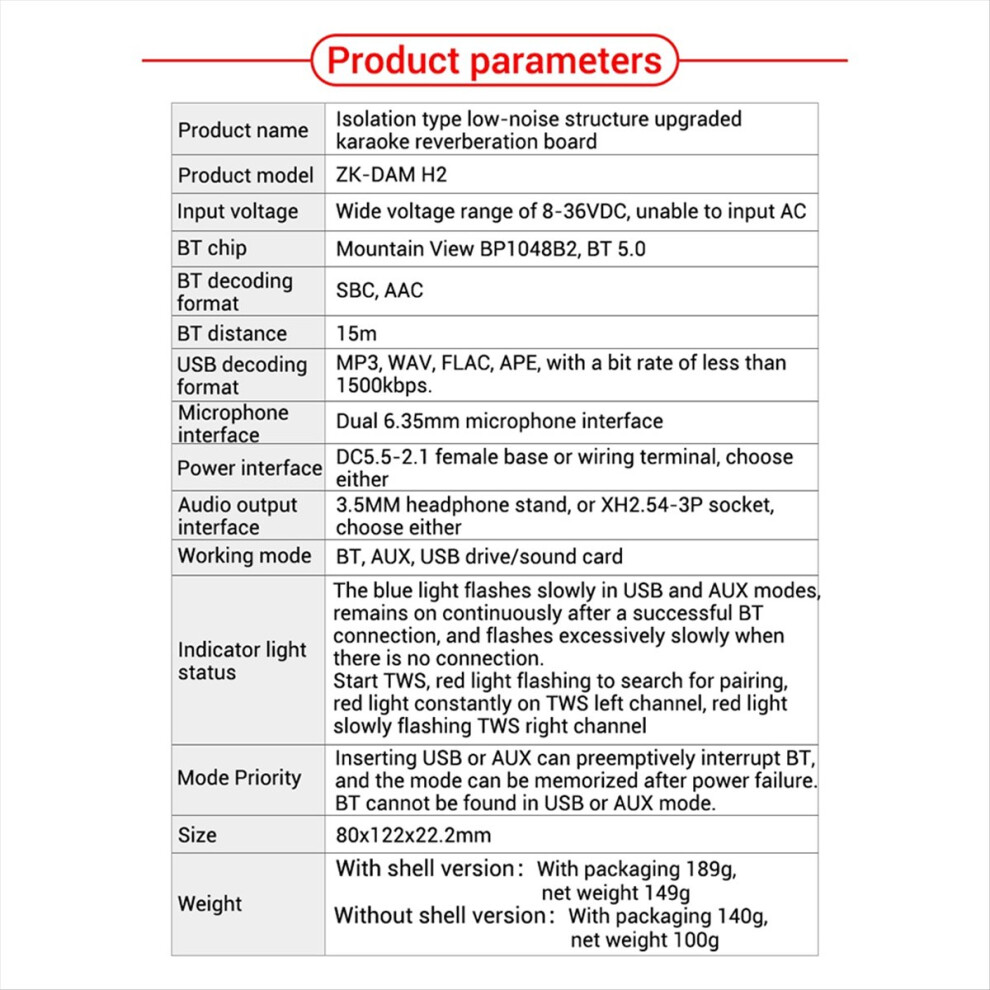

Product name: Isolated low-noise structure upgraded version of karaoke reverb board
Product model: ZK-DAM H2
Input voltage: wide voltage 8-36VDC, AC input is not allowed
Bluetooth chip: Mountain View BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC

Bluetooth distance: 15 meters
U disk decoding format: MP3, WAV, FLAC, APE, bit rate must be less than 1500kbps.
Mic interface: dual 6.35mm microphone interface
Power interface: DC5.5-2.1 female socket, or terminal block, choose one of the two
Audio output interface: 3.5MM headphone socket, or XH2.54-3P socket, choose one of the two
Working mode: Bluetooth, AUX, USB disk/sound card
Indicator status: Blue light flashes slowly in USB and AUX mode, Bluetooth connection is always on, and it flashes super slowly when there is no connection.
Start TWS, the red light flashes to search for pairing, the red light is always on for TWS left channel, and the red light flashes slowly for TWS right channel
Mode priority: Bluetooth can be disconnected by inserting a USB flash drive or AUX, and the mode can be memorized after power failure. Bluetooth cannot be searched in USB flash drive or AUX mode.

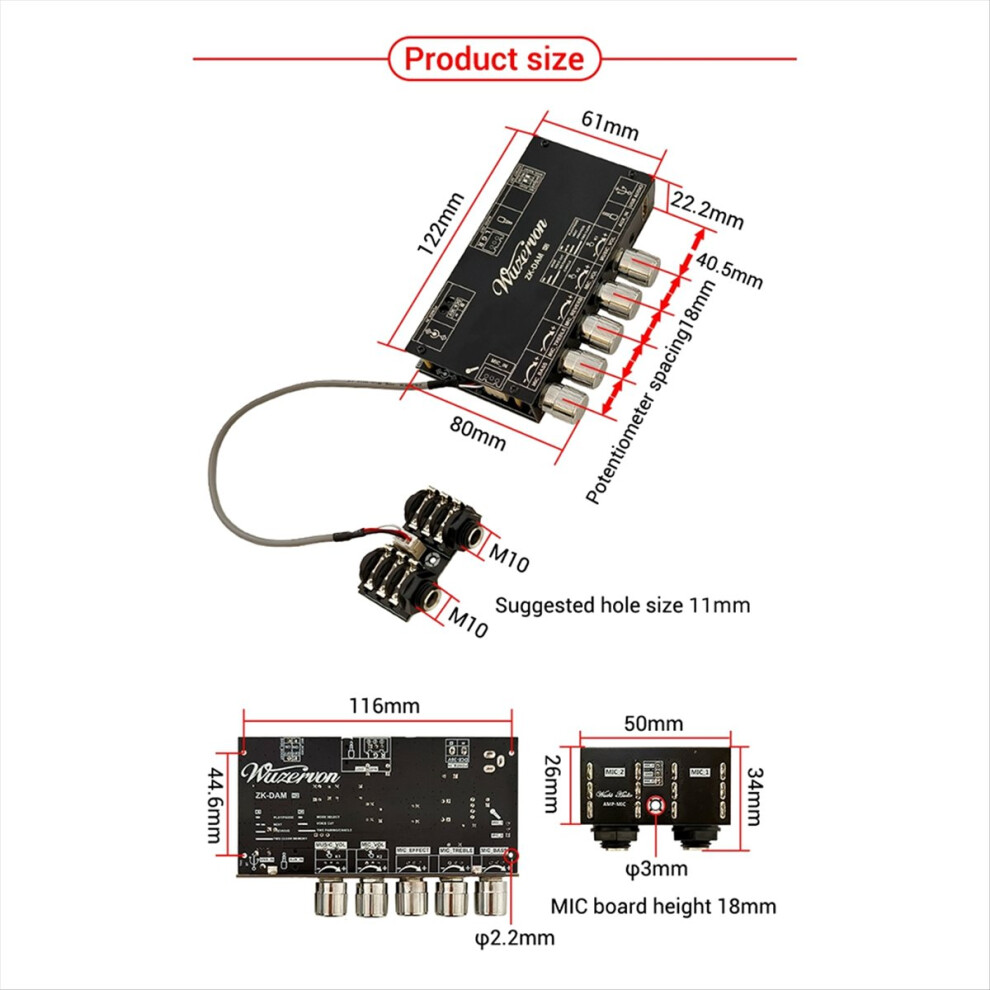

Dimensions: 80x122x22.2mm
Specification: B:Without shell
Color: Black
Material: ABS

Package Contents:
1 * Karaoke Reverb Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
