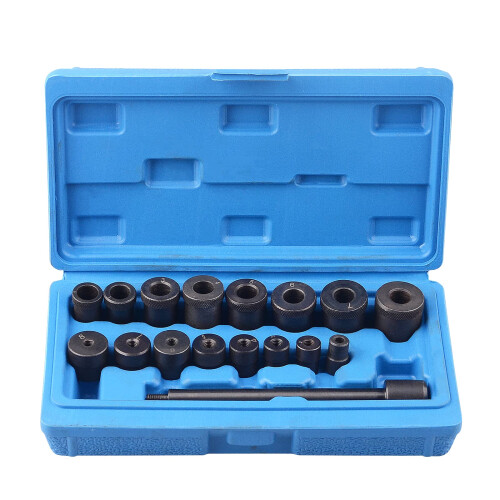

DAYUAN Universal 17pc Clutch Alignment Tool Kit Hand Bearing Transmission Tool

DAYUAN Universal 17pc Clutch Alignment Tool Kit Hand Bearing Transmission Tool Description

Instruction:. 1. Select the appropriate guide sleeve for the internal diameter of clutch plate and slide it onto the alignment adaptor bar. Ensure the taper of the guide sleeve runs towards the threaded end of the adaptor bar. 2. Select the appropriate centring sleeve for the spigot bearing and screw it onto the end of the alignment adaptor bar. 3. Slide the clutch plate onto the guide sleeve, ensuring the correct orientation. 4. Fit the centring sleeve into the spigot bearing and slide the clutch plate, on the guide sleeve,up to the flywheel. 5. Fit the clutch pressure plate and cover assembly and bolt in place. 6. Remove the alignment tool. Package Includes:. 1 x 150mm Long Alignment Tool Shaft. 8 x Pilot Bearing Adaptors:. 15. 5 x 14. 2 x 26. 6mm;16. 7 x 15. 4 x 27. 0mm;19. 0 x 17. 5 x 27. 5mm. 20. 0 x 18. 6 x 27. 5mm;21. 4 x 20. 0 x 27. 4mm;23. 0 x 21. 6 x 27. 5mm. 23. 5 x 22. 0 x 27. 5mm;26. 6 x 24. 2 x 27. 5mm. 8 x Clutch Plate Adaptors:. 12. 6 x 10. 8 x 19. 2mm;14. 8 x 12. 2 x 19. 4mm;15. 0 x 13. 0 x 19. 3mm. 16. 0 x 14. 7 x 19. 7mm;17. 7 x 15. 8 x 19. 4mm;19. 0 x 17. 1 x 19. 3mm. 20. 0 x 18. 3 x 19. 1mm;21. 6 x 20. 0 x 19. 1mm
