DB2-02 10-Outlet Power Sequence Controller Surge Protector

DB2-02 10-Outlet Power Sequence Controller Surge Protector Description

1、Power sequence controller designed to improve the safety of power supply to your devices through transient impulse conservation; ideal for instrument rigs, home recording devices, DJ equipment, pro audio rigs and home entertainment systems. 2、With 10 universal outlets, including 8 outlets on the rear panel that supports sequential control(sequential opening and reverse closing, 1s interval time), and 2 auxiliary outlets on the front panel for convenient direct output. 3、The 8 rear outlets are designed with independent switch button for more flexible usage; with an air switch for over-current conservation, the controller will shut down automatically when the current is over 63A. 4、Features LED display showing the voltage information and LED lights indicating the outlets working status; with an USB interface on the front panel for connecting DJ light. 5、Metal housing, durable and sturdy; rack mountable design for convenient placing and usage; high-power lines to meet the needs of high-power audio system or other devices.
Features:
Power sequence controller designed to improve the safety of power supply to your devices through transient impulse conservation; ideal for instrument rigs, home recording devices, DJ equipment, pro audio rigs and home entertainment systems.

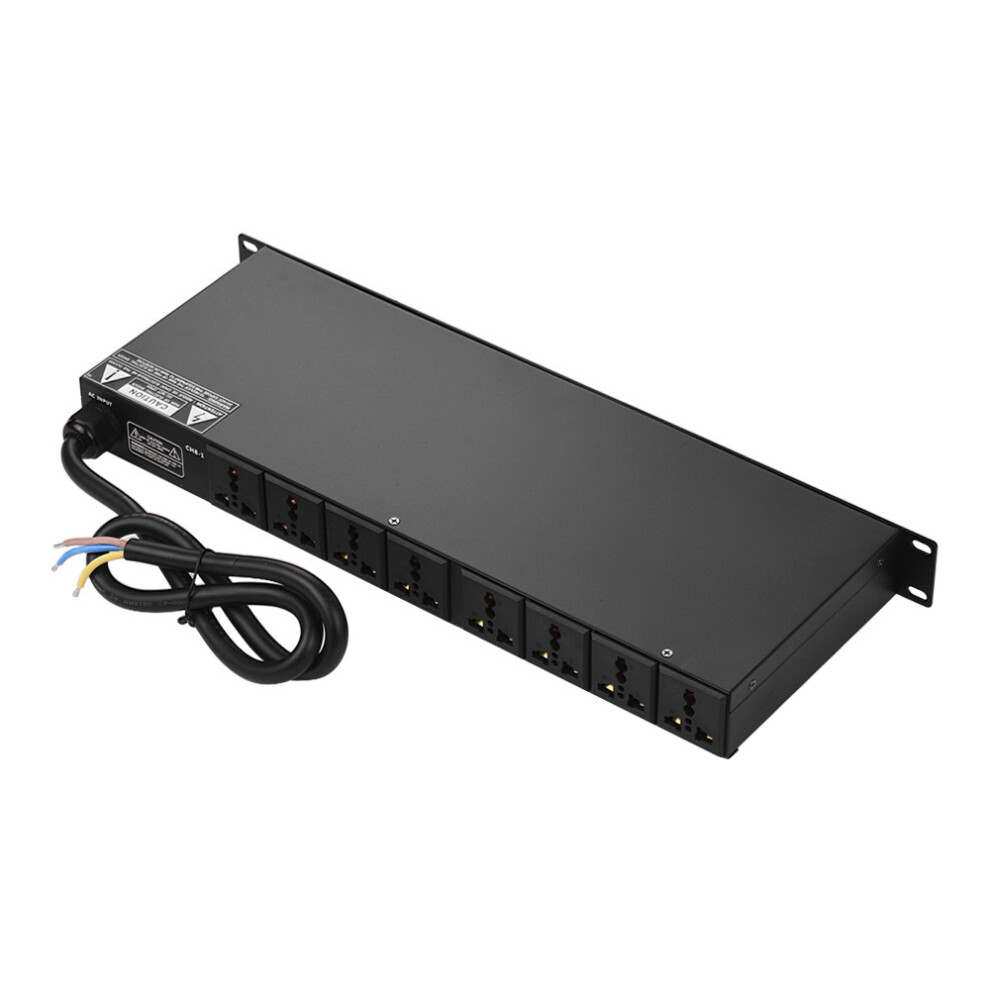

With 10 universal outlets, including 8 outlets on the rear panel that supports sequential control(sequential opening and reverse closing, 1s interval time), and 2 auxiliary outlets on the front panel for convenient direct output.
The 8 rear outlets are designed with independent switch button for more flexible usage; with an air switch for over-current conservation, the controller will shut down automatically when the current is over 63A.
Features LED display showing the voltage information and LED lights indicating the outlets working status; with an USB interface on the front panel for connecting DJ light.
Metal housing, durable and sturdy; rack mountable design for convenient placing and usage; high-power lines to meet the needs of high-power audio system or other devices.
Specifications:
Color: Black
Material: Metal
Power Input: AC90-260V 50-60Hz(3 lines: zero, fire, ground)
Outlet: 10 universal outlets
Power Loading: 5000W(8000W maximum withstand reactive power)
Output Power Socket: fireproof ABS material, maximum withstand 13A current
Interval Time per Switch: 1 second
Relay Contact Current: 30A 277V AC
Short-circuit conservation: 63A
USB Interface: 5V/500mA
Operating Temperature: 0-40

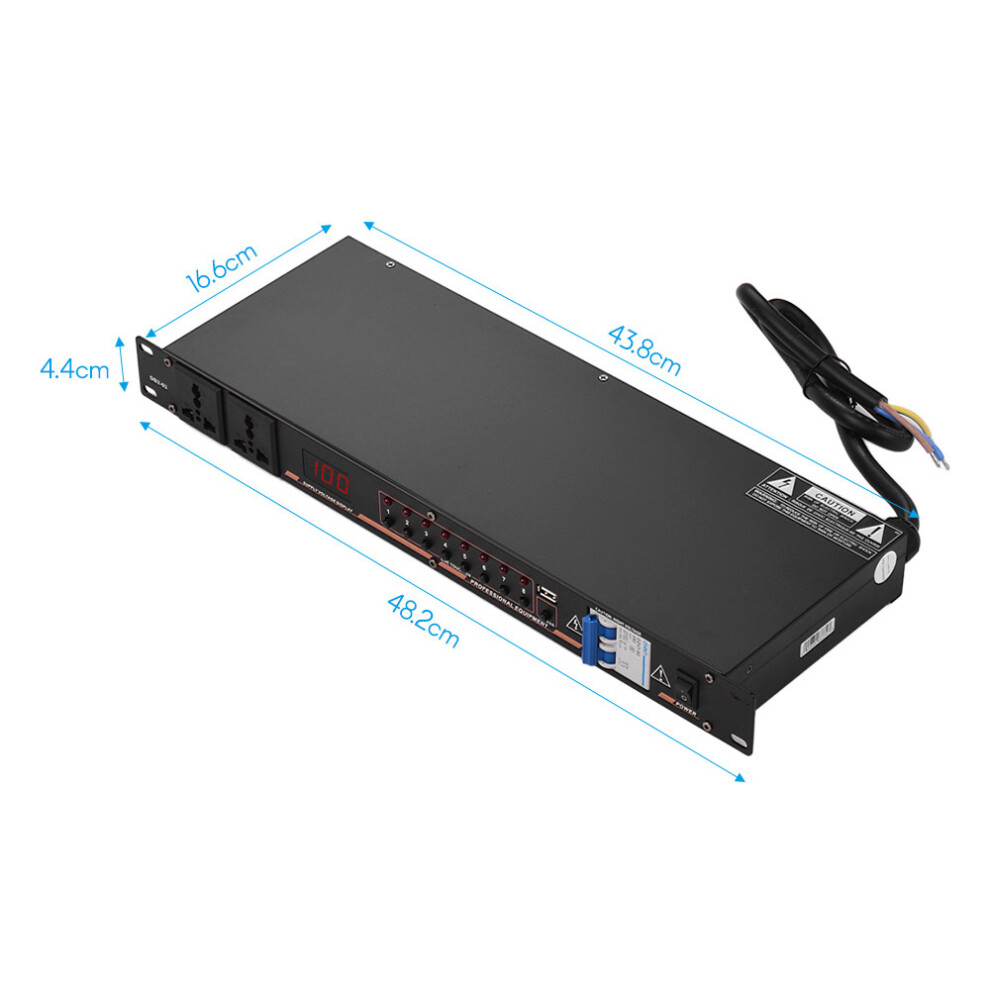

Item Size: 48.2 * 16.6 * 4.4cm/ 19 * 6.5 * 1.8in
Item Weight: 2486g/ 5.5lbs
Package Size: 55.5 * 25.5 * 8.5cm/ 21.9 * 10 * 3.3in
Package Weight: 2871g/ 6.3lbs

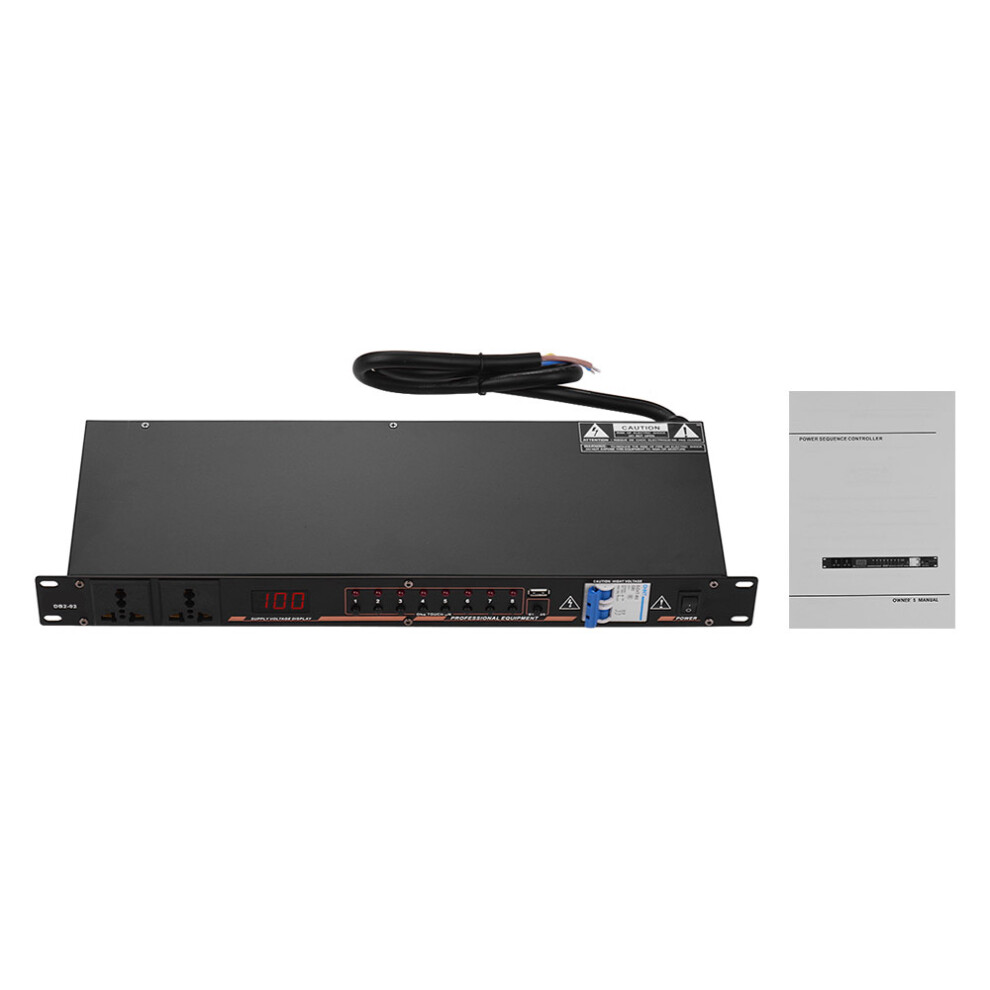

Package List:
1 * Conditioner
1 * Users Manual(English)
1 * Conditioner
1 * Users Manual(English)
