DC 110V Water Flow Sensor Switch Magnetic Liquid Flowmeter-5V

DC 110V Water Flow Sensor Switch Magnetic Liquid Flowmeter-5V Description

Plastic Liquid Water Flow Sensor Magnetic Switch 10W OD10mm Range 1.2-10L/min Normal Open Type

Product Description
Magnetic flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to for play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.

Specifications:
Media Type: Liquid
Operating Temperature: 0 ~60C
Flow Rate: 1.5-10L/min
Material: plastic
Color: white

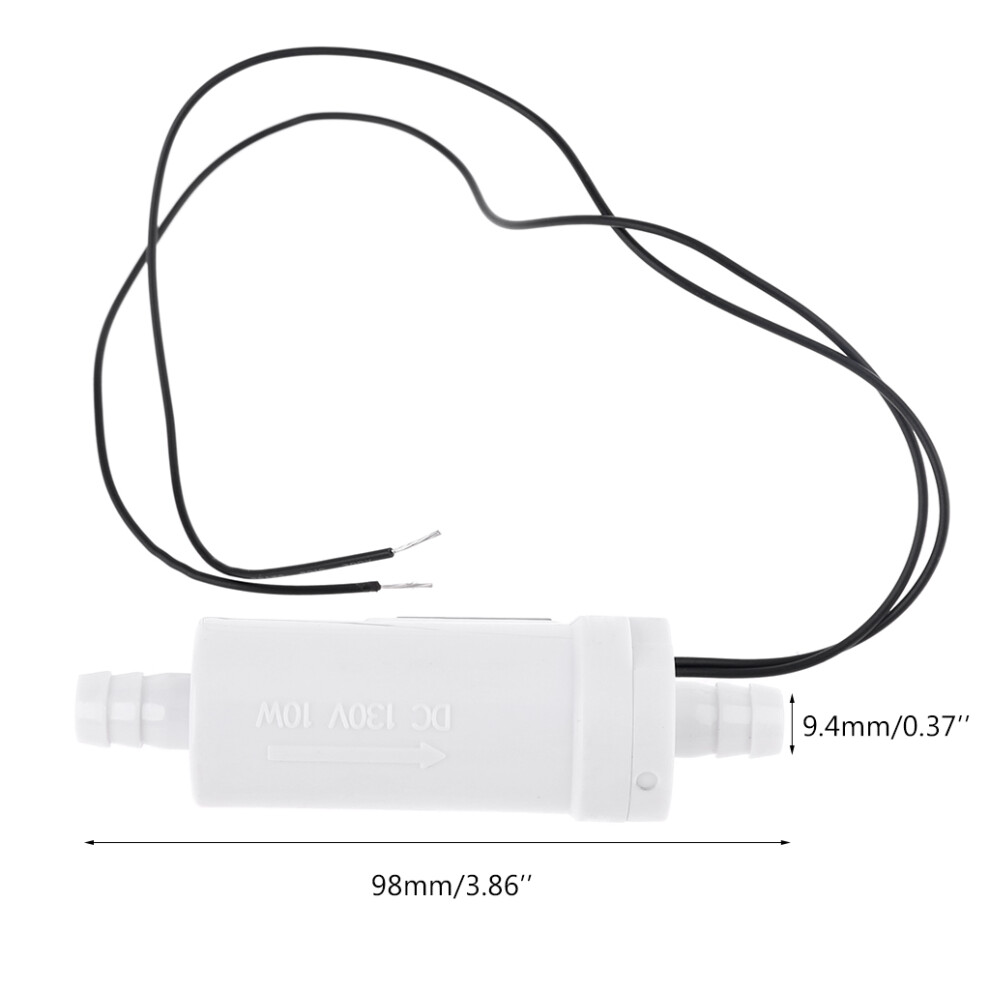

Connection: OD 10mm
switching power:10W (NO)
pressure performance:1.5MPA
Switching current(max):0.5A
Start flow: 1.2 L / min
Working pressure: 0.05-1.2Mpa
Max Voltage: DC 110V
Breakdown voltage:DC 110V
Maximum current: 0.5A
Load current : 1.25A
Contact impedance: 0.2Ω
Insulation resistance: 10 ^ 8Ω
Temperature range: -40 ~ 60

REMARK: In the process of installation and use, it is necessary to cooperate with the relay to avoid burning out the reed switch due to the small switch power.

Package included:
1 * Magnetic Flow Switch
