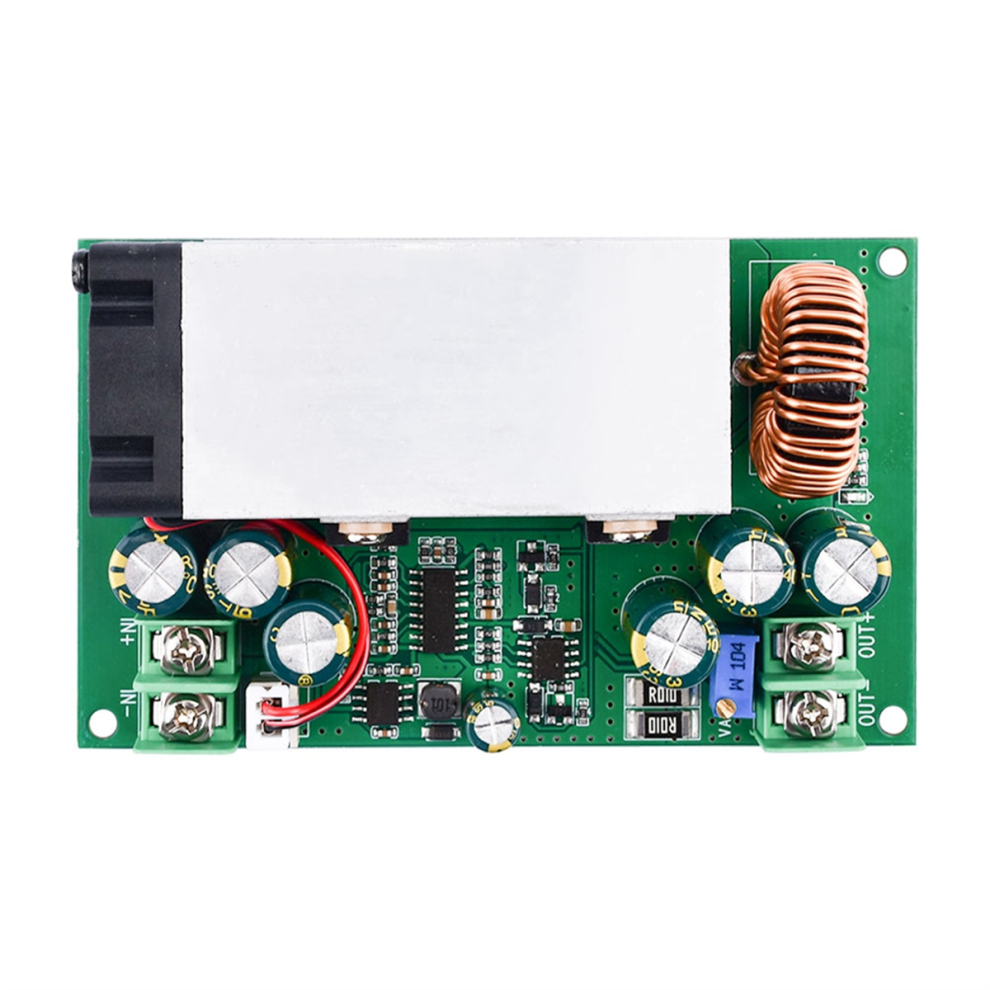

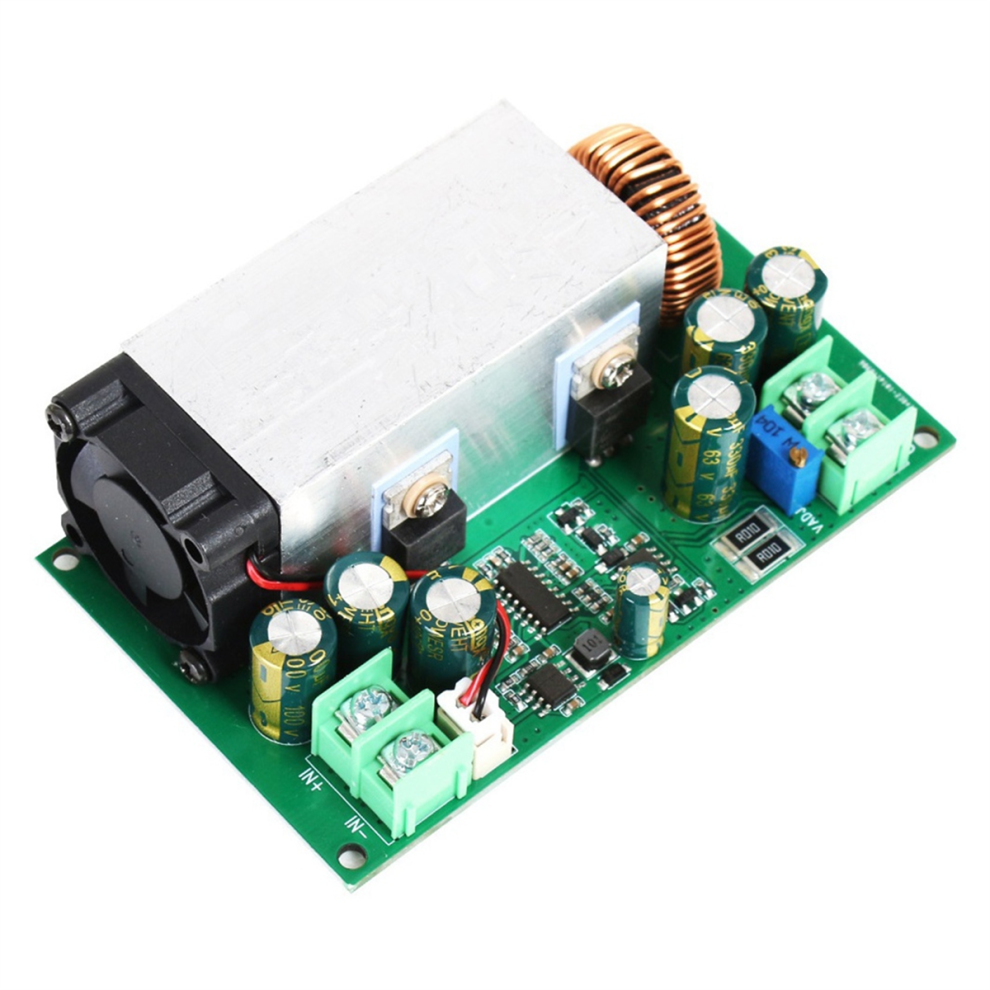

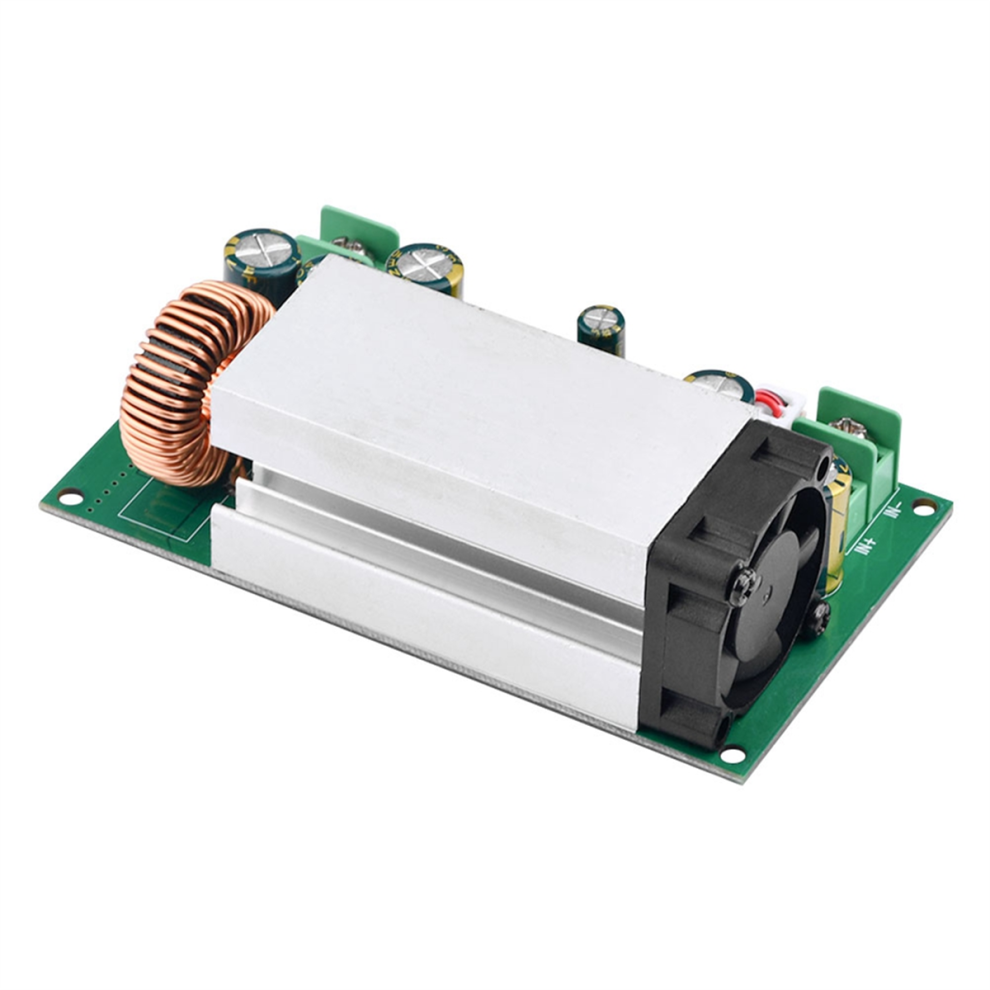

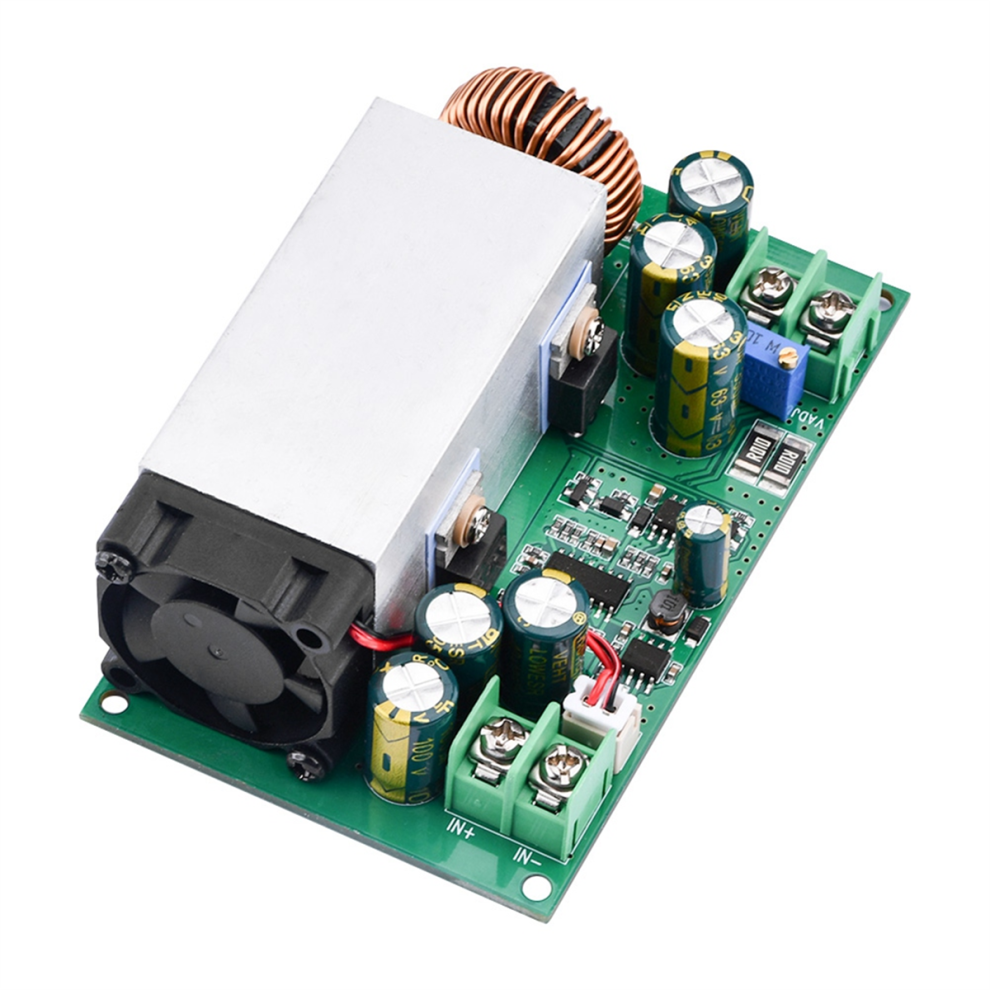

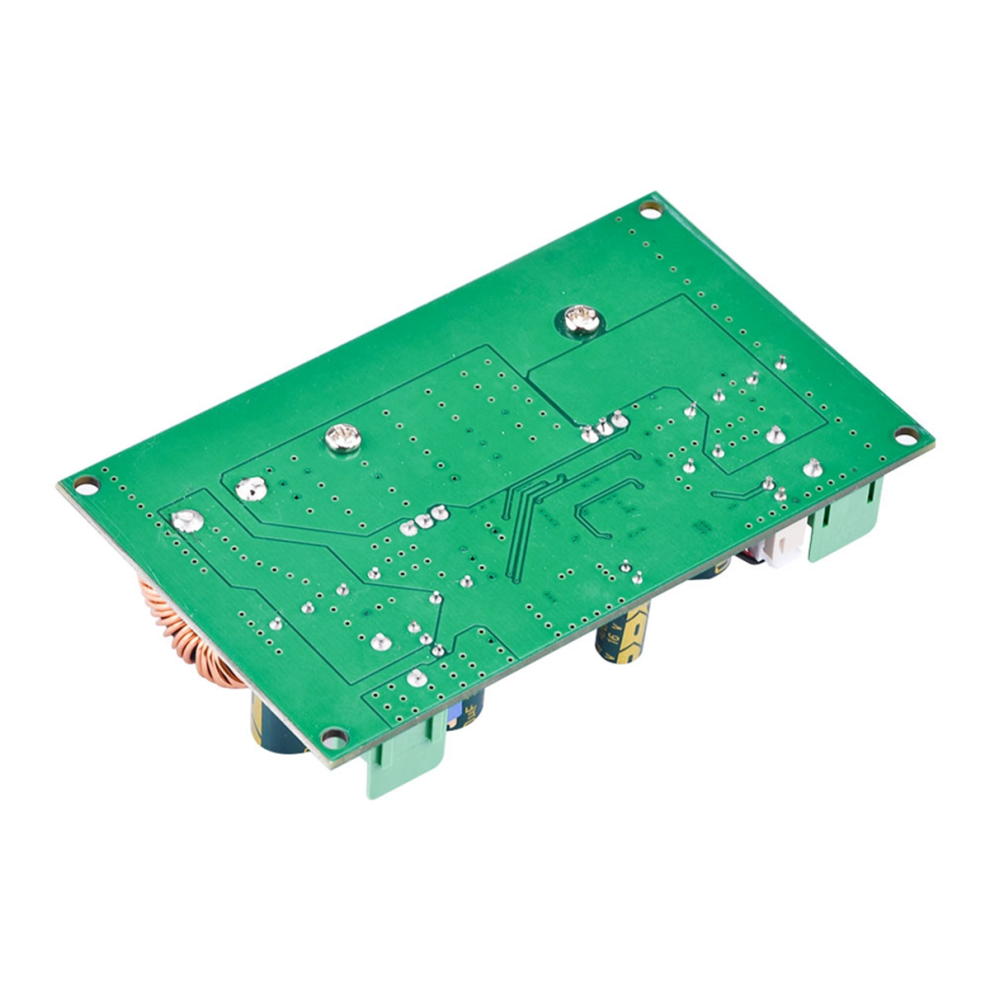

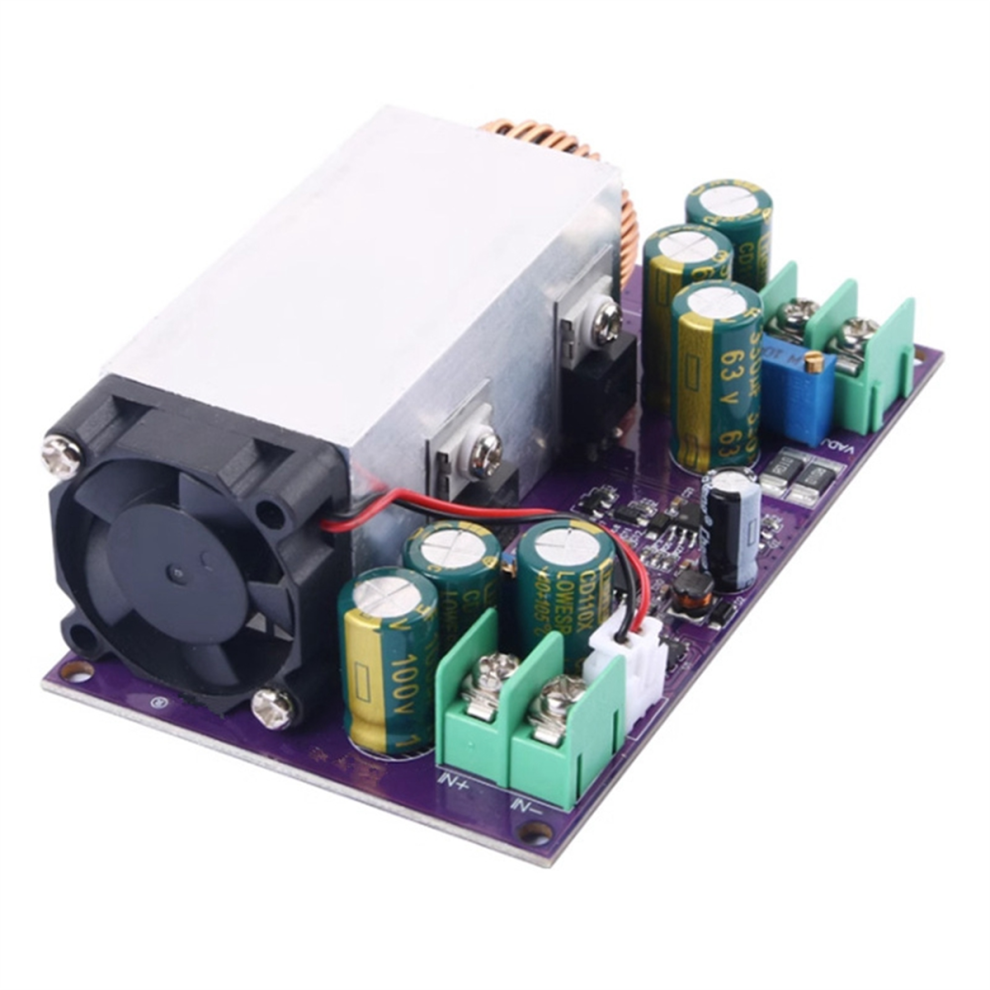

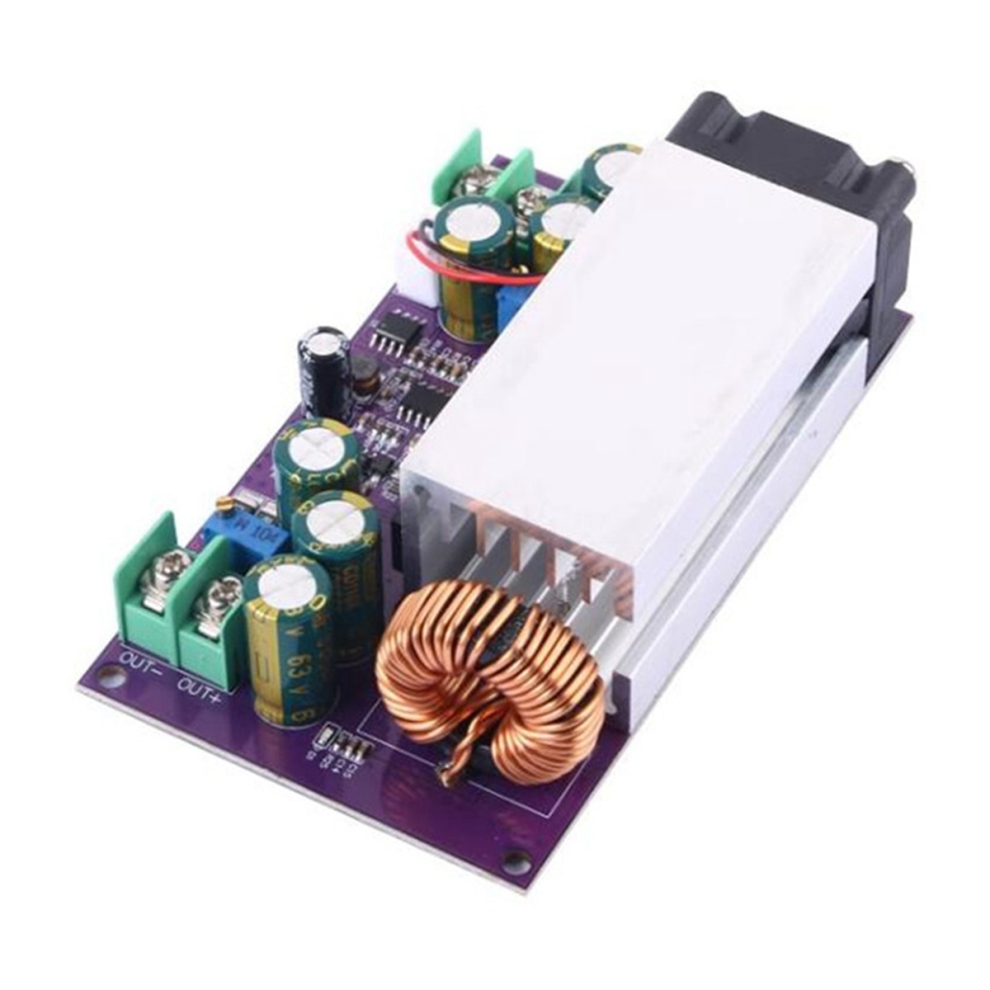

DC 12-75V to 2.5-50V DC-DC Buck Converter 600W Regulator Constant Voltage Current Adjustable Power Module

DC 12-75V to 2.5-50V DC-DC Buck Converter 600W Regulator Constant Voltage Current Adjustable Power Module Description

The module adopts step rectification scheme with high efficiency, the highest efficiency is up to 95%.
Continuously adjustable output voltage and current
Input voltage up to 75 volts, output voltage up to 50V (at input 75 volts) maximum current 25A.
Wiring: For high power, the wiring should be as thick as possible.
Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and differential pressure); Short circuit protection: Yes (constant current protection); Input reverse connection protection: no; Output anti-refill: no (to charge the battery, the output connected to inductive loads, such as connecting the motor must be added anti-refill diode)

Parameters:
Module name: 600w buck constant voltage constant current adjustable power supply module
Module nature: non-isolated buck module (BUCK)
Input voltage:12-75V
Output voltage range: 2.5-50V (must meet the buck condition, IN input multiplied by 0.8)
Output minimum voltage: 2.5V
Output constant current: 1-25A (continuously adjustable)
Maximum output power: 600W
Continuous maximum working power: 500W
Continuous maximum working current: 25A
Heat dissipation mode: air-cooled heat dissipation
Work indicator: Yes (output voltage blue LED)
Wiring method: comes with no welding terminals

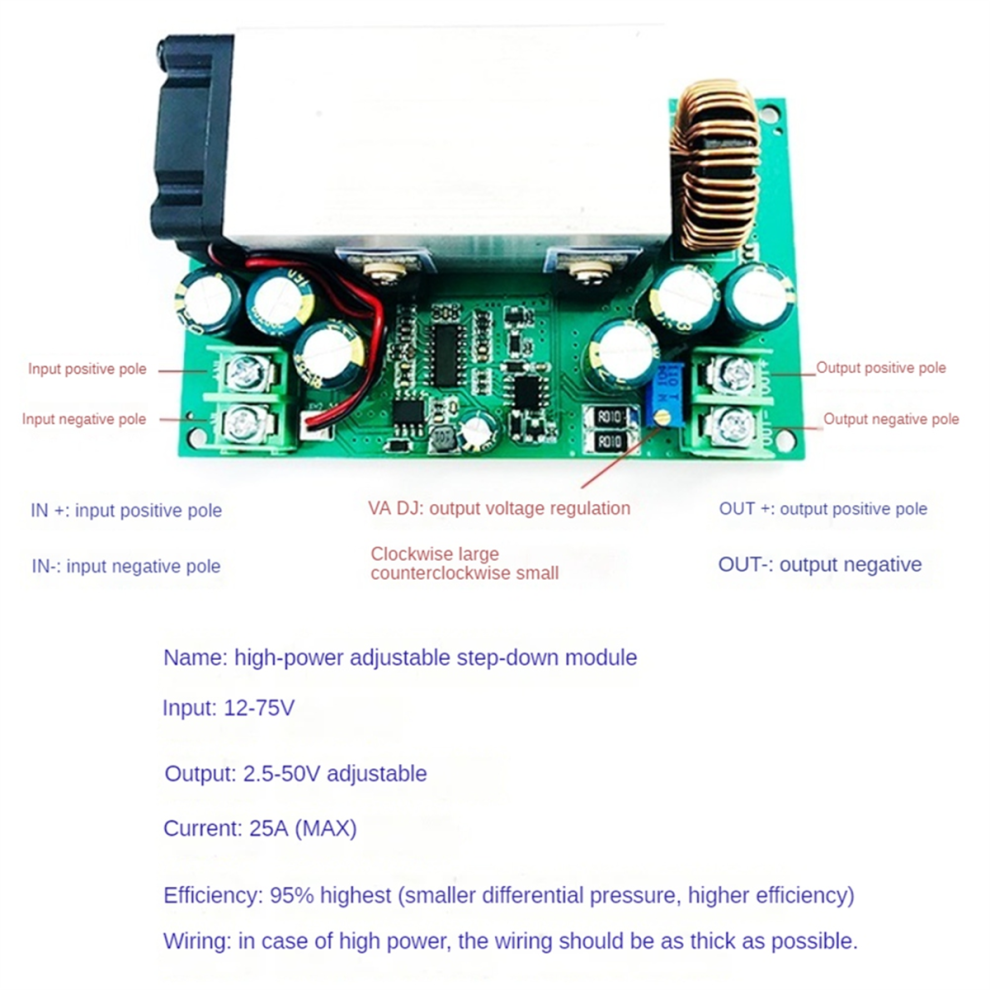

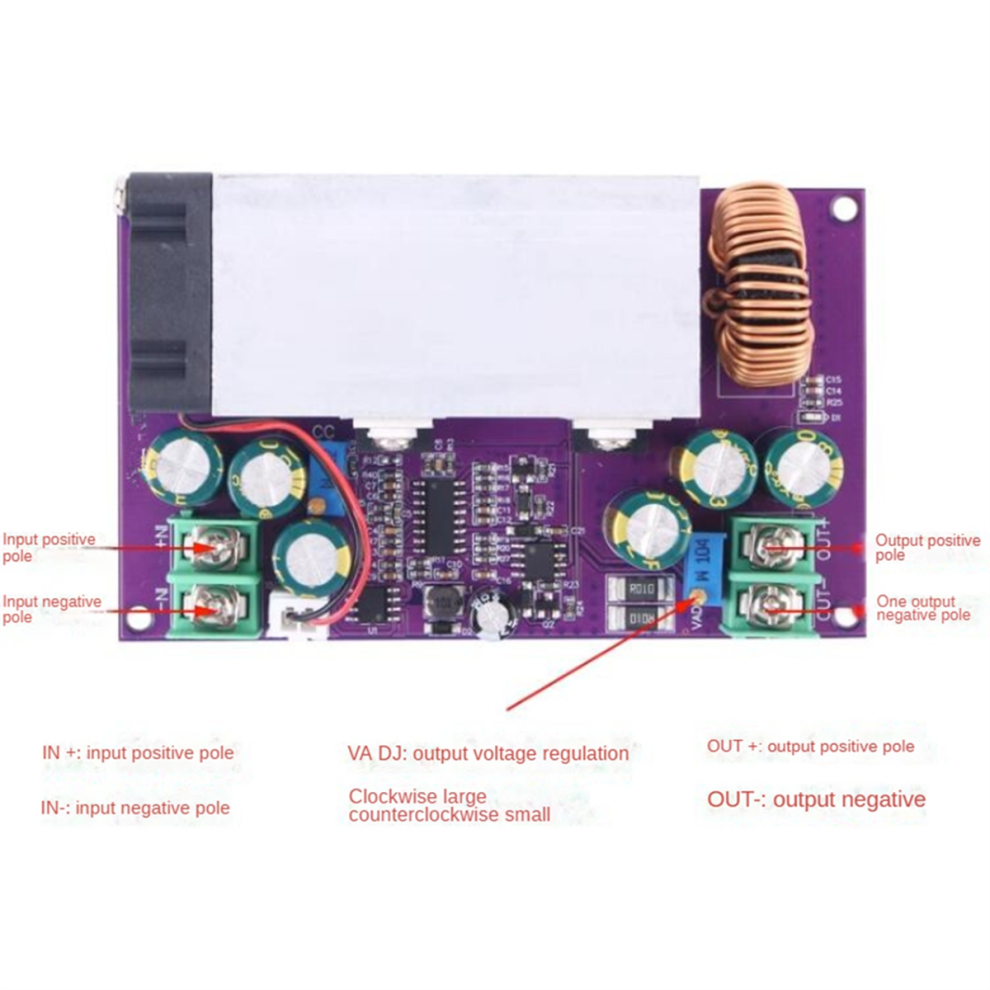

Wiring: "IN" for input, "OUT" for output
Voltage conversion list:
12-75V to 5V
12-75V to 9V
14-75V to 12V
17-75V to 14.8V
19-75V to 16.8V
22-75V to 1 9V
24-75V to 21V
28-75V to 24V
35-75V to 30V
41-75V to 36V
48-75V to 42V
55-75V to 48V
Precautions:
1. This module is a step-down board and cannot be used as a step-up board.
2. If it is used for charging batteries or batteries, please add a diode to the output to prevent backfeed.

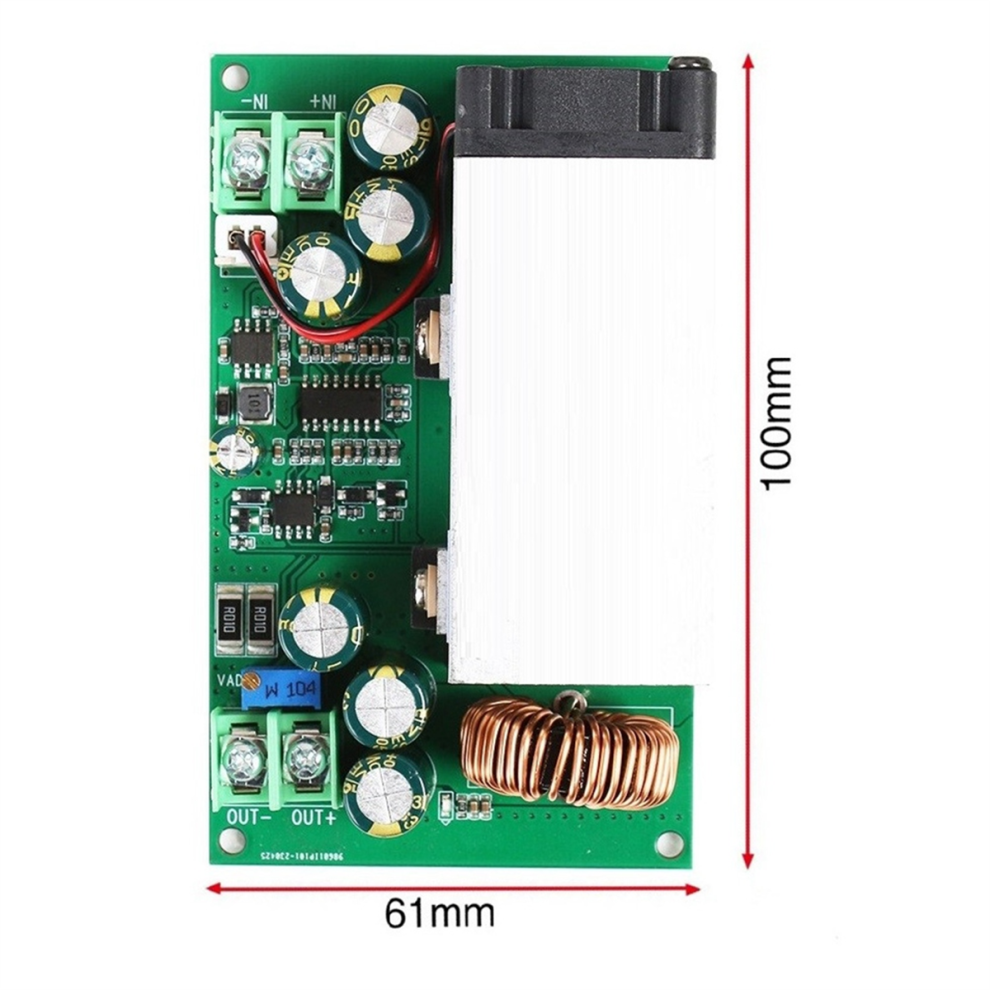

size: 100 x 61 x 31mm
Material: PCB+metal+electronic components
colour: Random Color
Note: Random color, don't accept the specified color.

Package Contents:
1 module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
