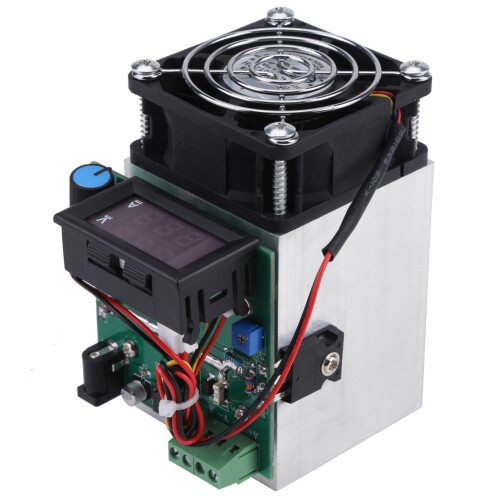

DC 12V 0-10A 100W Electronic Load Battery Test Module, Compact, Durable

DC 12V 0-10A 100W Electronic Load Battery Test Module, Compact, Durable Description

Electronic Load 0-10A 100W DC 12V Discharge Battery Capacity Tester Testing Module
Description:

This Electronic Load has the high speed fan, which can automatically change the speed. heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.


Features:



The high speed of the fan can change according to the heat sink temperature.


Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.


Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.


Durable construction for long-lasting performance.


Professional test module for detecting discharge battery capacity.




Specification:

Power Supply: DC12V5%

Fan Current: 0.72A

Constant Discharge Current Range: 0-10A(whole machine)

Working Mode: Single Mode Constant Current(CC)

Discharge Current Max. Error: 0.7%-0.01A

Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%

Max. Power: 100W

Input Interface: 5.5 x 2.5mm

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch

Weight: 385g


Package List:

1 x Electronic Load


Operation Instructions:



Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!


Set constant current through knobs.


Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 100W.
