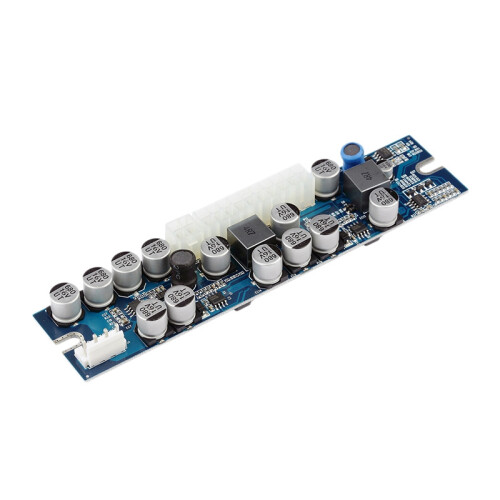

DC 12V 300W ATX PSU Switch Mining 24Pin MINI PC Po

DC 12V 300W ATX PSU Switch Mining 24Pin MINI PC Po Description

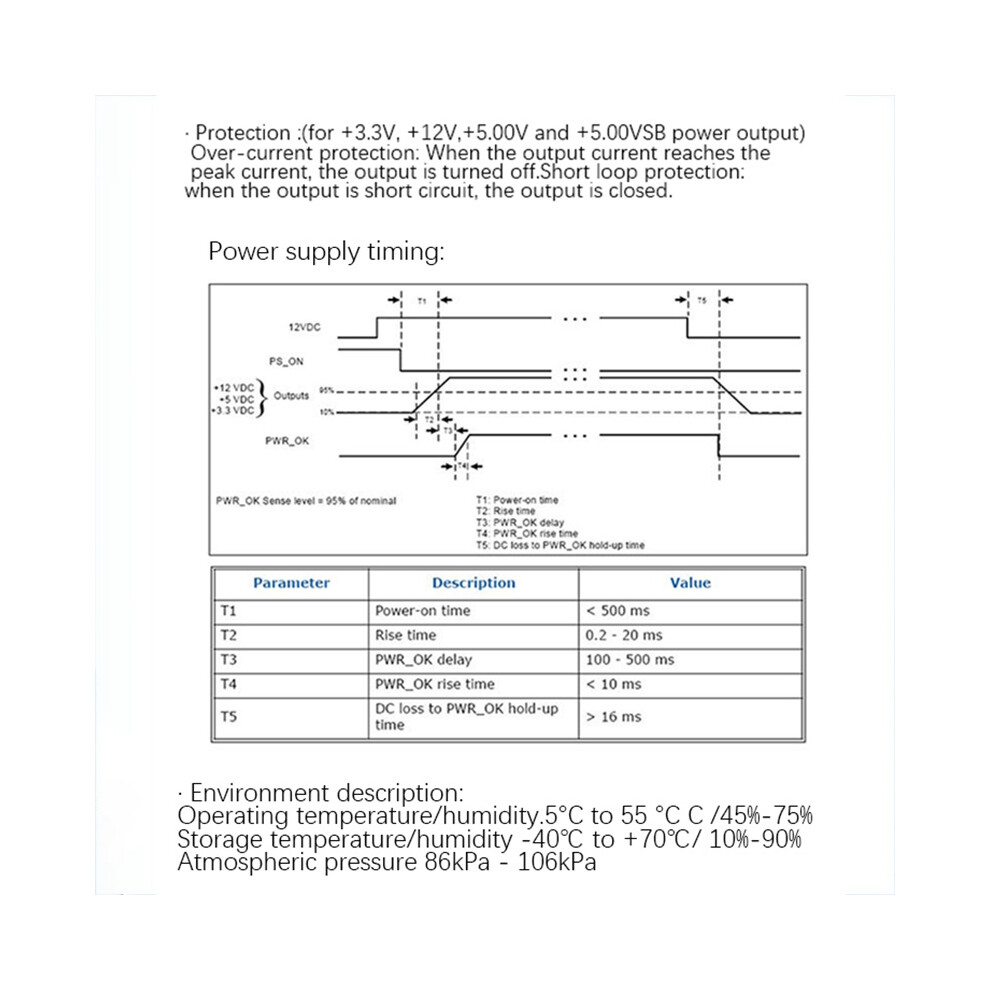

Output shutdown when output current reaches the highest point.
Short-circuit protection: output shut down when short-circuit.
function (for +3.3V, +12V, +5.00V and +5.00V SB power output).
Input voltage range: 11.2 to 12.6V DC, DC input connector: 2.5mm inner diameters, 5.5mm outer diameter
Before you buy this board, please make sure your input Voltage INPUT VOLTAGE RANGE: 11.4VDC-12.6VDC Rating Power: 300W The 20+4pin cable and the dc cable are included.

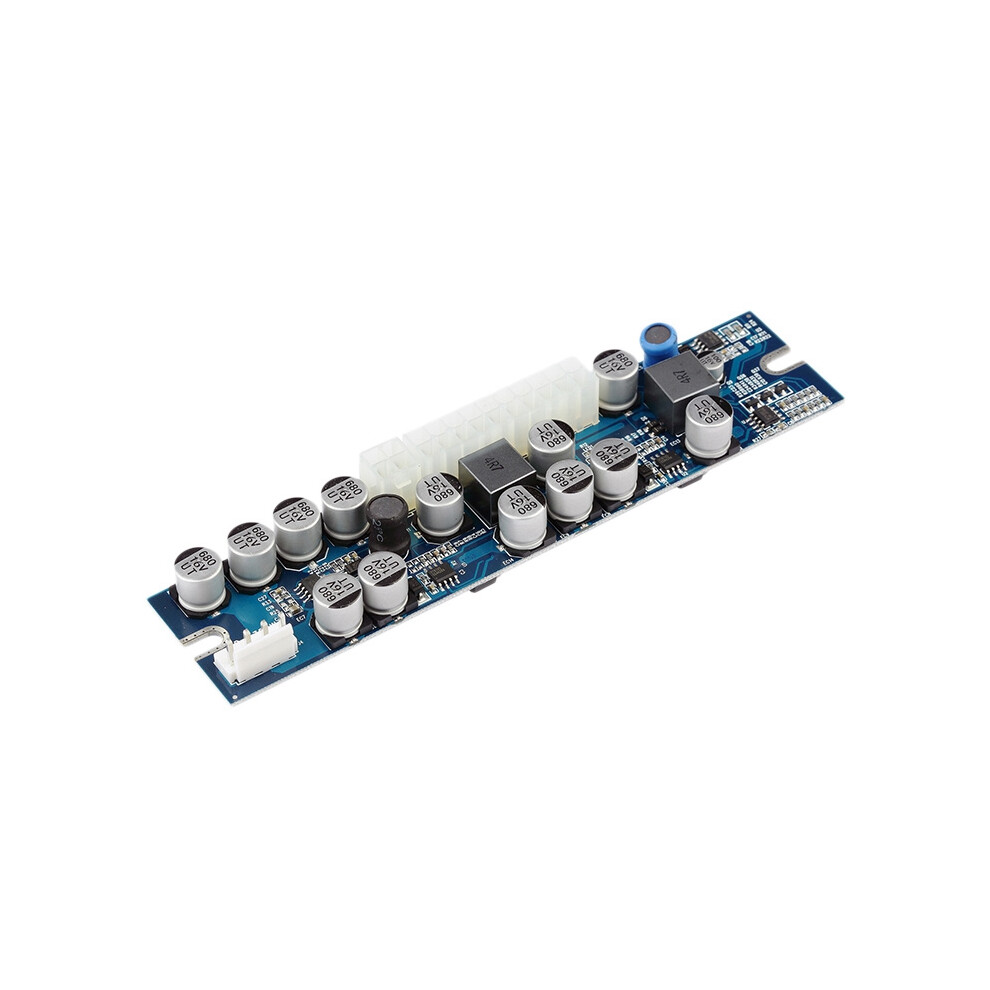

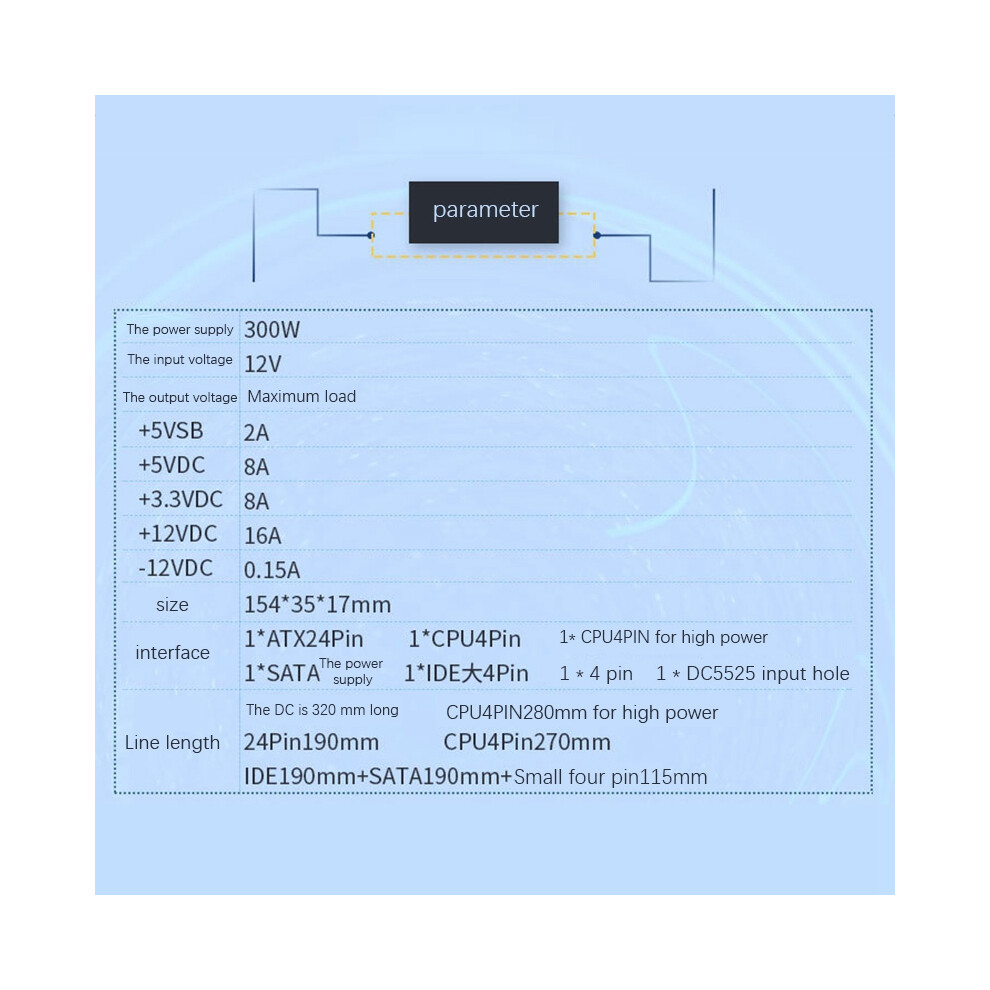

Item name: Power Module
Power: 300W
Input voltage: 12V
+5VSB:2A
+5VDC:8A
+3.3VDC:8A
+12VDC:16A
12VDC:0.15A

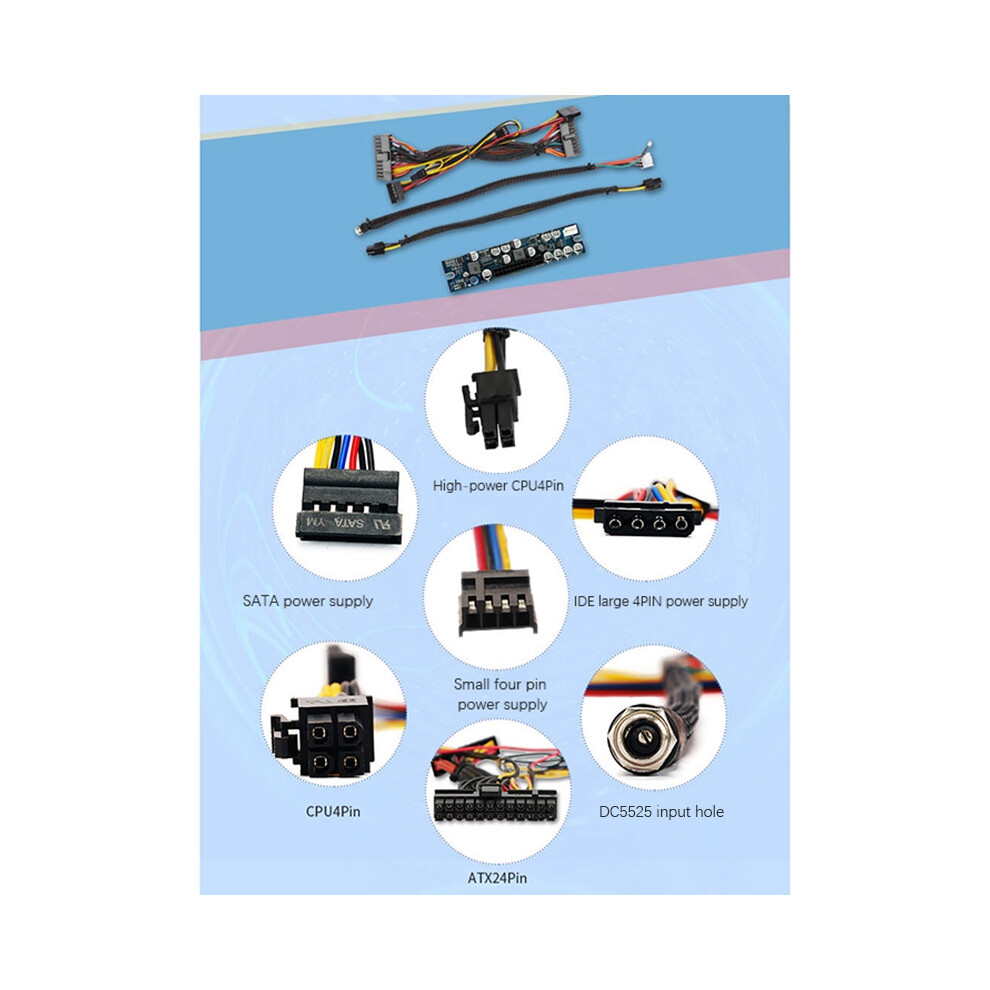

Interface:1* ATX24PIN, 1* CPU4PIN, 1* CPU4PIN for high power,1*SATA power supply, 1inch IDE big 4PIN, 1* small 4PIN 1inch DC5525 input hole
Line length:
DC line length: 320 mm
CPU4Pin:280mm
24Pin:190mm
CPU4Pin:270mm
IDE190mm+SATA190mm+small4Pin115mm
INPUT VOLTAGE RANGE: 11.4VDC-12.8VDC
INCOMING CURRENT RANGE : 20.0A Max - 11.4VDC
INPUT SURGING CURRENT: 25.0Vmax - 12VDC
WORK EFFICIENCY: greater or equal to 85%
Environment description:
Working temperature/humidity: 15 degree to 35 degree / 45%-75%
Reposition temperature//humidity: -40 degree to +70 degree/ 10%-90%
Atmospheric pressure: 86Kpa-106Kp

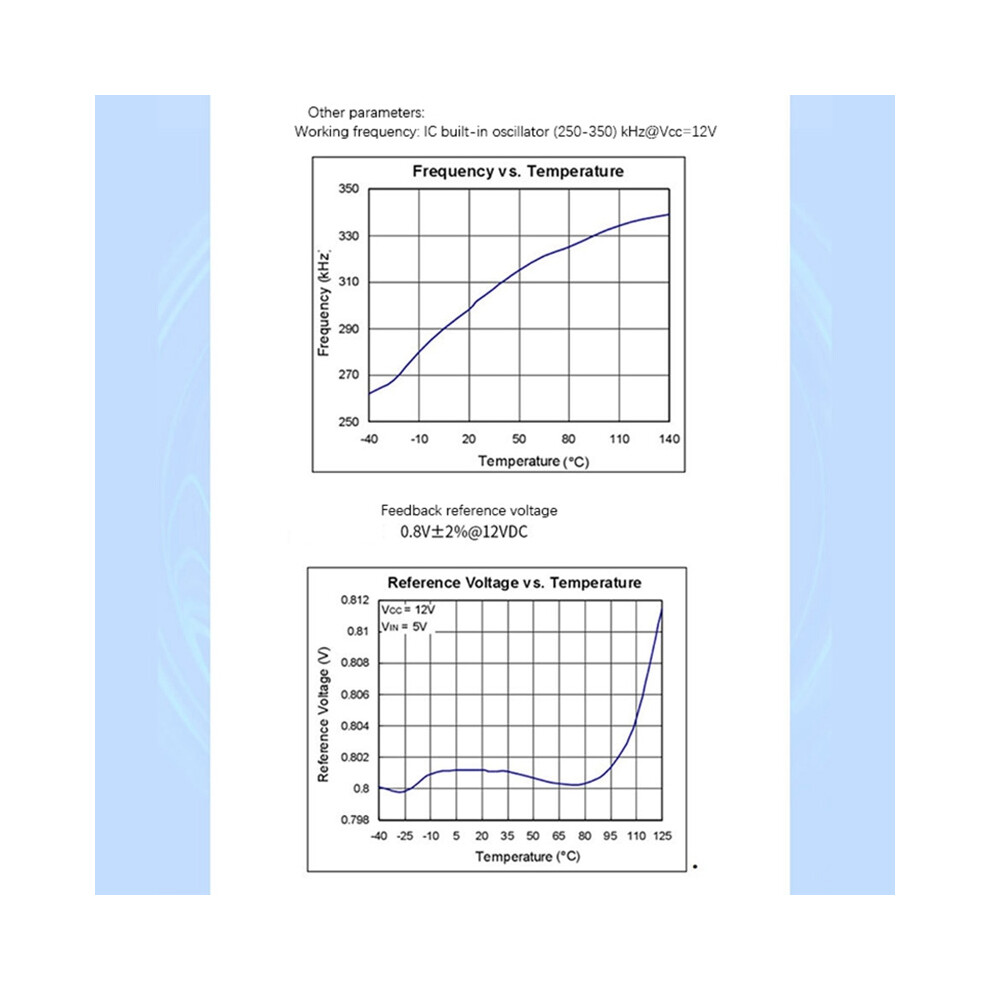

Other parameters: Working frequency: Icbuilt-in oscillator ( 250-350 ) kHz@Vcc=12V Read more
Colour: as shown
Material: PCB

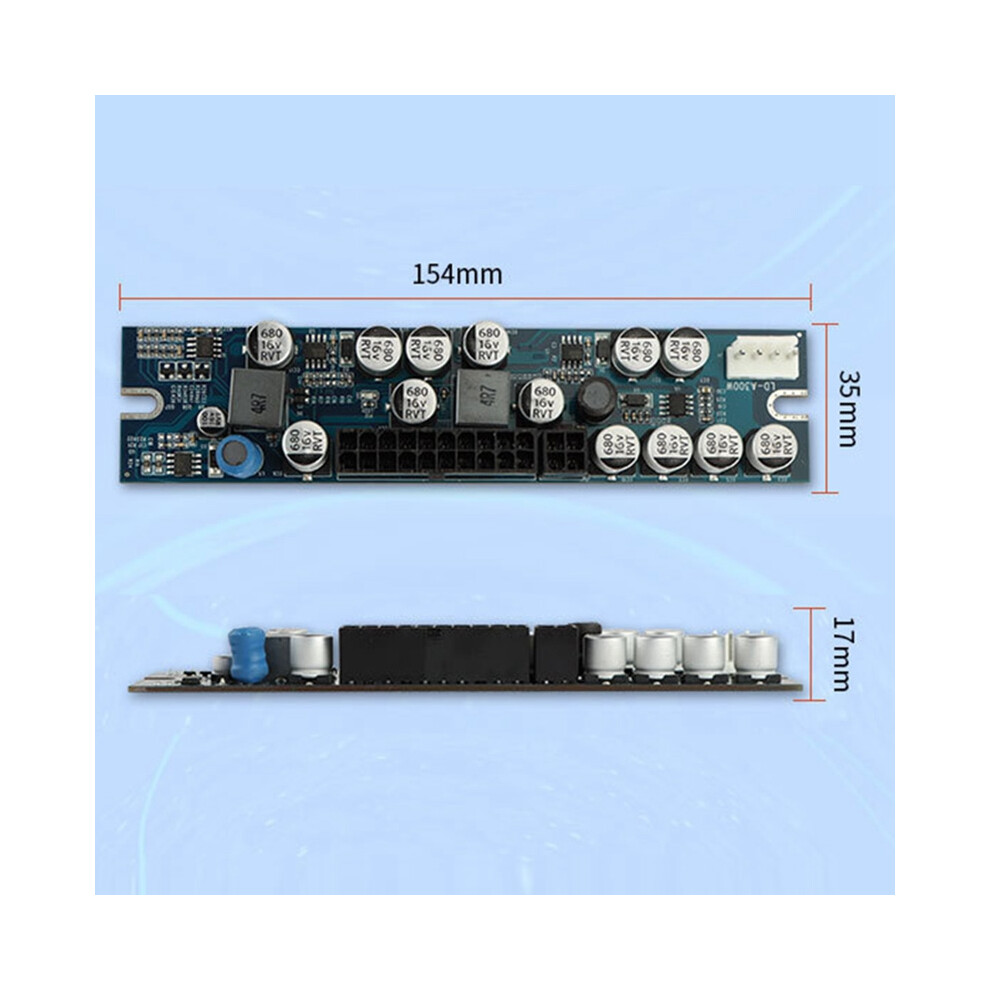

Size: 15.4x3.5x1.7cm

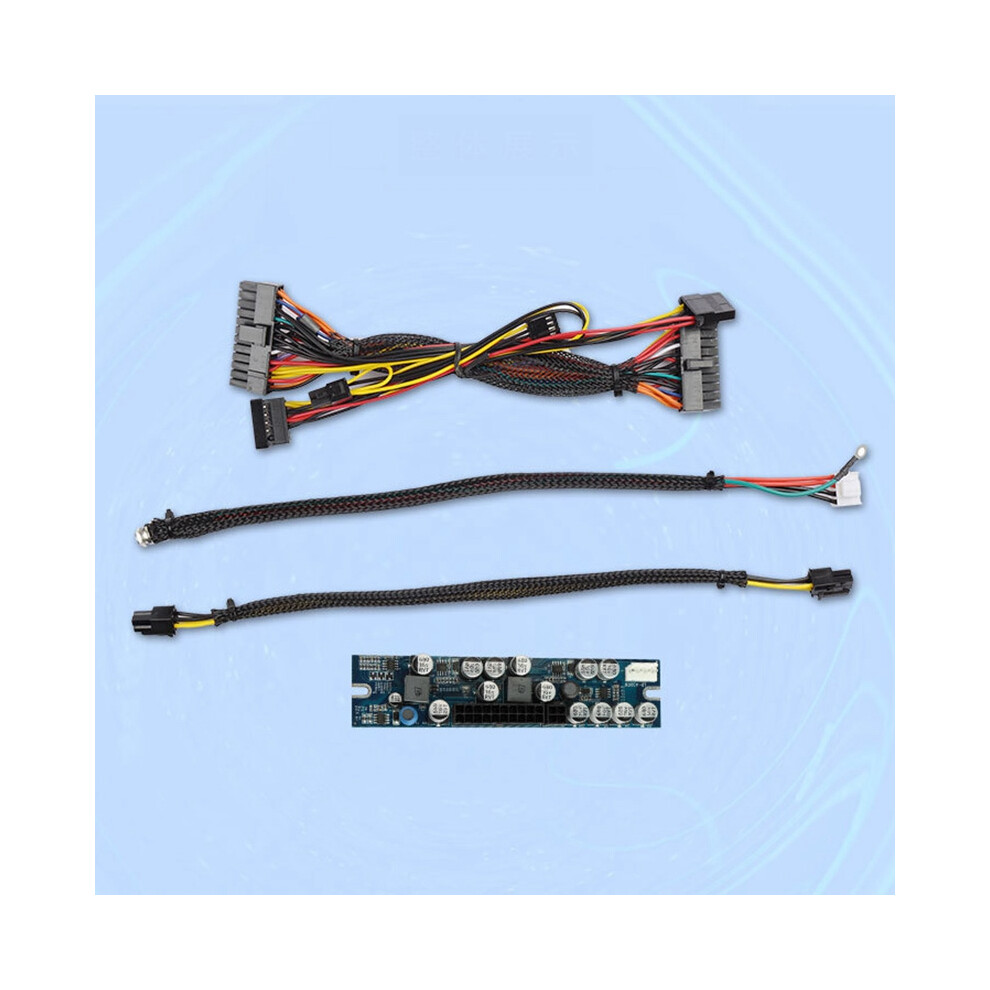

Package Contents:
1 * 300W power module
2 * DC lines
1 * power supply line

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
