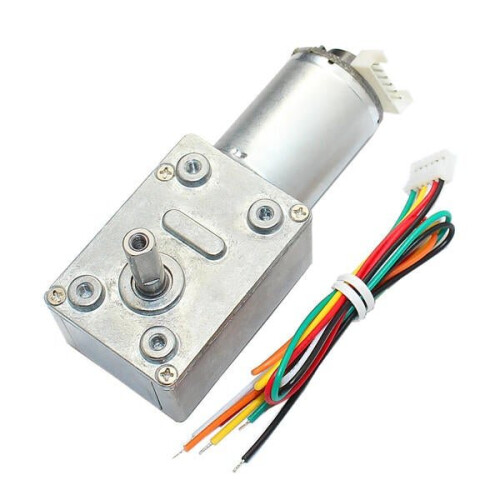

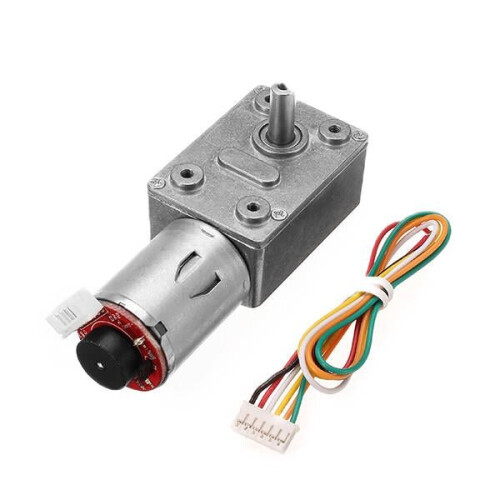

DC 12V 30RPM High torque Turbo Encoder Motor Worm Geared Motor Reducer Motor

DC 12V 30RPM High torque Turbo Encoder Motor Worm Geared Motor Reducer Motor Description

Description:

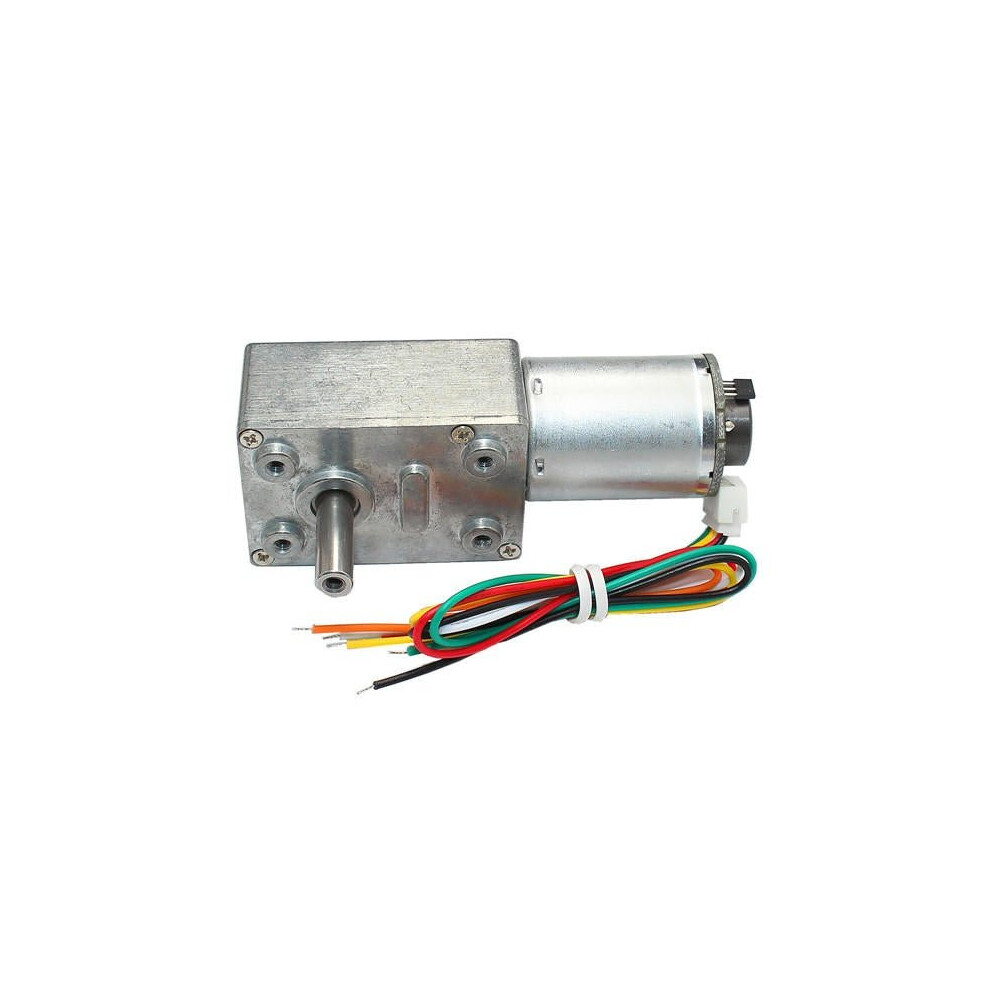

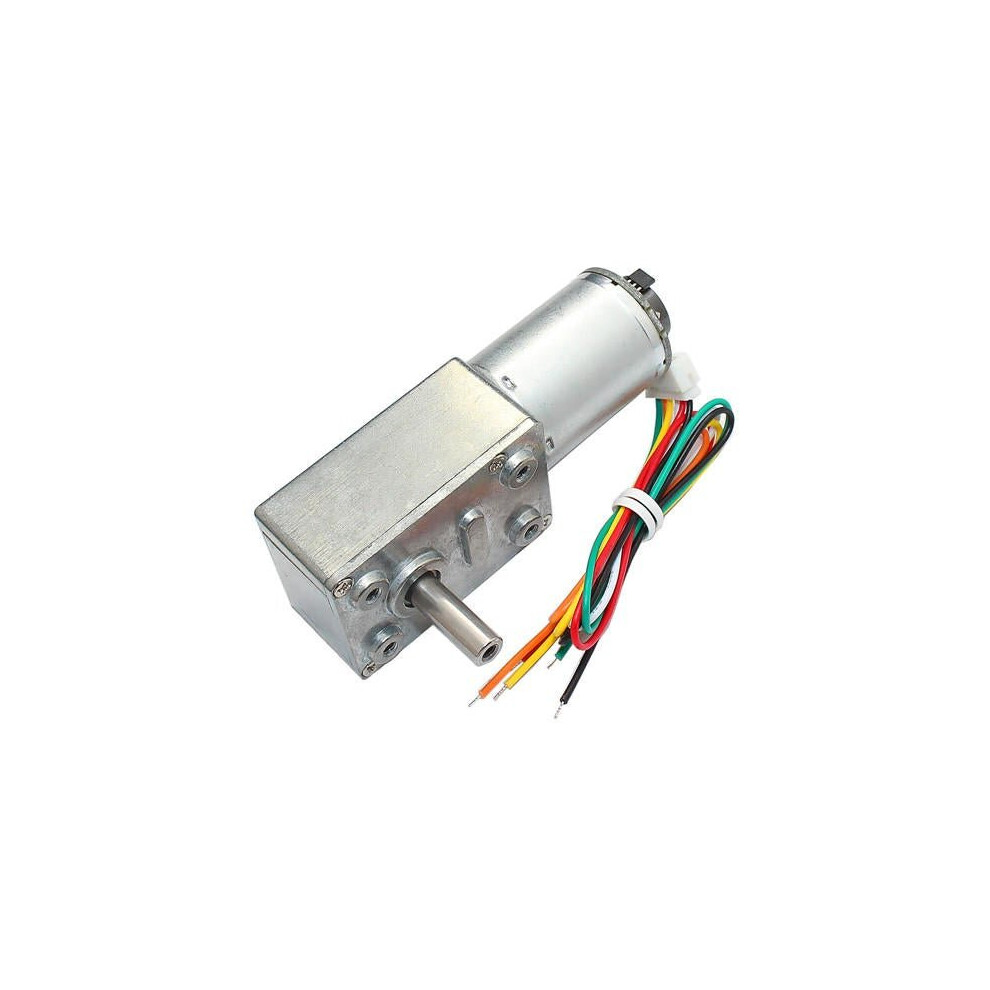

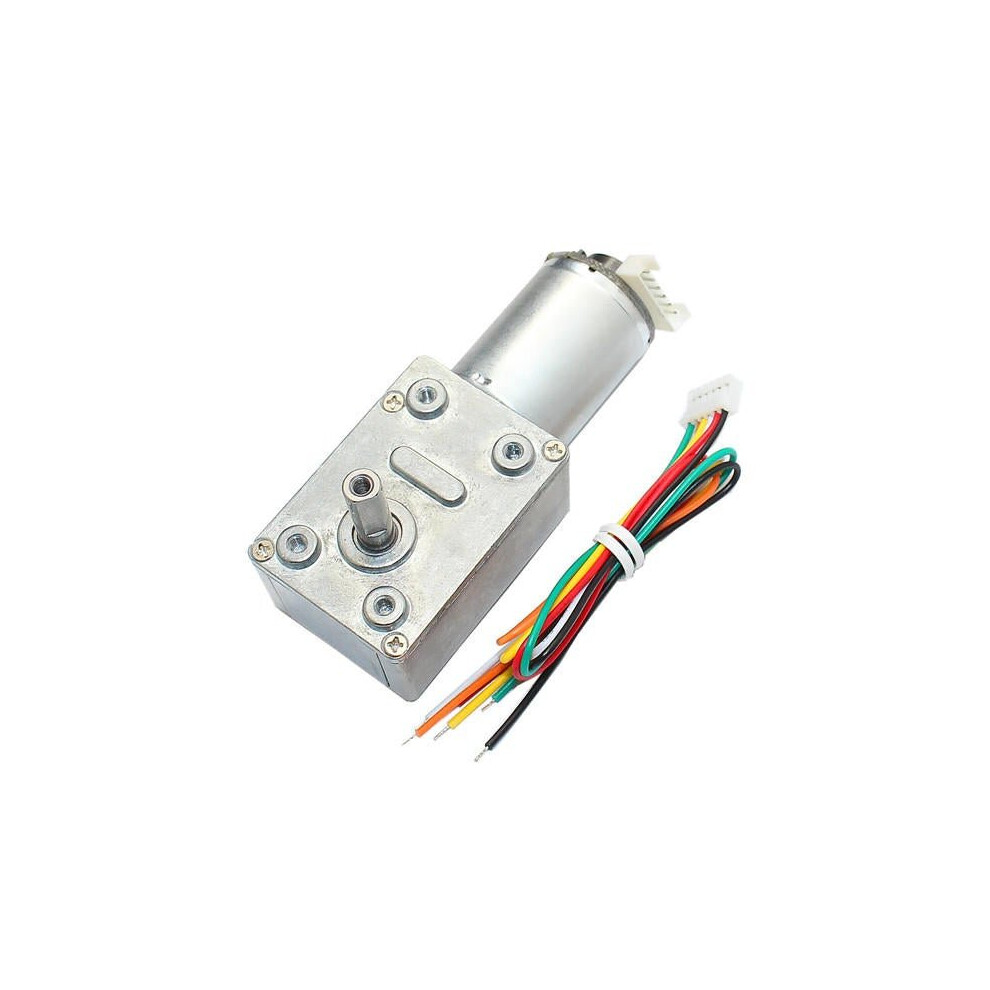

DC 12V 30RPM High torque TurboEncoder MotorWorm Geared Motor Reducer Motor.

Specifications:
Material:Metal;
Voltage:DC 12.0V;

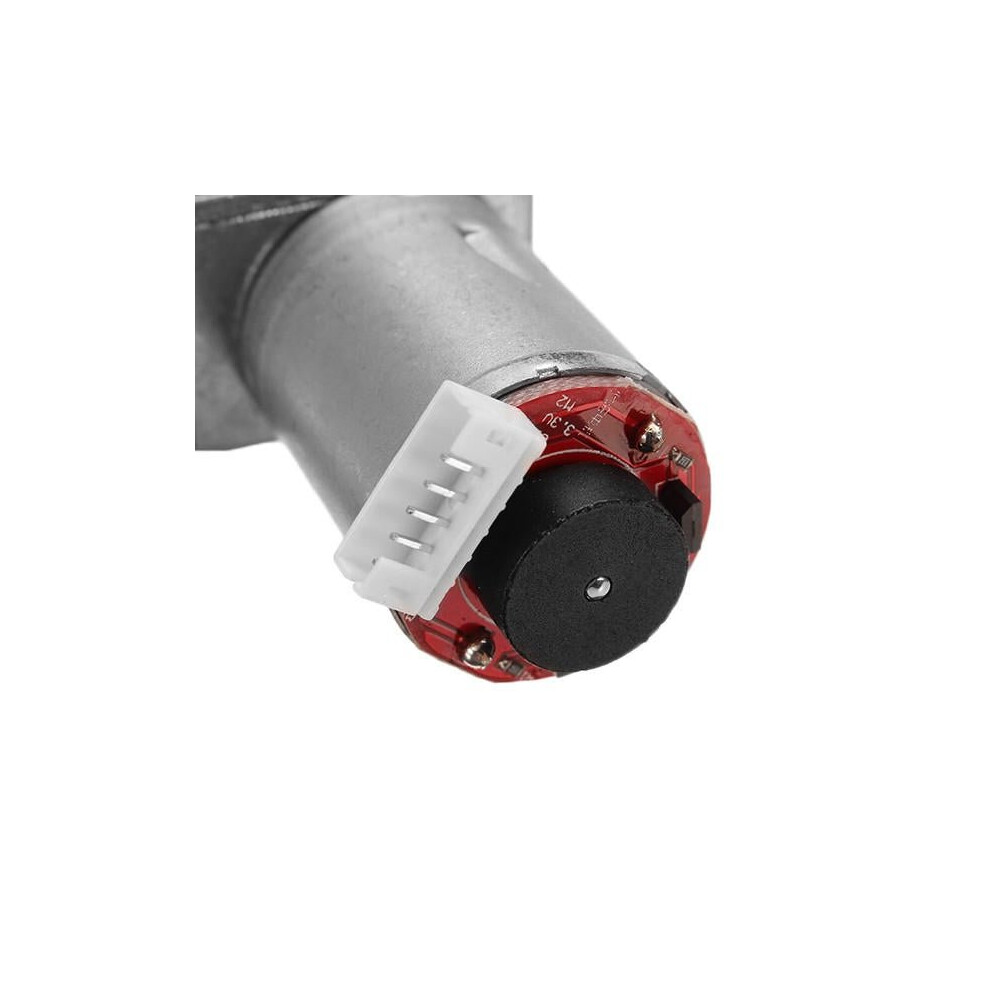

Encoder motor end 11 signals;
Input voltage(V):12;
Retarder Reduction Ratio:1:200;
No Load Speed(RPM):30;
No LoadCurrent (mA):60;
Rated torque(kg.cm):10.0 Kg.cm;
Rated Speed(RPM):21;
Rated Current(A):0.4;
stallTorque: 32Kg.cm;
stallCurrent(A):1.0;
Hall Resolution:2200;
Suitable For:Window, a door opener, miniature winch.

Features:
- Worm gear motor with self-locking, ie in the absence of electricity in the motor, the output shaft is not to move, that is self-locking.
- Gearbox output shaft direction of the motor shaft is arranged vertically, the entire body of the motor output shaft relative to the general direction of gear motor short, widely adapted to a number of installation dimensions of this aspect of the requirements of the occasion.

Note:
- When you use a motor, can not have bound items, such as adhesives do not flow into the rotary shaft through bearings, and obstruction of the operation of the motor.
- The axis of rotation of the motor's life may have the opposite effect, in order to prolong life, please check whether your load goods according to regulations, can not overload or prejudice the rotation shaft hanging items.
- Manufactured heavy eccentric load of radiation, harmful life of the motor.
- Do not store than four weeks high or extreme humidity, but also do not place in the etching gas, the motor will reduce the effect.
- Do not run the motor in the surrounding temperature and moisture.

Package Included:
1 x Worm Gear Motor
