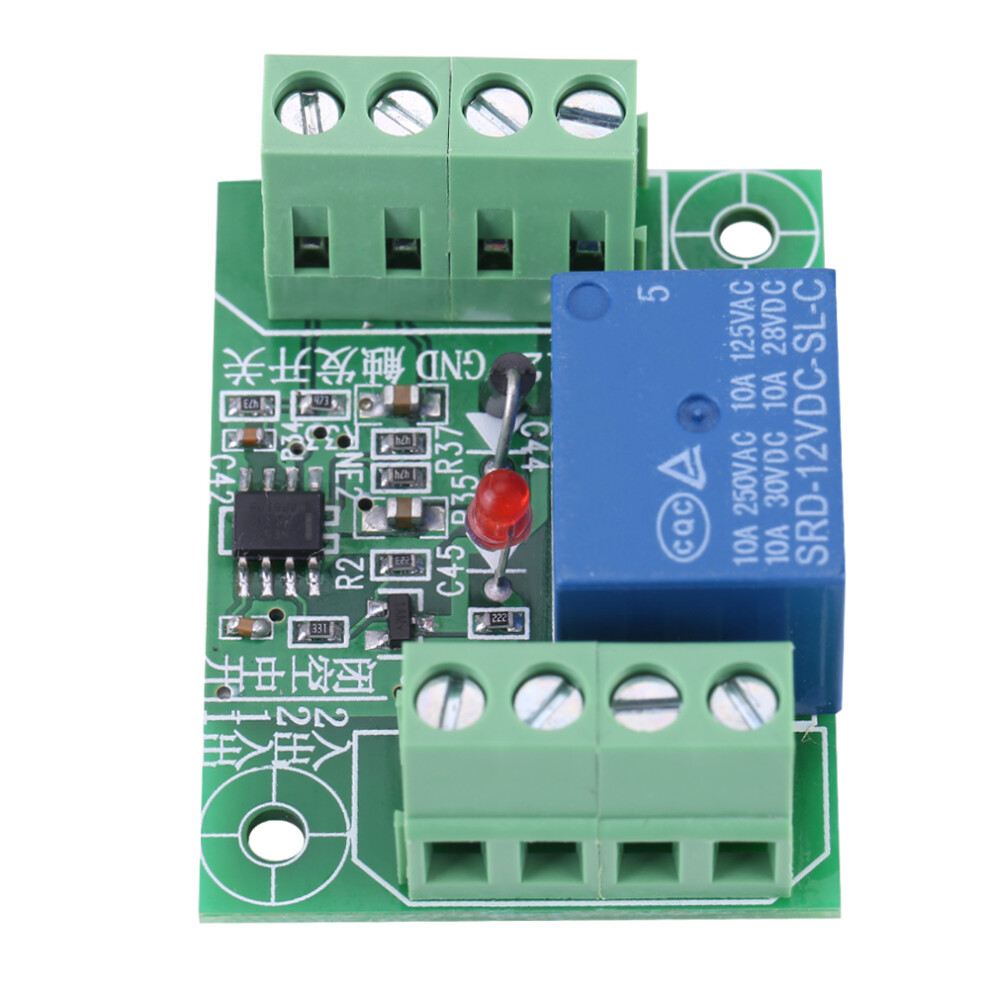

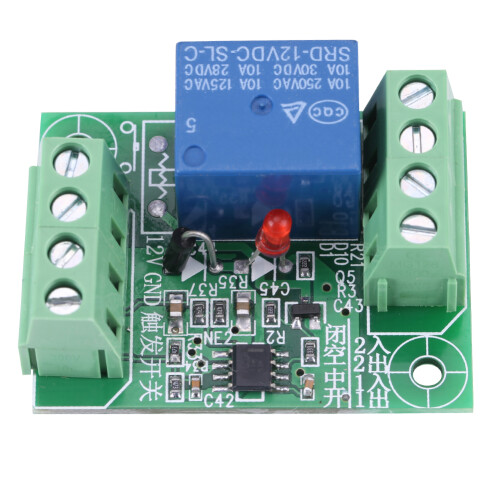

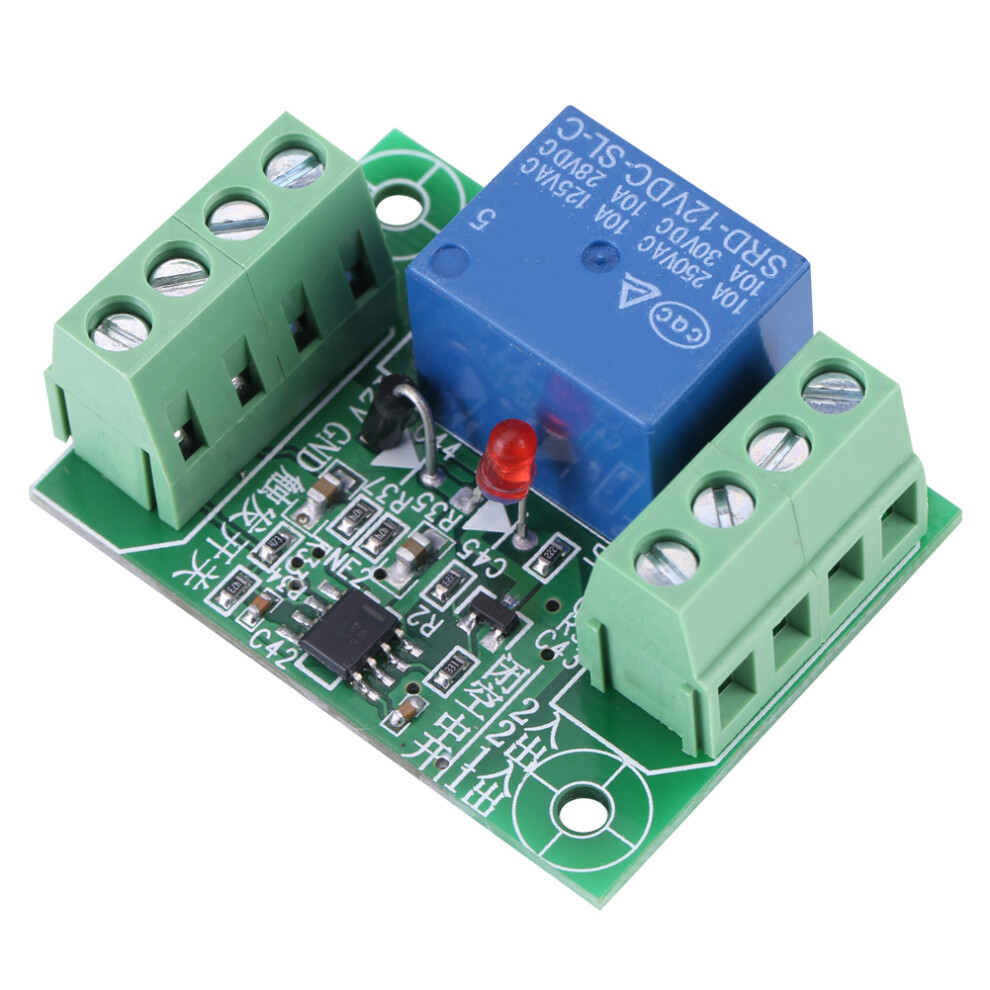

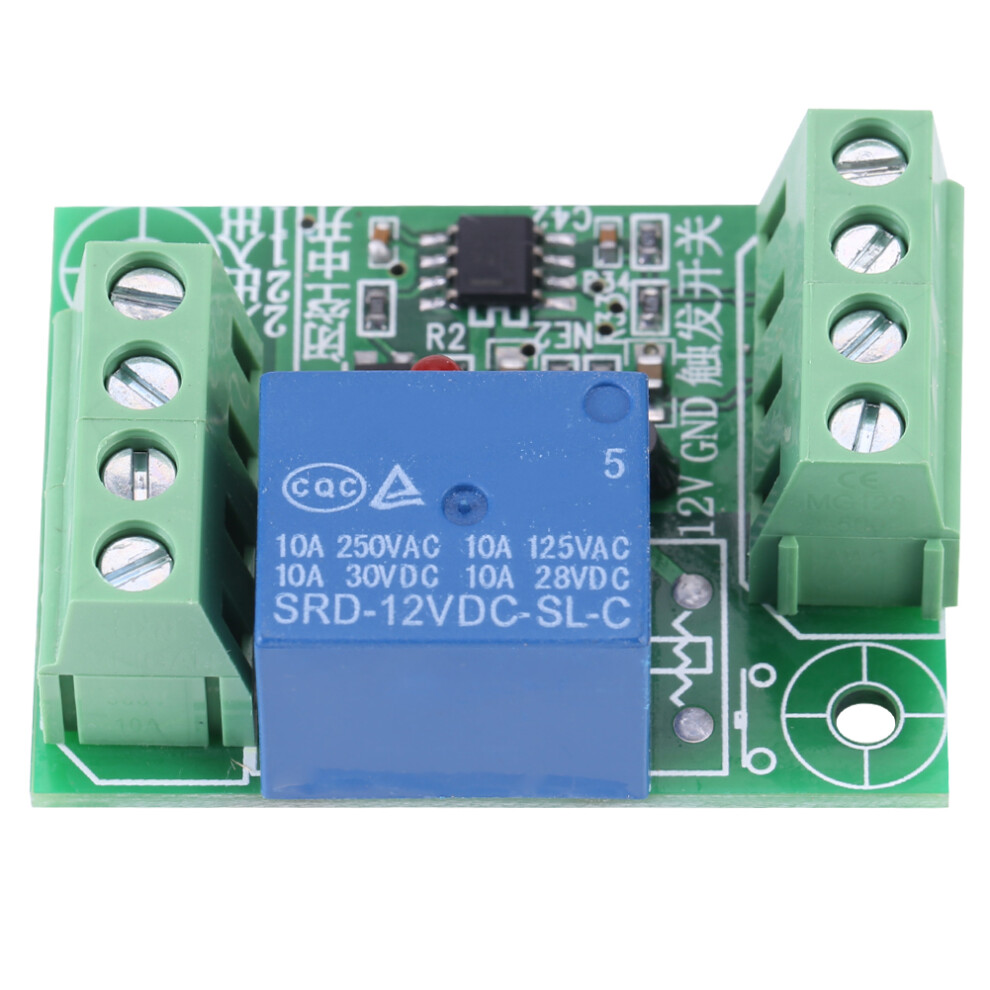

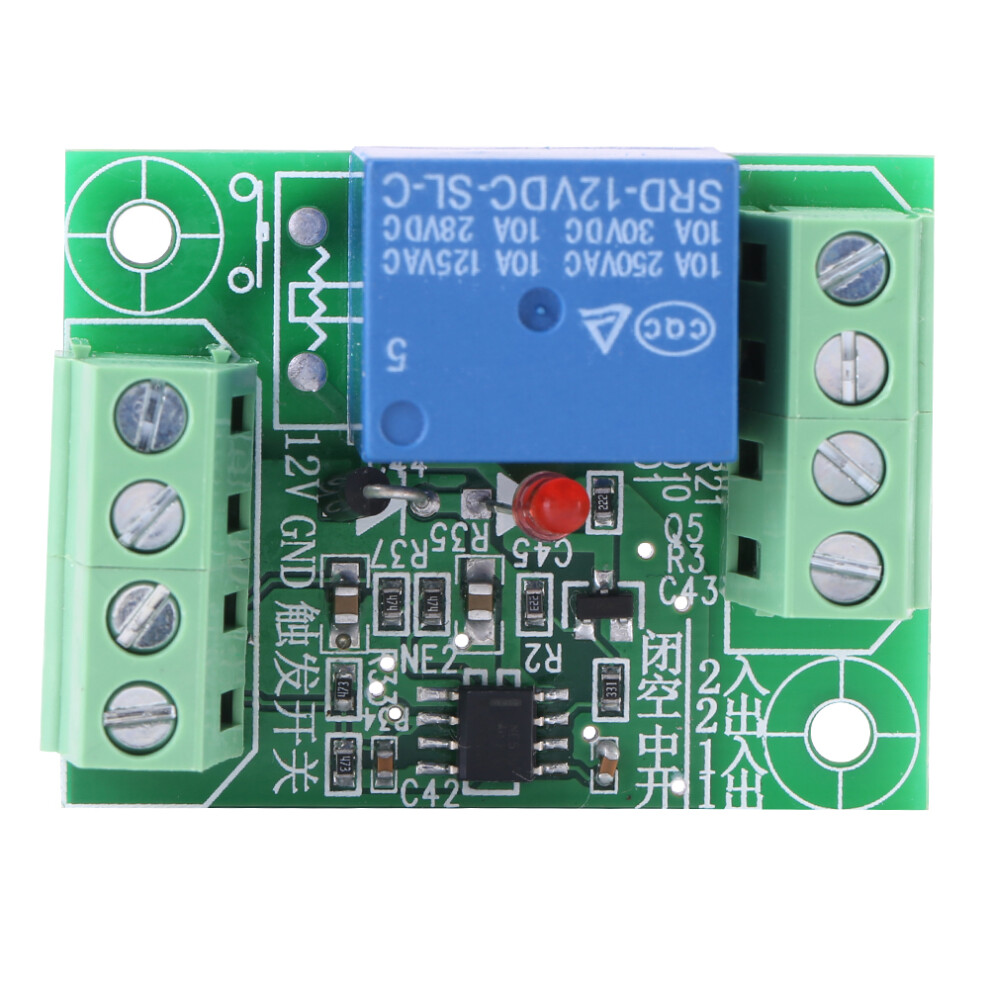

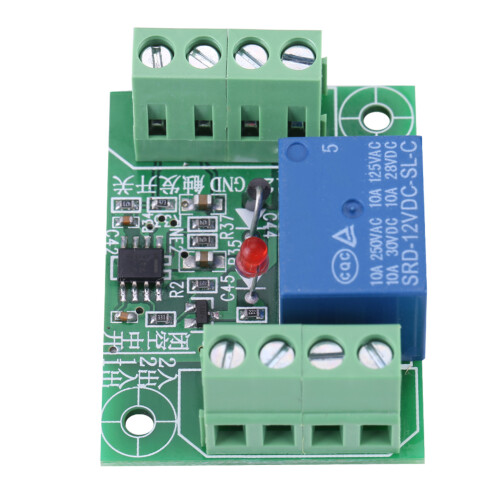

DC 12V Single Channel Bistable Relay Trigger Switch Module
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£7.52
£14.32
47% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 14th - Sat 18th Jul
Returns: 30 days
180-day payment protection
Most Popular in Photography Remote Triggers
Description & Details
Summary
- DC 12V Single Channel Bistable Circuit Trigger Switch Relay Control Module
DC 12V Single Channel Bistable Relay Trigger Switch Module Description
1、This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay 2、Designed with screw terminals, it is convenient to wire and easy to use 3、Trigger switch connect to trigger signal, trigger signal is low lever effective 4、If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel 5、The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V
Features:
This is a typical bistable circuit board, press trigger switch to energize relay and press again to dis-energize relay.
Designed with screw terminals, it is convenient to wire and easy to use.
Trigger switch connect to trigger signal, trigger signal is low lever effective.
If used for conditions of strong interface, it is suggested to connect a diode to input terminal in series, and connect a 470UF capacitor to GND in parallel.
The power supply should be DC12V, but cannot be used for cars because instant voltage of cars may exceed 12V.
Specifications:
Power Supply: 12V DC
Load Capacity: 10A, 250VAC; 10A, 30VDC
Size: 1.5*3.5*4.5cm/0.59*1.38*1.77in
Package Includes:
1 x Relay Module
Details
| OPC | PMCKXCD |
|---|---|
| Codes | 610830953942 (UPC) |
