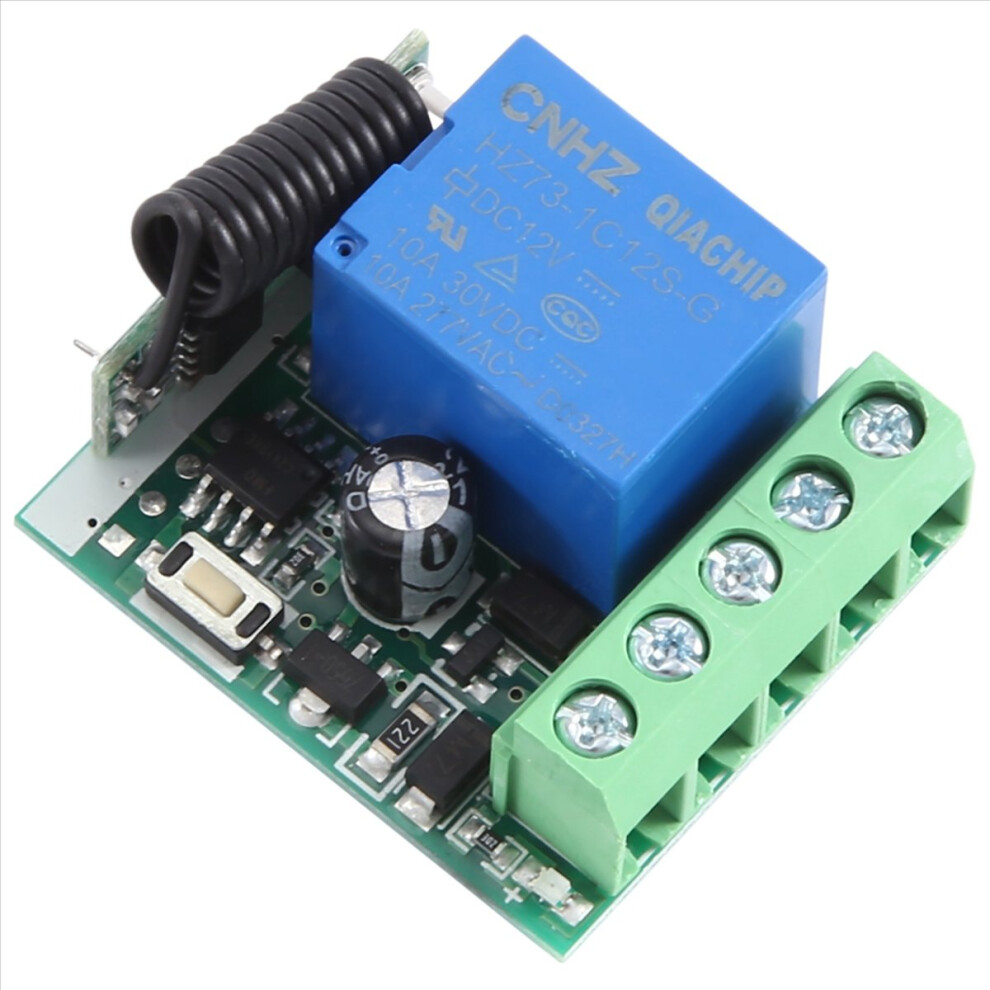

DC 12V Single Channel Relay Module Universal Wireless Switch Receiver + 2 CH Remote Controller

DC 12V Single Channel Relay Module Universal Wireless Switch Receiver + 2 CH Remote Controller Description

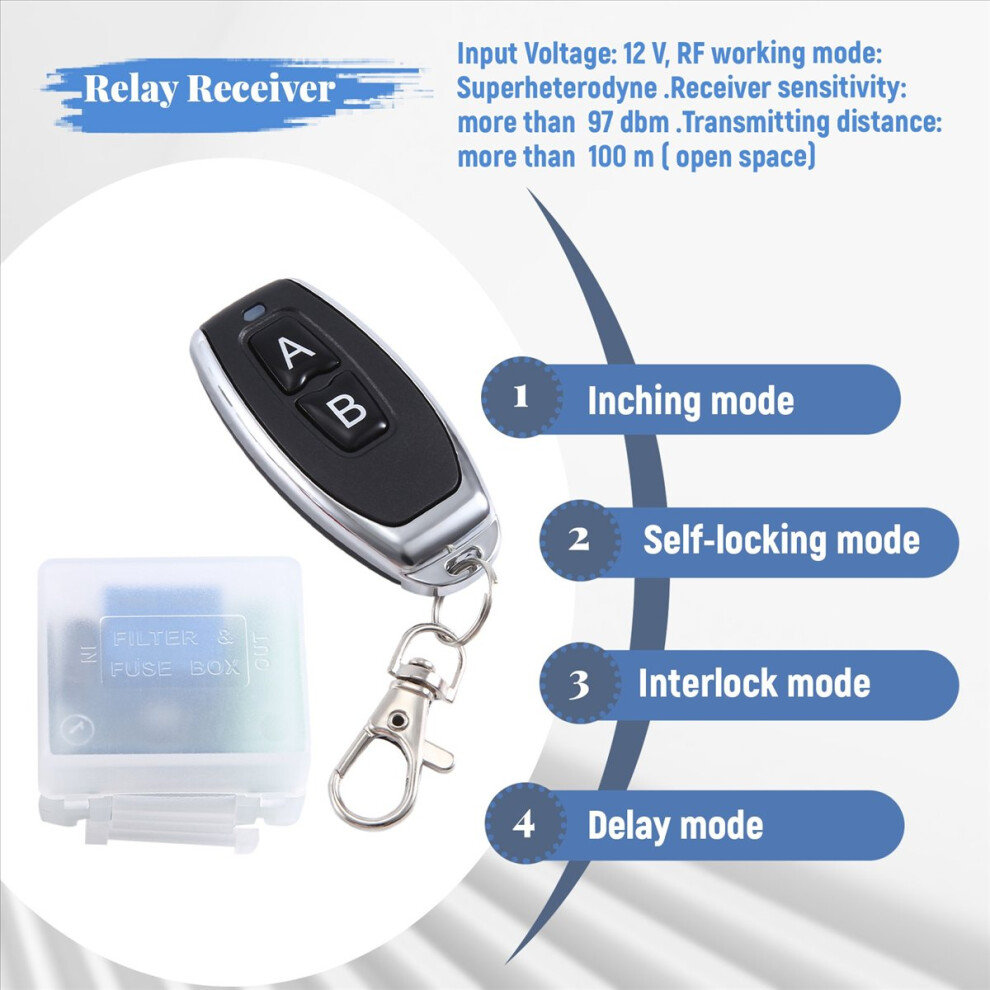

Working mode:
1. Inching mode: the remote controltherelaywill connect, and thenrelease the remote controlto disconnect the relay.
2. Self-locking mode: the remote controltherelaywill connect, and then the remote controlagainto disconnect the relay.
3. Interlock mode: the remote control key A toconnect the relay, and the remote control key B to disconnect relay.
4. Delay mode: the remote controltherelaywill connect, release the remote control and timing. After 5S, 10S and 15S (3 gears), the relay be automatically closed.

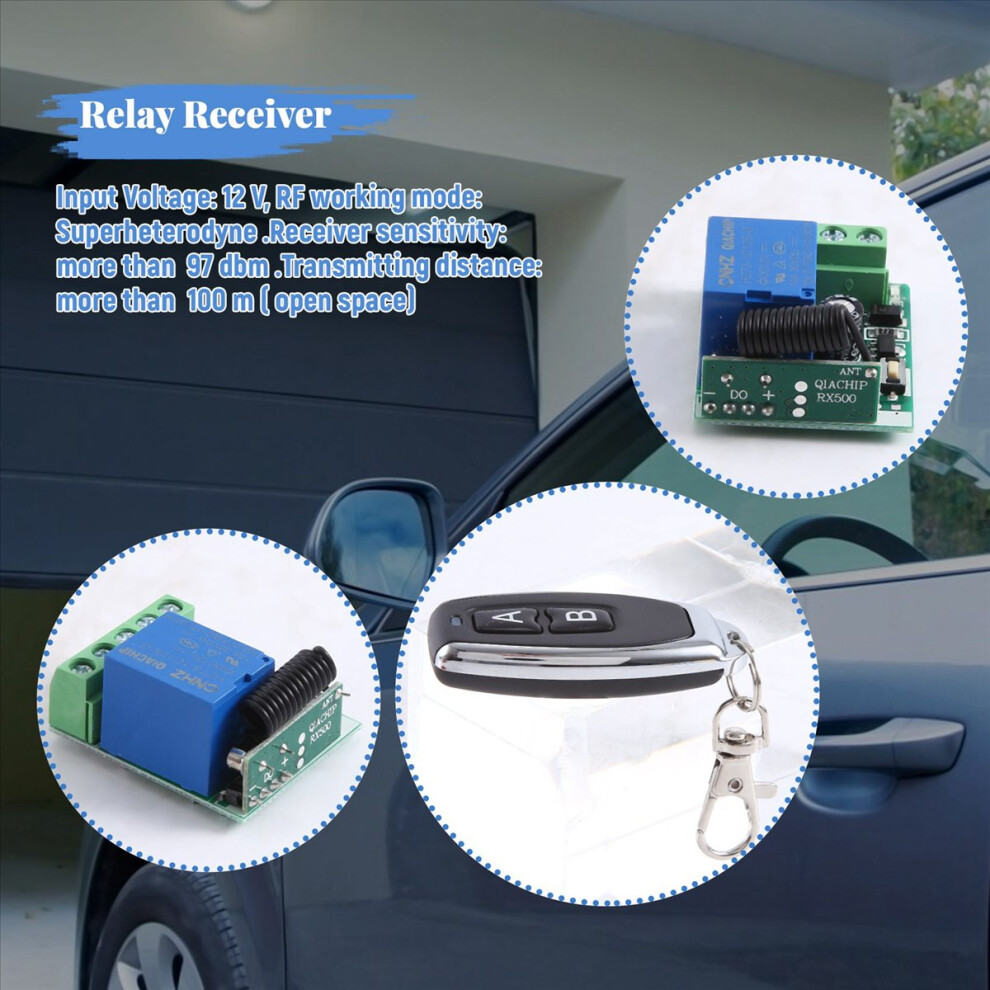

Input Voltage: 12 V, working mode: Superheterodyne
Receiver sensitivity: more than 97 dbm
Transmitting distance: more than 100 m ( open space)
Decoding mode: MCU software decoding
Remote storage: 20
Support remote type: EV1527 learning code

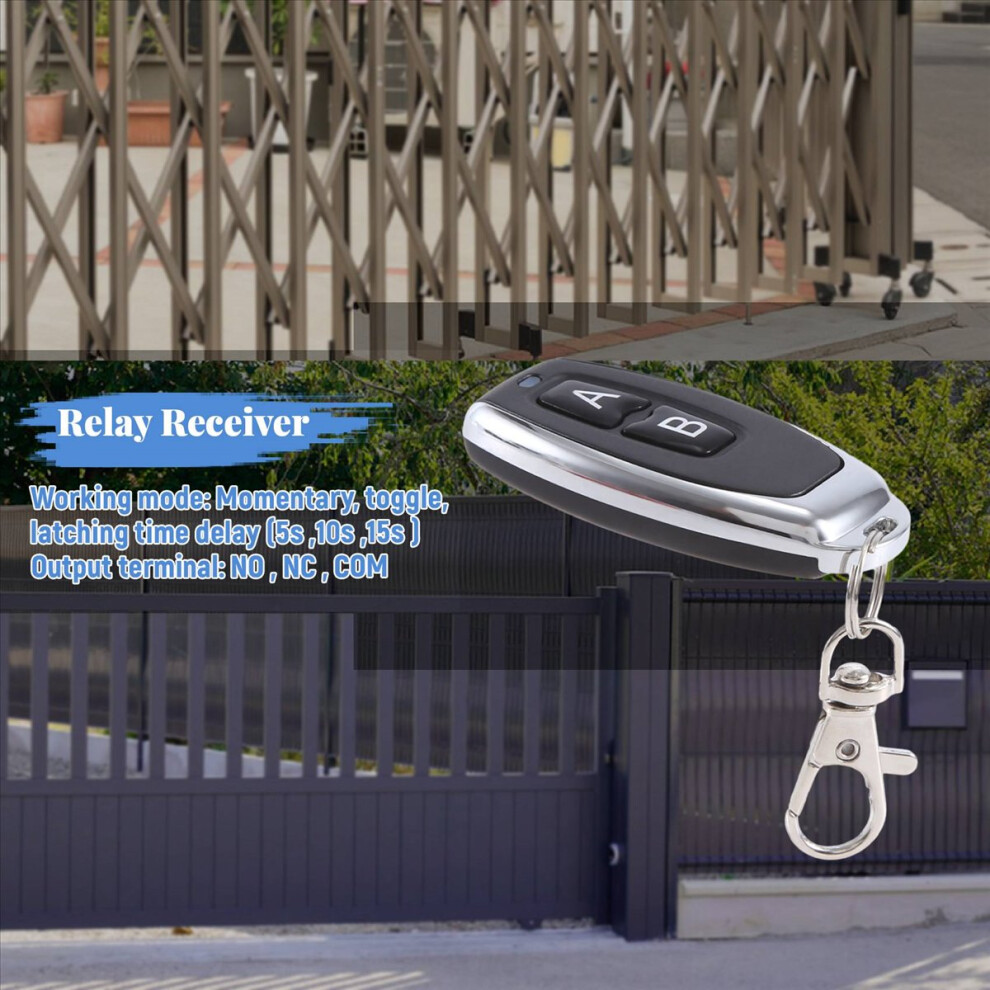

Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )
Output terminal: NO , NC , COM
Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 12 V
Remote programming
Colour: transparent color
Material: plastic

Package Contents:
1 * Receiver module

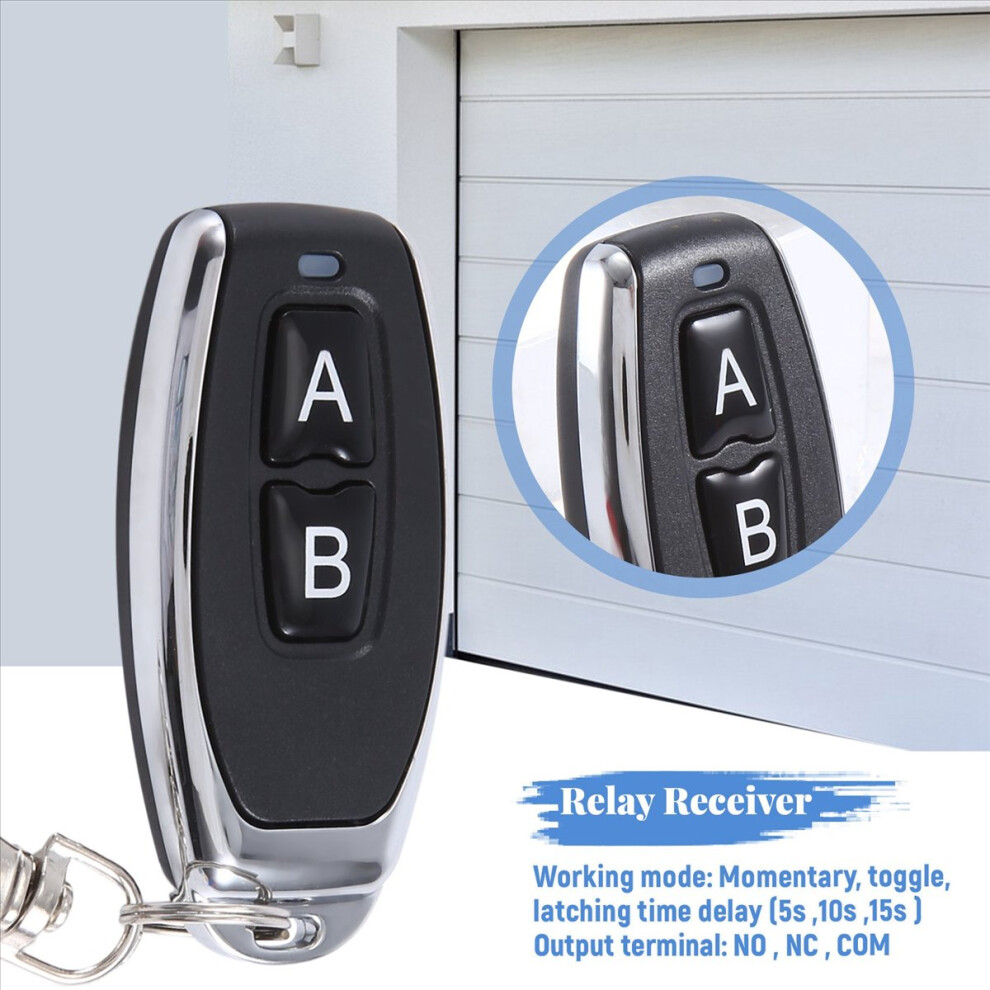

1 * AB Type Remote Control (with battery)

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
