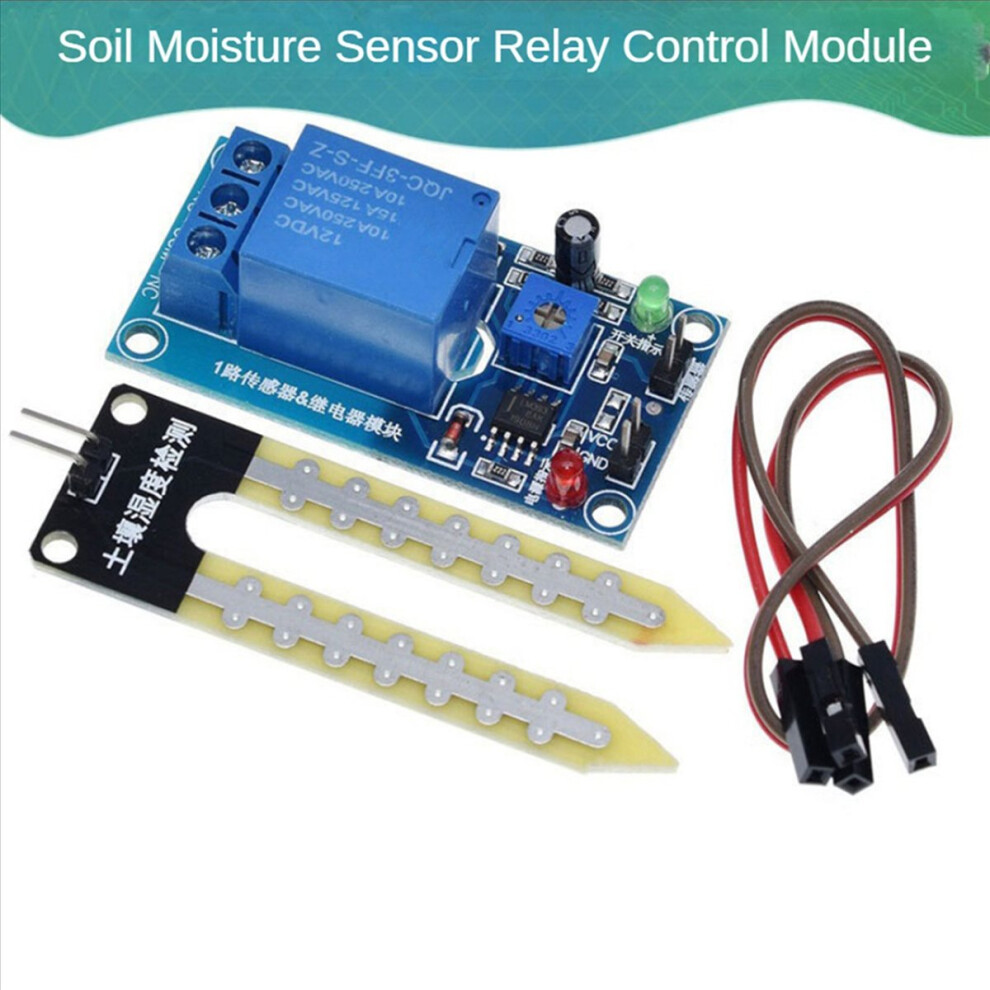

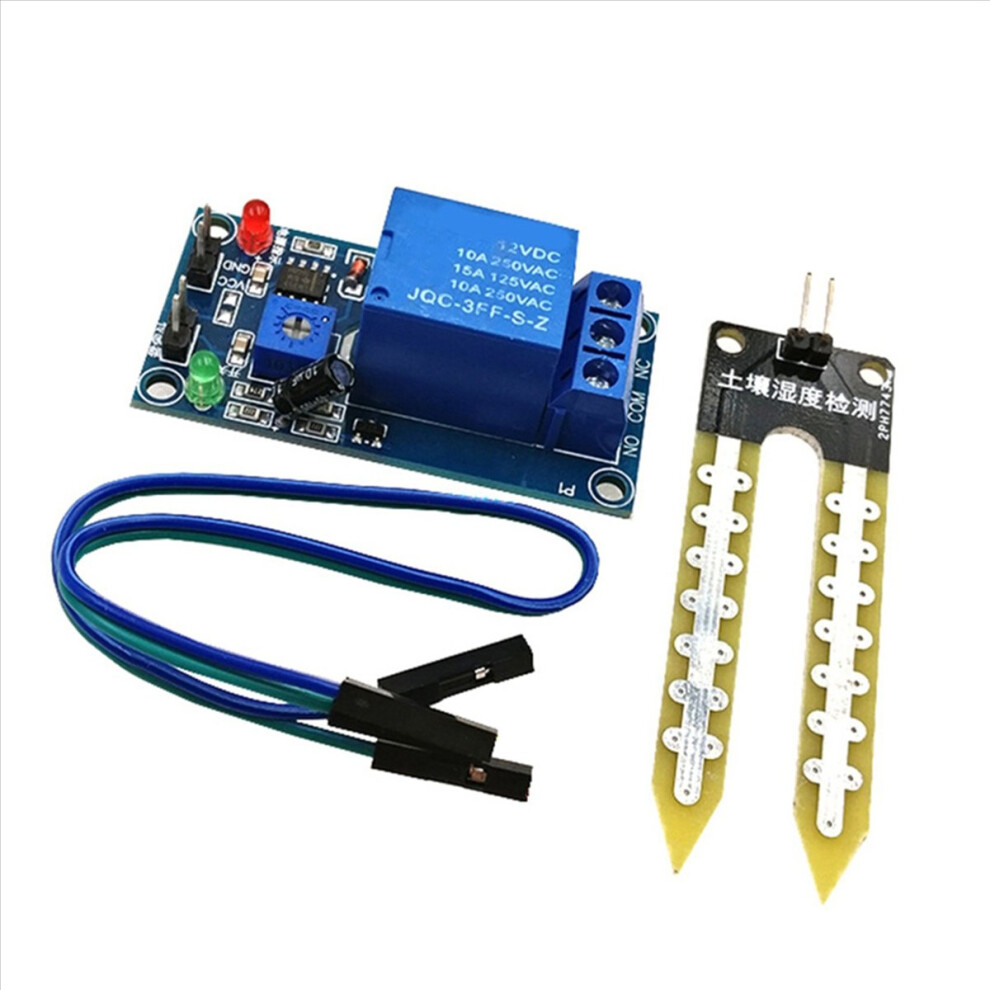

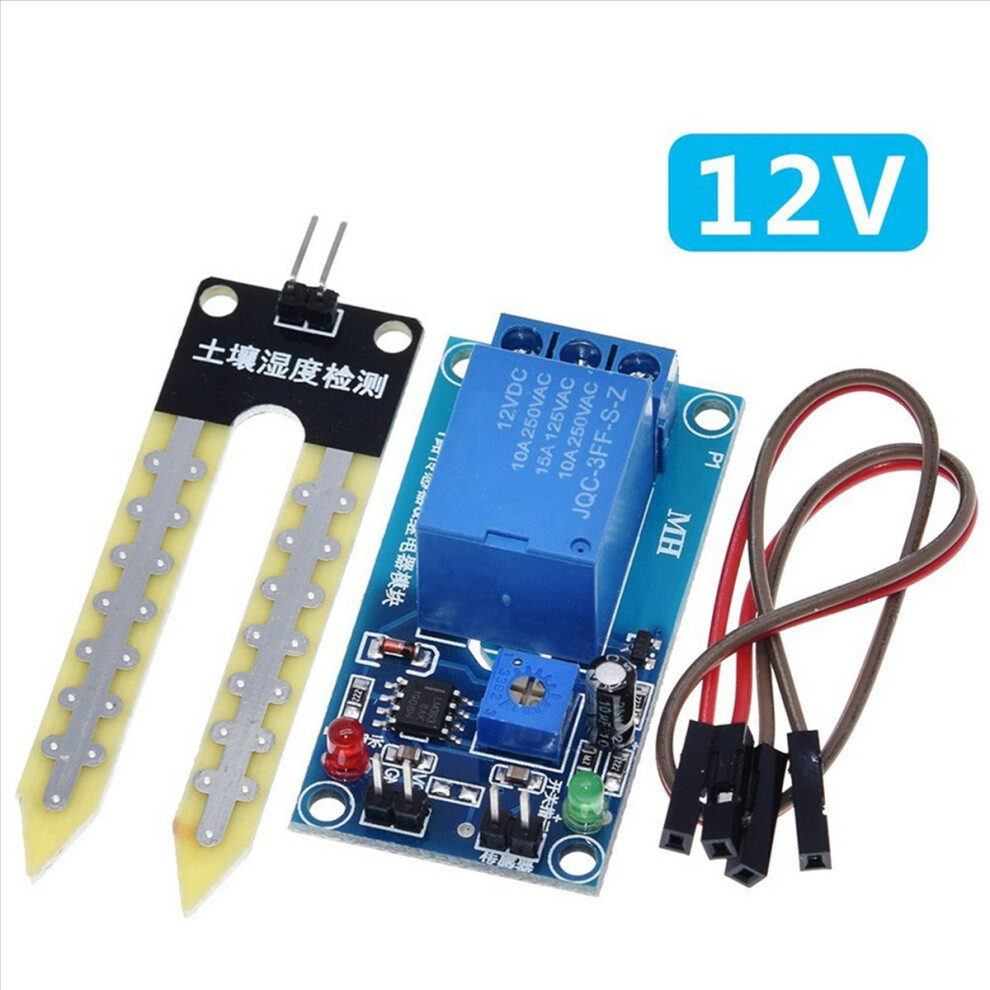

DC 12V Soil Moisture Sensor Relay Control Module

DC 12V Soil Moisture Sensor Relay Control Module Description

1. Using the company's production of high-quality soil sensor for detection of soil moisture, and the of the plating, widening of the sensing area can improve conductive properties, prevent soil contact is easy to rust, prolong service life
2. The product can be a wide range of control soil humidity and control the corresponding threshold value by adjusting the potentiometer and the humidity is lower than set value, relay, is higher than the set value, the relay is switched off.
3. Product with the function of time delay, delay 3-5 seconds when detected humidity in the critical state, relay not blink, stroboscopic phenomenon
4. products using high quality relay, can withstand the load of 1500W, to meet the requirements of most people
5. products with power indicator and indicator relay

Electrical parameters:
Supply voltage:DC12V
input current:more than 100mA
Load:10A 250V AC or 10A 30V DC (lower than the current in this range can be used)
Module instruction:
Sensors applied to the detection of soil moisture.
Blue potentiometer is used to soil moisture threshold adjustment, clockwise adjustment and control the humidity be bigger, counterclockwise smaller.
Due to the module with delay function, adjust the humidity value, once every tune need to wait about 5-8 seconds, see the change of the relay, the green LED lamp also has the corresponding change, until adjusted to meet the requirements.
Humidity is lower than the set humidity referring to is when soil moisture is lower than setting humidity, the relay automatically pull in, the , water pumps, etc. do humidifying movement, reaches the desired humidity automatically stop.
Type:DC 12V
Colour:As Shown
Material:Plastic+Electronic Components+Metal

Package Contents:
3 x Soil moisture control module
3 x soil sensor
3 x line(Cable color is random, no specification is accepted)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
