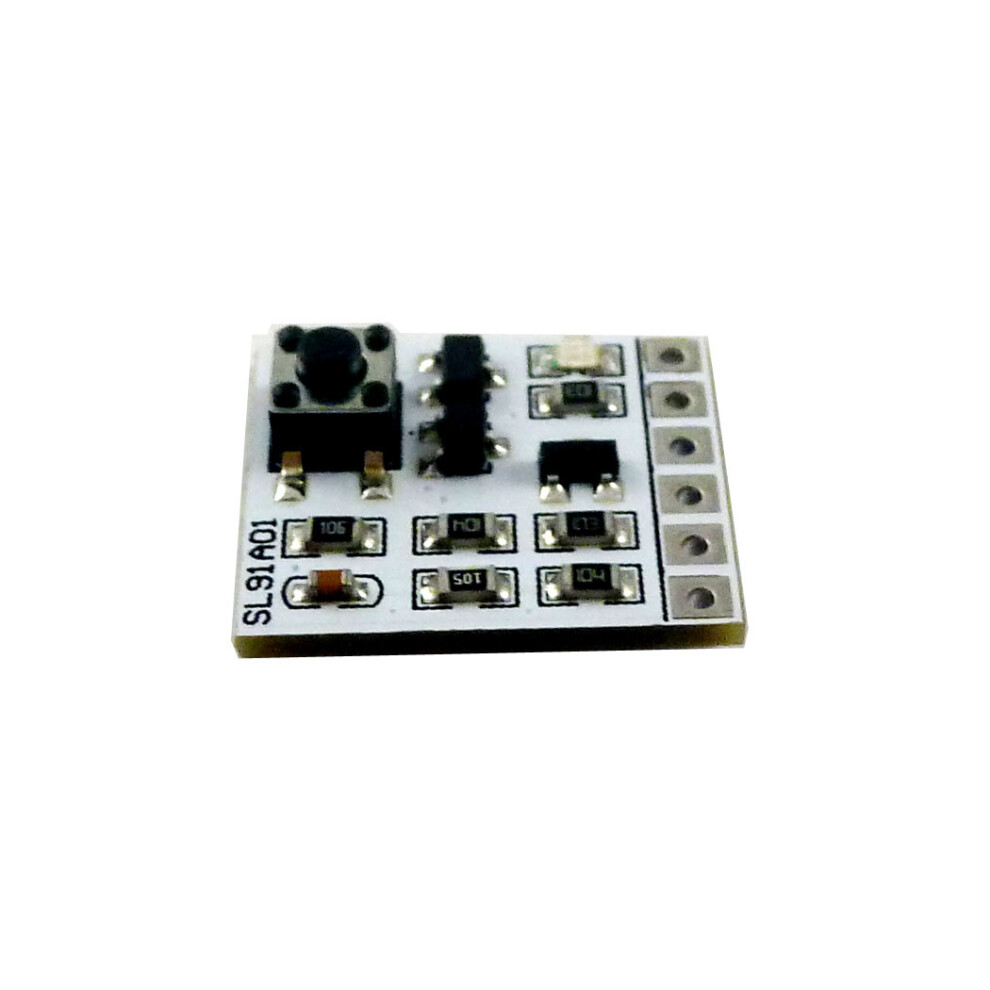

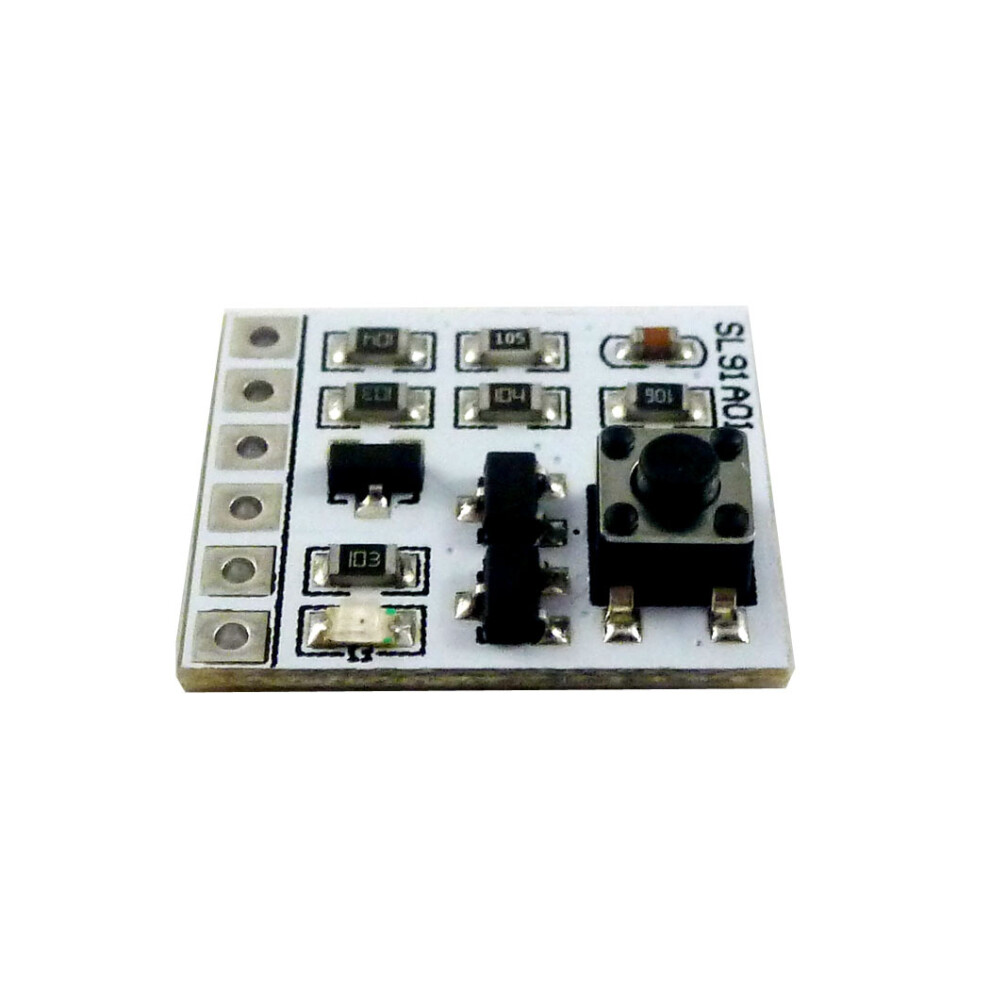

DC 2-18V 2A Self-locking Electronic Switch Bistable Board Button Trigger Key

DC 2-18V 2A Self-locking Electronic Switch Bistable Board Button Trigger Key Description

Specification:

Working  voltage : DC 2-18V

Load current  :0-2000MA

Quiescent current: 11uA

Operating ambient temperature :  -40?? to +85??

Storage temperature :  -65?? to +125??

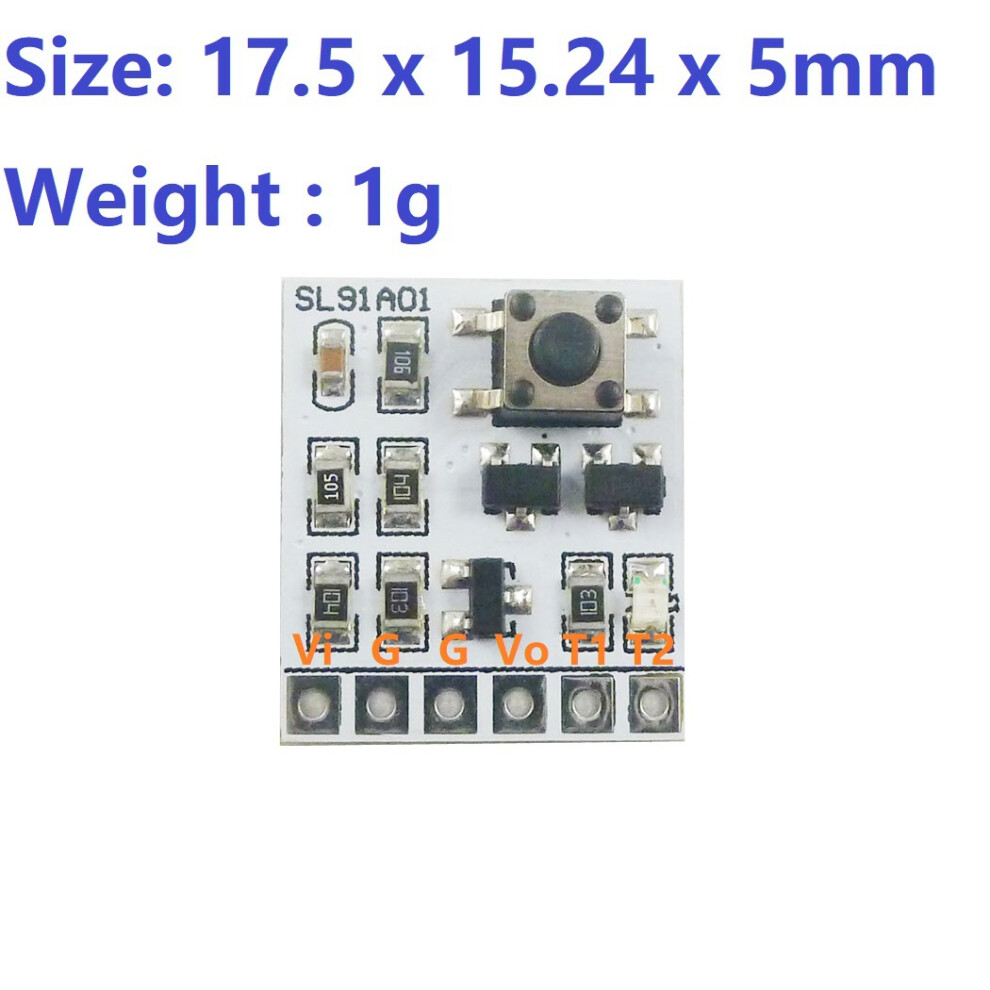

Size: 17.5 x 15.24 x 5mm

Weight : 1g

Typical applications:

Automotive electronics

Industrial equipment

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car

Solenoid valve

Module interface:

1.Vi : positive power supply (VCC)

2.G : negative power supply (GND)

3.G : negative Output (GND)

4.Vo : positive Output

5.Ti  : Button port 1

6.To : Button port 2

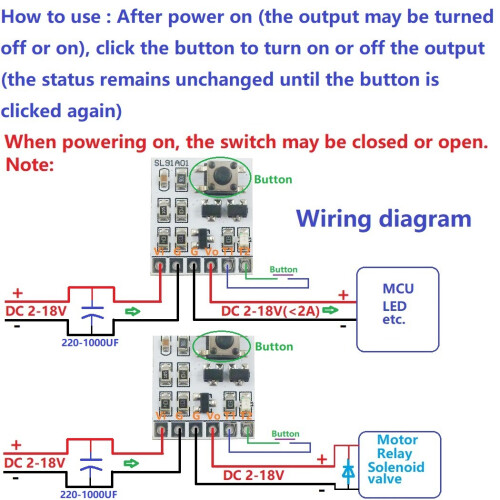

How to use:

After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)

Note:

When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty

Package includes:

1x Electronic Switch
