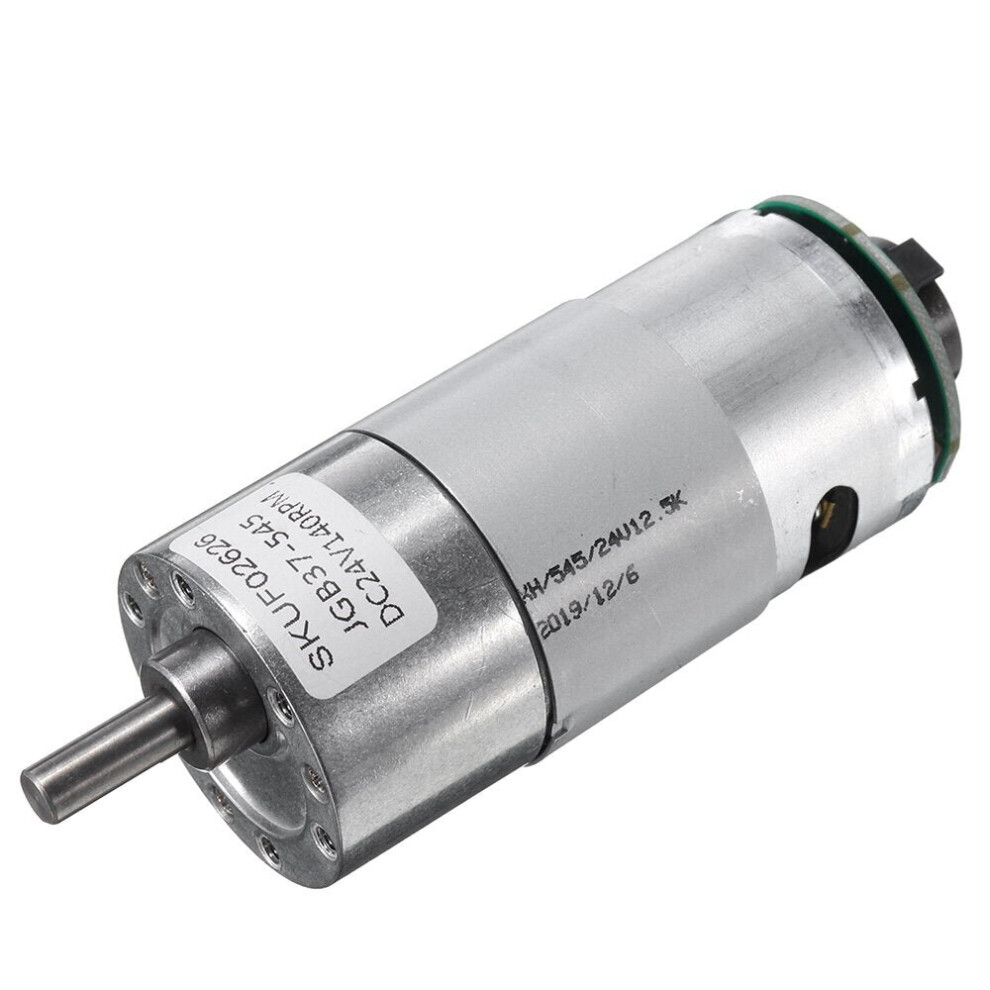

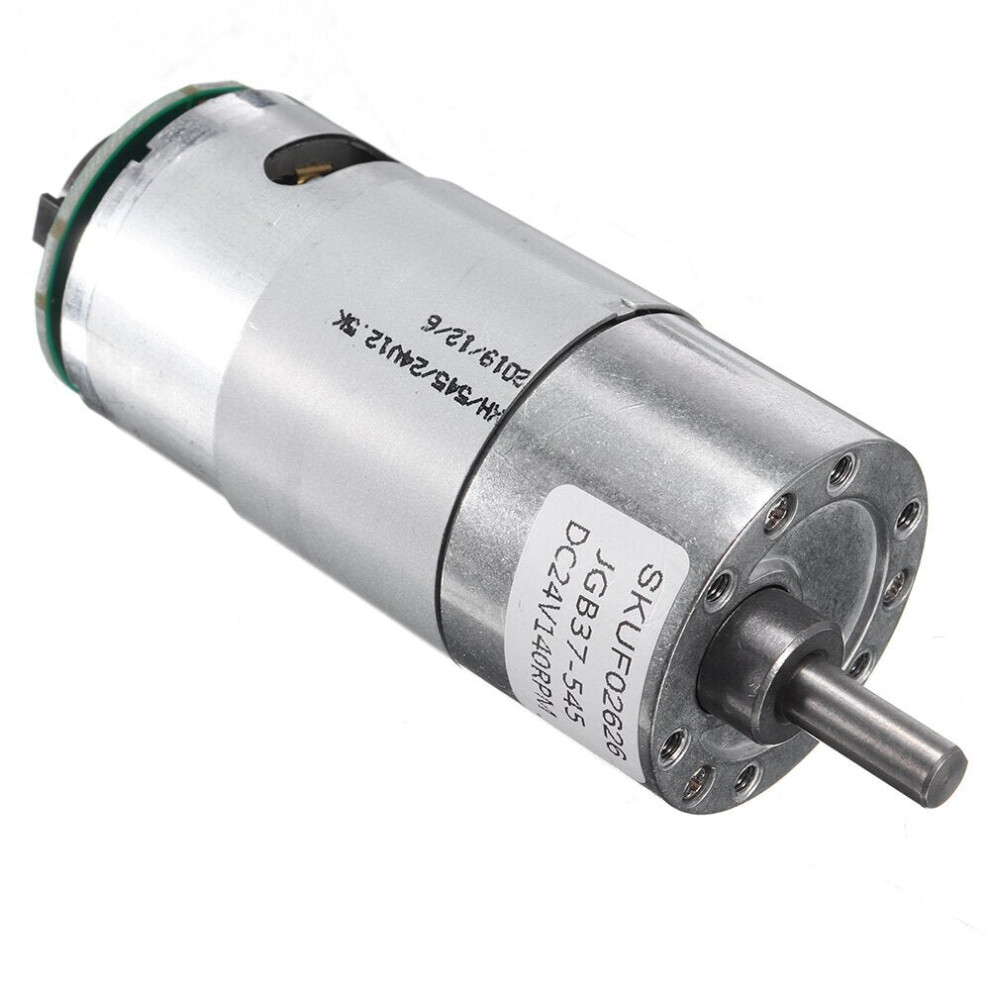

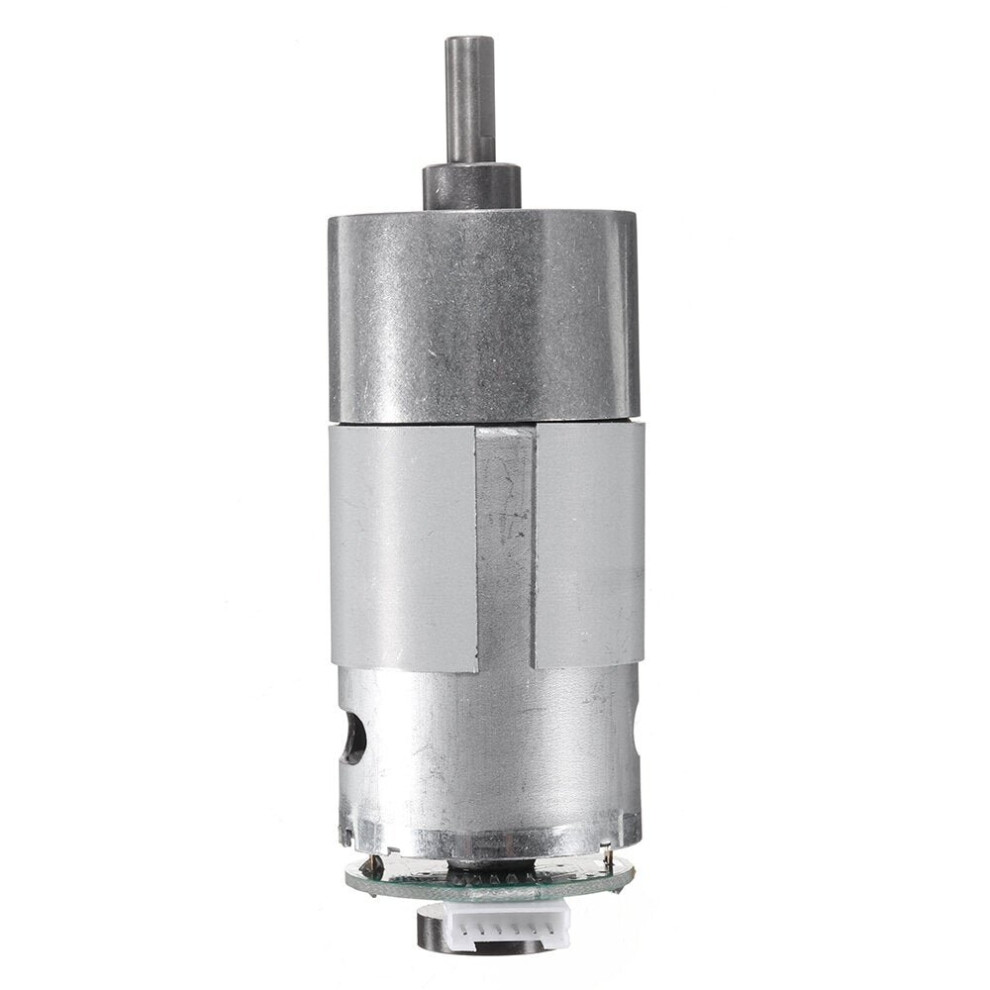

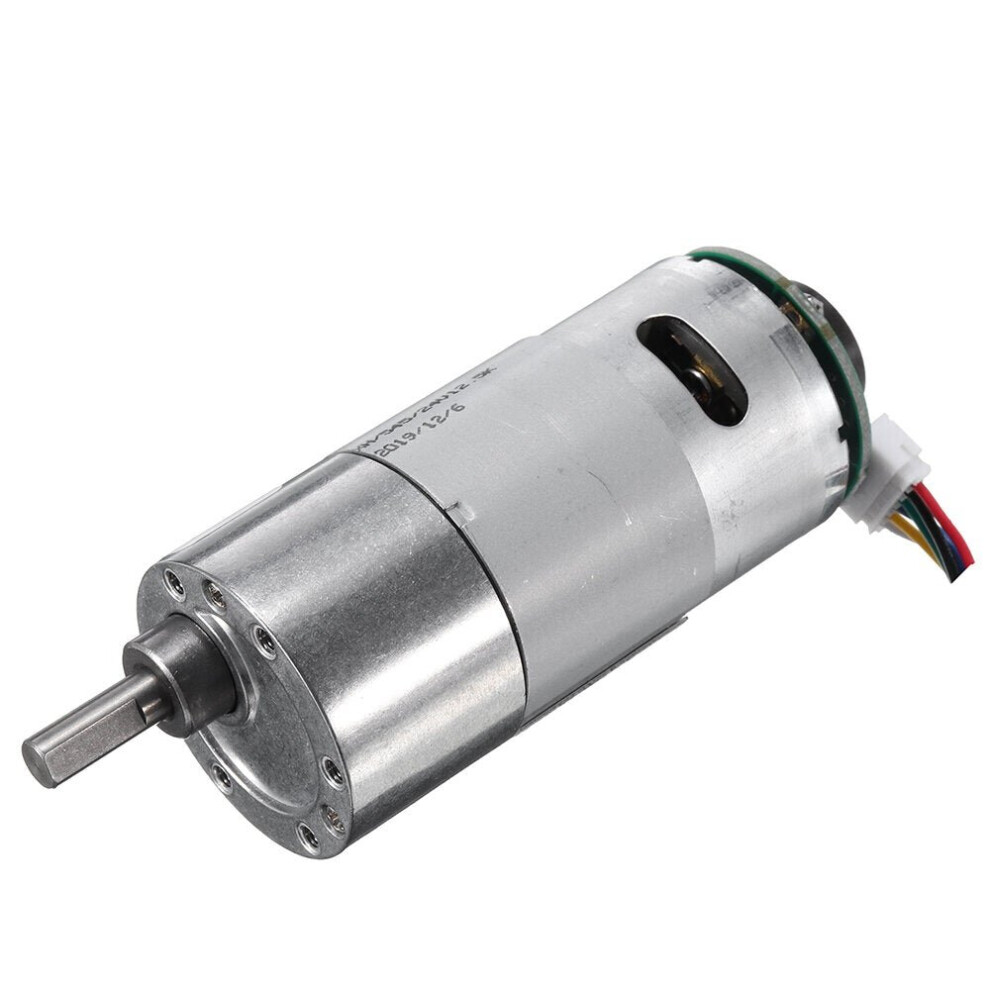

DC 24V 140RPM Gear Reducer Motor with Encoder Geared Reduction Motor

DC 24V 140RPM Gear Reducer Motor with Encoder Geared Reduction Motor Description

Descriptions:
DC 24V micro gear reduction motor with encoder speed dial reducer.

Specification:
Voltage:DC 24V;
Size(approach):
Output Shaft Dia.:6mm;
Axis Length:12mm;
Axle Shaft Length:21mm;
Applications:For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,robots, camera rocker electric paper-cutting paper machines, etc.

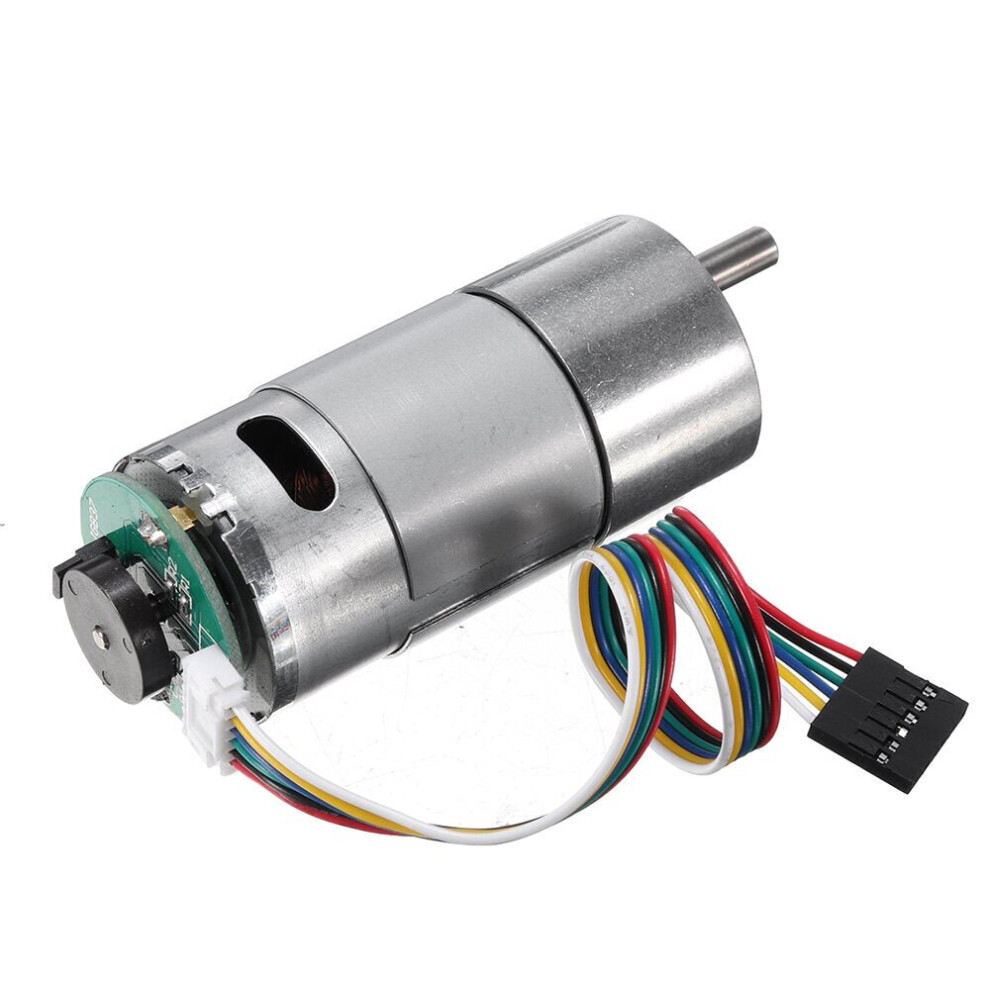

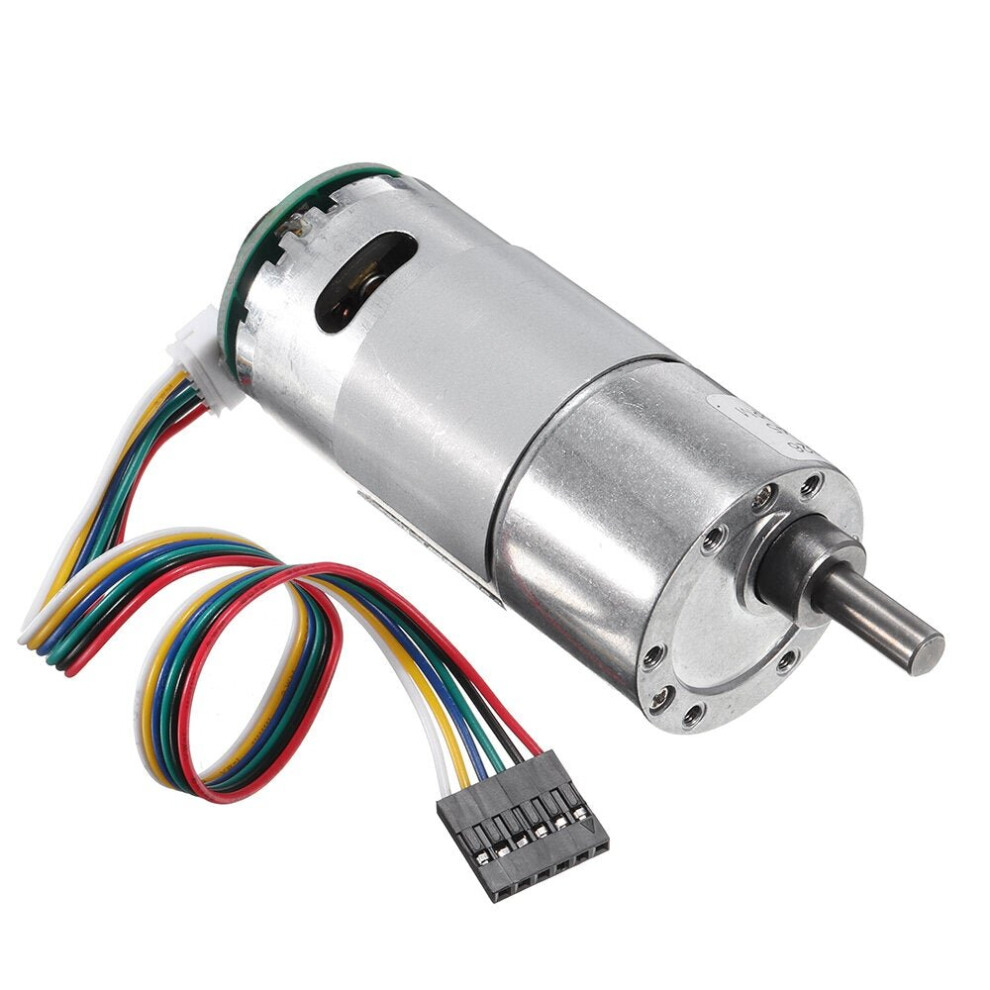

Wiring:
Red:Motor power + positive (change can control motor forward and reverse).
Black:Code power - negative (positive and negative can not be connected incorrectly 3.3-5V).
Yellow:Signal feedback (11 signals from the motor).
Green:Signal feedback (11 signals from the motor).
Blue:Encoder power + positive (positive and negative can not be connected incorrectly 3.3-5V).
White:Motor power - negative (change can control motor forward and reverse).

Features:
- All the gear of metal mechanism.
Wear resistance, strong resistance to torsion, smooth transmission, compact structure.

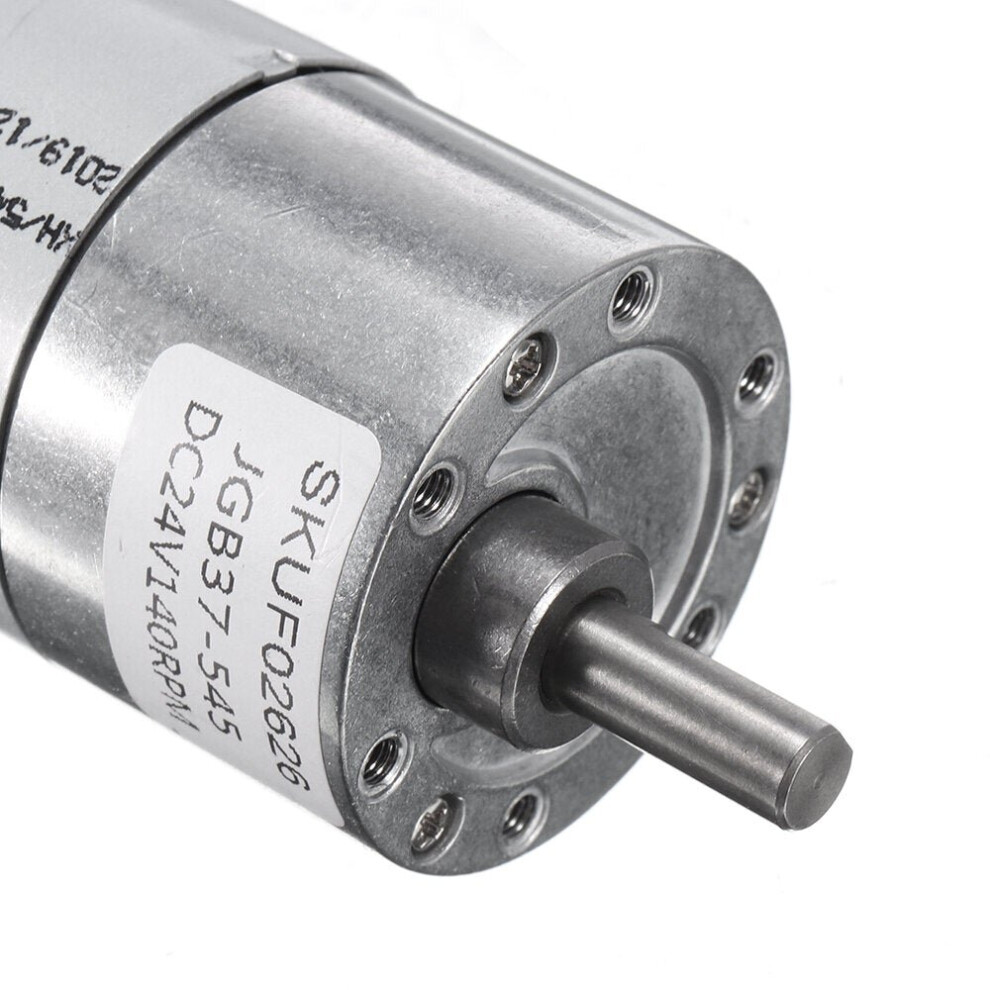

- D-shaped double axis.
D-shaped double shaft, excellent thermal conductivity.

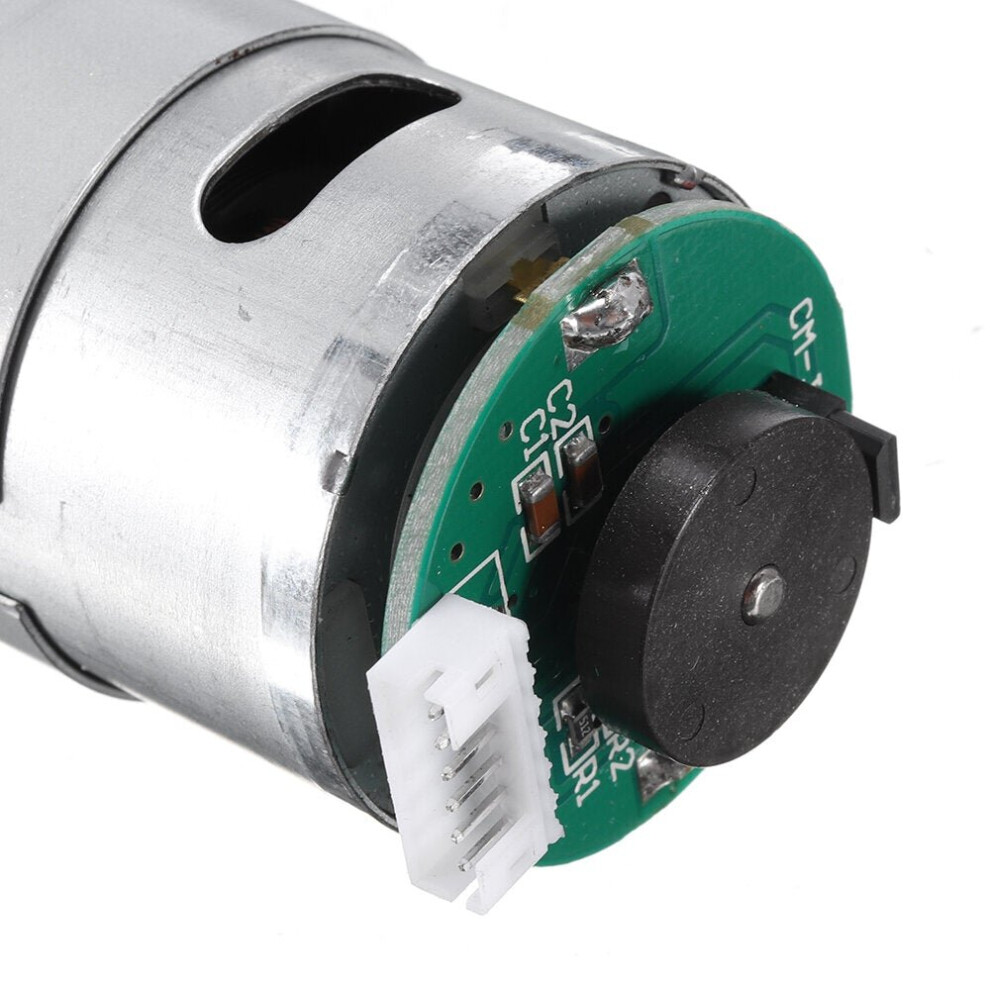

- Hall D-type encoder, 3-layer high-density molecular coating effectively isolates dust and has 10 times the life expectancy of ordinary layers.
- Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.

Package Included:
1pc x 24V Micro Reduction Gear Motor
