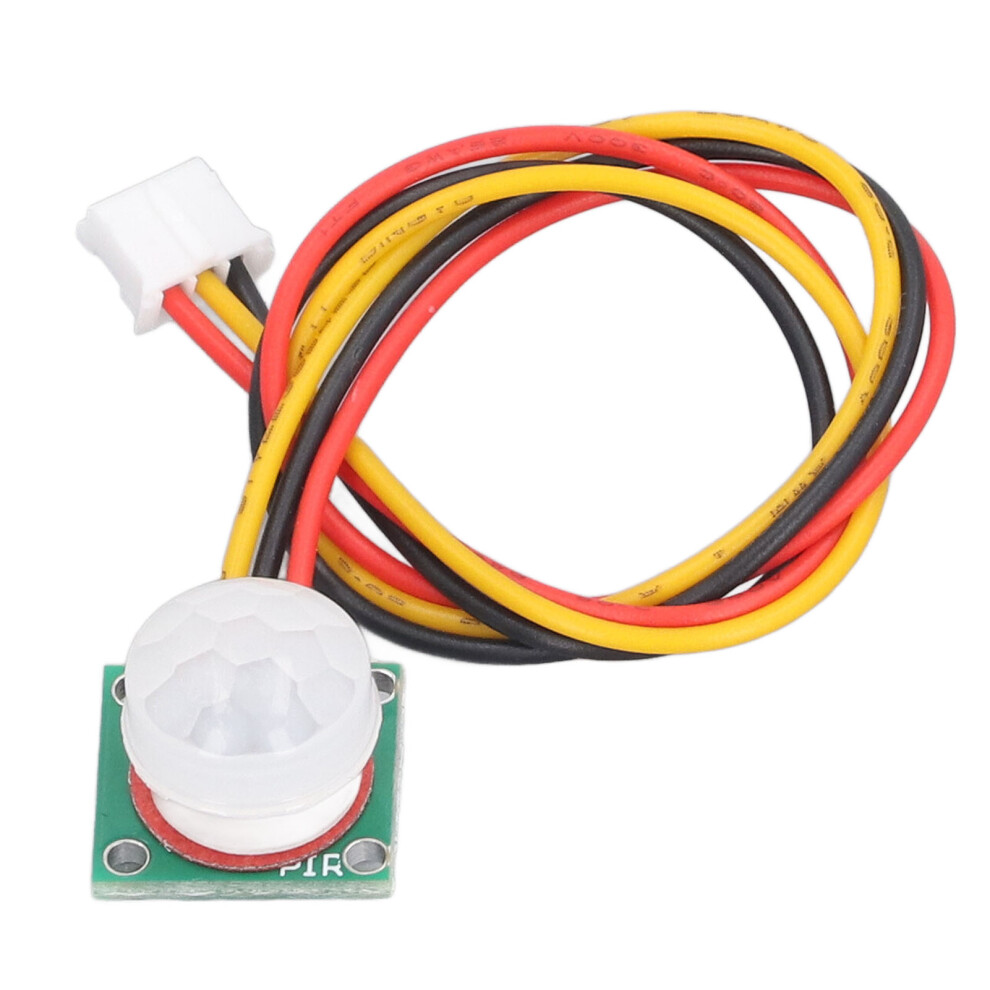

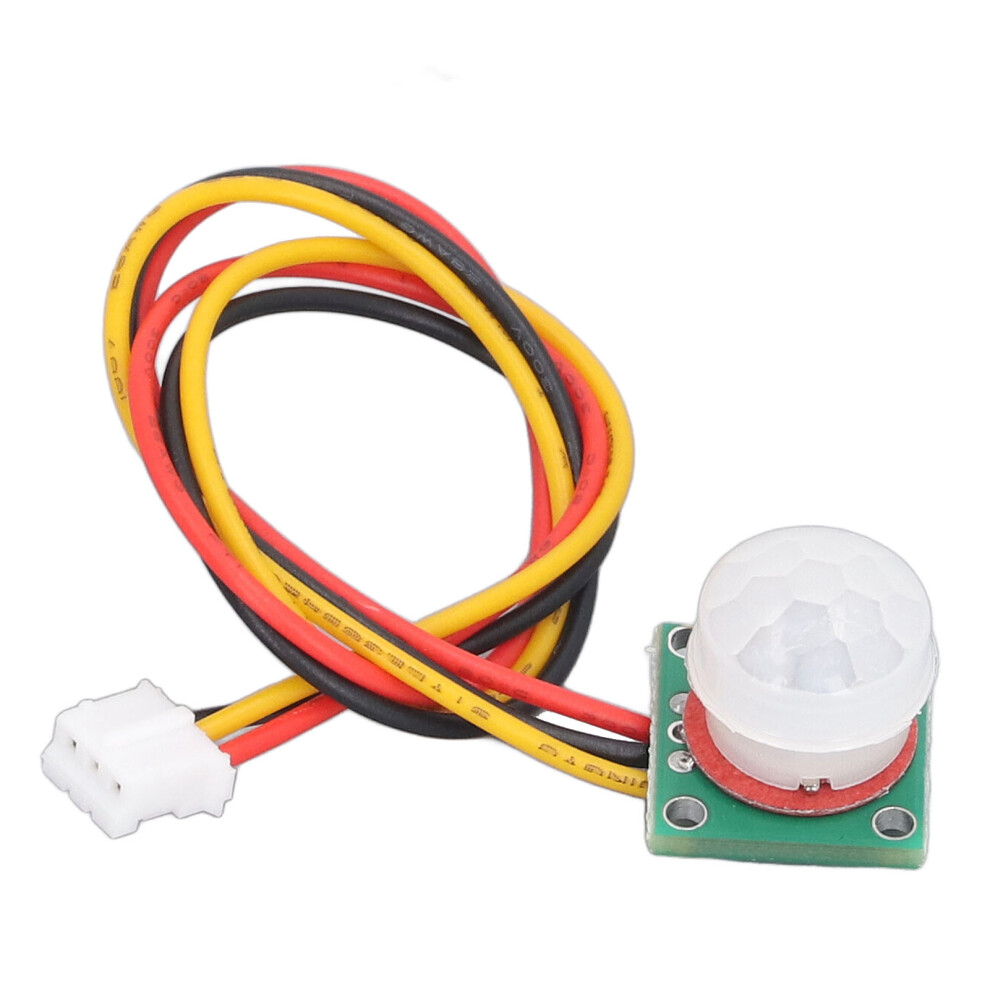

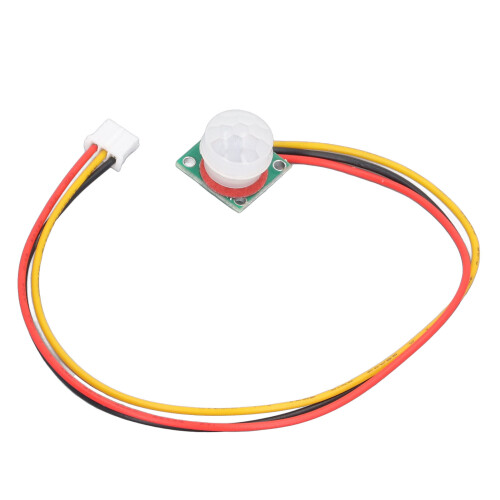

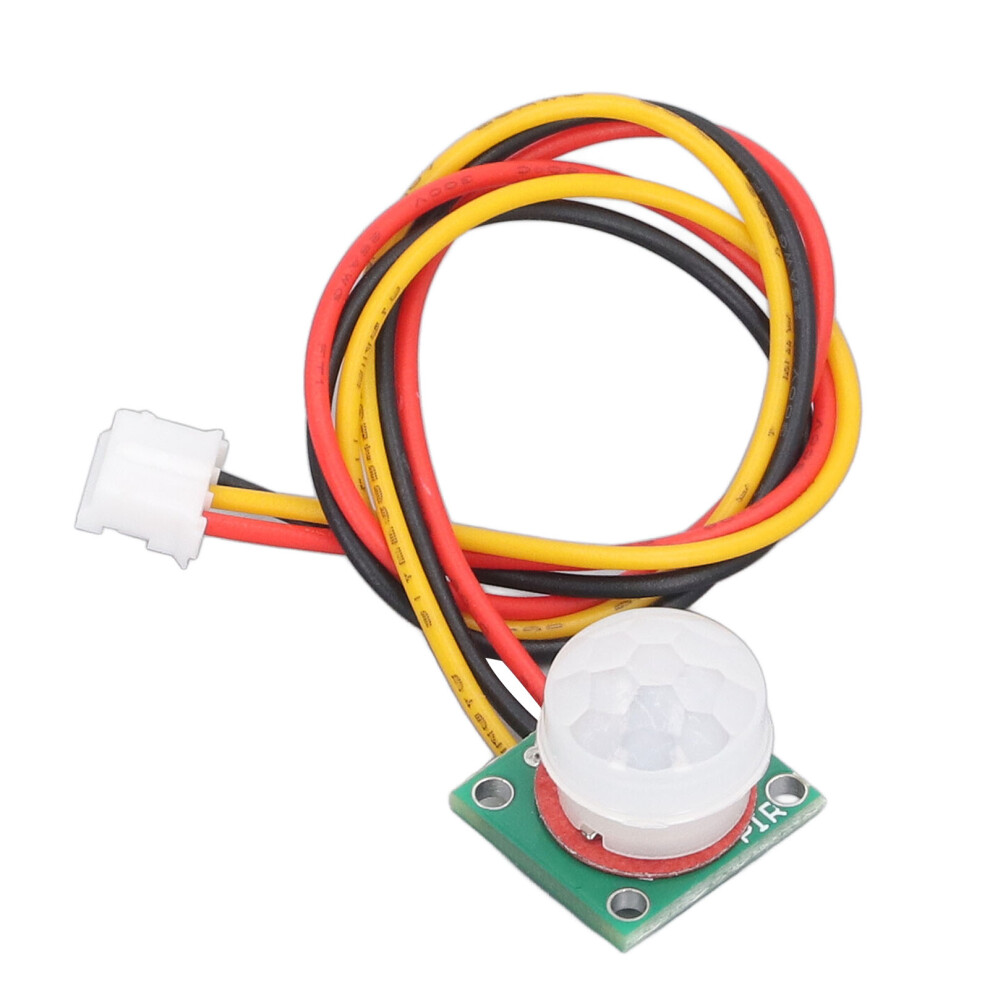

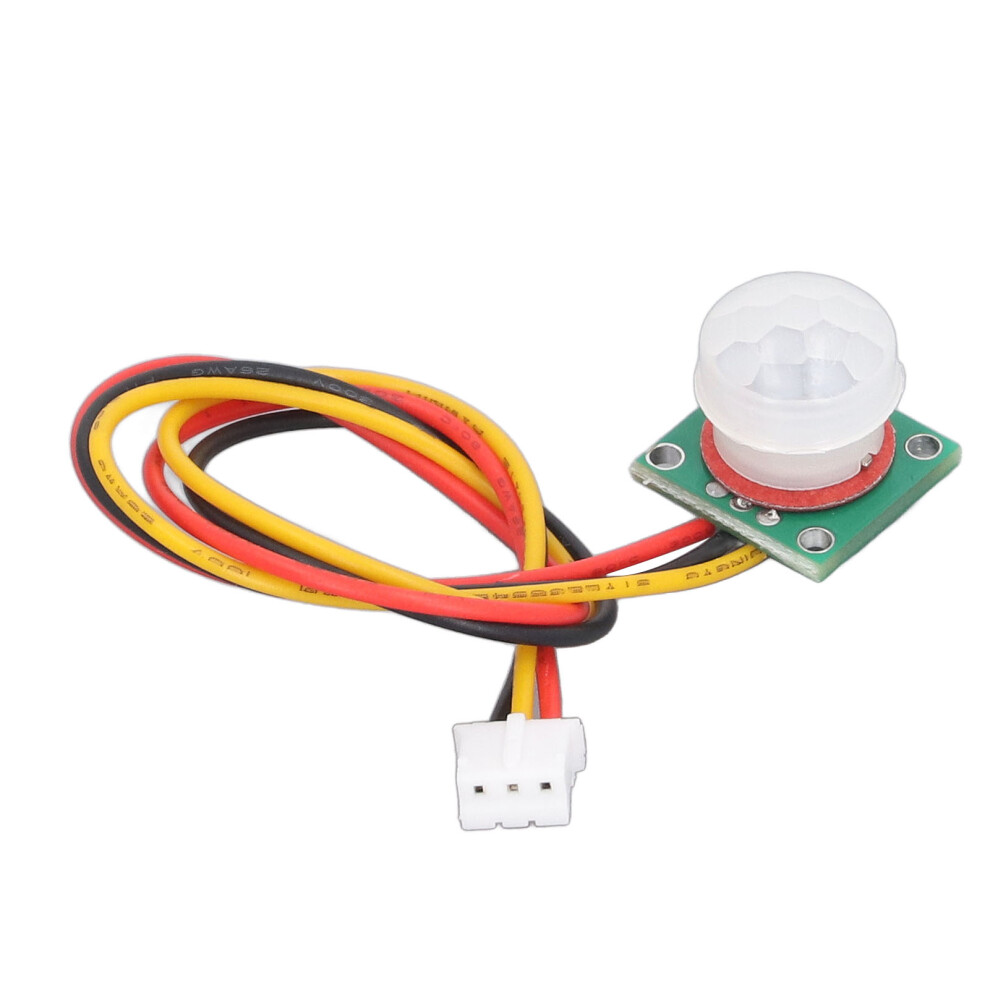

DC 3.3-5V PIR IR Sensor High Sensitivity Motion Detector Module

DC 3.3-5V PIR IR Sensor High Sensitivity Motion Detector Module Description

1、Highly Sensitivity: Infrared pyroelectric sensor can detect body motion in a range of 120 degrees, making it perfect for automatic appliances. 2、Wide Sensing Distance: PIR IR pyroelectric sensor can detect motion within 1‑2 meters, ensuring accurate and reliable detection for your needs. 3、Low Power Consumption: With an input voltage of DC 3.3V‑5V and maximum current resistance of 20mA, IR movement detector sensor is energy efficient. 4、Fast Response: The delay time of this IR sensor is just 1 second, allowing you to quickly switch on or off appliances based on motion detection. 5、Auto Detect: When someone enters the sensing range, sensor can detect the infrared spectrum of the human body changes, the switch automatically switches the load.
Item Type: PIR IR Pyroelectric Sensor
Material: PVC
Sensing Mode: Body Motion Sensing
Sensing Method: Infrared Pyroelectric PIR
Input Voltage: DC 3.3V-5V
Peak Output Signal: DC 3.3V
Maximum Voltage Resistance: DC 7V
Maximum Current Resistance: 20mA
Sensing Angle: 120 degrees
Sensing Distance: 1-2 meters
Delay Time: 1 second
Output Method: High or Low Level Signal
Output Interface: PH2.0 Terminal Wire
1 x PIR IR Pyroelectric Sensor
