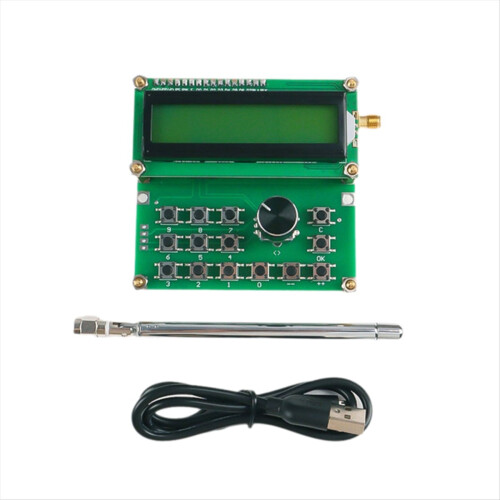

DC 4.5V-5.5V 35MHz-4400MHz RF Signal Generator ADF4351 Signal Source

DC 4.5V-5.5V 35MHz-4400MHz RF Signal Generator ADF4351 Signal Source Description

1.Simple RF signal source signal generator
2.Core component: avr mega8 microcontroller, cost-effective single chip, is a low-profile version of the commonly used m16. There is a 2.56v voltage regulator in the peripheral ADC, which other mid-range microcontrollers do not have.
3.Adf4351: Traditional VCO + PLL + 6 series high-speed bistable circuit. The output is obtained by frequency division, and the output is a square wave. The amplitude of the fundamental wave does not change much.
4.This product provides a signal source for the AC channel of the device under test and analyzes the frequency-amplitude characteristics of the AC channel. Please pay attention to the impedance of the measuring equipment.

Power supply voltage: DC 4.5V-5.5V
Standby current: Less than 25mA
Transmit current: Less than 150mA
Output impedance: 50 ohms
Output frequency range: 35MHz-4400MHz
Output step: 1KHz-8KHz
Output power: -1dBm (W) 150MHZ (test power absolute value) about 1 mW
Note:
Installation guide not included, we strongly recommend you professional installation.
Please check as much as possible to make sure the item is what you need.
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Color: As Shown
Material: PCB

Package Contents:
1 x RF signal generator module
1 cord
1 x antenna

Only the above package content, other products are not included.
