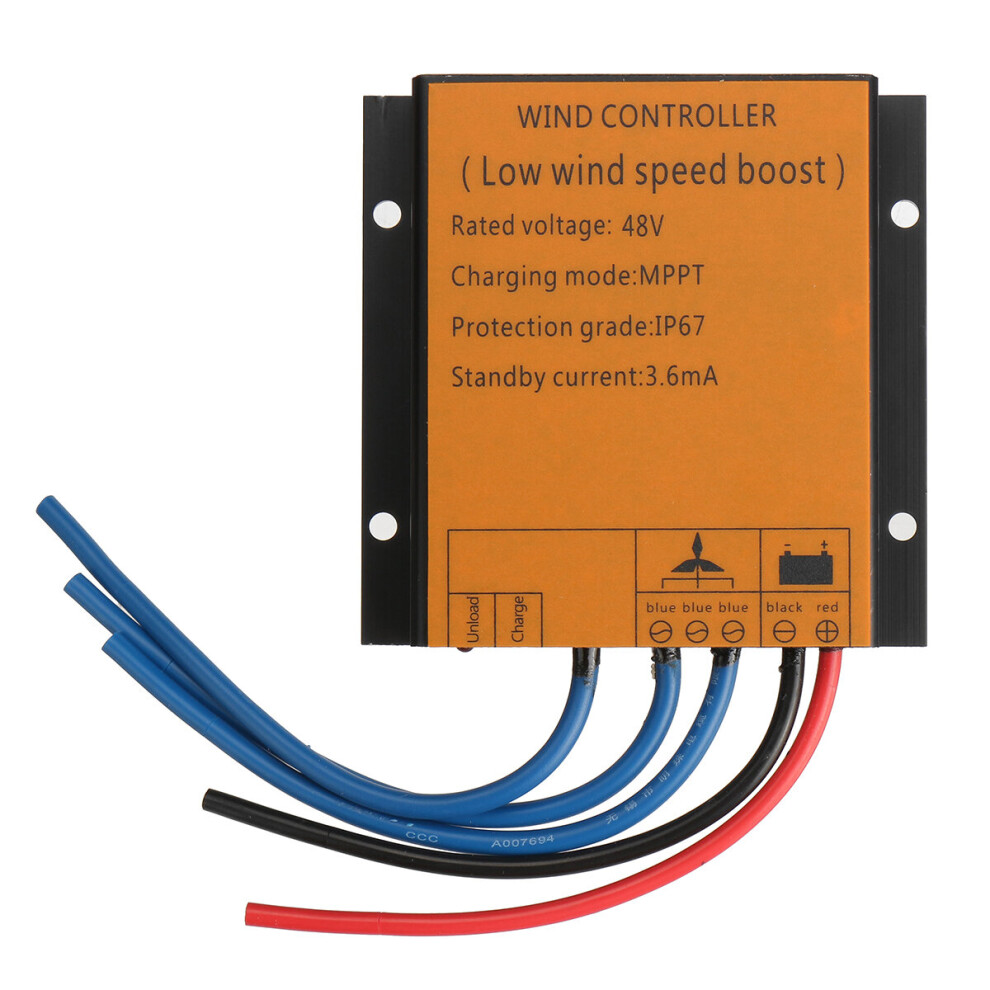

DC 48V Wind Turbines Generator Charge Controller MPPT Wind Power Controller IP67

DC 48V Wind Turbines Generator Charge Controller MPPT Wind Power Controller IP67 Description

Package list1x ControllerSpecificationsRated battery voltage: 48VProtection class: IP67Power:8000WFeature1. Good quality technical components guarantee its stability and reliability.2. Complete electrical protection features that the system more reliable.3. Anti-water,anti-dust shell it applicable in various outdoor environment.4. Voltage/current control charging sure storage batteries are5. Alloy design,small size,good for heat dissipation.1. Safety InstructionsPLEASE READ THESE INSTRUCTIONS CAREFULLY PRIOR TO INSTALLATION OR OPERATION OF THIS PRODUCT.1.1 Please sure the output voltage of wind generator is consistent with rated battery voltage.1.2 Please connect the cables of plus-n-minus of battery firstly and then connect the three cables of wind generator.1.3 Please sure you connect battery and wind generator with controller according to this instruction, opposite polarity or wrong position connection will result in abnormal operation of system or damage of system components.2. Wiring2.1 Connect the â+â and â-âof battery with red and black input wires of controller.2.2 Connect the three cables of wind generator with three blue wires of controller. 3. Lights3.1When wind generator light (green) is on, it indicates wind generator connection is normal and it shows the rotation speed of wind generator by twinkle speed.3.2 When brake light (red) is on, it indicates controller is braking automatically due to battery full charged or overNote:1.Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.2.Due to the manual measurement and different measurement methods, please allow 1-3cm.
