DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module Step UP Step Down Adjustable Regulated for Laboratory Power Supply

DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module Step UP Step Down Adjustable Regulated for Laboratory Power Supply Description

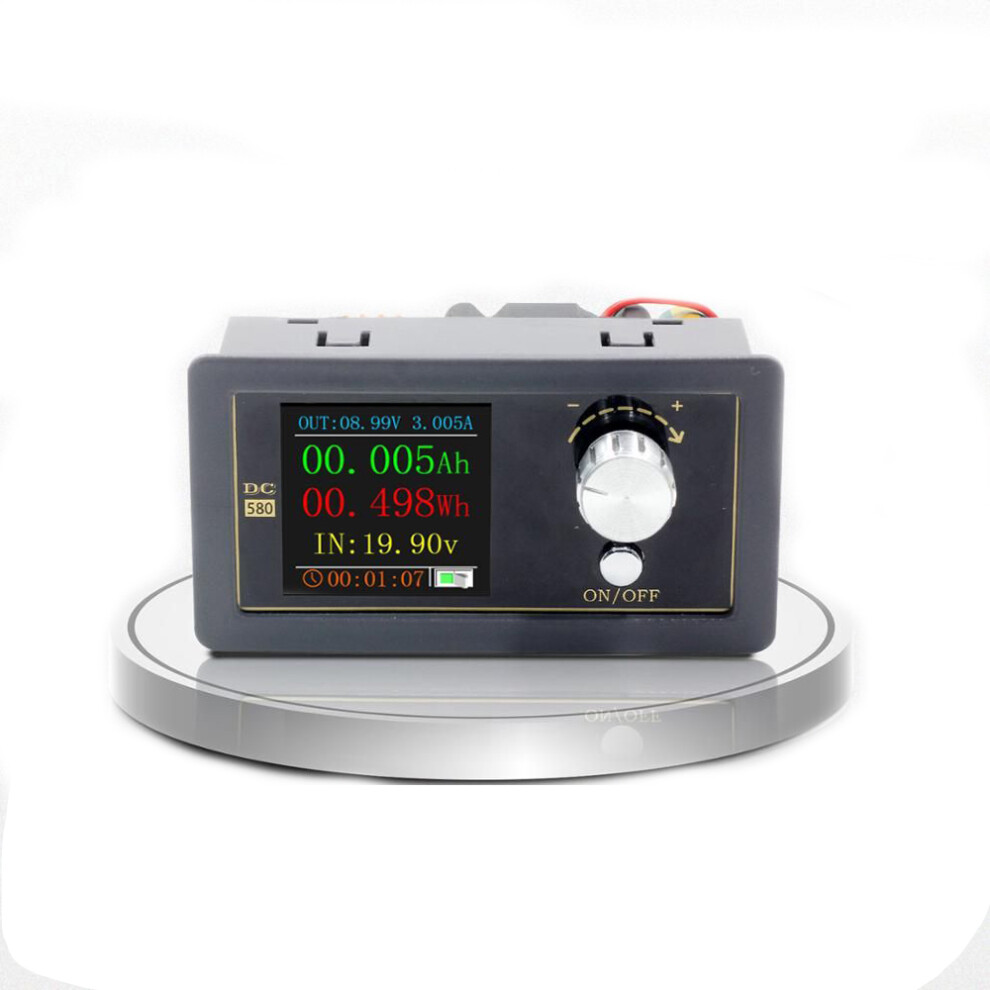

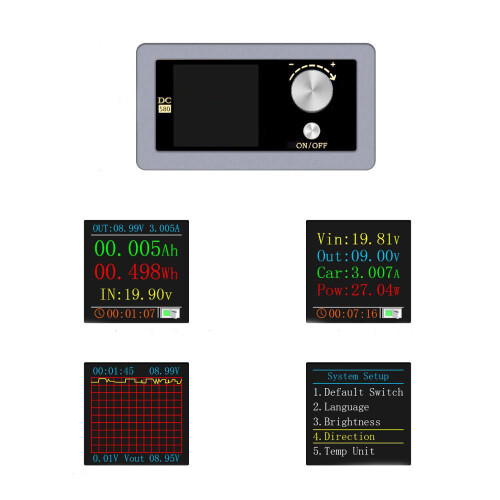

Manual: Click here to open Overview: DC-580 NC step-up and step-down adjustable power supply is small in size, powerful in function, stable in performance, high in precision, and has various humanized system settings. Adopt 1.44 inch LCD high-definition display screen, display a variety of data on one screen, the page is concise and rich. â Color screen displayï¼â Minimal operationï¼âSoftware Protectionï¼âIntelligent temperature control Parameter Description: 1, The parameters of DC-580 numerically controlled buck-boost adjustable power supply are as follows: Description Parameter Input voltage 8V-32V (Note: the lower the input voltage, the smaller the output power) The output voltage 1.8-32V Output current Up to 5A Output Power 80W (Note: It is necessary to ensure that the input source voltage is greater than 15V and the power is greater than 100W when running at full load) Voltage resolution 0.01V Electric current Resolution 0.001A 2ã The protection mechanism parameters are described in the following tableï¼ Input anti-reverse connection, output anti-backflow, can charge the rechargeable battery directly, no need to add anti-backflow diode Desription Parameter Input anti-reverse Have Output anti-backflow Have Output overvoltage protection (OVP) 1.8V-32V custom adjustment, default 35V Output overcurrent protection (OCP) 0-5A custom adjustment, default 5A Output over power protection (OPP) 0-80W custom adjustment, default 80W Output over temperature protection (OTP) 45-120 â custom adjustment, closed by default Output timeout protection (OHP) 0-100h custom adjustment, closed by default Power on default (ACQ) Off by default Package Included: 1 x DC-580 DC DC Buck Boost Converter CC CV 1.8-32V 5A Power Module
