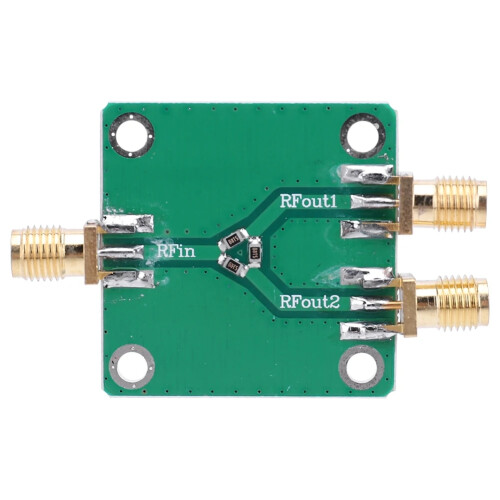

DC-5G RF Microwave Resistor 1 Split 2 Power Distributor Module Radio Frequency Divider Module RF Power Splitter Module

DC-5G RF Microwave Resistor 1 Split 2 Power Distributor Module Radio Frequency Divider Module RF Power Splitter Module Description

DC-5G RF Microwave Resistor 1 Split 2 Power Distributor Module Radio Frequency Divider Module RF Power Splitter Module

Battery Included : No

High-concerned chemical : None

Color : green

Dimensions : 53 x 33 x 5mm

Model Number : RF Power Distributor Module

DIY Supplies : Electrical

Origin : Mainland China

Certification : None

U.S. buyer attention:

The areas where the US warehouse does not deliver goods are: Hawaii, Alaska, Puerto Rico, Guam and other US overseas territories. And the military address. But you can choose ship from China.

Spanish buyers attention:

If your address includes following postal code please do not choose the Spanish warehouse.

The zip code starts with 35/38

Overseas warehouse cannot be delivered. But you can choose ship from China

()--Power Distribution Board

Specification:

Certification: NONE

Origin: Mainland China

DIY Supplies: ELECTRICAL

Model Number: RF Power Distributor Module

Dimensions: 53 x 33 x 5mm/2.1 x 1.3 x 0.2inch

Color: Green

Power division channel: 1 divided by 2

Power frequency: DC-5G

Output attenuation: 6dB

Withstand power: 0.5W (27dBm)

Connector form: SMA-K (standard female connector, outer screw inner hole)

System impedance: 50 Ohm

Product features:

1. High quality fittings, precision assembly, stable performance and long life.

2. large heat dissipation area, can better maintain long operation and reliable use

3. PCB adopts 1.6mm thick double panel, 2.0 Oz thick copper, spray tin throughout to ensure good current flow performance.

4. RF microwave resistance distribution module, 1 to 2 power channels.

5. DC-5G power frequency, 0.5W (27dBm) withstand power and 6dB output attenuation.

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

ProductIncluded

：1 x Power Distribution Board
