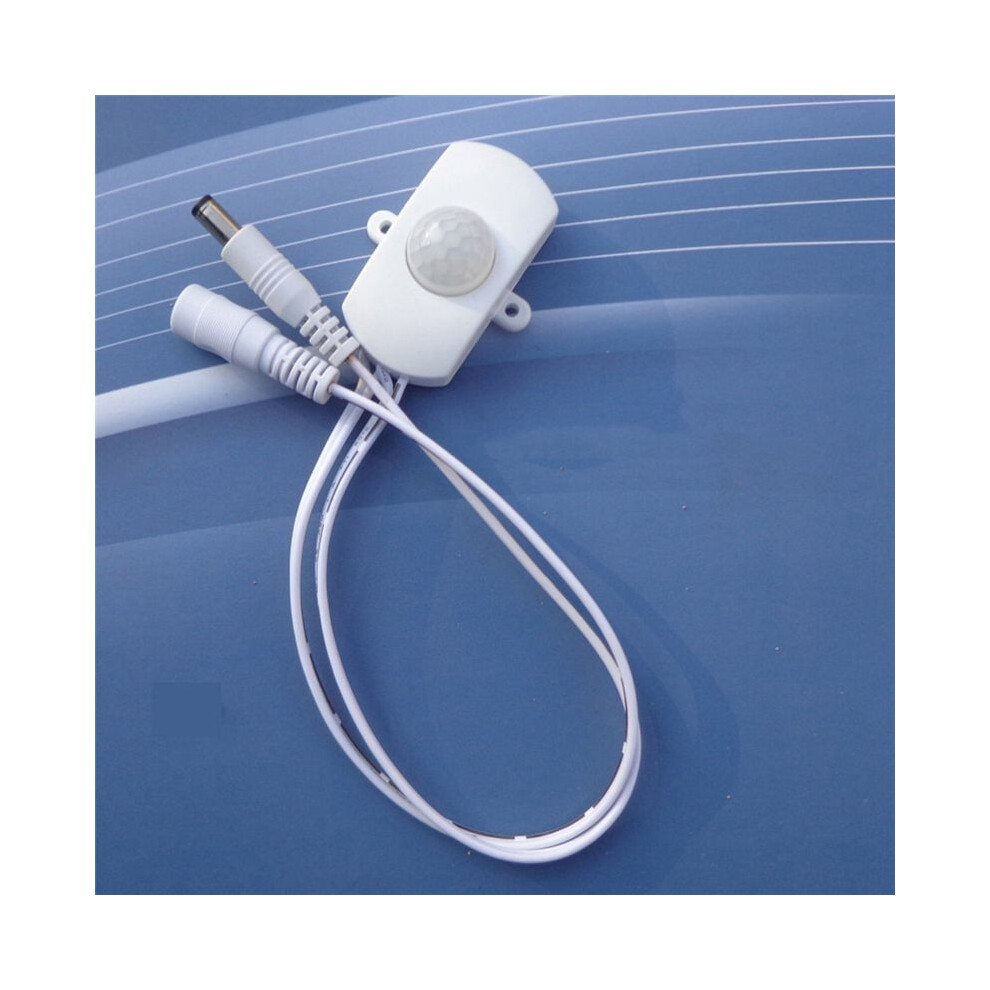

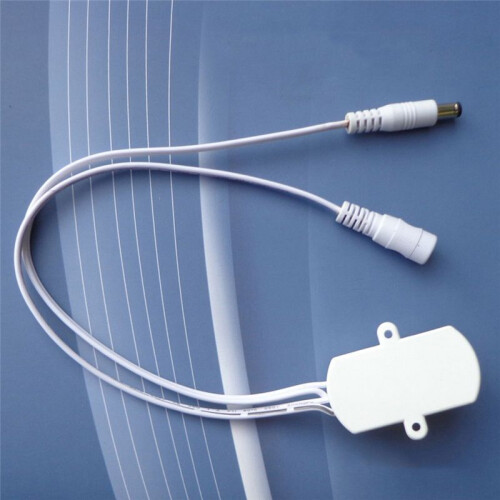

DC 6V 12V 24V 5A PIR Motion Sensor Switch Mini Infrared IR Detector Module for LED Strip Light(White)

DC 6V 12V 24V 5A PIR Motion Sensor Switch Mini Infrared IR Detector Module for LED Strip Light(White) Description

Feature: 100% new and high quality. Small, , easy to install and operate, plug and play.
Automatic ventilation exhaust fan and other electrical automatic control and other functions.
Delay shut down automatically when you enter into the induction range(5-8M), and it is with 15s delay time of switch on/off.
Suitable for automatic lighting corridors, corridor, bathrooms, basements, warehouses, garages and other places.
Temperature compensation: temperature compensation chip, reducing the impact sensing distance by the temperature.

Specification:

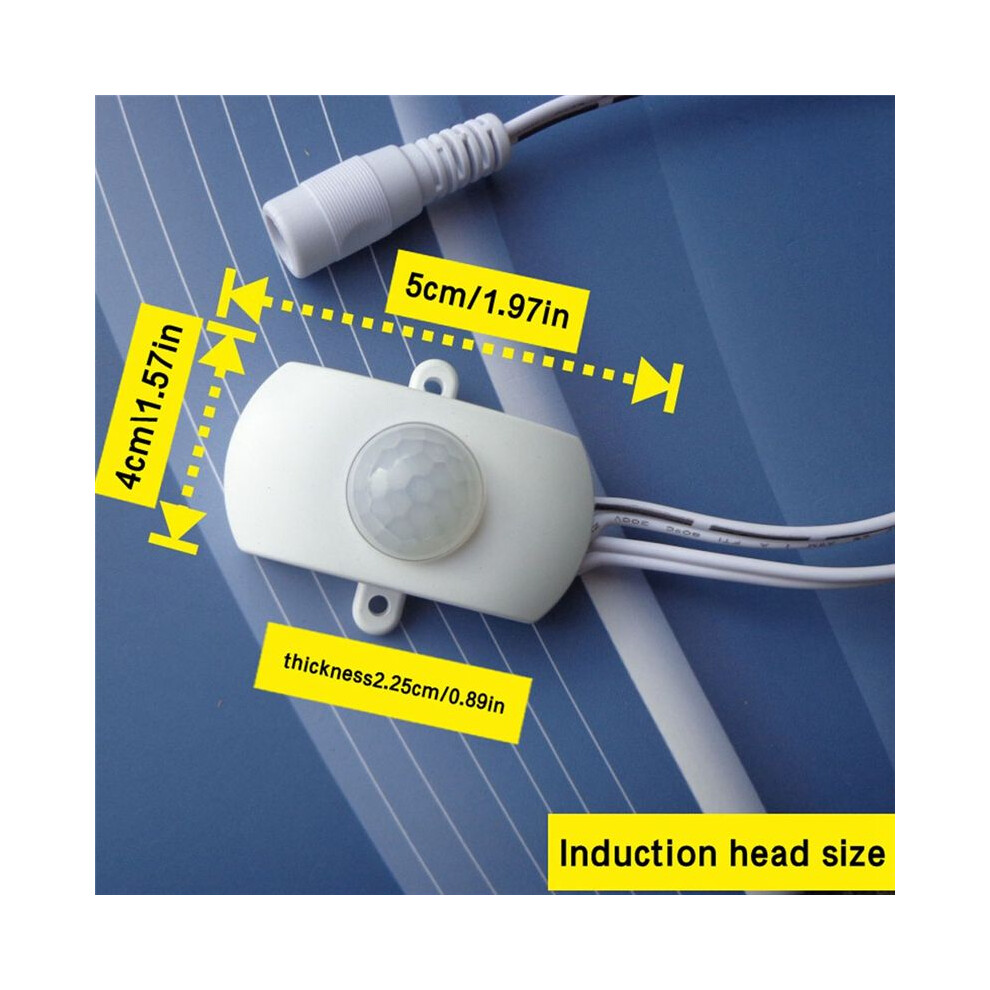

Sensor size: 50 x 40 x 22.5mm
Working voltage: 6V-24V
Load power: 80W
Output current: 5A
Working temp: -20 -+38
Static current: Less than 50μA
Connector DC head size: 5.5x2.1mm

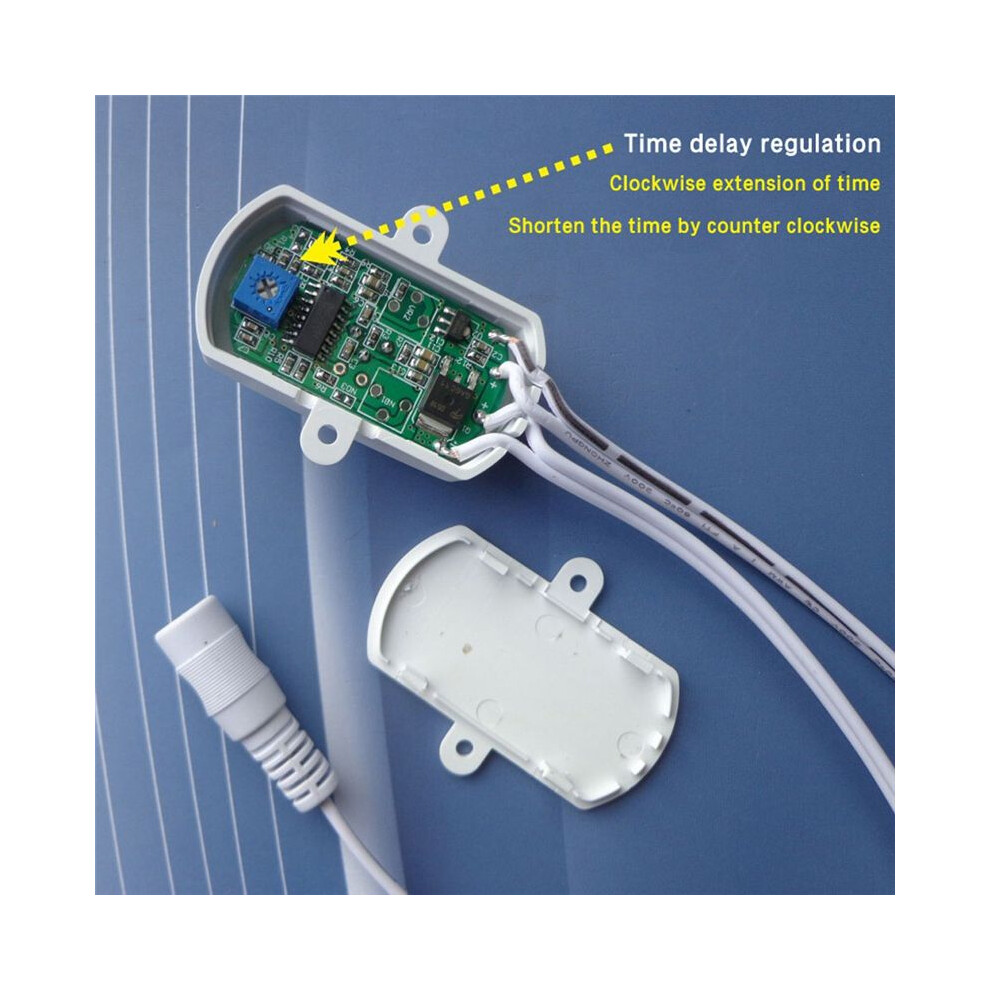

Time delay: 15s(adjustable)
Output mode: sensor output

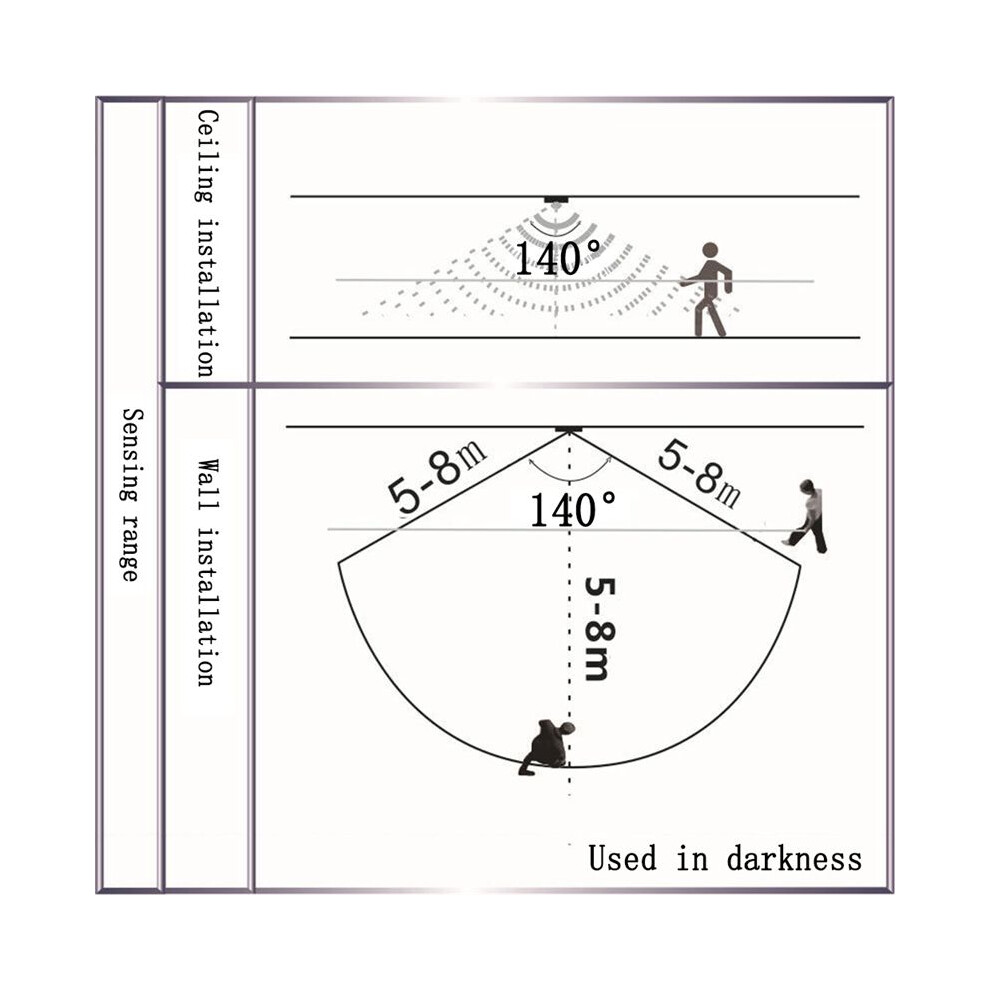

Induction angle: 140 cone angle
Induction distance: 5-8M
Color: White
Material: plastic

Package Contents:

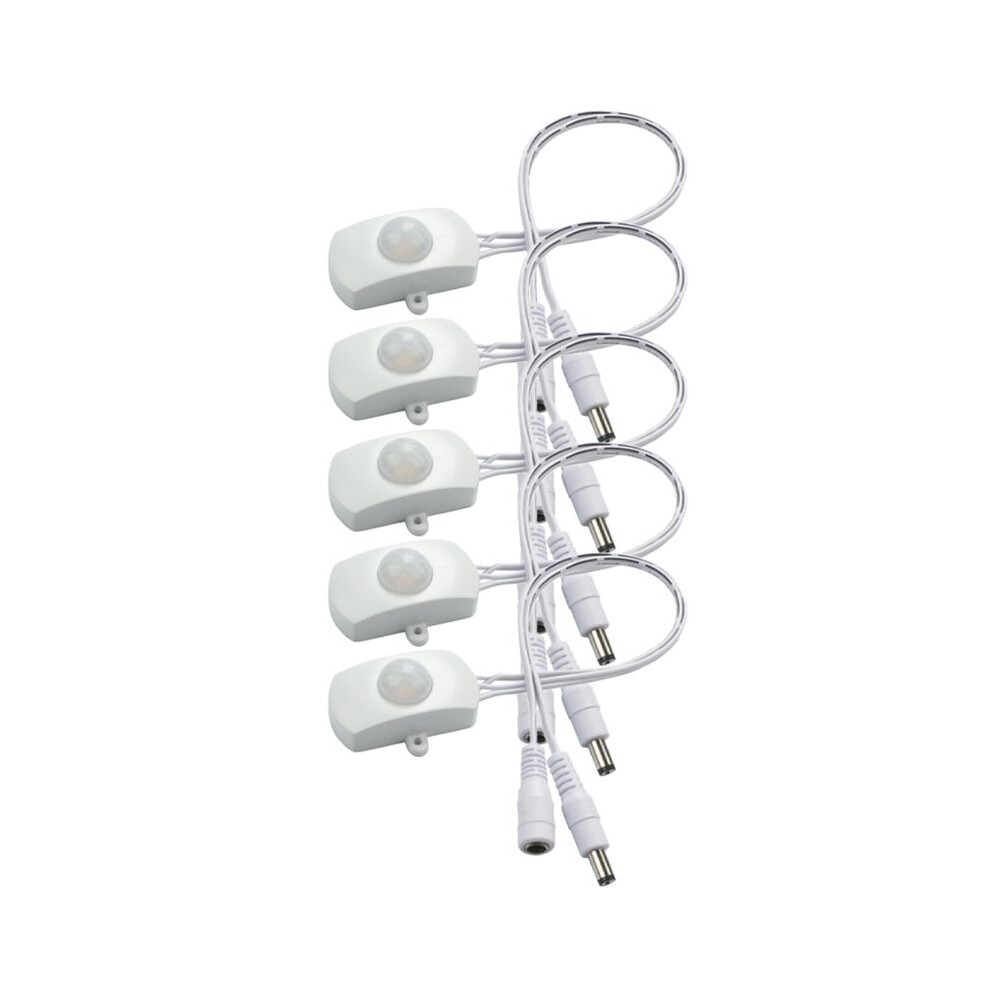

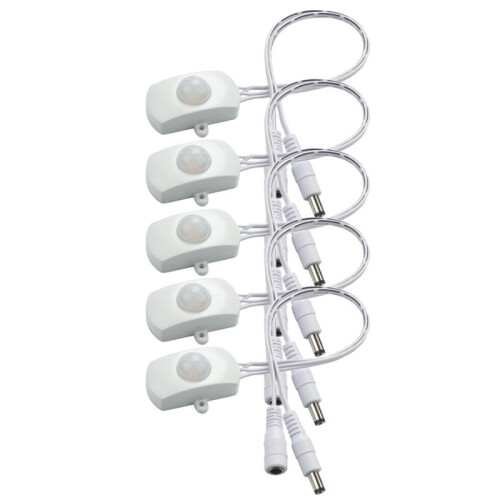

5x Sensor switch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
