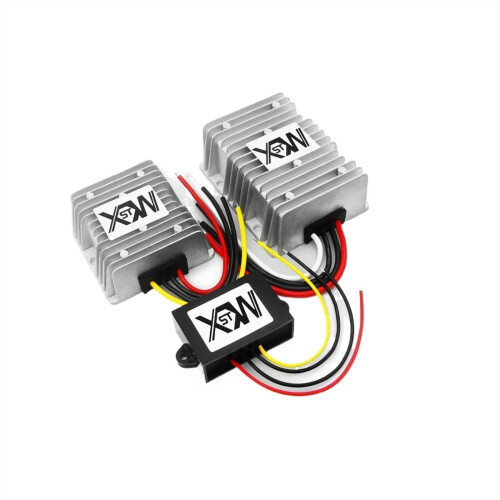

DC DC Boost Converter 936V to 15V Step Up Regulator IP67 Waterproof Aluminum Module Efficiency

DC DC Boost Converter 936V to 15V Step Up Regulator IP67 Waterproof Aluminum Module Efficiency Description

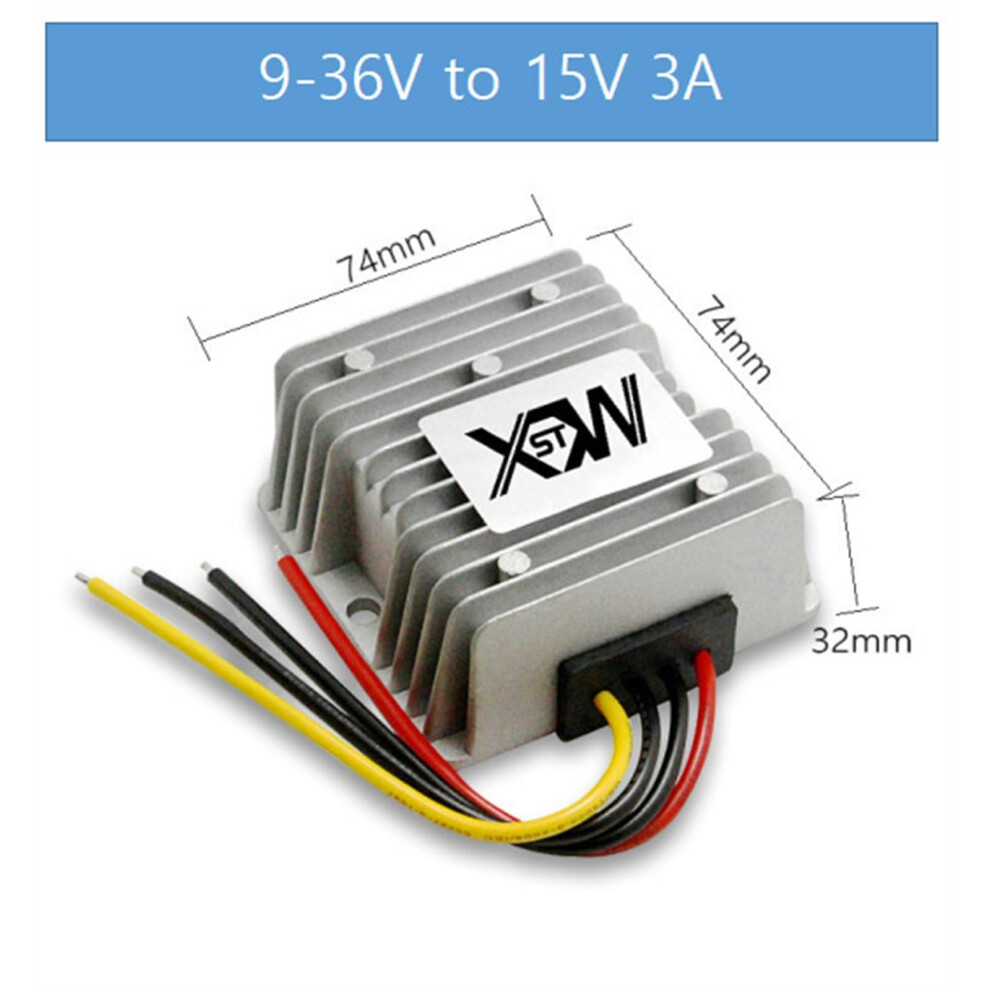

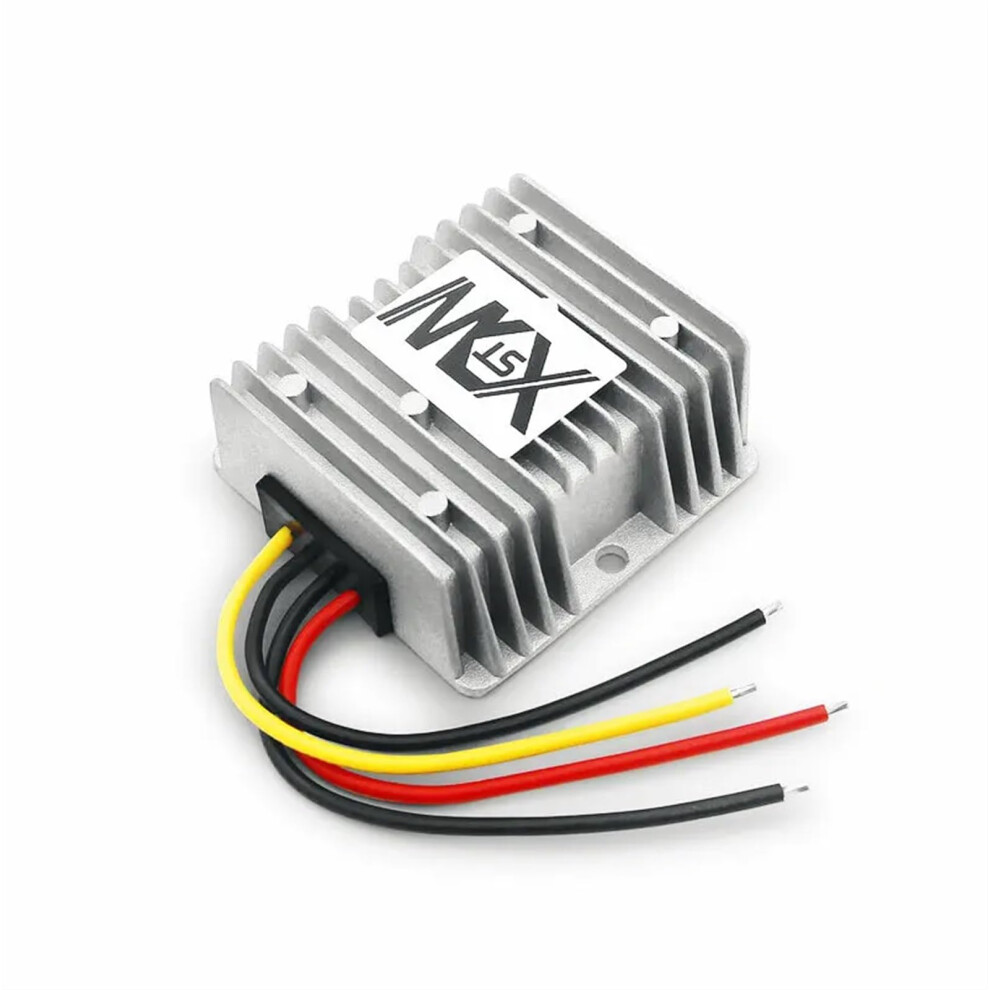

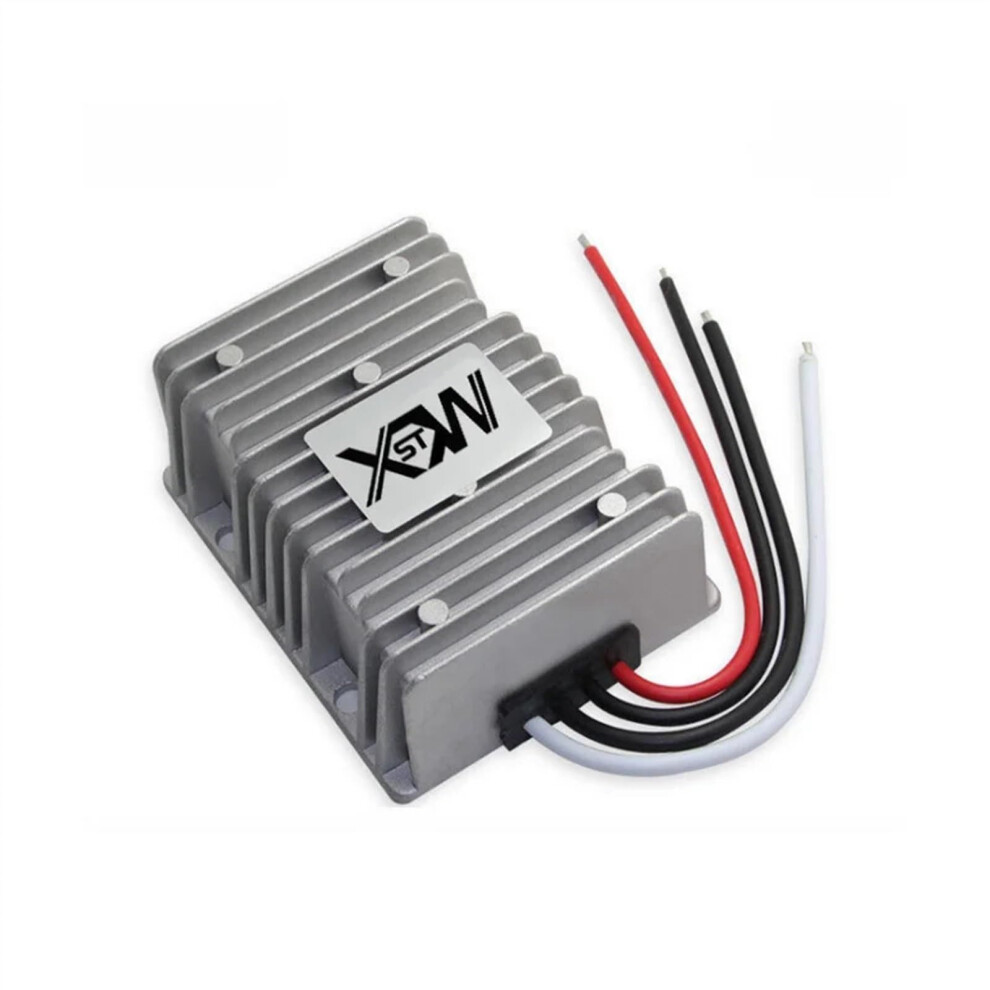

Model XW09361515W450W 15V NonIsolated DCDC Boost Converter / Voltage Regulator Key benefits Provides a stable, regulated 15V output from a wide 9 to 36V DC input range, allowing use with both 12V and 24V systems. conversion efficiency greater than 93 percent reduces heat and power loss, extending battery life in mobile and remote applications. Low output ripple (40 mV at full load) and low noload current make the module suitable for sensitive electronics and energyconscious systems. Robust IP67 waterproof rating and wide operating temperature range support reliable operation in demanding environments. Core functions and compatibility Function: Nonisolated DCDC boost regulator that accepts 9 to 36V input and provides a fixed 15V output. Compatible with 12V and 24V vehicle electrical systems, battery banks, solar systems, and industrial DC supplies. Nonisolated design means input and output share a common ground; suitable where isolation is not required. Performance specifications Input voltage range: 9 to 36V (nominal 12V or 24V). Output voltage: 15V fixed. Output current options: 1A, 2A, 3A, 5A, 8A, 10A, 15A, 20A, 25A, 28A, 30A. Output power options: 15W, 30W, 45W, 75W, 120W, 150W, 222W, 300W, 375W, 450W. Conversion efficiency: >93 percent. Output ripple at full load: 40 mV. Noload current: 3.5 mA for 12A models; 25 mA for 310A models; 40 mA for 1530A models. Operating temperature range: 40 to 80 C. Waterproof rating: IP67. Construction, sizes, and packaging 1 to 2A models: plastic enclosure, dimensions 58 x 40.5 x 22 mm, weight 95 g, packed in antistatic bag. 3 to 10A models: aluminum enclosure, dimensions 74 x 74 x 32 mm, weight 260 g, packed in antistatic bag. 15 to 30A models: aluminum enclosure, dimensions 100 x 80 x 39 mm, weight 550 g, packed in white box. Aluminum housings improve thermal dissipation for higher current models. Why choose this module Wide input range and many current/power options cover a broad set of system requirements without redesigning the supply. efficiency and low ripple protect downstream electronics and reduce thermal management needs. IP67 rating and extended temperature range make the module suitable for outdoor, automotive, and industrial use. Multiple enclosure and packaging options allow selection based on mechanical mounting, thermal needs, and integration constraints. Typical applications Automotive and marine electronics: power sensors, communication devices, and control modules from 12V or 24V vehicle systems. Industrial control and instrumentation: provide stable 15V rails for PLC modules, data acquisition, and motor controllers in harsh environments. LED lighting and communication equipment: drive 15V LED drivers, radios, and other sensitive devices that require low ripple and reliable voltage regulation. Ordering note Model reference: XW09361515W450W. Choose the output current and corresponding power rating that matches your load and thermal requirements.
