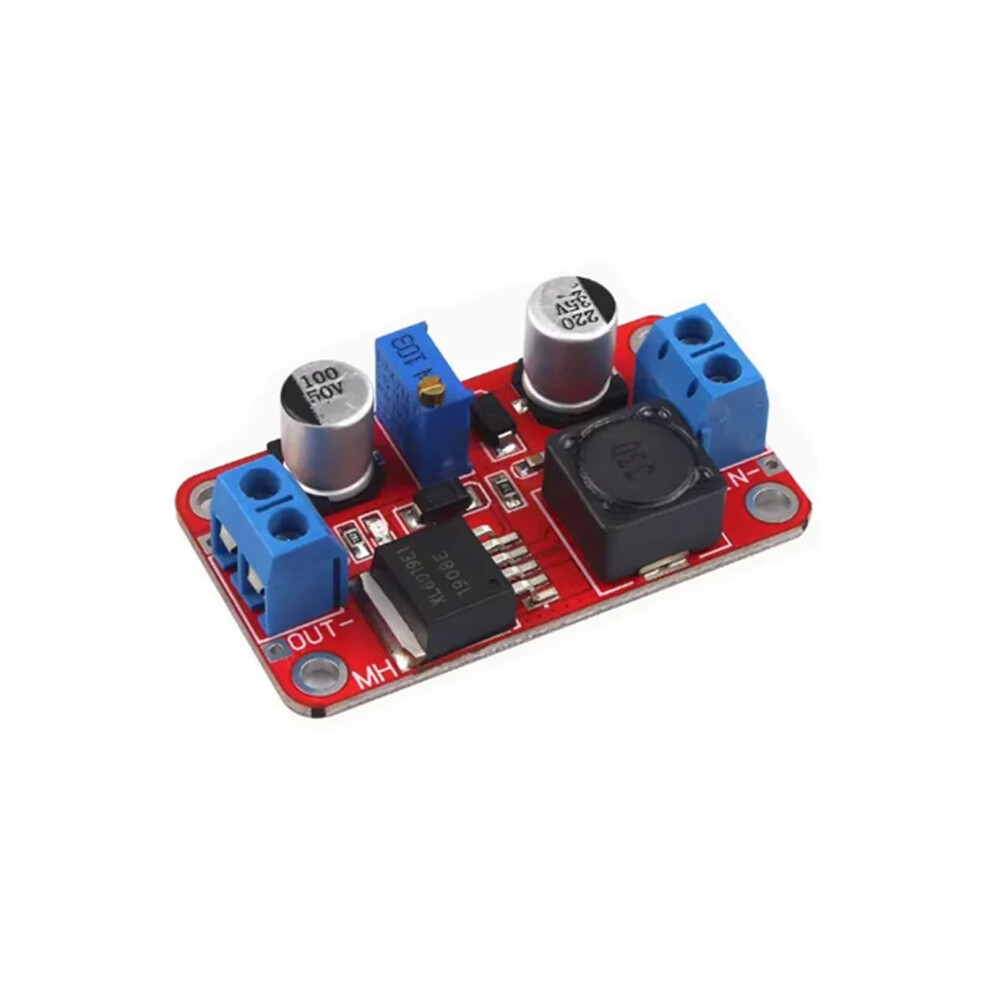

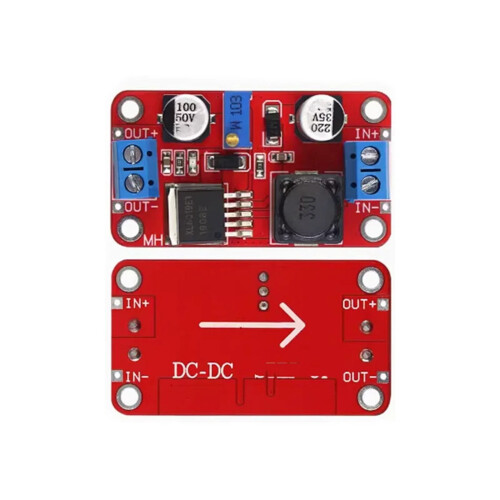

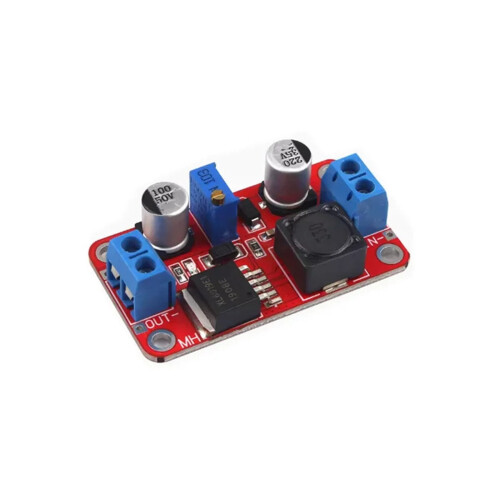

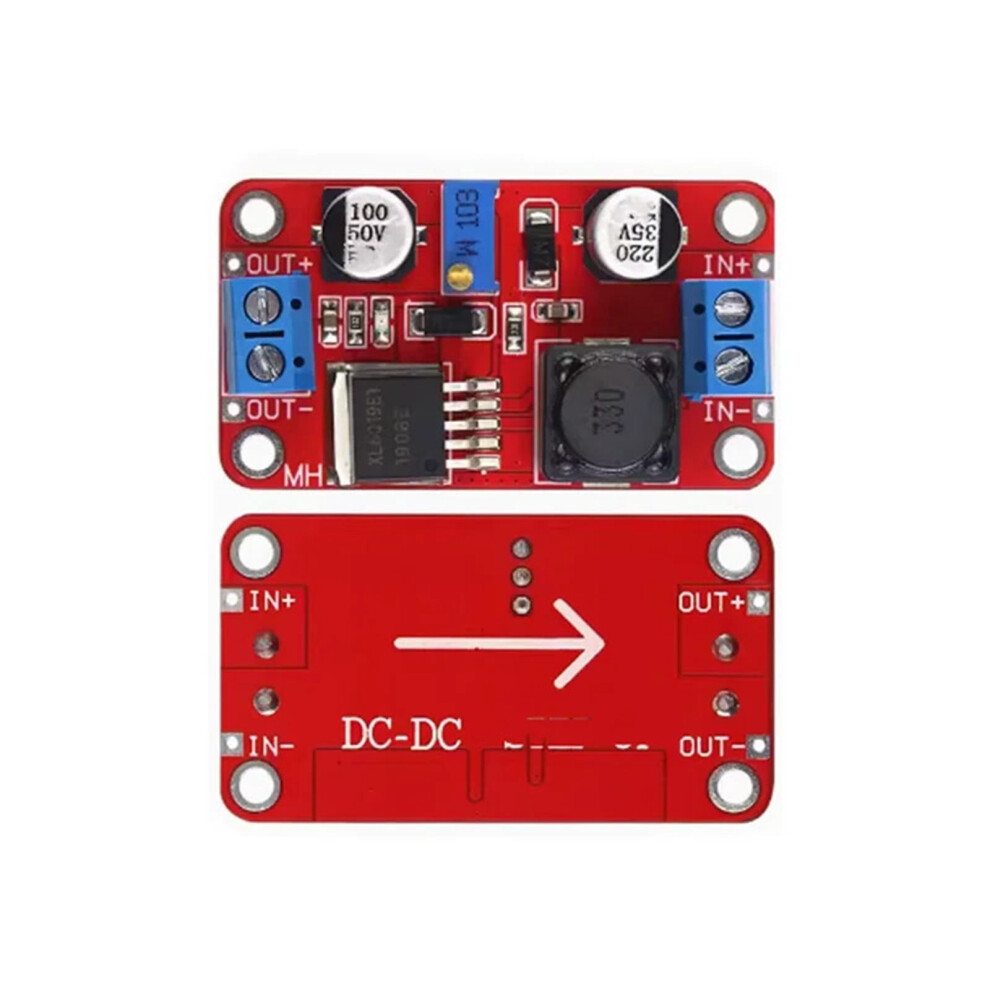

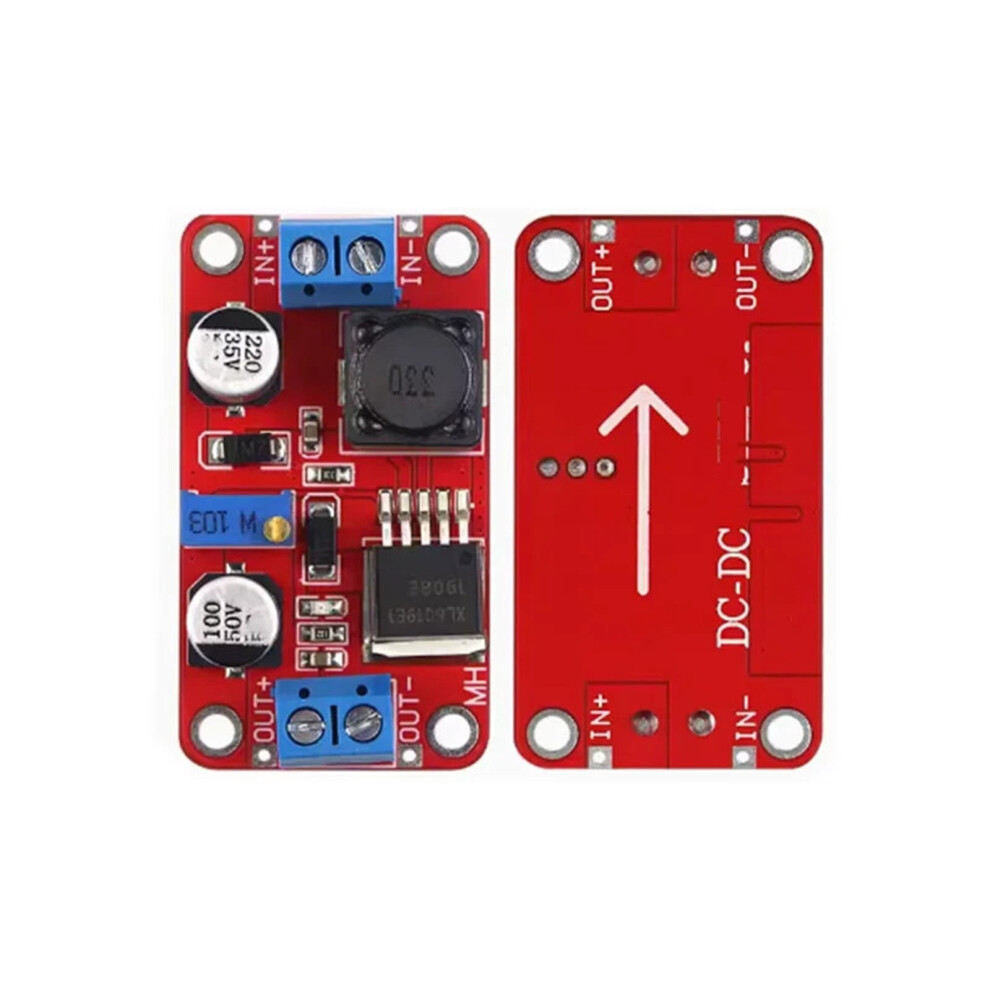

DC-DC Boost Module XL6019 Adjustable Voltage Regulator 1

DC-DC Boost Module XL6019 Adjustable Voltage Regulator 1 Description

1. Adopting a conventional BOOST fully integrated constant voltage output scheme, with internal integration of MOSFETs, fewer peripheral devices, and low system cost; 2. Wide voltage range input, with an input voltage of up to 35V; 3. Adjustable output voltage, capable of supporting 40V; 4. Built in over temperature protection and over current protection, a complete set of reliable protection circuits with high reliability; 5. The system conversion efficiency can reach over 90%, making it convenient for thermal design; 6. TO263-5L standard packaging, suitable for boost applications up to 30W. 1. It is recommended to use a current of less than 2.5A for long-term work, while adding a stray current Hot plate (output above 10W); Due to being a boost module, in order to ensure stable output Fixed, please maintain a small 1.5V pressure difference. 1. Car mounted regulated power supply, simply connect the input end of this module to the power supply, and you can adjust the potentiometer. The output voltage can be adjusted from 5V to 30V, providing power for many devices such as your phone, MP3, MP4, PSP charging, etc. It is very simple and convenient. 2. Power electronic devices. When the device requires 5V-35V power supply and the corresponding voltage power supply is in hand, this module can easily adjust the voltage to the required voltage to solve the problem. 3. System working voltage testing. When doing projects, this module can be used to debug various voltage testing system working voltage ranges, which is very easy and convenient. ========== Model Number : XL6019DC-DC Step Up Power Module Origin : Mainland China
