DC DC Dual Power Automatic Switcher Two-Way Without Power Outage

DC DC Dual Power Automatic Switcher Two-Way Without Power Outage Description

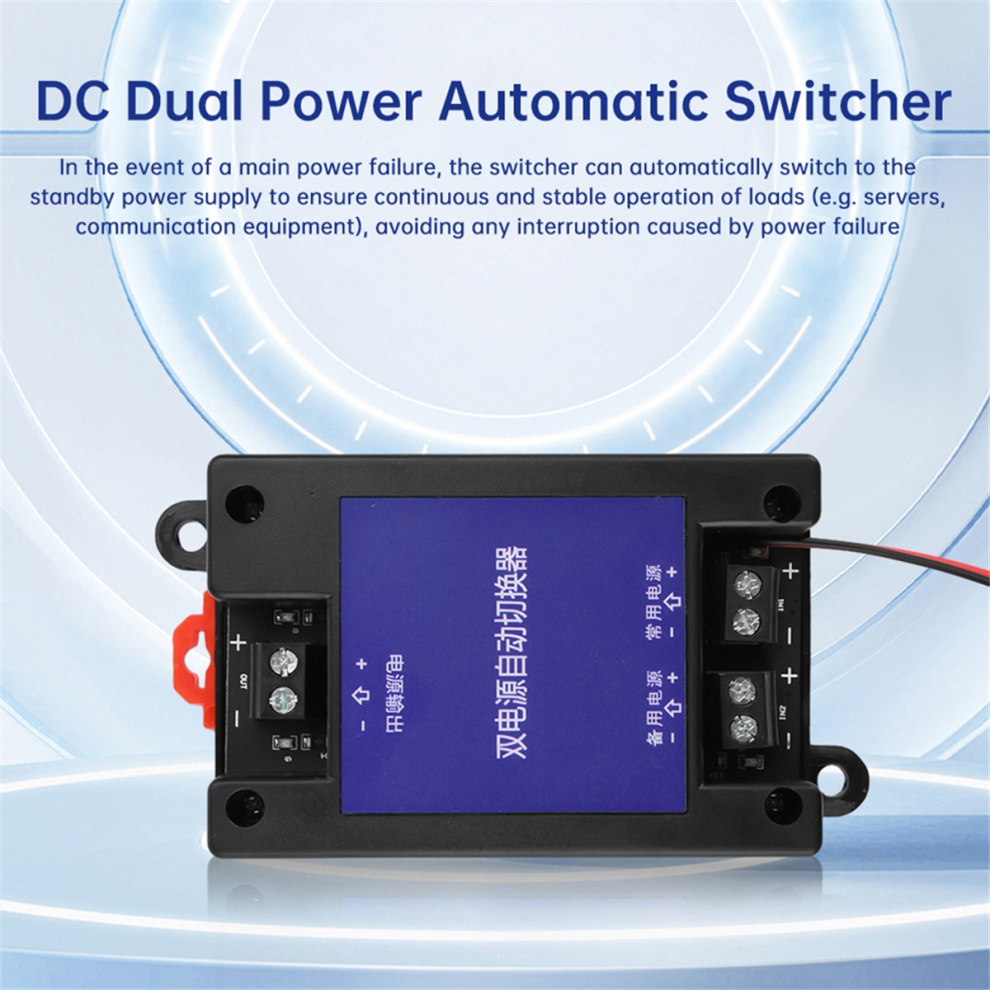

1. When the main power supply fails, the switcher can automatically switch to the backup power supply to continuous and stable operation of the load (such as servers, communication equipment), to avoid any interruption caused by power failure

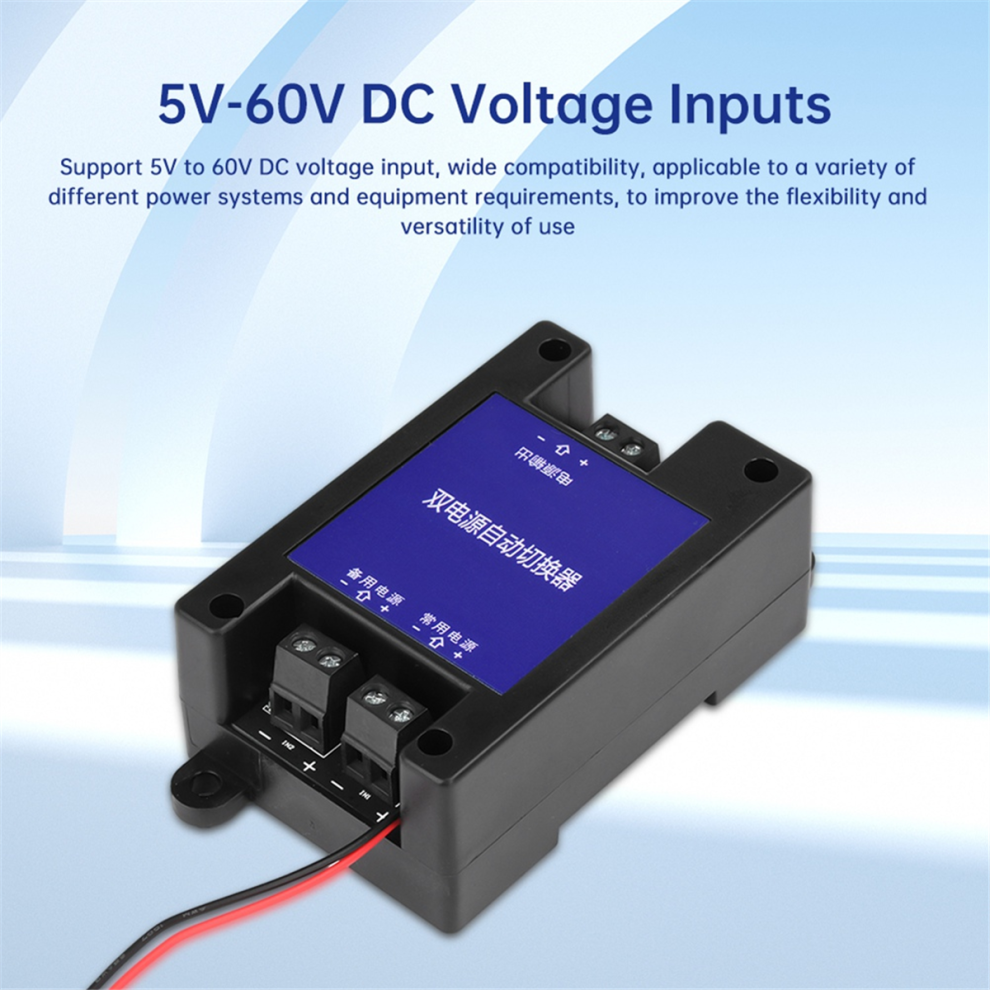

2. Support 5V to 60V DC voltage input, wide compatibility, applicable to a variety of different and equipment requirements, to improve the flexibility and versatility of use

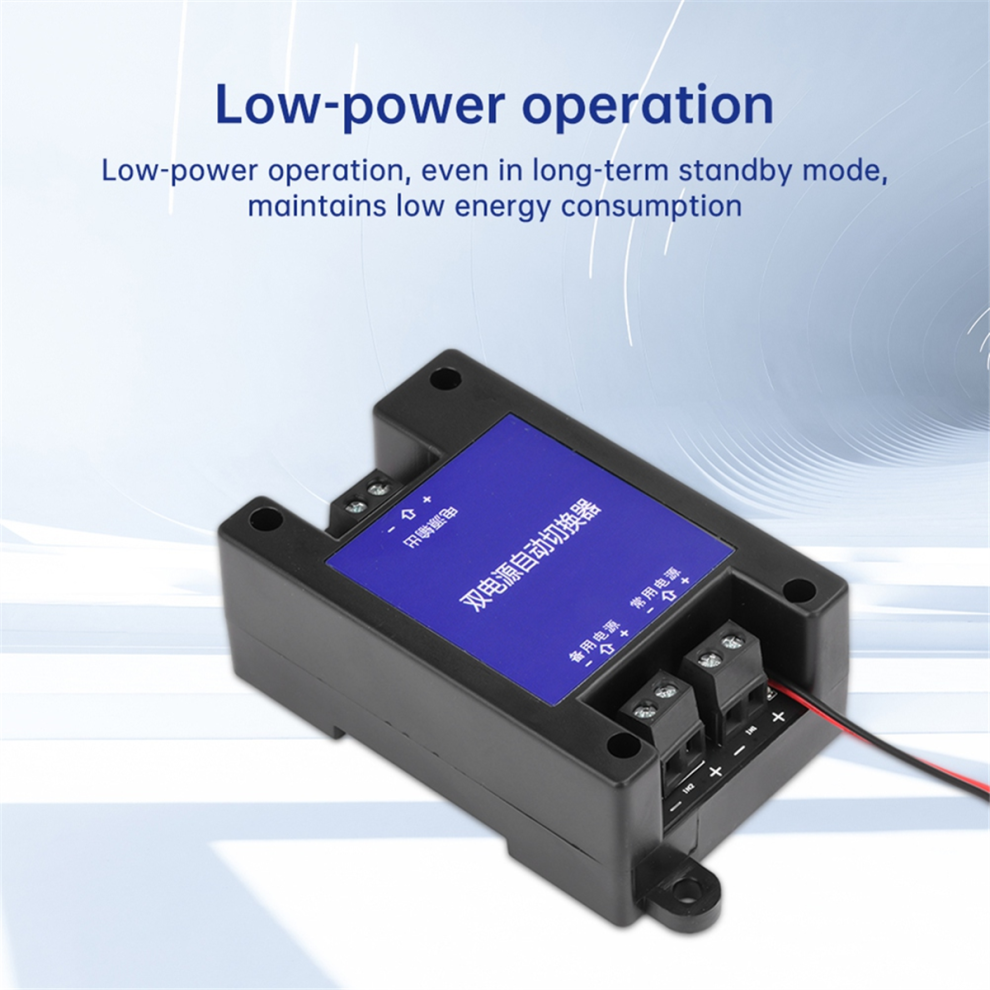

3. Low-power operation, even in the long-term standby state can also maintain low energy consumption
4. Standard rail mounting design, easily embedded in existing power distribution cabinets or equipment racks, saving installation space.
5. Using high-quality electronic components and advanced circuit design, after rigorous testing to the stability and in extreme environments

Parameter:
5V:
Switching time: 0.01 seconds
Operating voltage: 5V
Rated current: 5A
Maximum current: 8A
Rated power: 25W
Maximum power: 40W
Self-power consumption: 0.4W
12V:
Switching time: 0.01 seconds
Operating voltage: 12V
Rated current: 5A
Maximum current: 8A
Rated power: 60W
Maximum power: 96W
Self-power consumption: 0.4W
24V:
Switching time: 0.01 seconds
Operating voltage: 24V
Rated current: 5A
Maximum current: 8A
Rated power: 120W
Maximum power: 192W
Self-power consumption: 0.4W
Limit voltage: 3.75VDC-75VDC
Operating temperature: -45-75
Working humidity: 30%-80%
Color:As Shown
Material:plastic

Package Contents:
1 * Dual power automatic switcher

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
