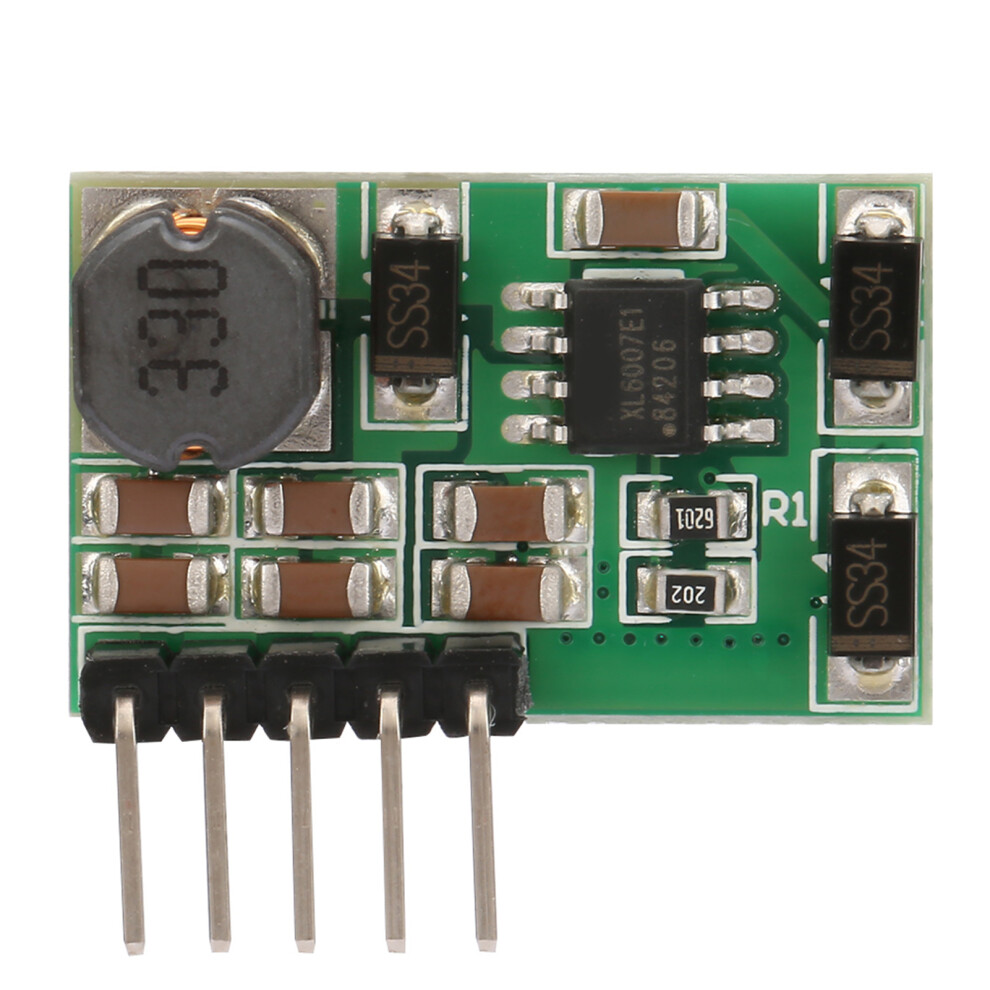

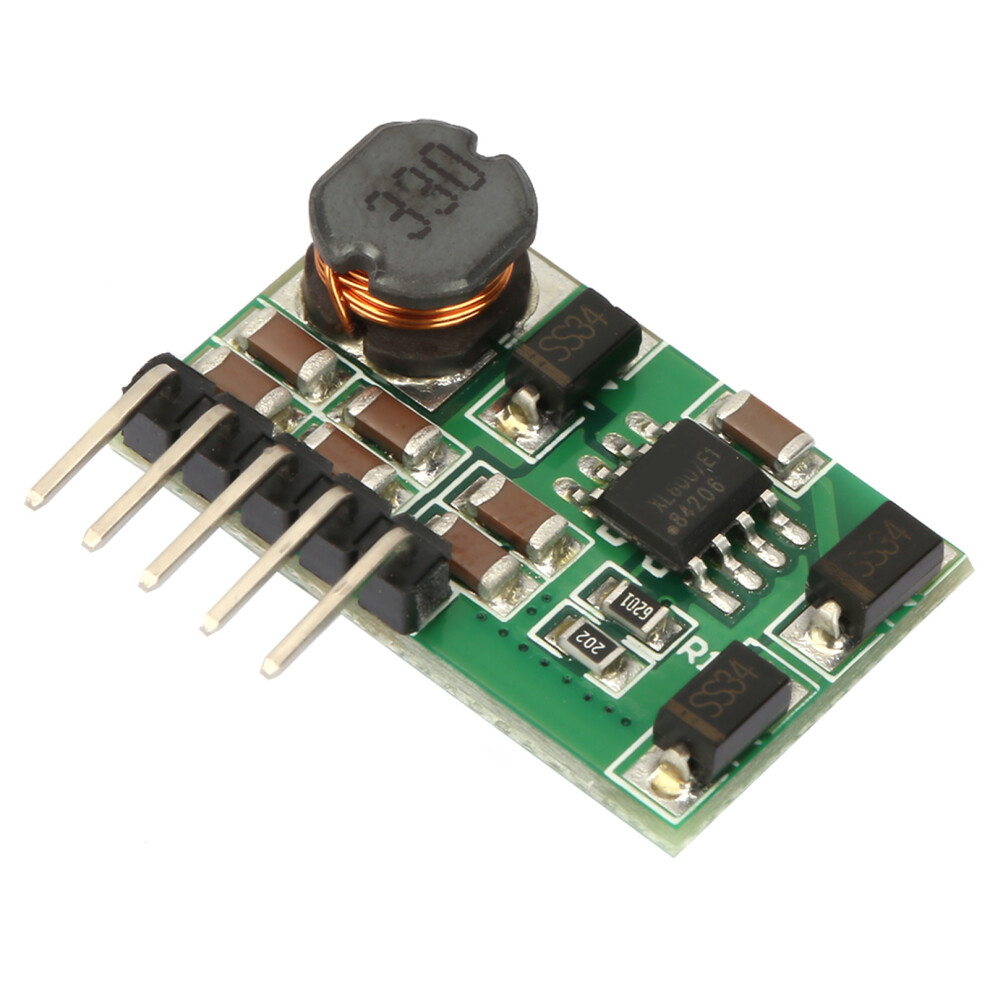

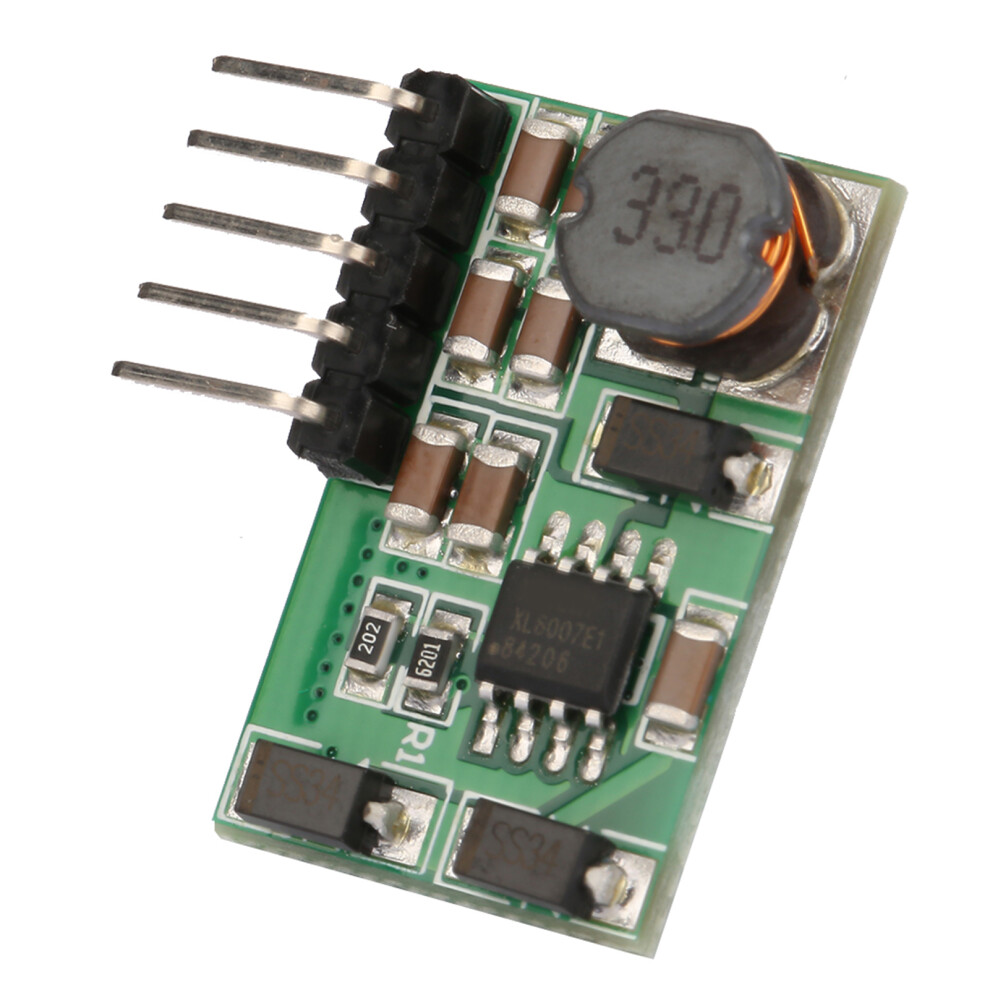

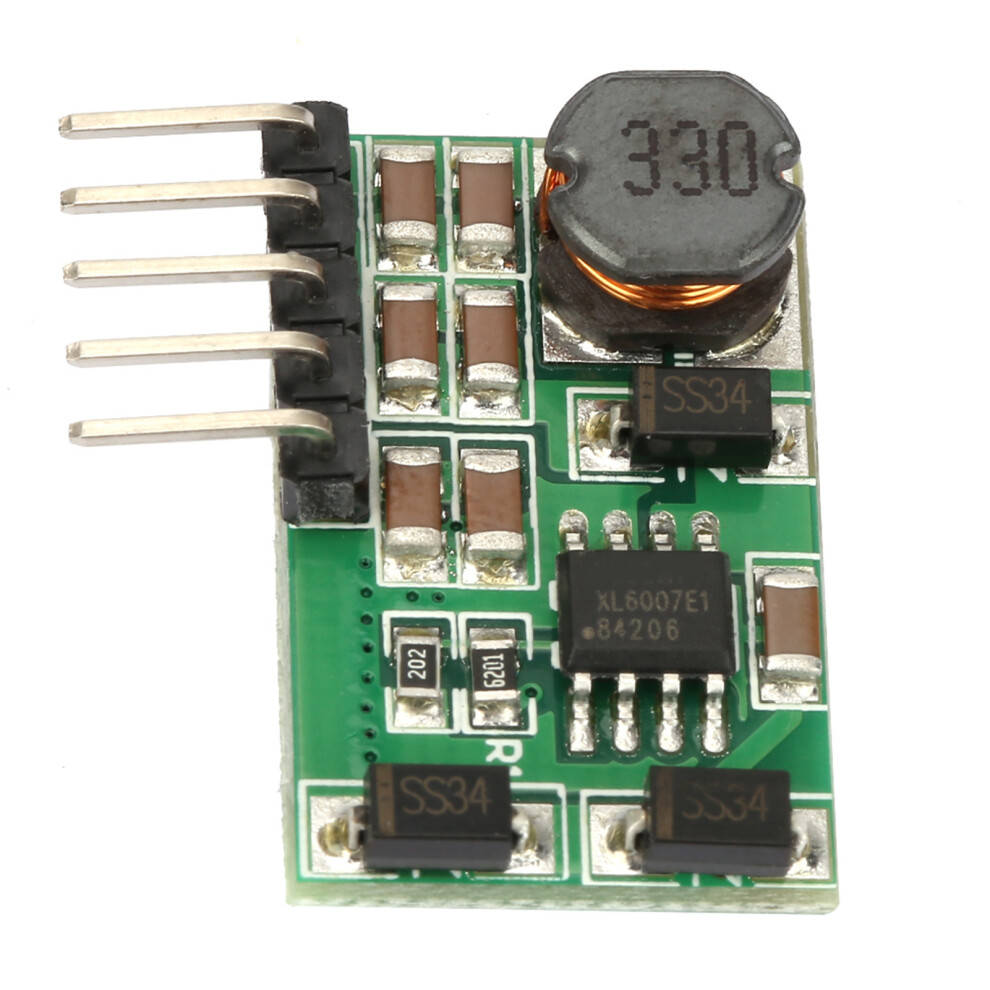

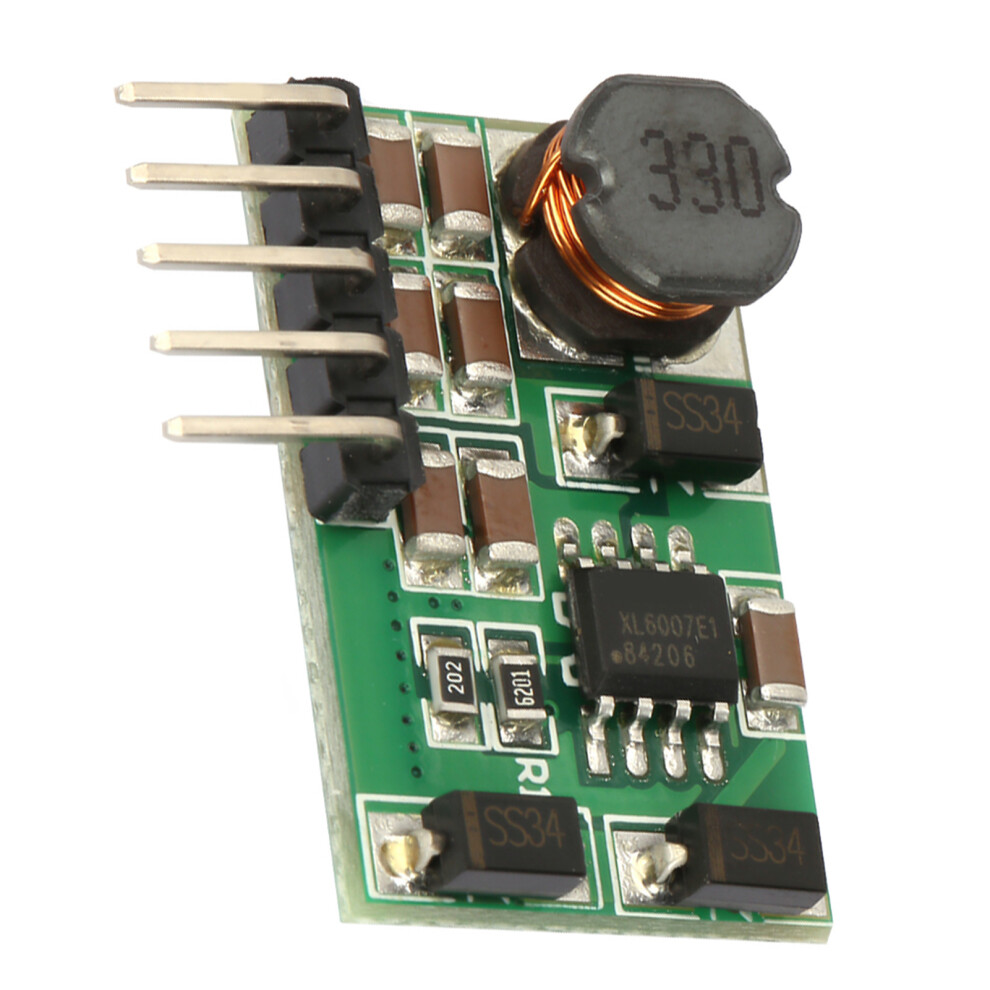

DC DC Step up Boost Converter ADC DAC LCD Power Module(3V~18V to 24V)

DC DC Step up Boost Converter ADC DAC LCD Power Module(3V~18V to 24V) Description

1、Adopted of high quality electronic components, and precision process, ensure for the durability 2、Stable performance and high efficiency conversion rate. 3、Small body and it can provide excellent performance 4、Available in six styles for your choice 5、Suitable for ADC / DAC / operational amplifier, RS232 RS485 RS422 bus, audio equipment, LCD power supply, instrumentation equipment, MCU board, motor power, instrument multimeter, Wifi / router / Ethernet equipment
Features:
1. Adopted of high quality electronic components, and precision process, ensure for the durability
2. Stable performance and high efficiency conversion rate.
3. Small body and it can provide excellent performance
4. Available in six styles for your choice
5. Suitable for ADC / DAC / operational amplifier, RS232 RS485 RS422 bus, audio equipment, LCD power supply, instrumentation equipment, MCU board, motor power, instrument multimeter, Wifi / router / Ethernet equipment
Specification:
Condition: 100% Brand New
5V:
Maximum Input Current 2A
Maximum Output Current: + Vo Is 1A, -Vo Is 200mA
6V:
Maximum Input Current 2A
Maximum Output Current: + Vo Is 1A, -Vo Is 200mA
9V:
Maximum Input Current 1.8A
Maximum Output Current: + Vo Is 800mA, -Vo Is 180mA
12V:
Maximum Input Current 1.8A
Maximum Output Current: + Vo Is 700mA, -Vo Is 150mA
15V:
Maximum Input Current 1.8A
Maximum Output Current: + Vo Is 600mA, -Vo Is 120mA
24V:
Maximum Input Current 1.8A
Maximum Output Current: + Vo Is 400mA, -Vo Is 100mA
Operating temperature Range : -40~+125
Storage temperature Range : -65~+150
Weigh: Approx. 4g / 0.1oz
Size: Approx. 25 * 16.3 * 6.6mm / 1.0 * 0.6 * 0.3in
Package List:
1 * Step up Power Supply
Note:
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
