DC Isolator,1 String Solar PV Combiner Box

DC Isolator,1 String Solar PV Combiner Box Description

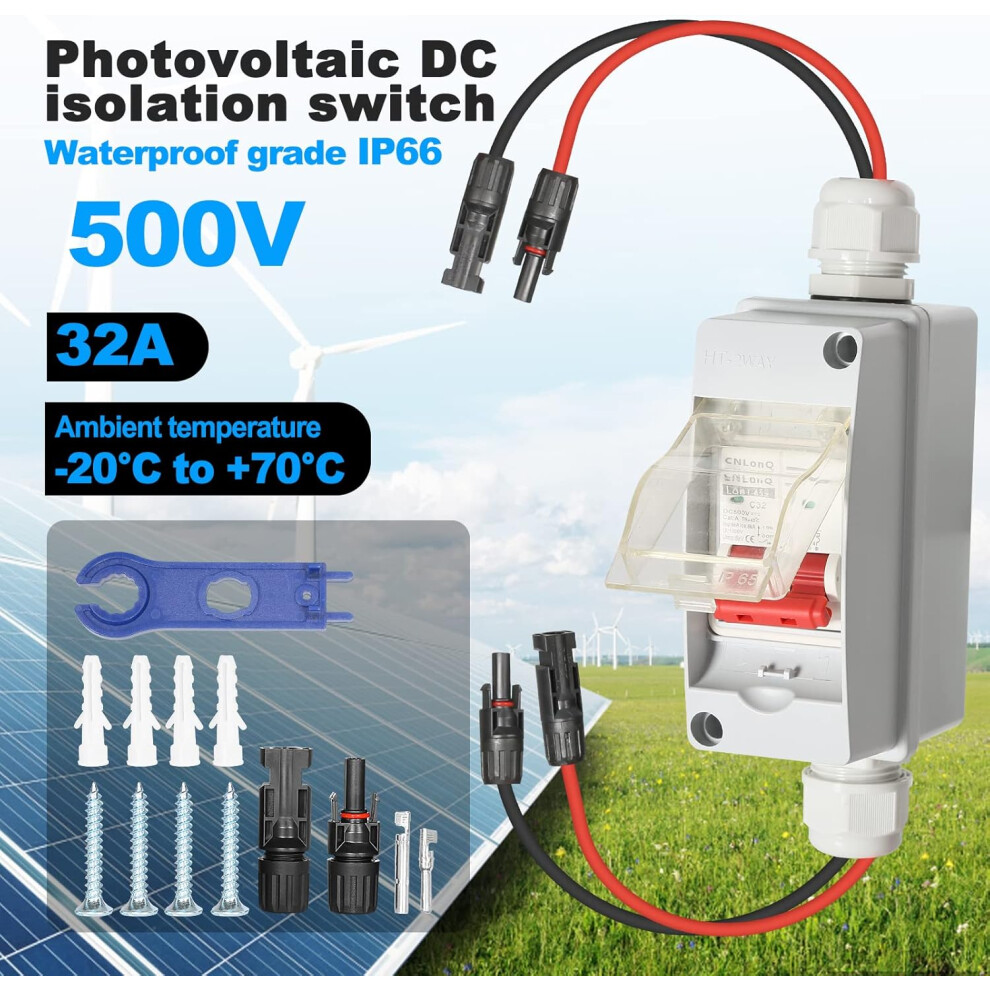

DC Isolator, 1 String Solar PV Combiner Box, with 500V 32A Protection Circuit Breaker 1 in 1 Out PV DC Circuit Breaker Switch IP66 Waterproof Photovoltaic Junction Box, for Solar Panel System

Solar PV DC Isolator Switch Disconnect Switch DC 500V 32A IP65 Waterproof Combiner Box

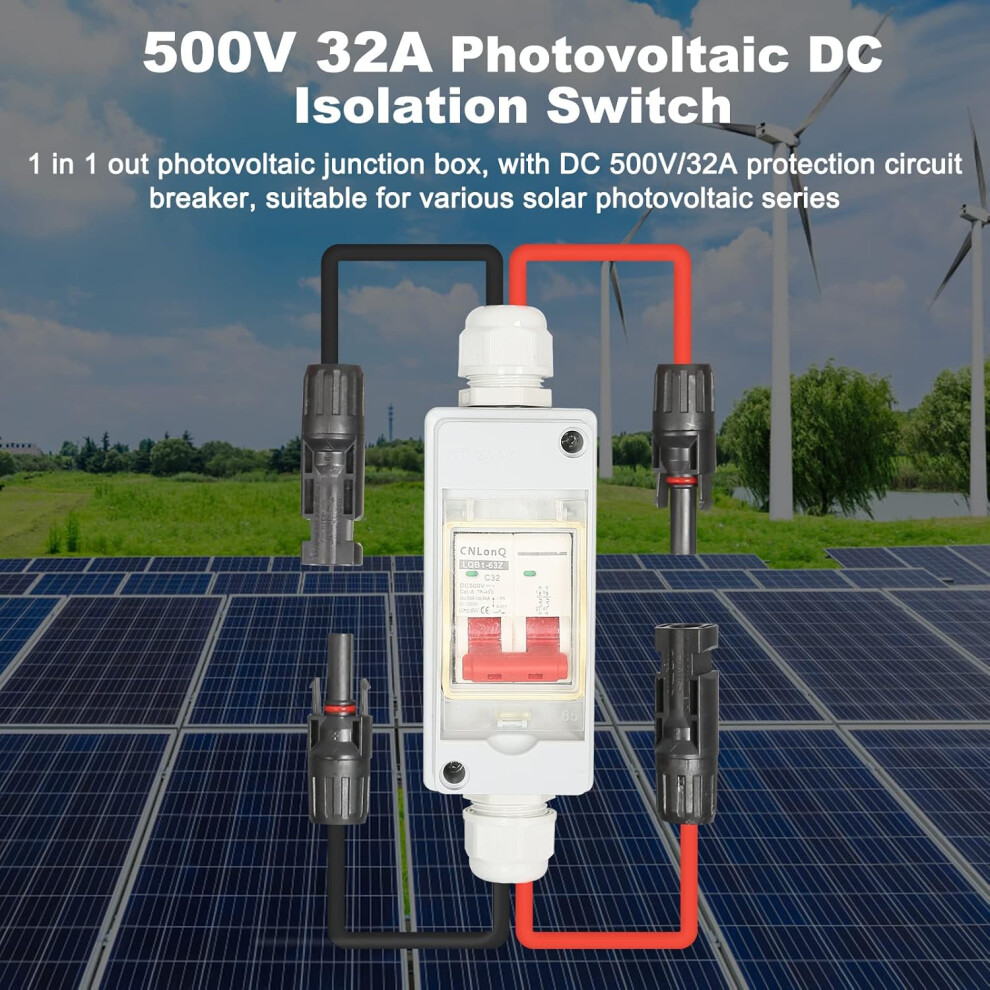

1 in 1 out photovoltaic junction box, with DC 500V/32A protection circuit breaker, suitable for various solar photovoltaic series.

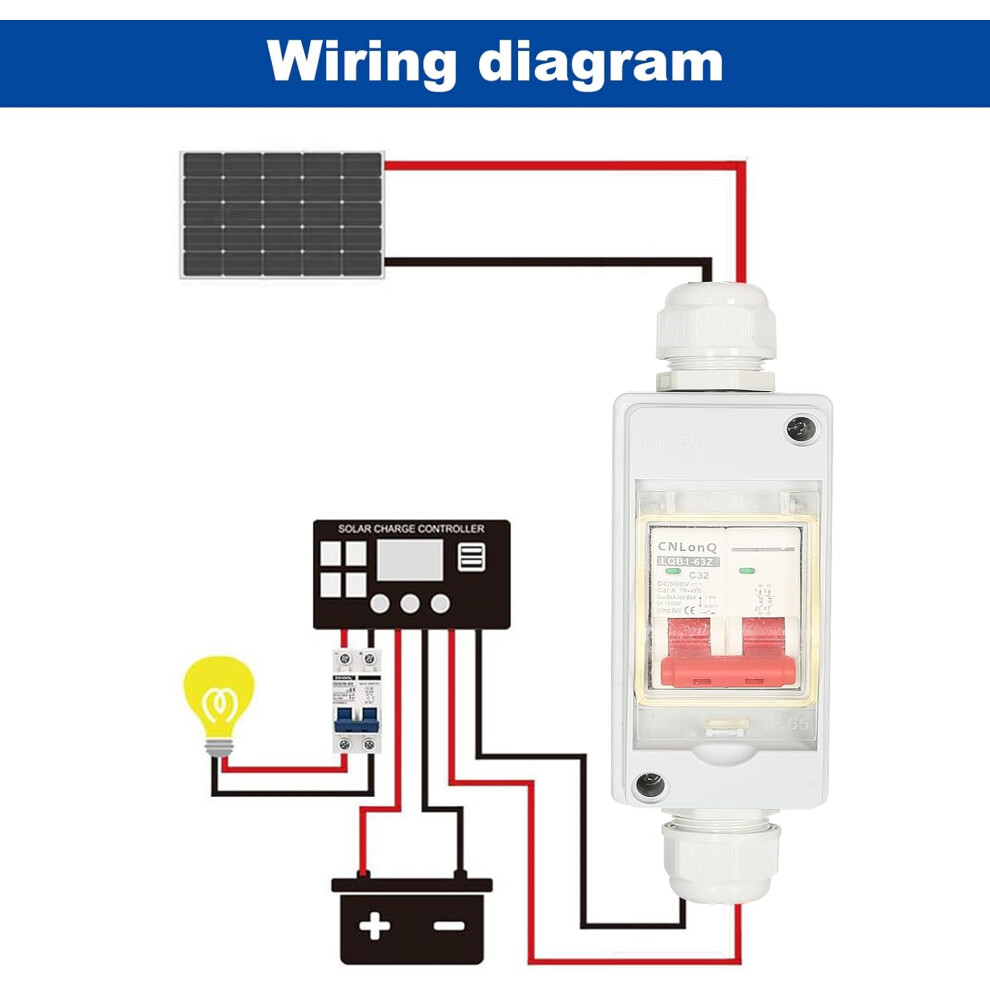

Used to install between the solar panel and the solar charge controller, between the solar panel and the inverter,between the solar panel and solar panel.

Support grid connected/off grid photovoltaic solar power generation systems, solar panel systems, photovoltaic panels and solar panels for household and camping homes.

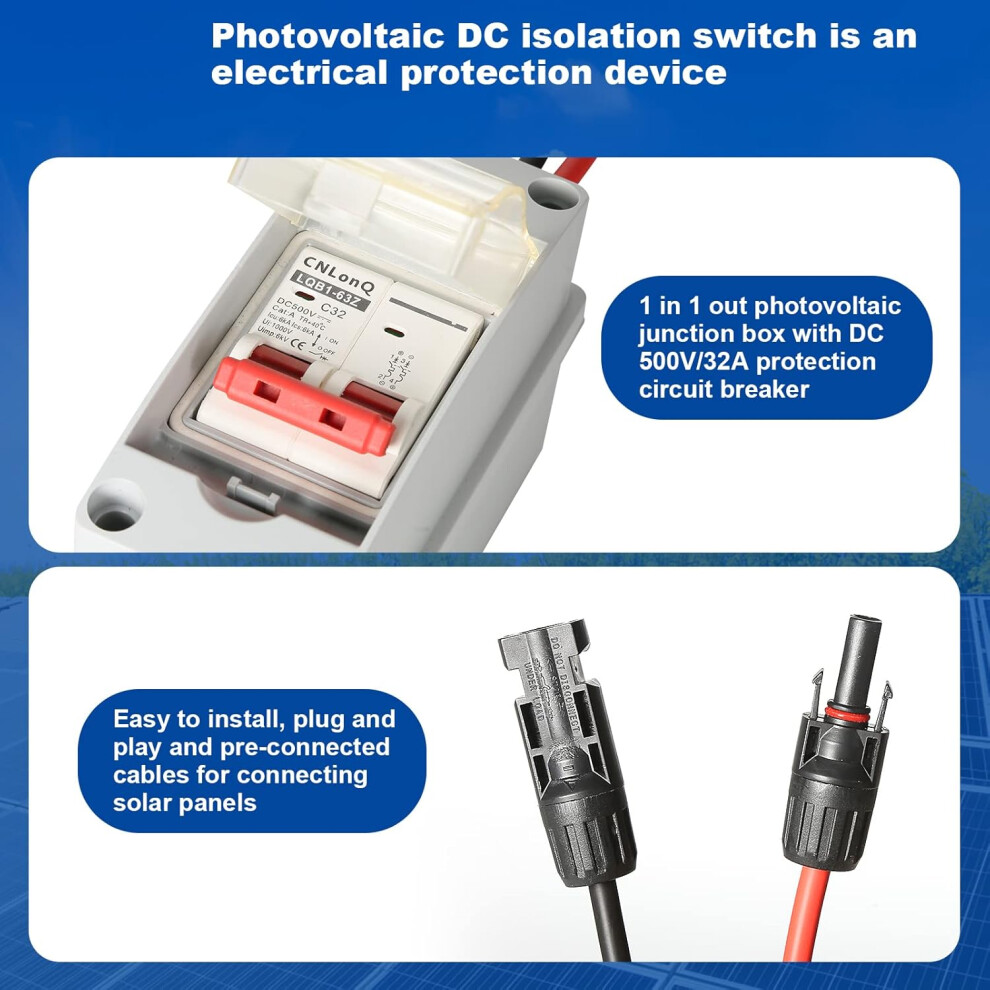

1 in 1 out Photovoltaic Junction Box

With 500V/32A DC protection switch.

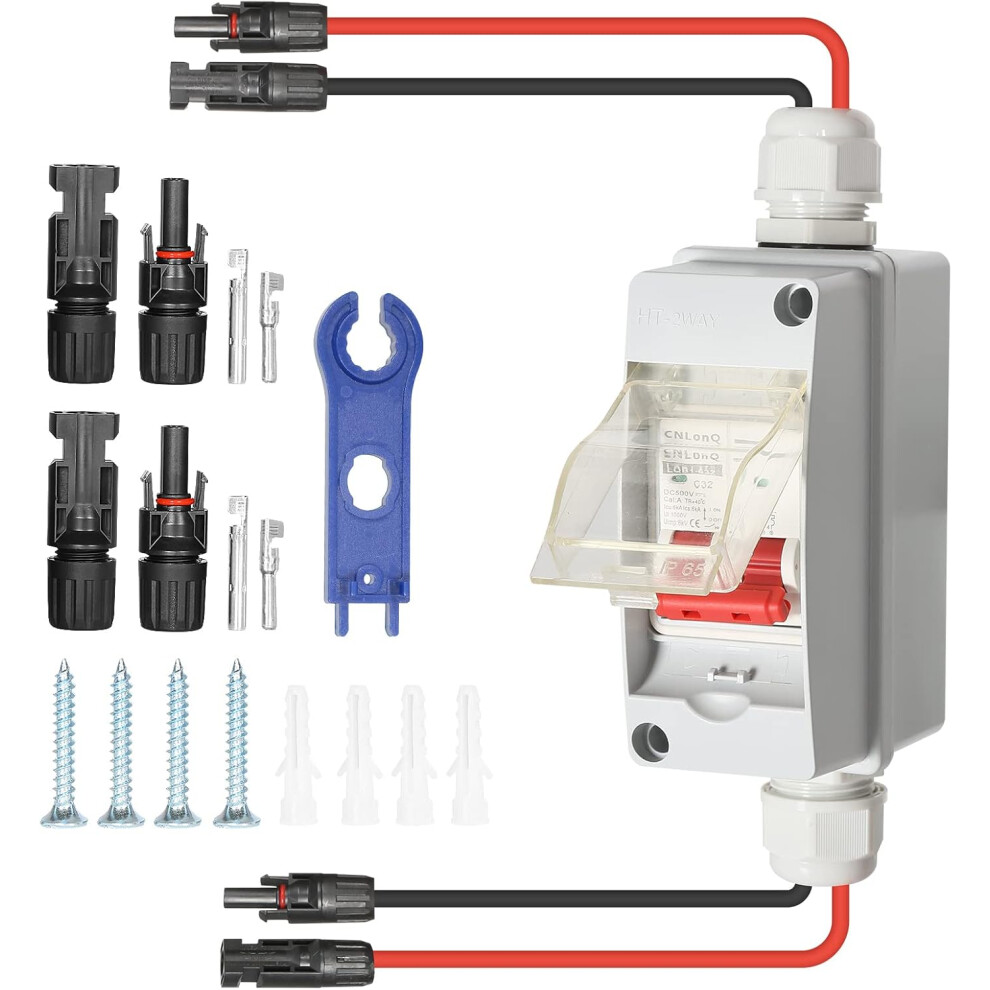

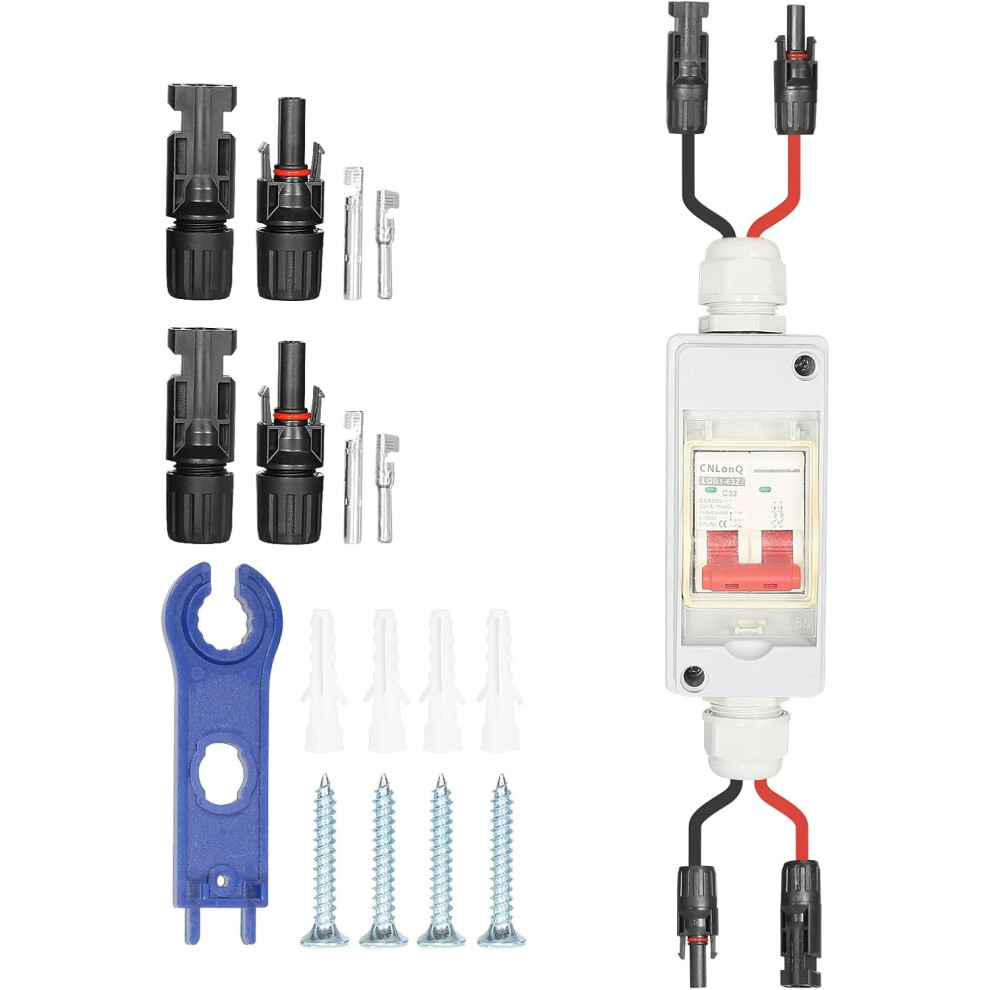

Easy to install, plug and play, pre-connected cables for connecting solar panels.

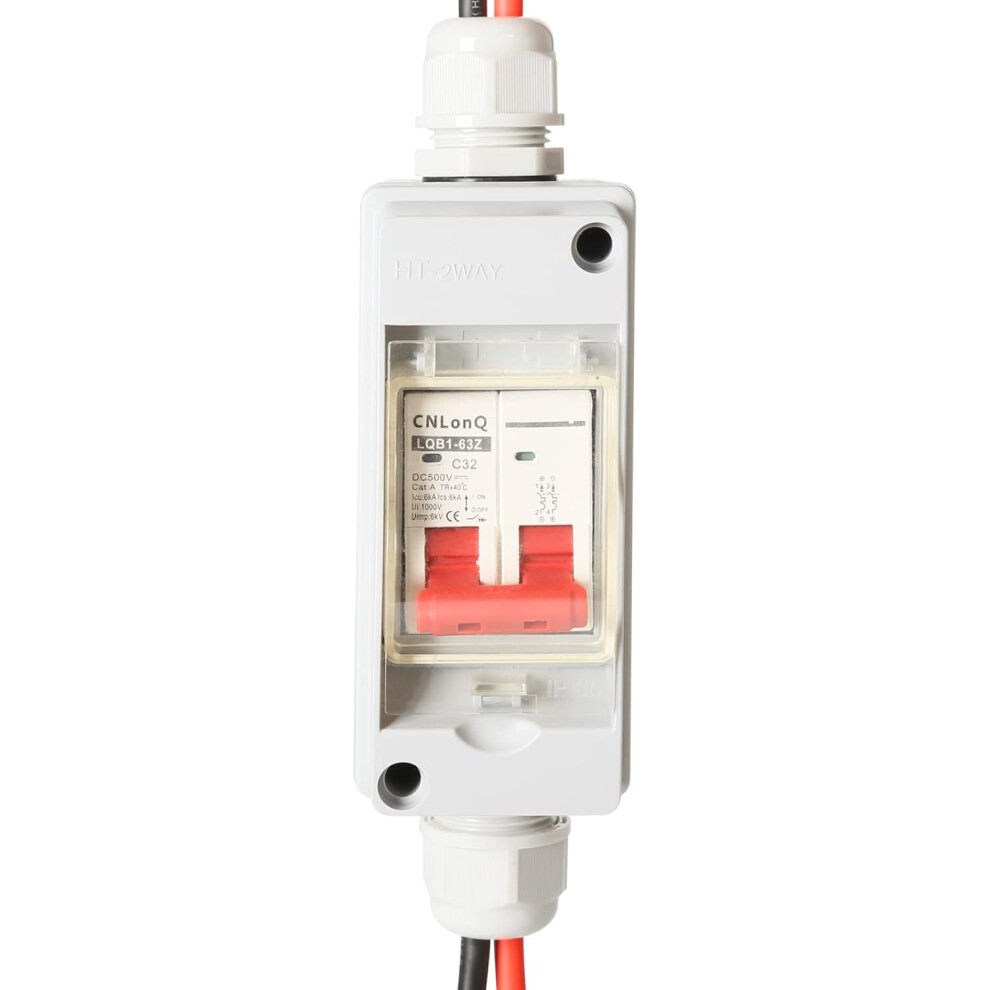

Robust Protective Shell

UV protection, suitable for adverse weather conditions such as rain and sunlight.

Suitable ambient temperature: -20 ° C to +85 ° C.

IP65 Waterproof Grade

PV solar combination box can adapt to bad weather like rain and sun.

PC material has higher strength and better weather resistance.

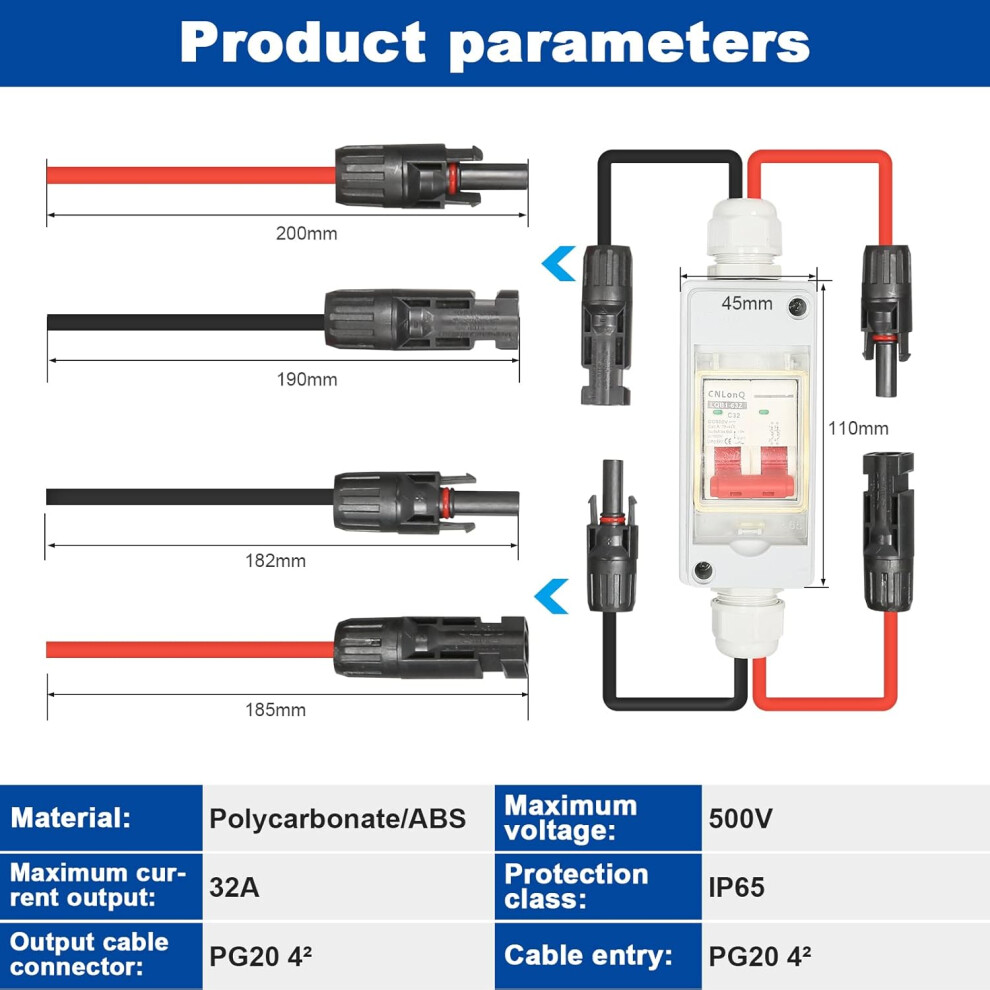

Specifications:

Input: 1 set of connectors

Output: 1 set of connectors

Maximum voltage: 500V

Maximum DC short-circuit current (Isc) per input: 32A

Maximum current output: 32A

DC circuit breaker: LQB1

Rated insulation voltage (Ui): 500V

Rated current (Le): 32A

Maximum working voltage (Ucpv): 500V

Rated working voltage: 500V
