DC Miniature Isolator Circuit Breaker with DIN Rail Mount

DC Miniature Isolator Circuit Breaker with DIN Rail Mount Description

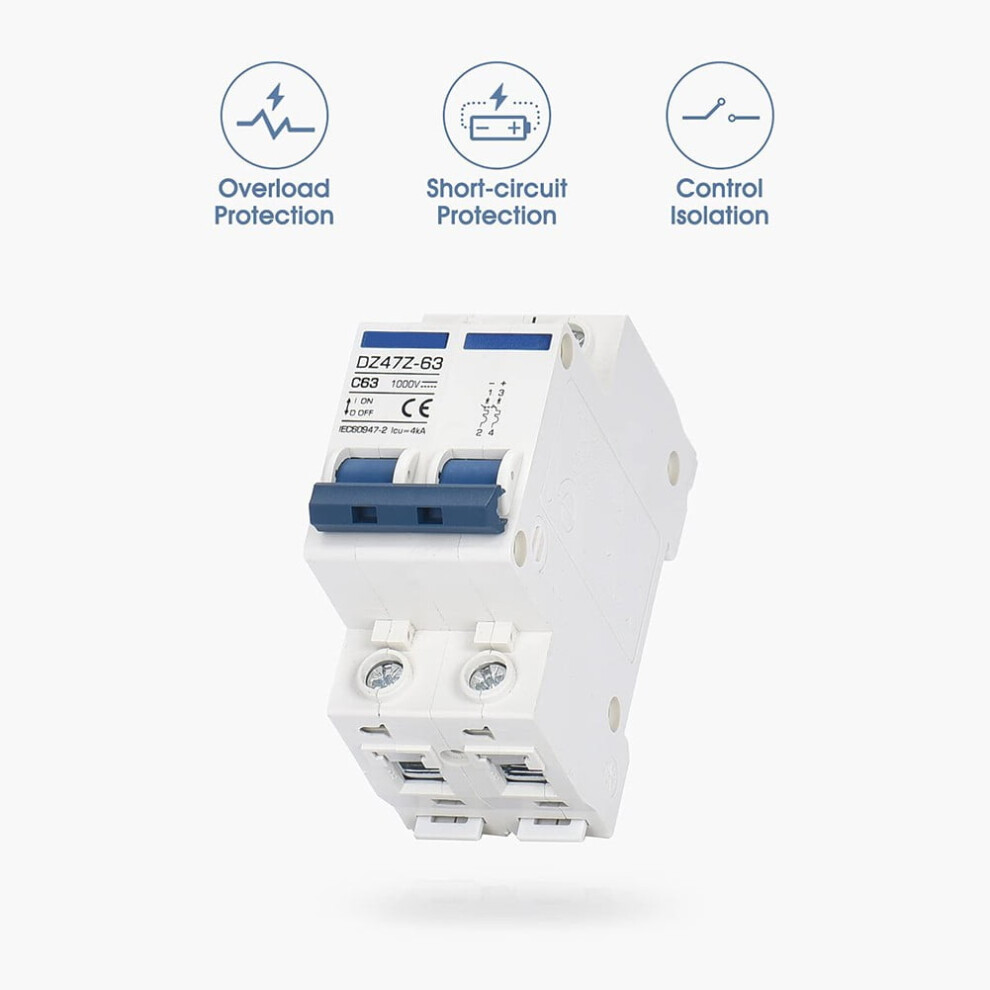

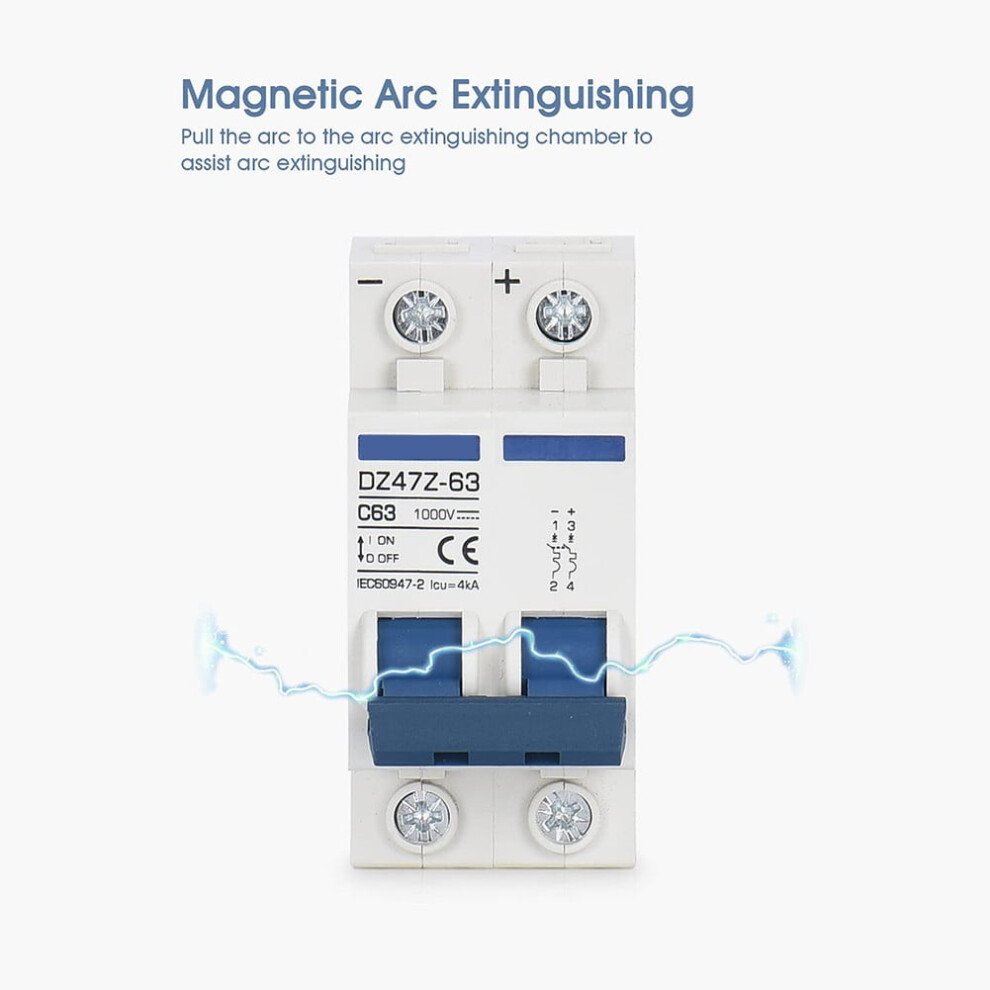

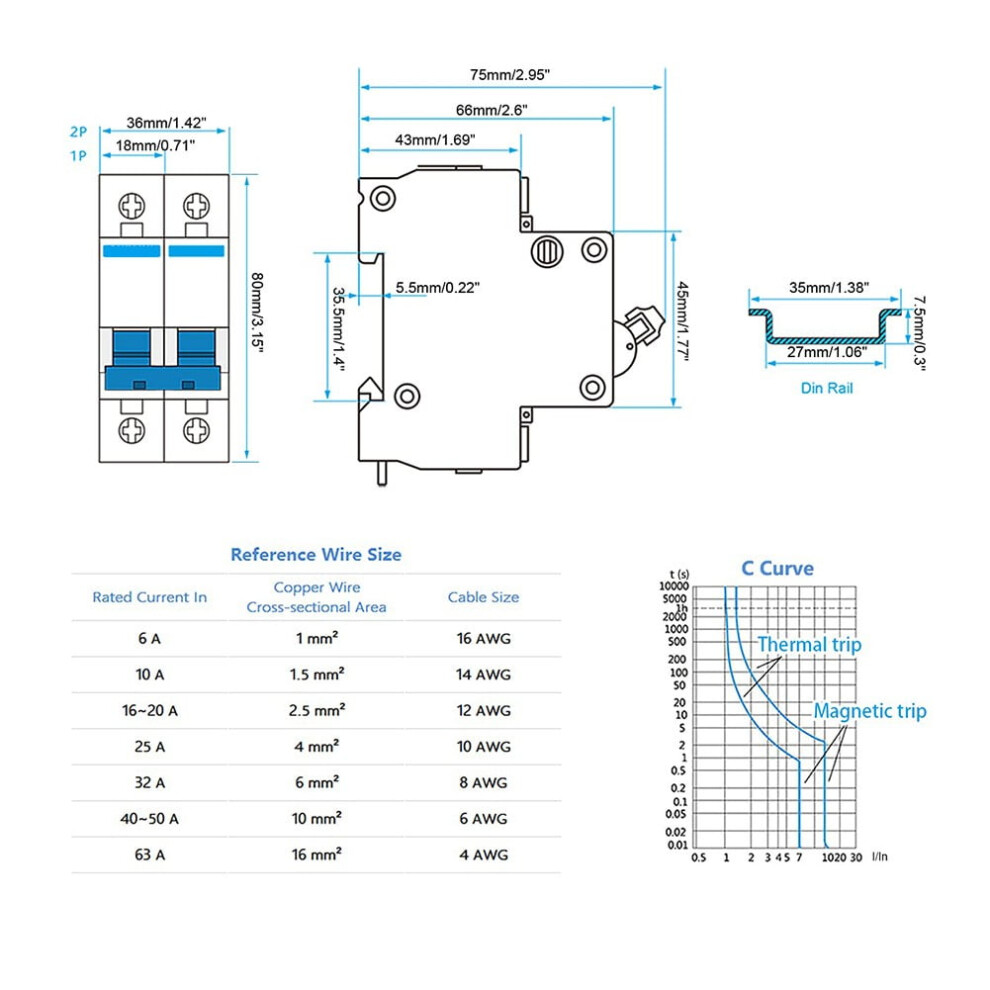

Features: Brand new high quality Made of high-quality materials for durability It is used to protect power distribution facilities from overload and short-circuit damage, and can also be used for ntrol and isolation. Quick trip, the electromagnetic trip can trip immediately when the circuit is short-circuited to protect the circuit safety. Extinguishing, DC extinguishing is more difficult than AC. The DC miniature circuit breaker has a magnetic for auxiliary extinguishing. Applications for DC power s, marine power s, solar photovoltaic s or other DC s. Installation, screw clamp wire, 35mm DIN rail installation. Product parameters: Type DC MCB Rated working voltage: 1000V DC Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A / 63 A (optional) Two levels: 2 P Release technology: Thermomagnetic Curve de: C Breaking capacity: 4 for kA Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical life: cycles Operating temperature: -13F(-25C) ~ 140F(60C) Mounting bracket: 35 mm DIN rail Tightening torque: 2.5 N. M Standard IEC60898-2 Dimensions LxWxH: 1.42 X 2.95 X 3.15 Inches Package Included: 1 * DC MCB 1 * DIN rail 2 * screws Note: 1. The real lor of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
