DC Motor 300mA Rated Current Worm Reducer Shaft

DC Motor 300mA Rated Current Worm Reducer Shaft Description

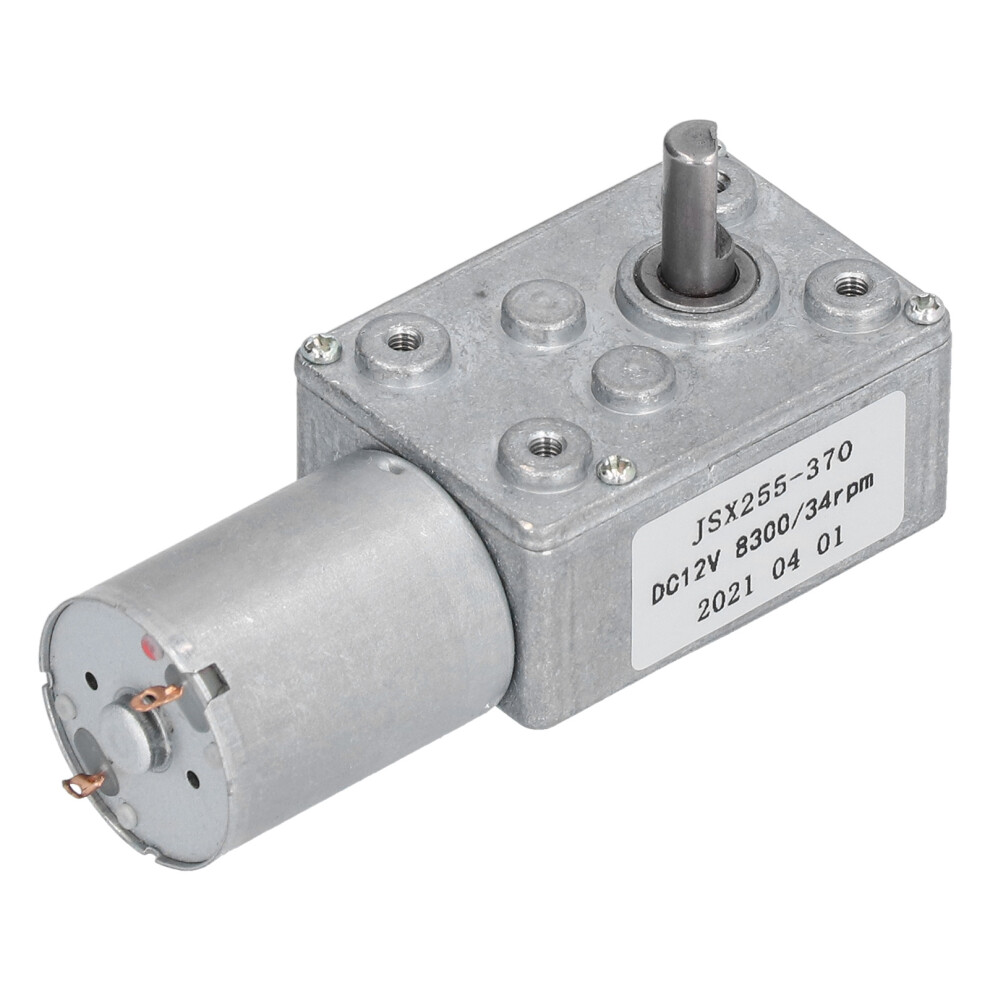

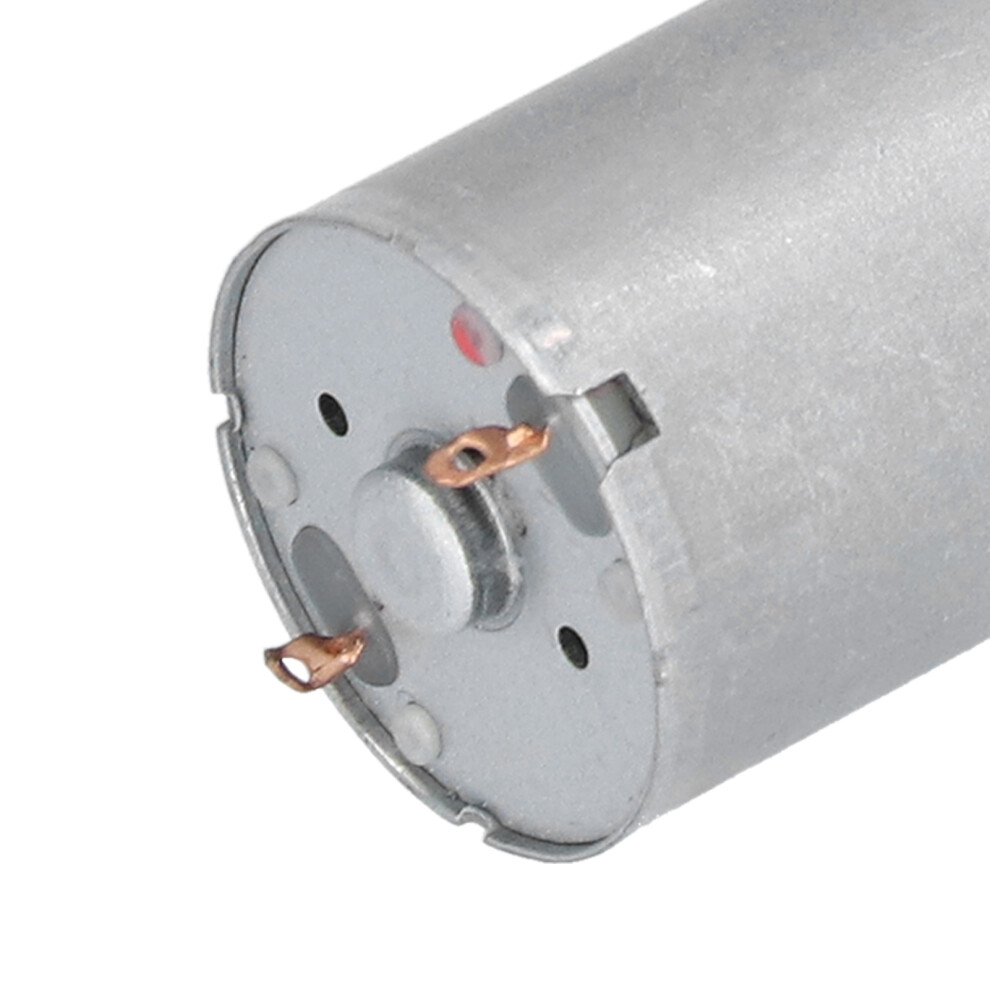

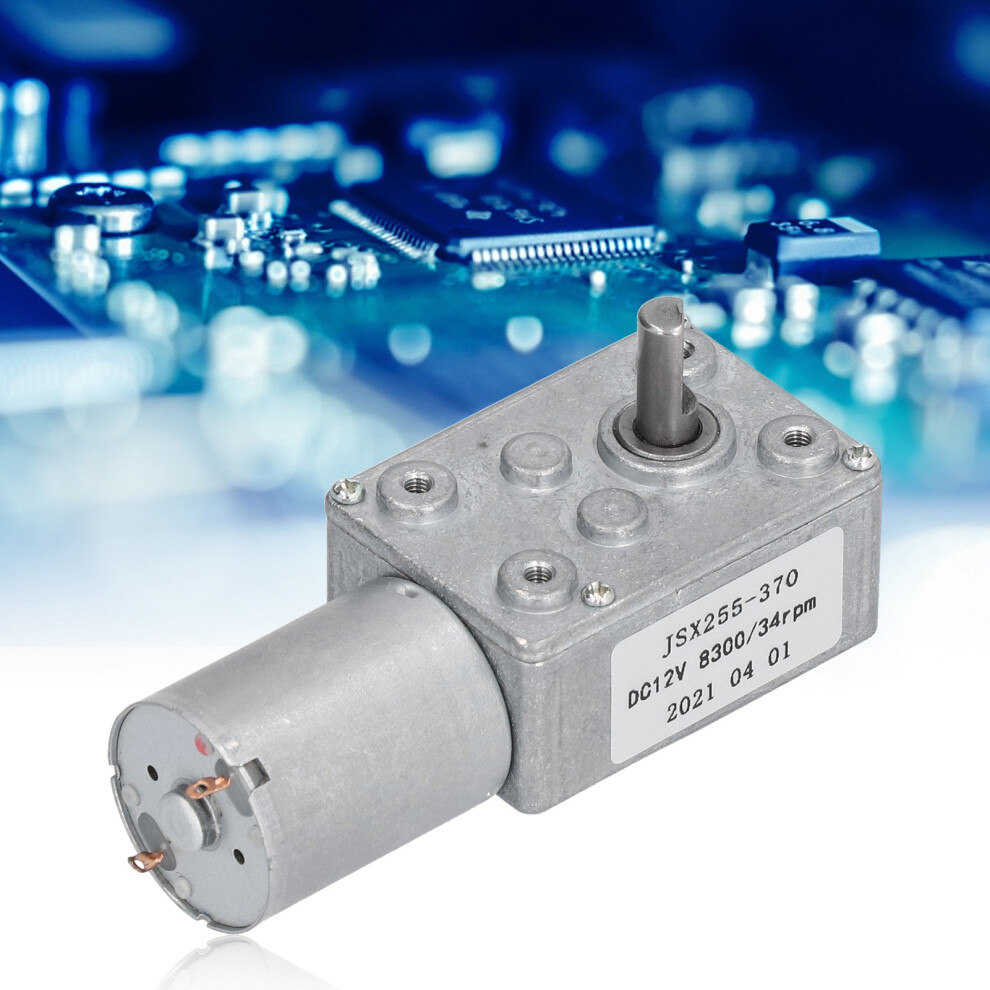

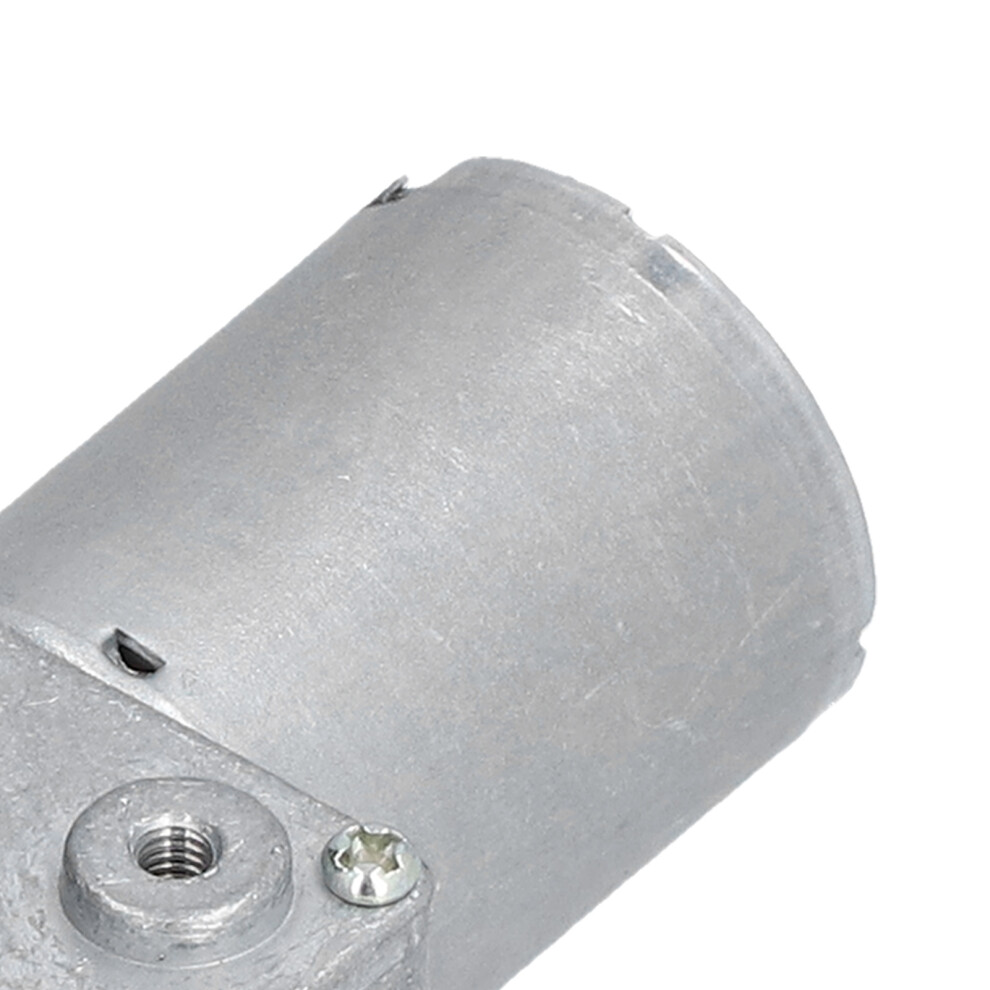

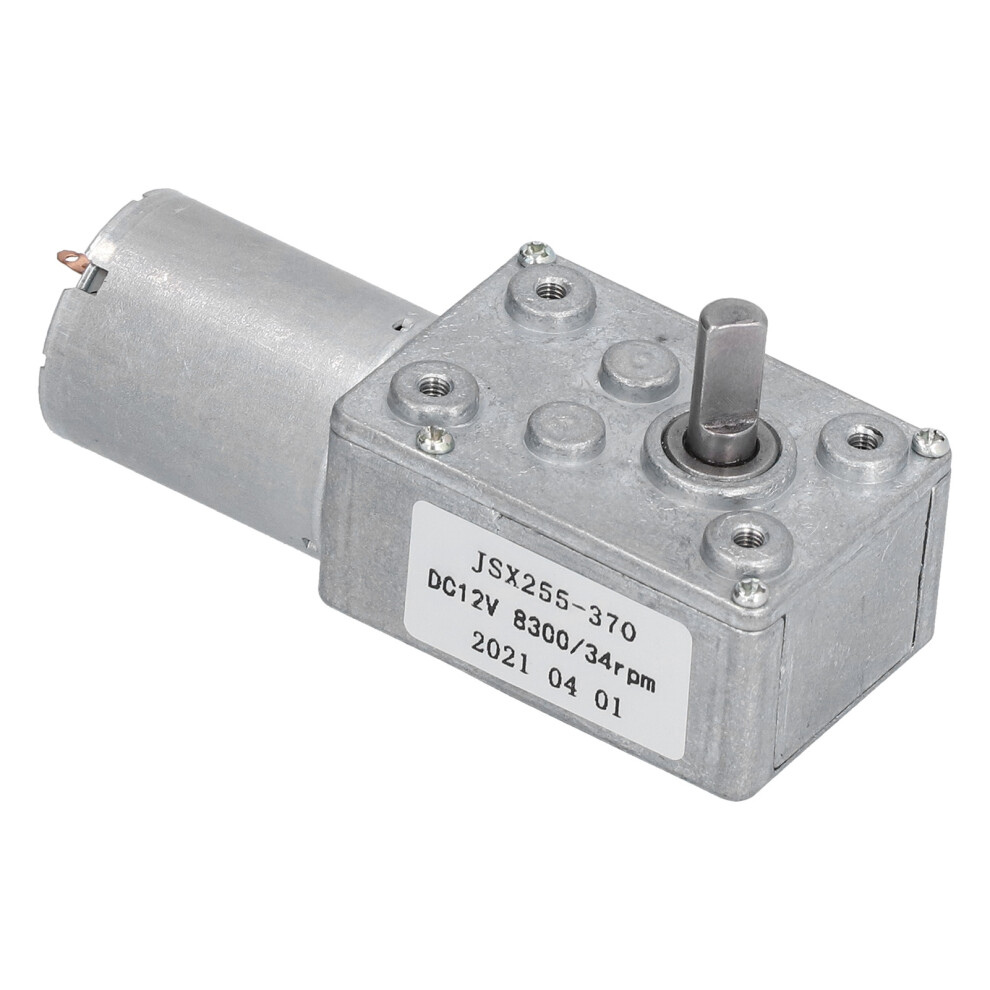

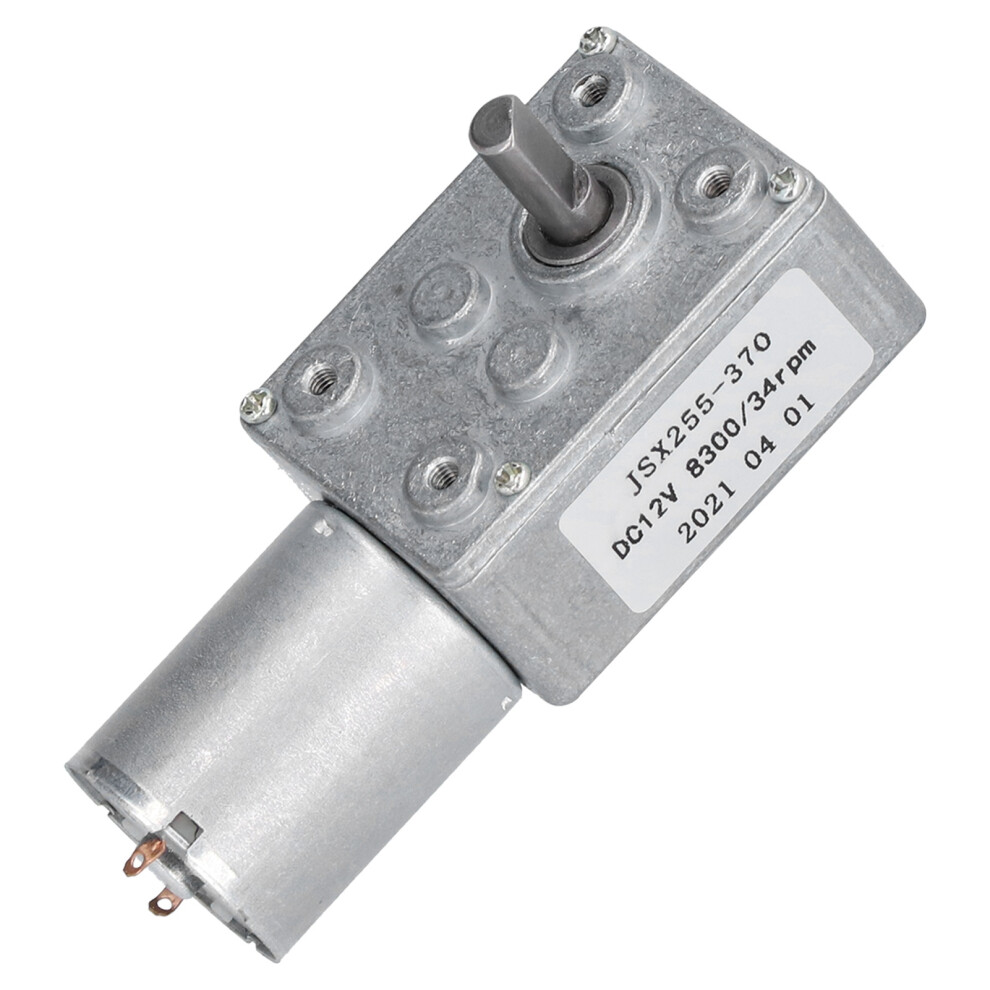

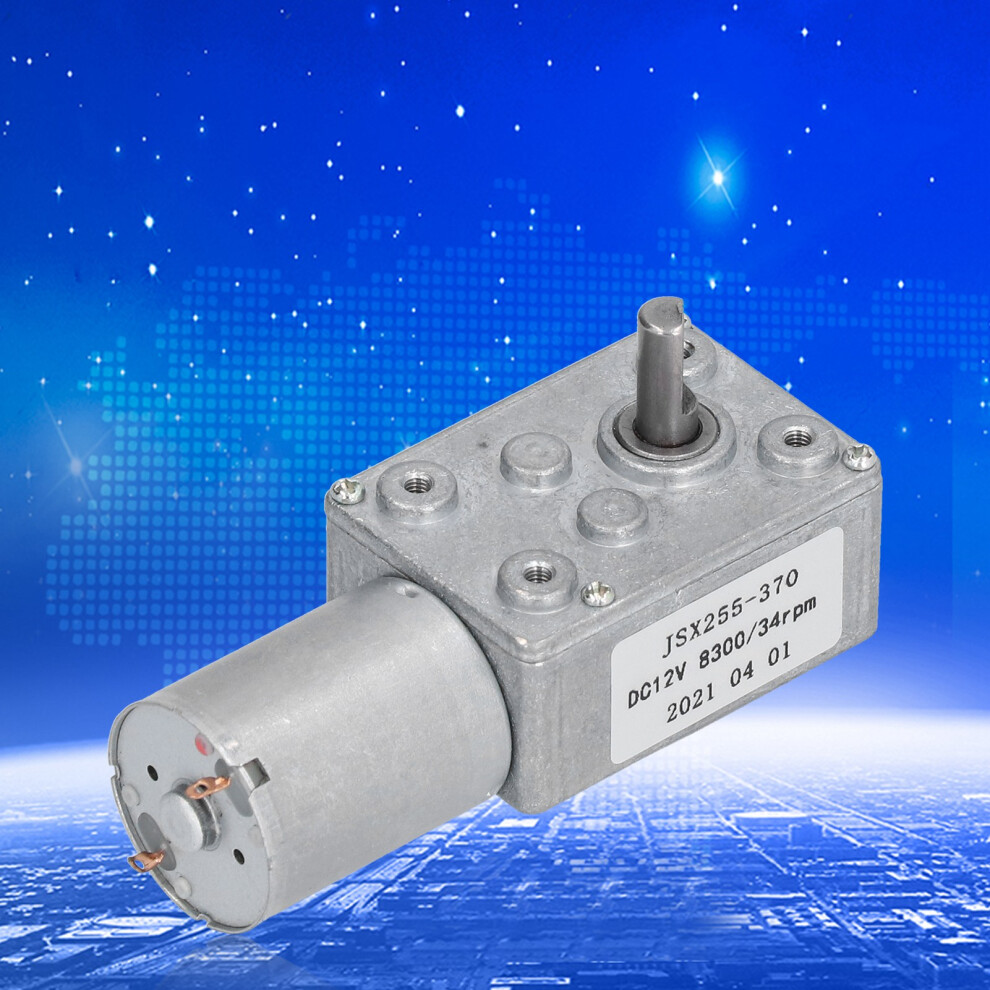

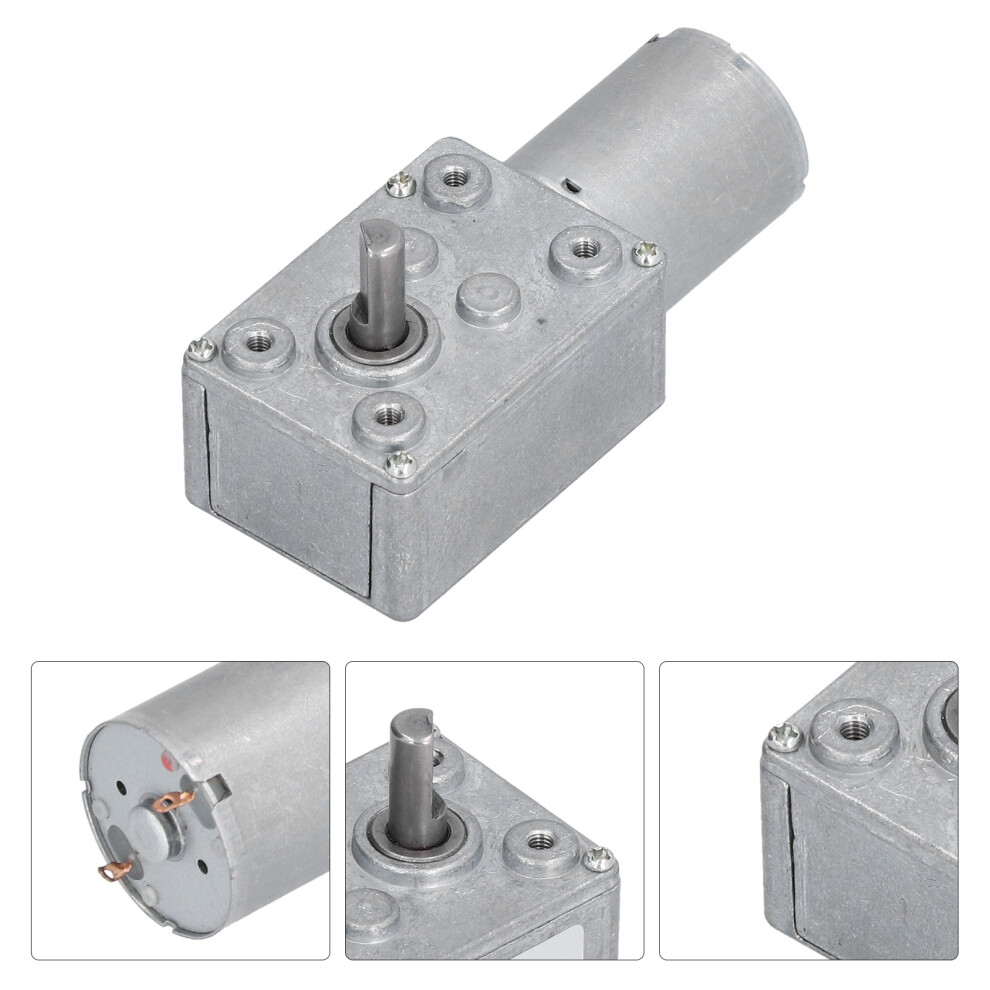

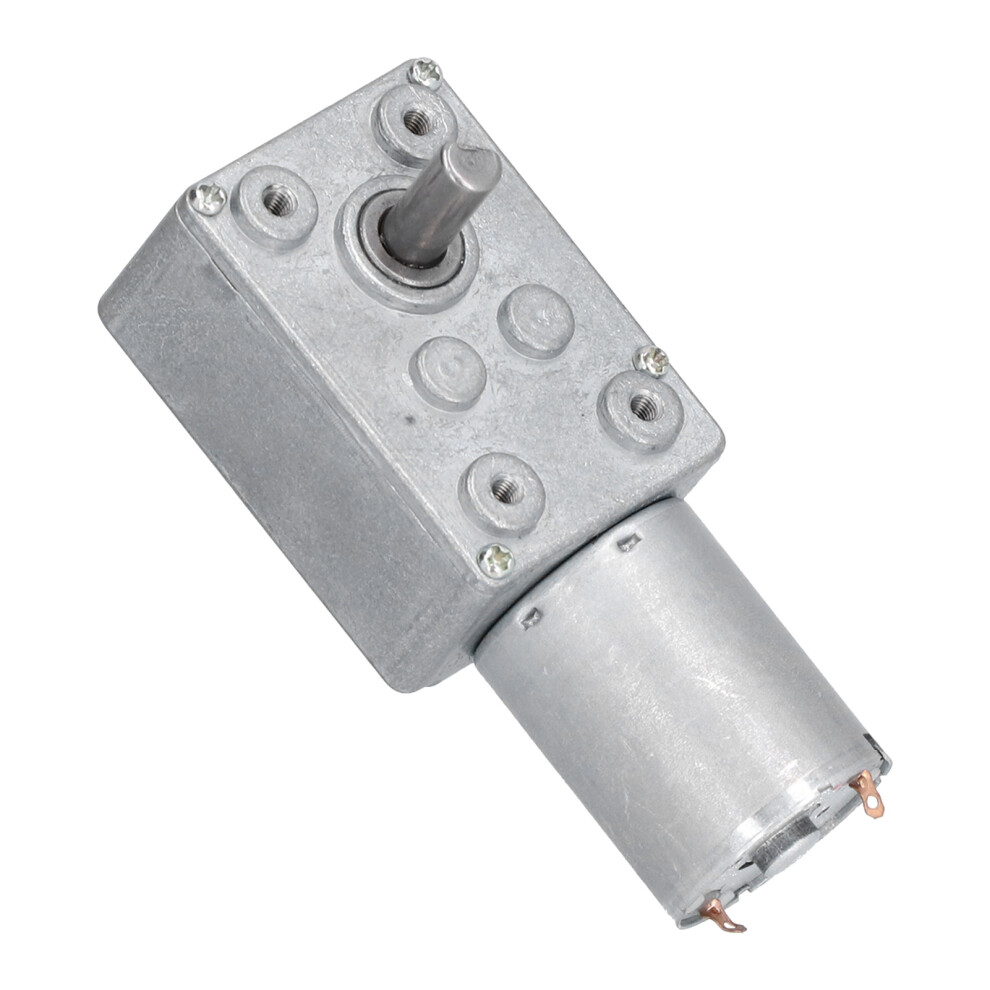

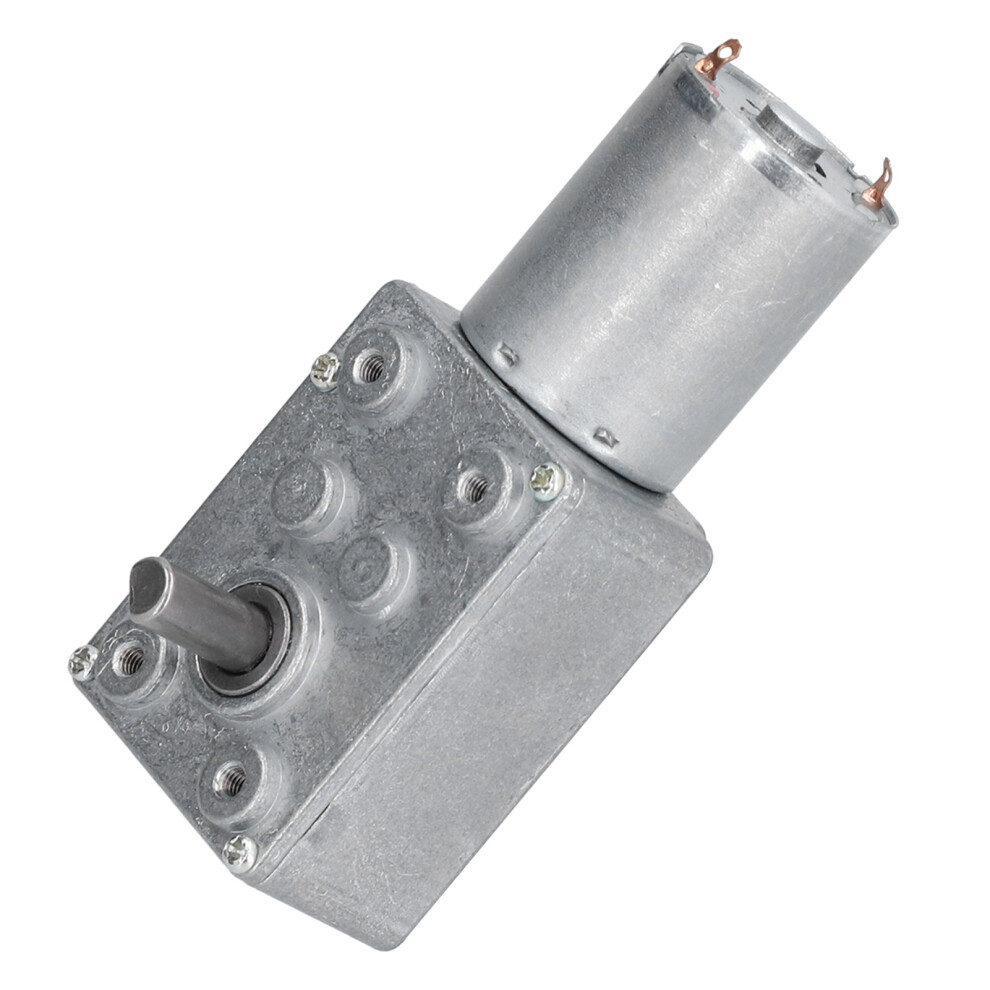

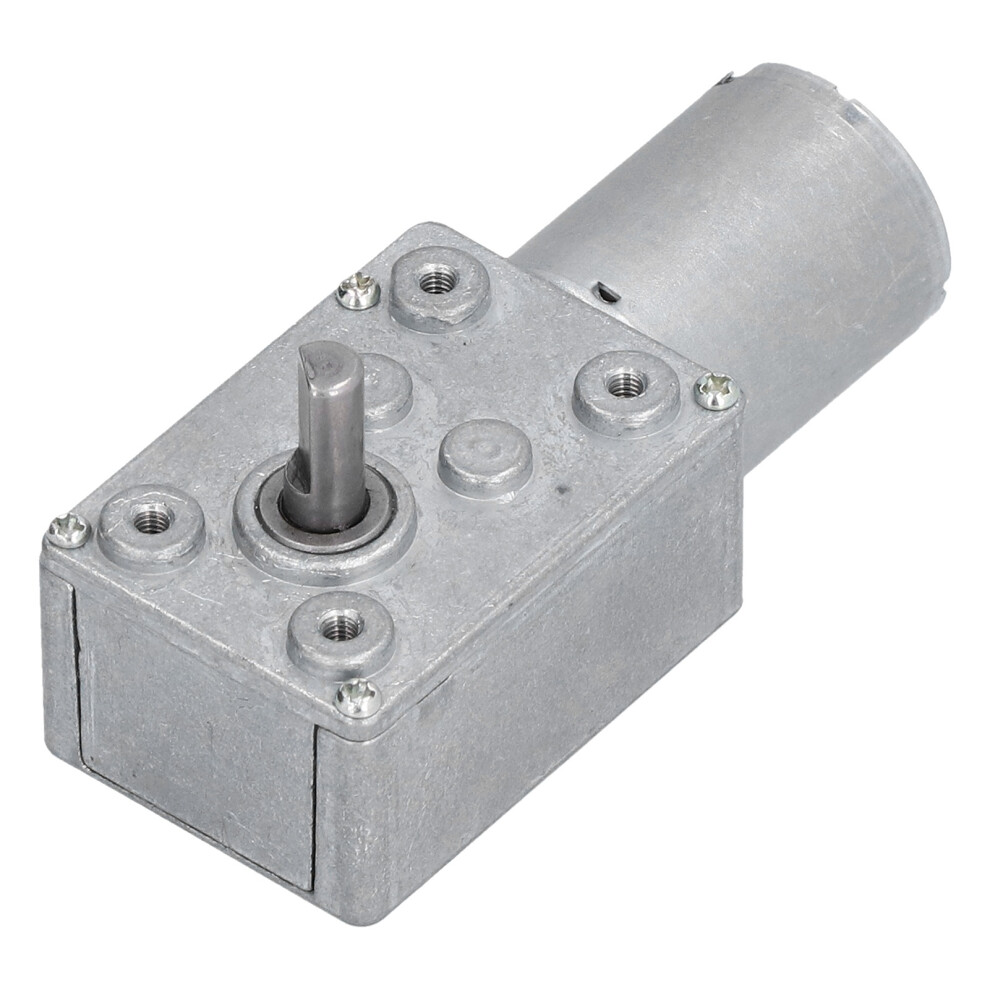

DC Motor 300mA Rated Current Worm Reducer Shaft SelfLocking Machinery for Window Opener 12V

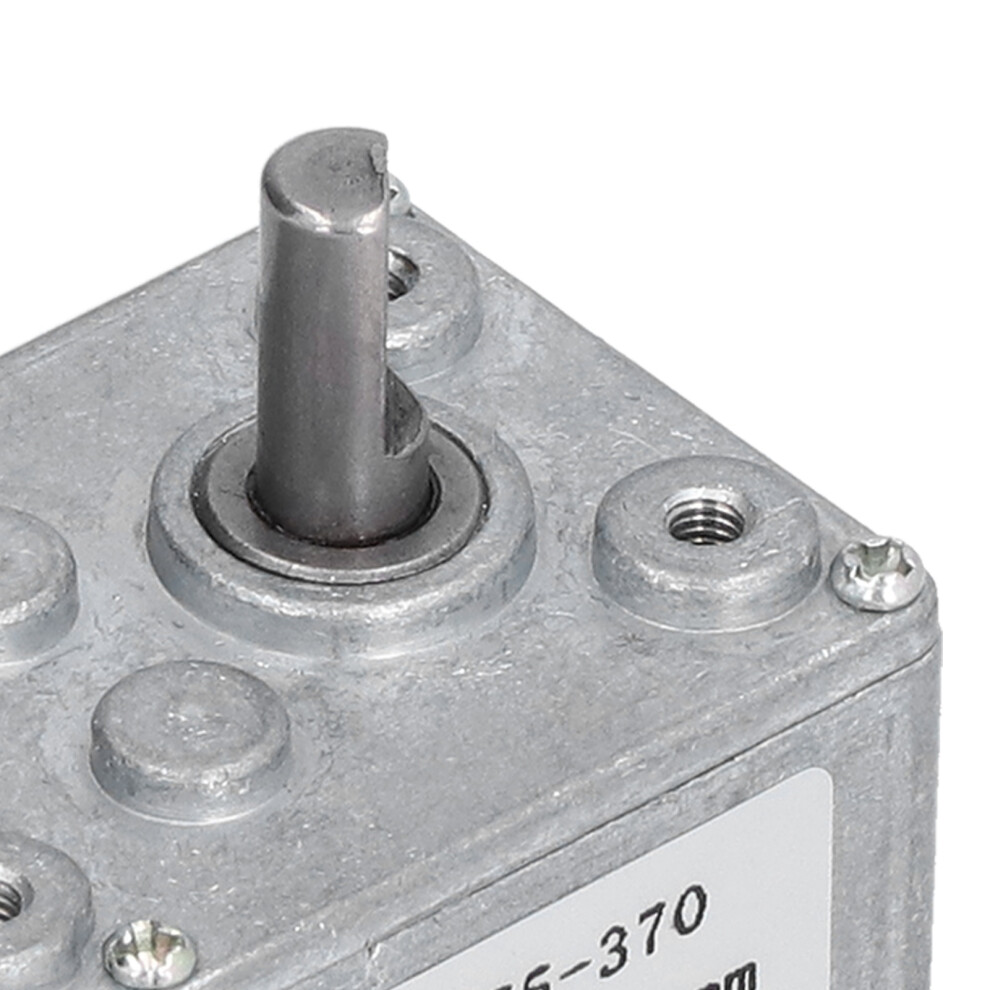

1、The worm gear motor is self‑locking. When the motor is without electricity, the output shaft cannot rotate 2、The worm gear motor is widely adapted to some situation that require the installation size, such as window openers, door openers, mini winches and so on 3、DC geared motor with worm, change the rotation of the motor by changing the wiring method 4、Made of aluminum and brass, with good toughness and impact resistance, improving the bearing quality and the life of the worm gear motor 5、The direction of the output shaft of the gear box is perpendicular to the motor shaft, and the direction of the output shaft of the entire motor body is ultra‑short compared to ordinary geared motors

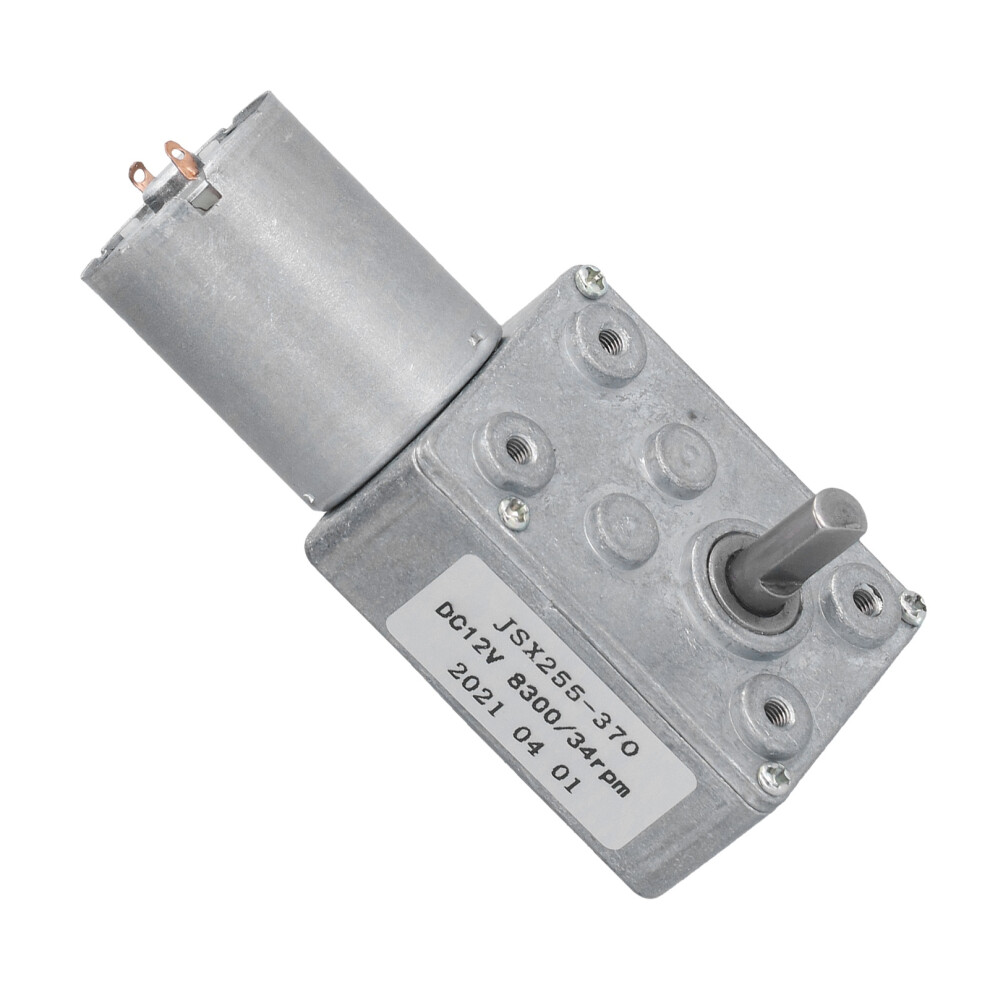

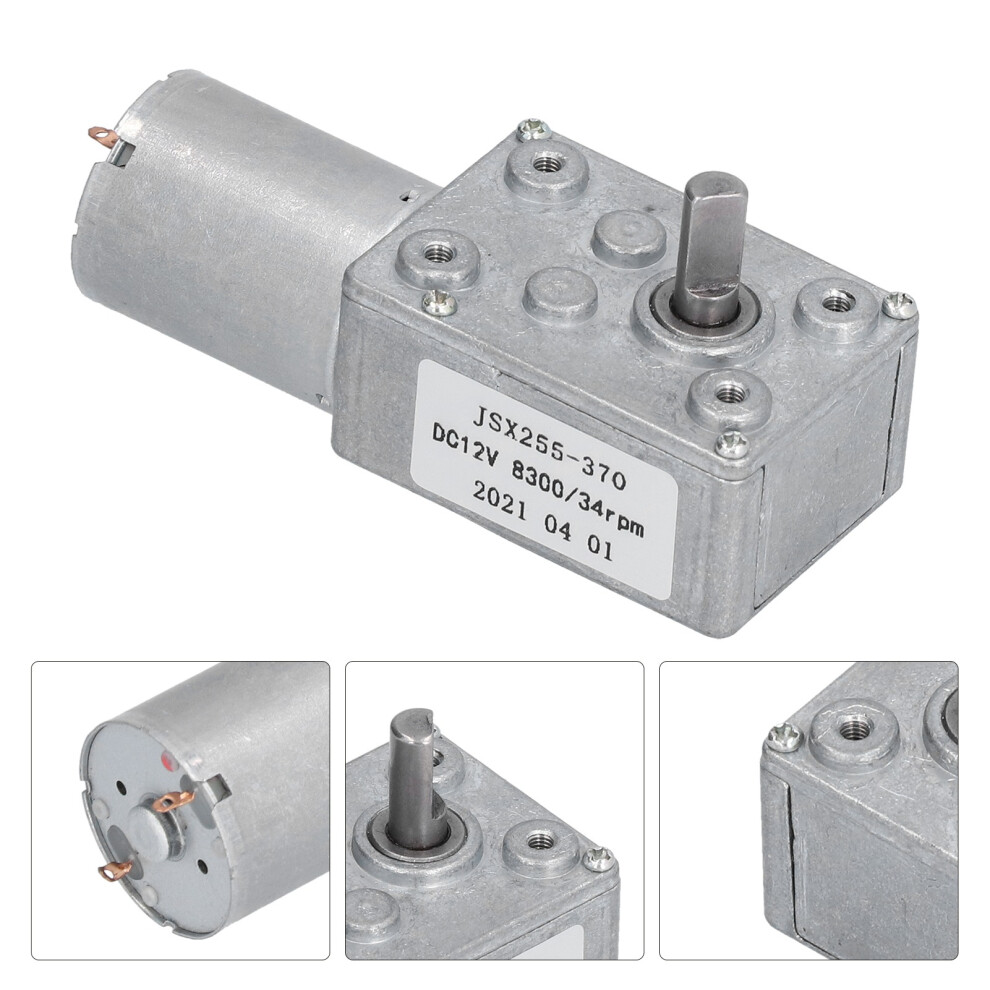

Item Type: Motor Material: Aluminum + Brass Model: JSX255-370 Uses: Worm Gear Motors Are Widely Used in Window Openers, Door Openers, Miniature Winches, Etc. Rated Voltage: DC12V No-Load Speed: 34rpm Motor Speed: 8300rpm Rated Speed: 27rpm Rated Current: 300mA Rated Torsion: 1.5kg.cm Locked-Rotor Torsion: 9kg.cm Locked-Rotor Current: 1600mA



1 x Motor
