DC Motor Control Module Forward and Reverse Remote

DC Motor Control Module Forward and Reverse Remote Description

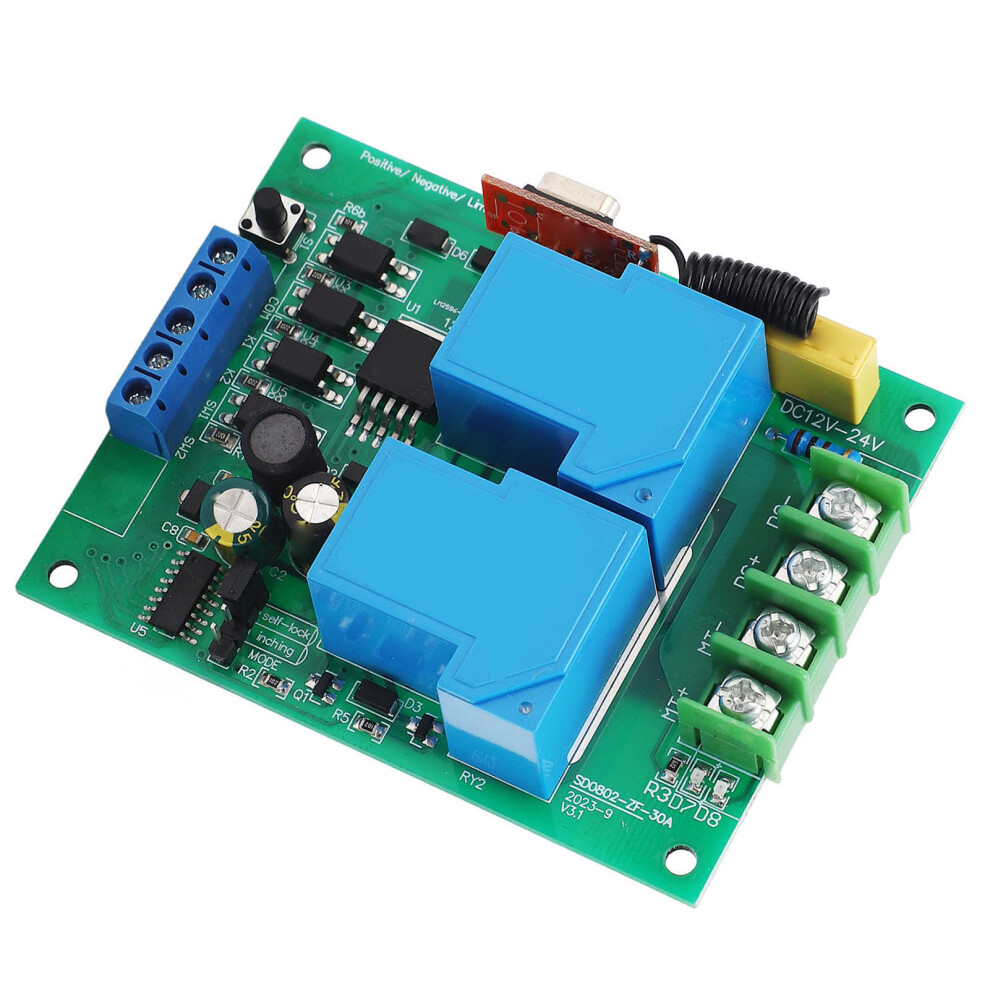

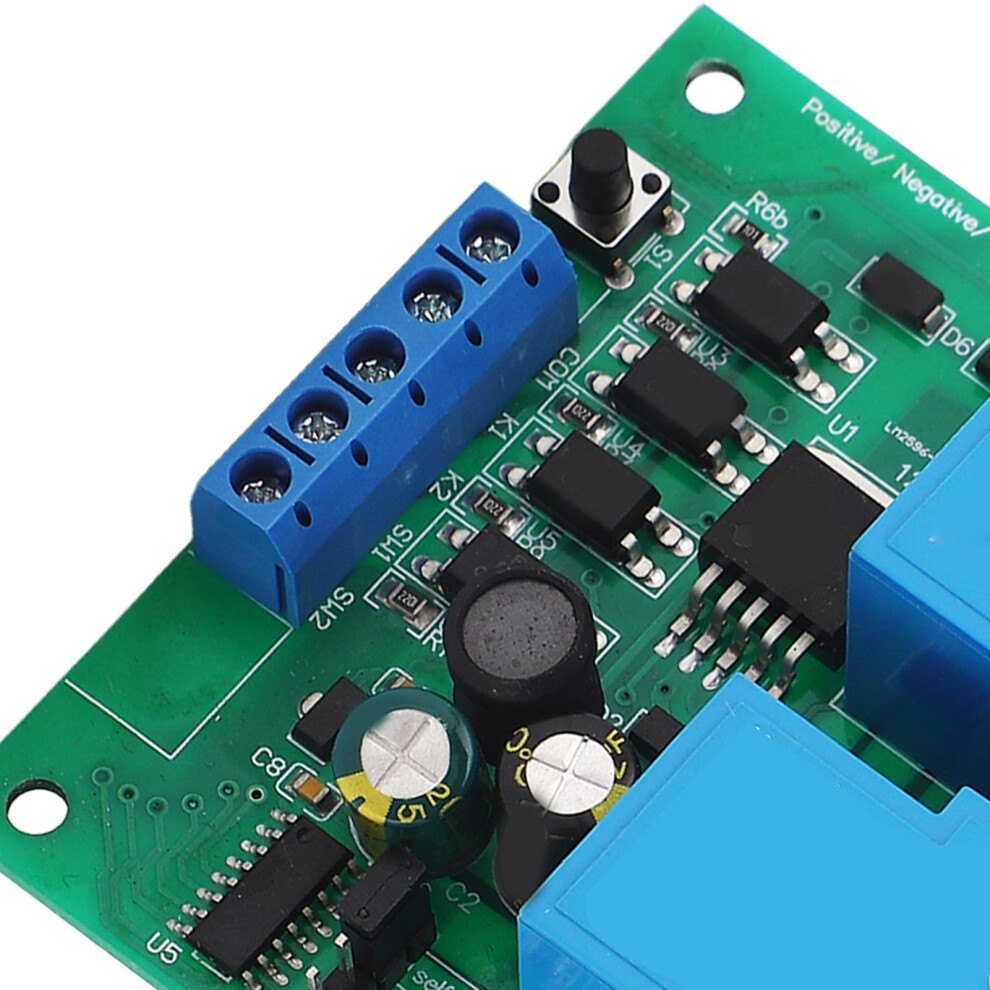

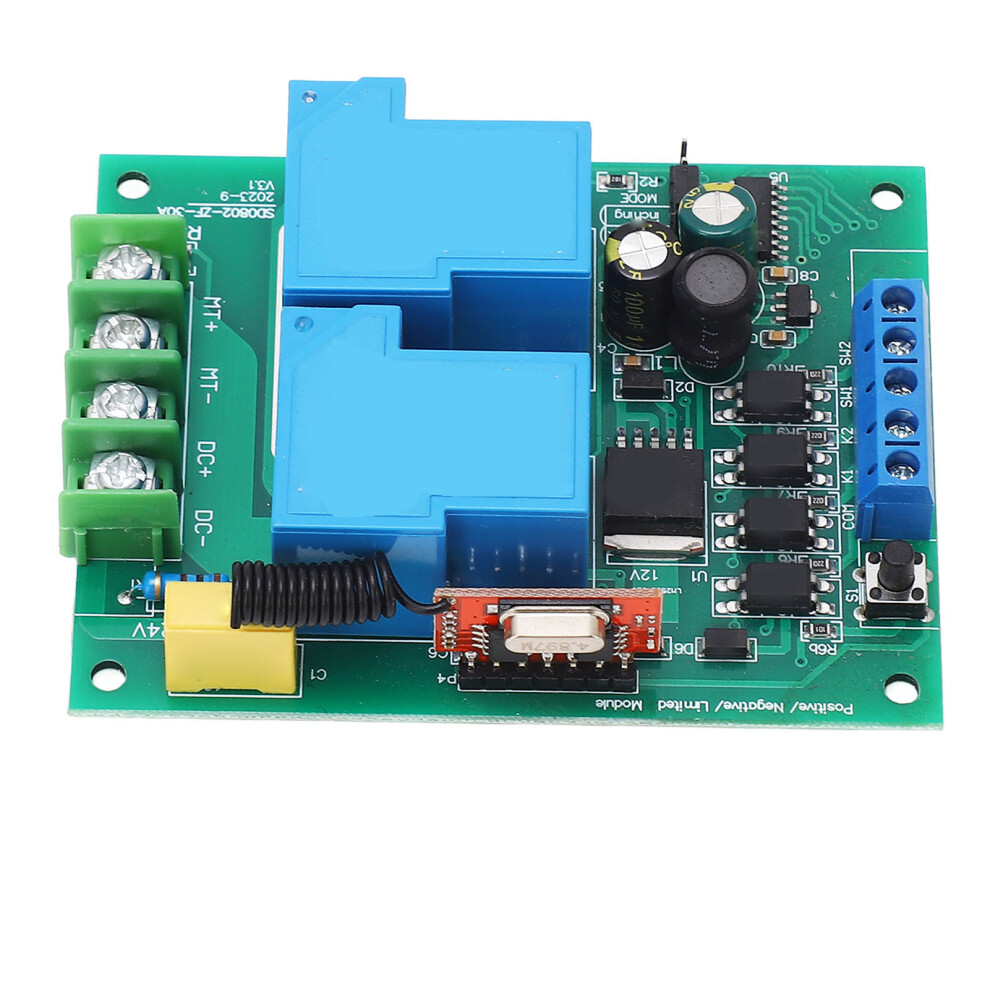

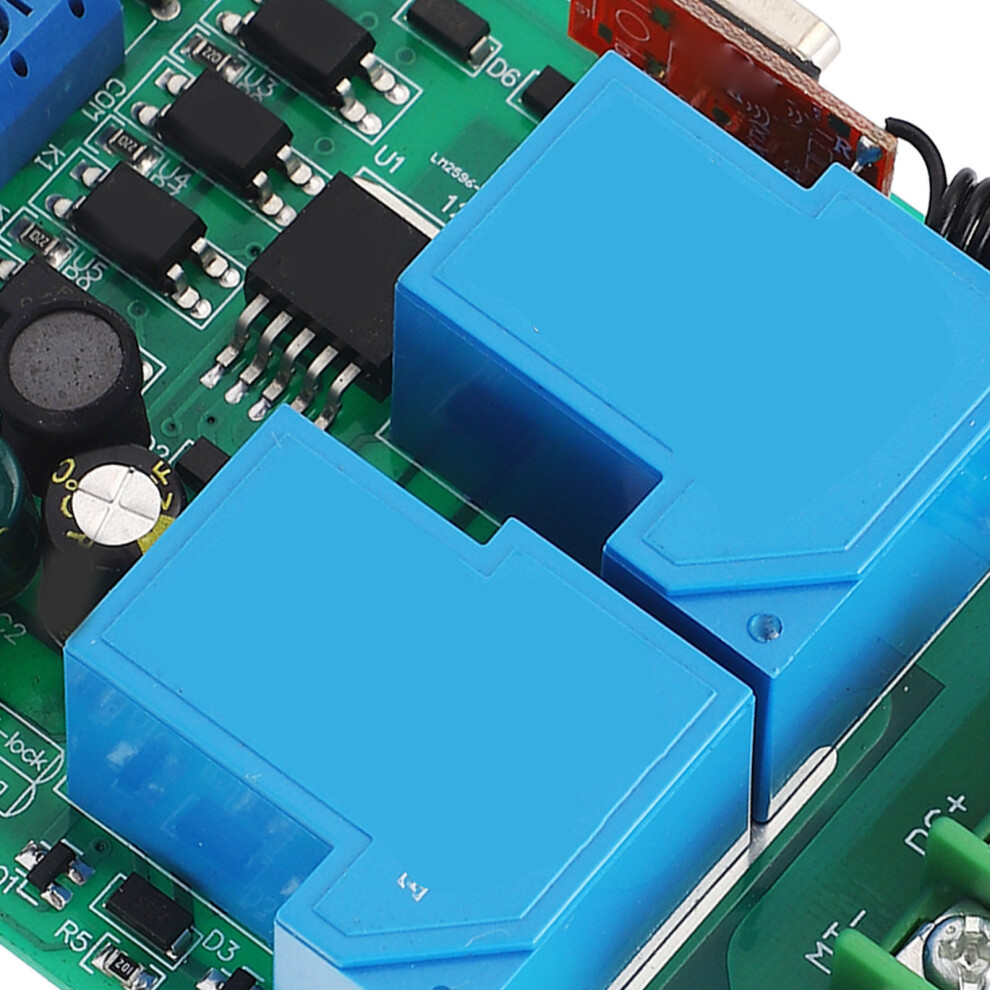

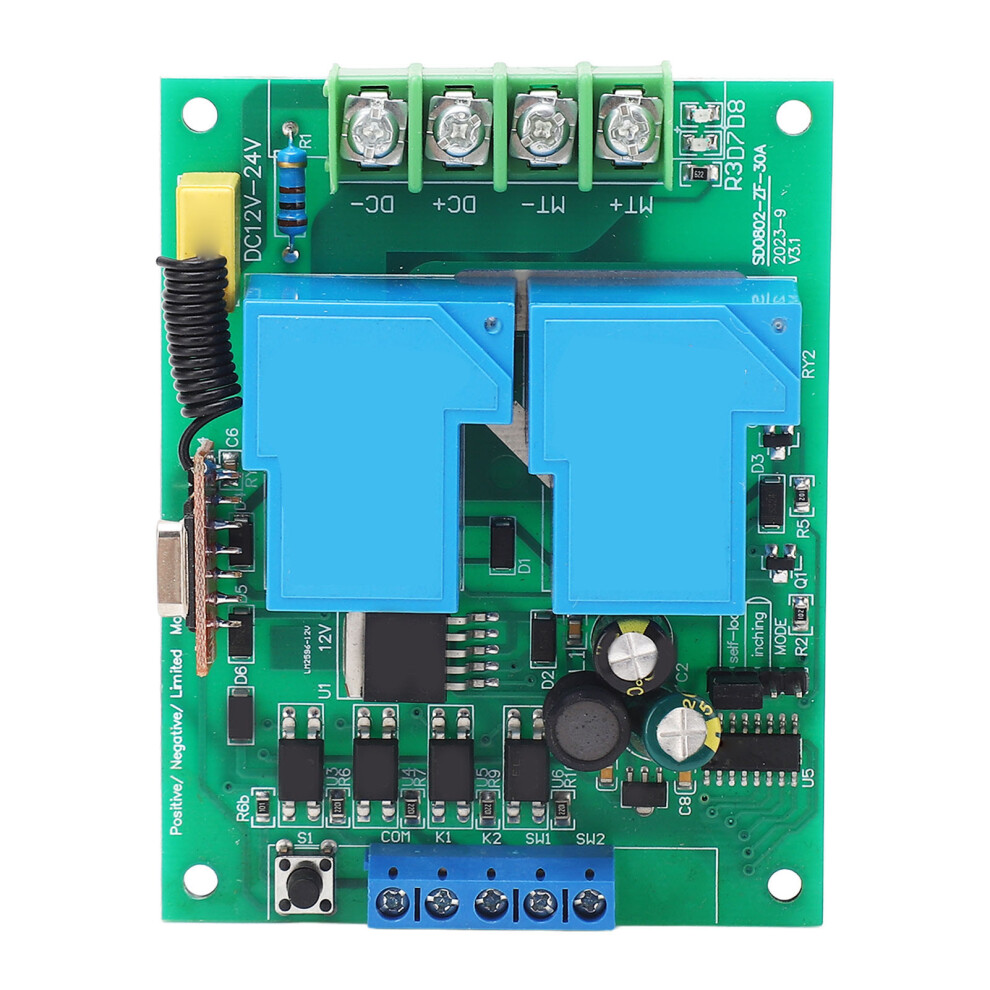

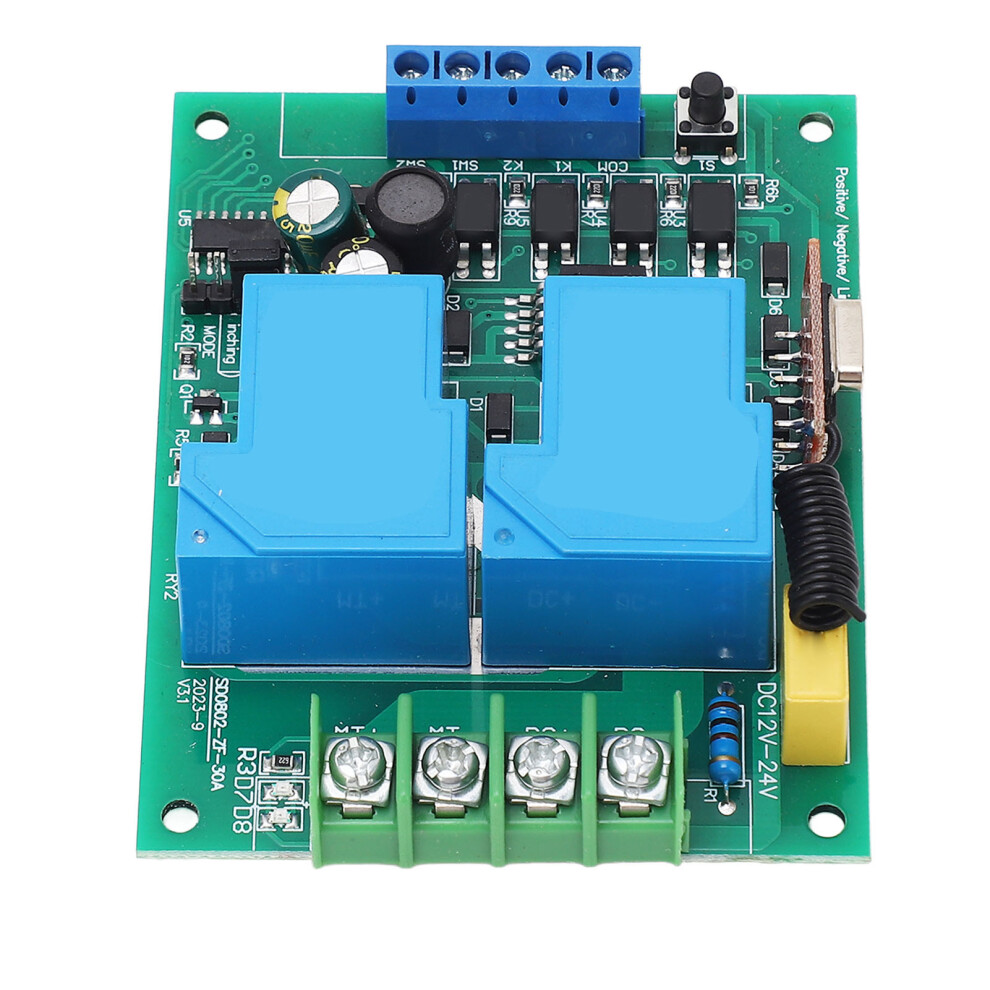

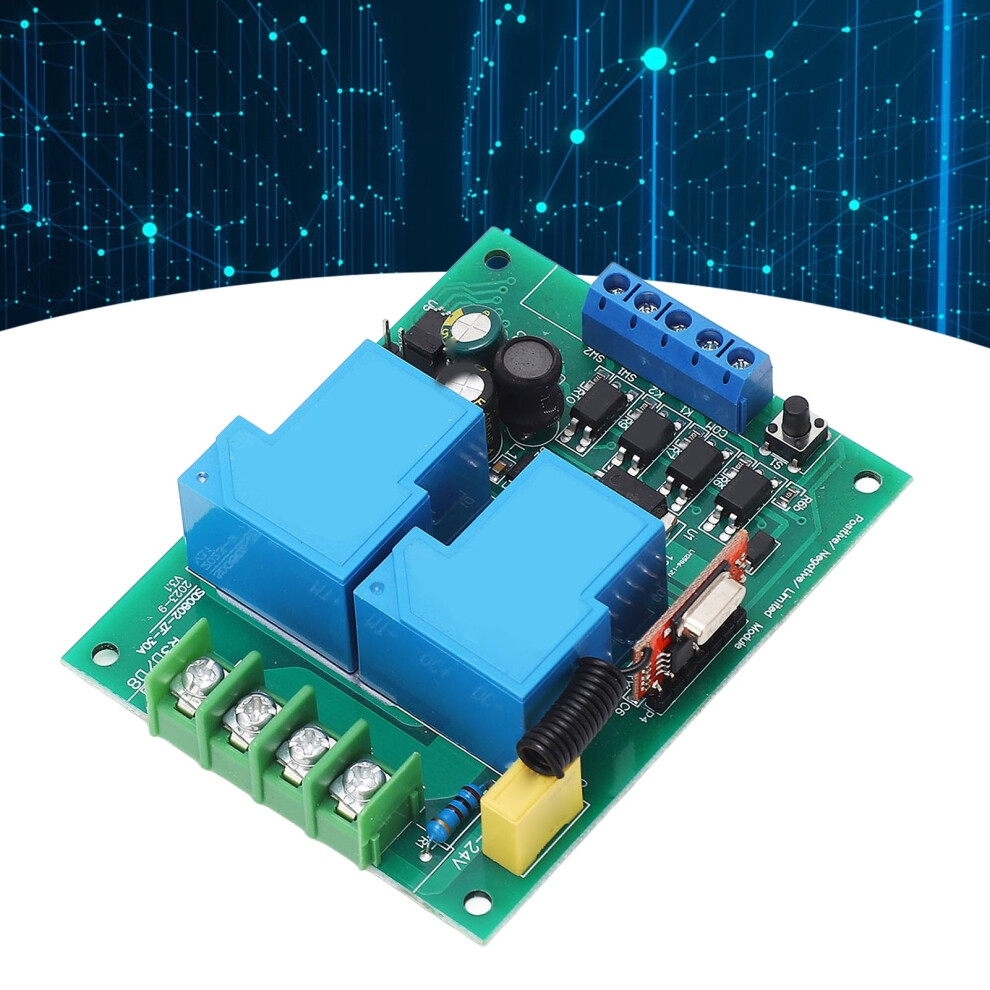

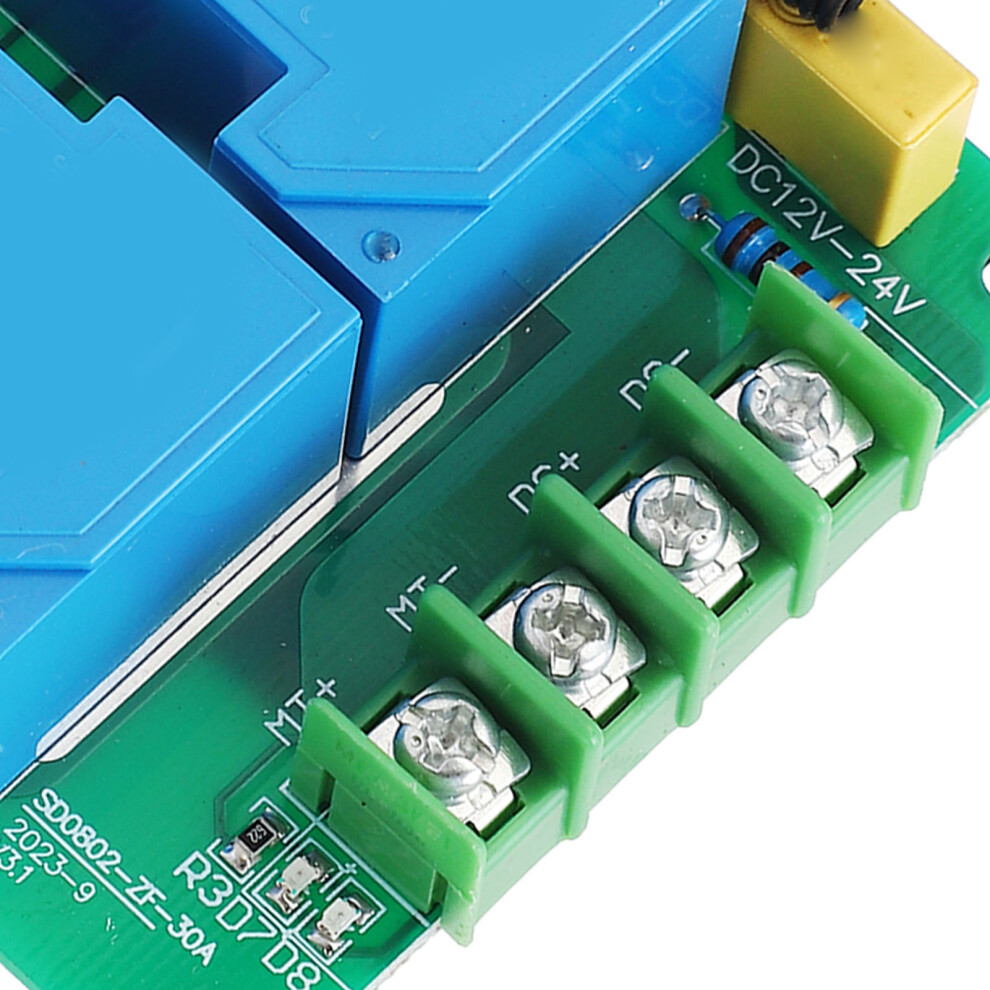

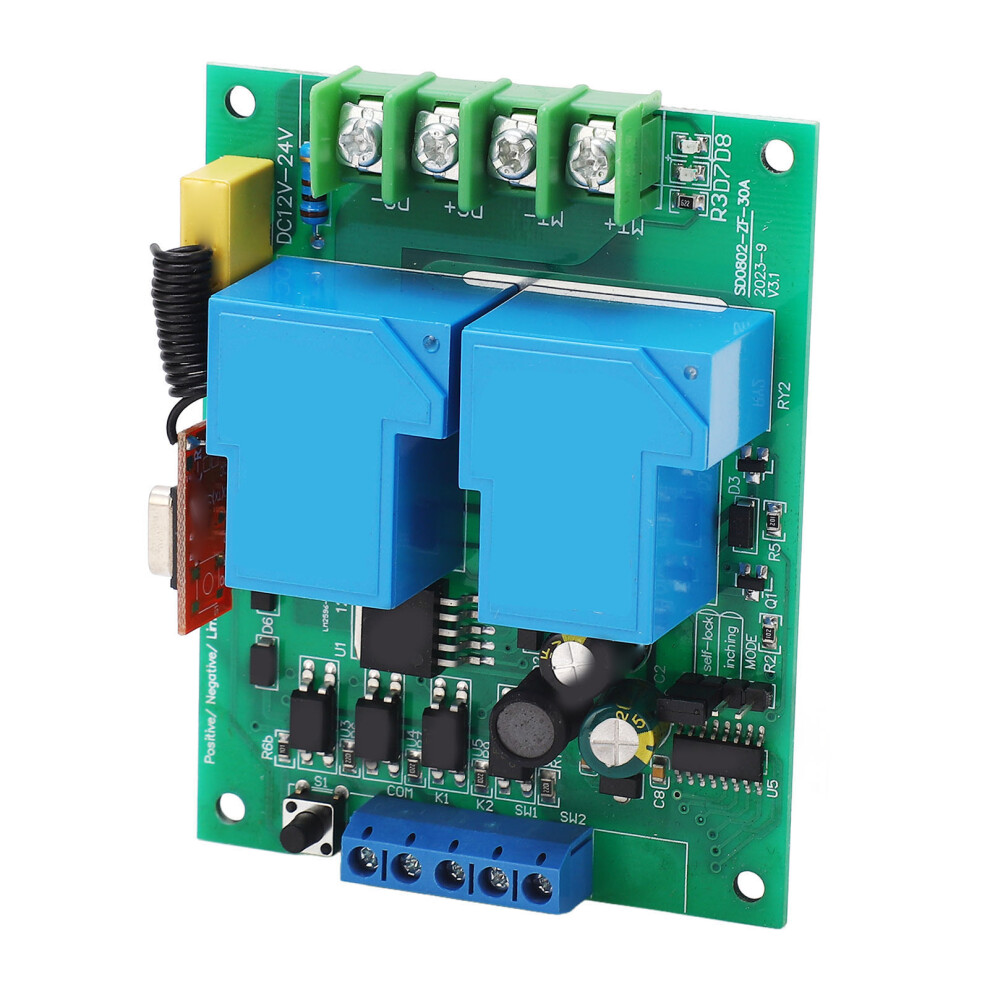

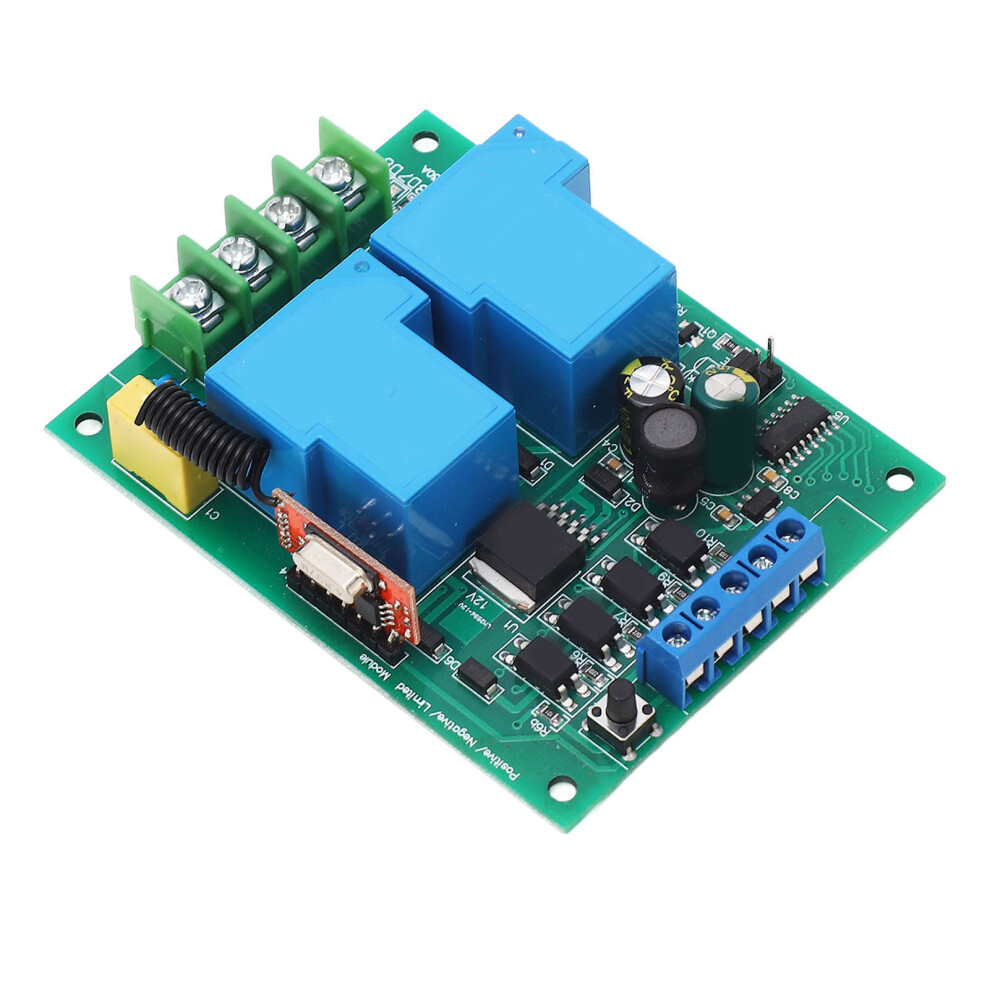

DC Motor Control Module Forward and Reverse Remote Motor Control Board with Limit Switch DC12‑24V



1、[Direction Control] With this motor control module and remote controller, you can easily and precisely control the rotation direction for your DC motor. 2、[Wide Voltage Range] Compatible with 12V to 24V DC power supply, allowing you to use it with a variety of motors and applications. 3、[Remote Controller] High reception sensitivity, signal can pass through wall, floor, and door, with a maximum control distance of 50 meters (in open environments). 4、[Two Control Modes] Through the jumper cap, you can choose between momentary mode or self locking mode, which is flexible and simple to use. 5、[Quick Response Speed] With a response speed of 20ms for K1 and K2 signals, and 50ms for SW1 and SW2 signals, this module provides quick and reliable control.



Item Type: DC Motor Control Module Material: PCB Working Voltage: 12-24V DC Module Power Consumption: 0.6W (excluding motor load), standby 0.1W Signal Input: Low level effective, input is the negative of optocoupler. It is considered that there is a signal if voltage is below 2V Response Speed: K1 K2: 20ms, SW1 SW2: 50ms Operating Life: Over 150,000 times Rated Current: 10A (maximum instantaneous current 30A) Remote Control Battery: 1 x 12V 23A 50mAh battery (with battery)

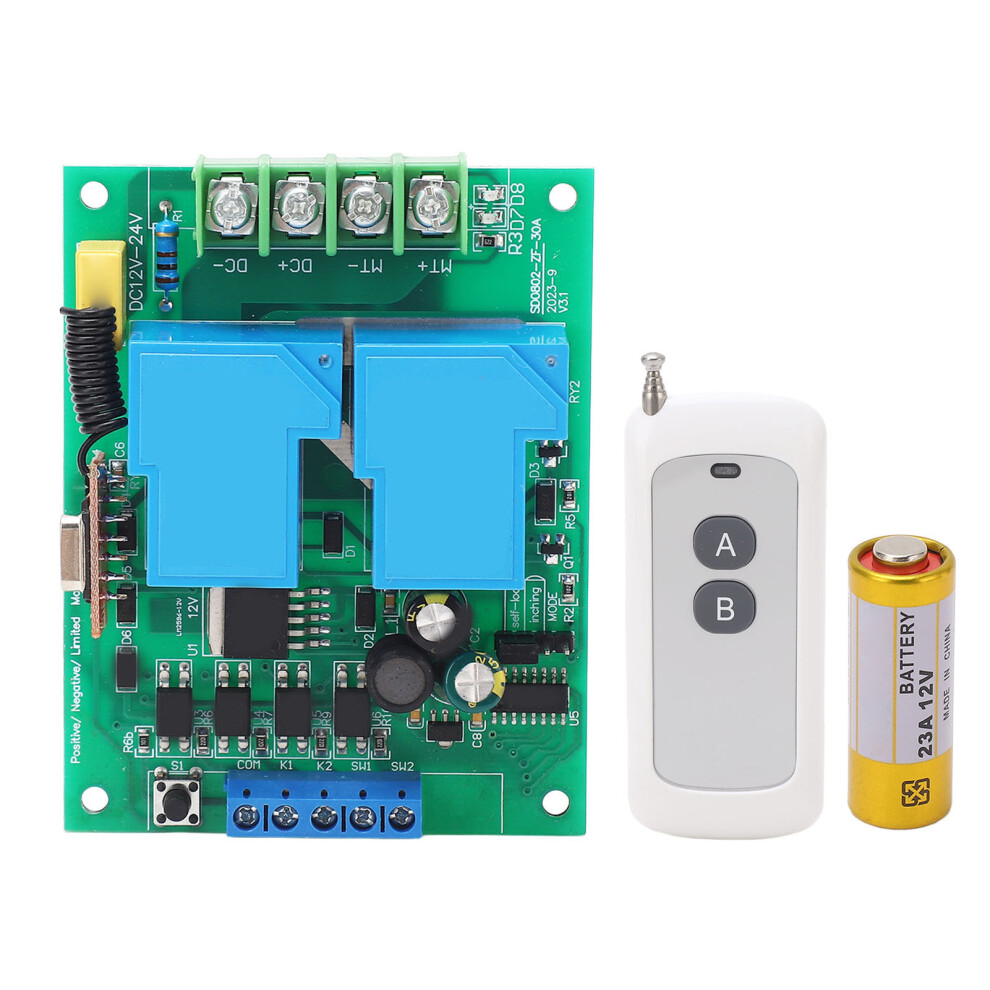

1 x DC Motor Control Module 1 x Remote Control 1 x Remote Control Battery
