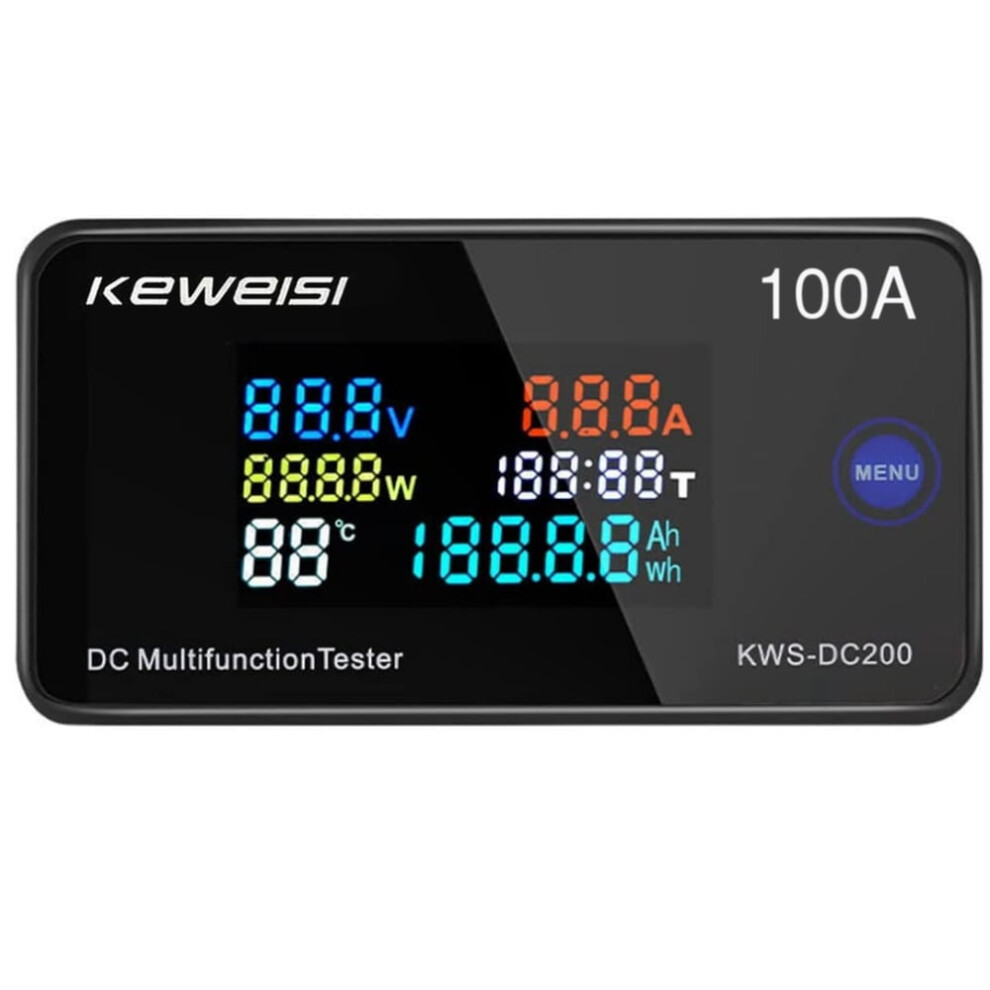

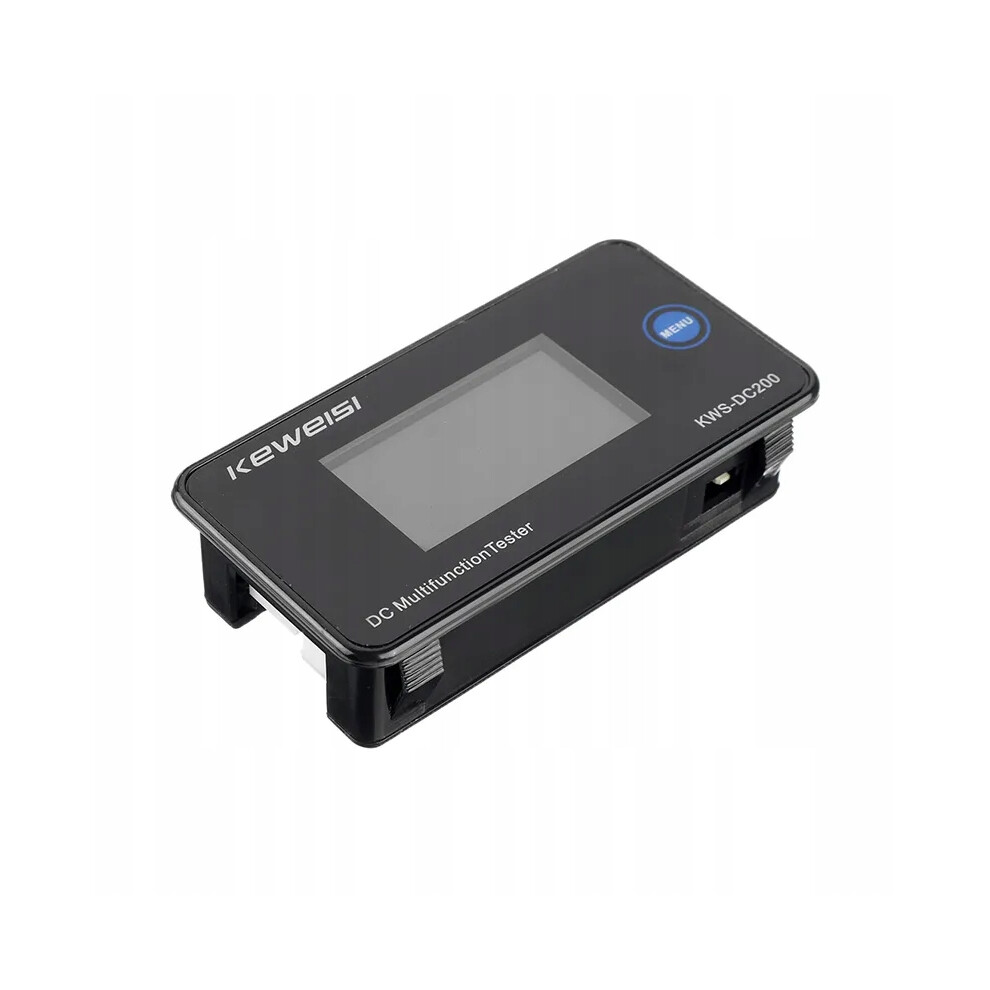

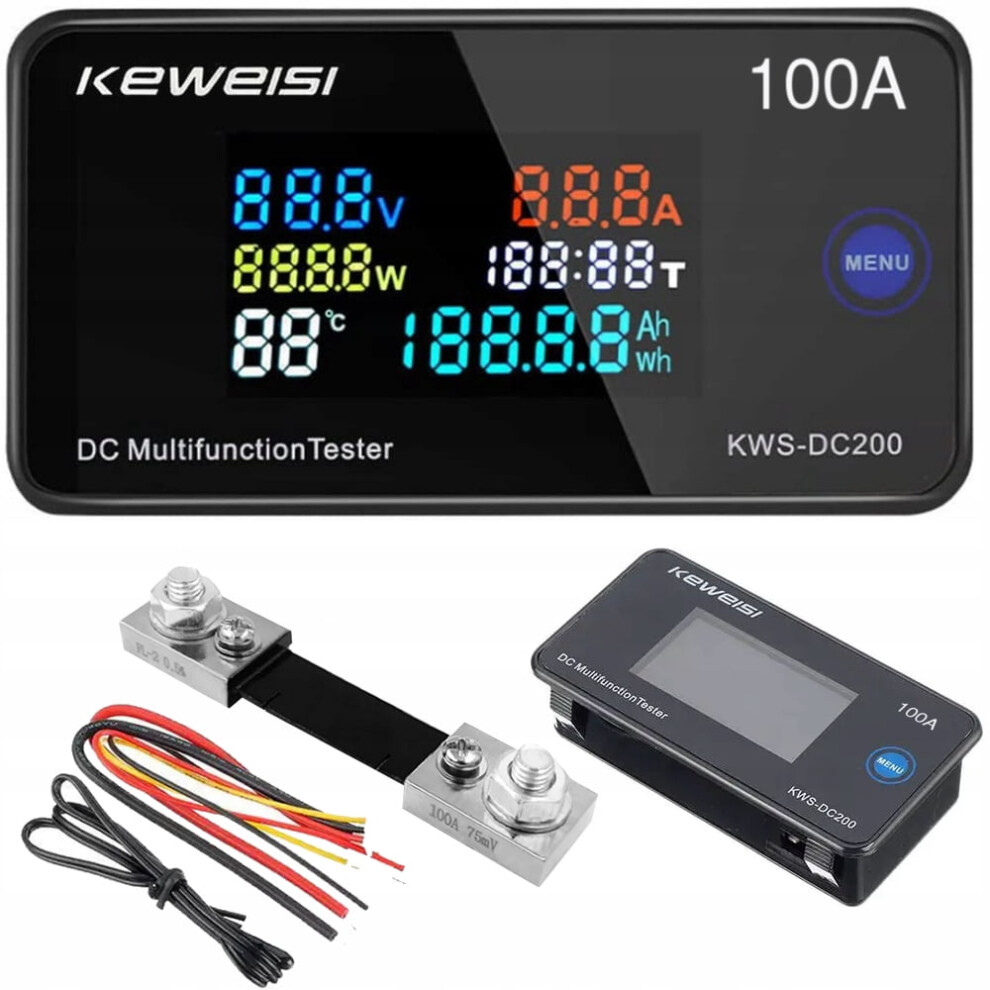

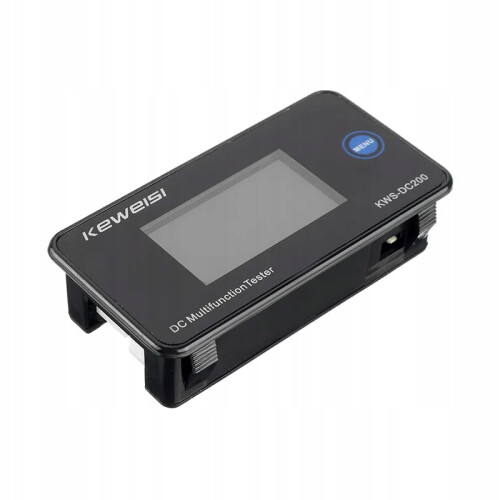

DC Voltage and Current Meter Tester 0-200V 0-100A

Summary

• ✅ Multi-function panel DC tester with shunt ⭐⭐⭐⭐⭐ Measurement range of 100A and 200V ✅ The ammeter measures the following parameters: ✔ High-quality build quality and compact size make this product stand out from other meters. ✔ The backlit multi-color display makes it easy to read in any condition.
• ✅ Features and Functions of the Ampere Meter: Reset and memory backup functions. Parameters such as ampere-hours and watt-hours are stored in the device's memory even when disconnected. Values ​​can be manually reset. The measurement range is 8-120V when connected directly to the device, and 0-200V when using a shunt. Adjustable current and voltage readings and a reset button are included.

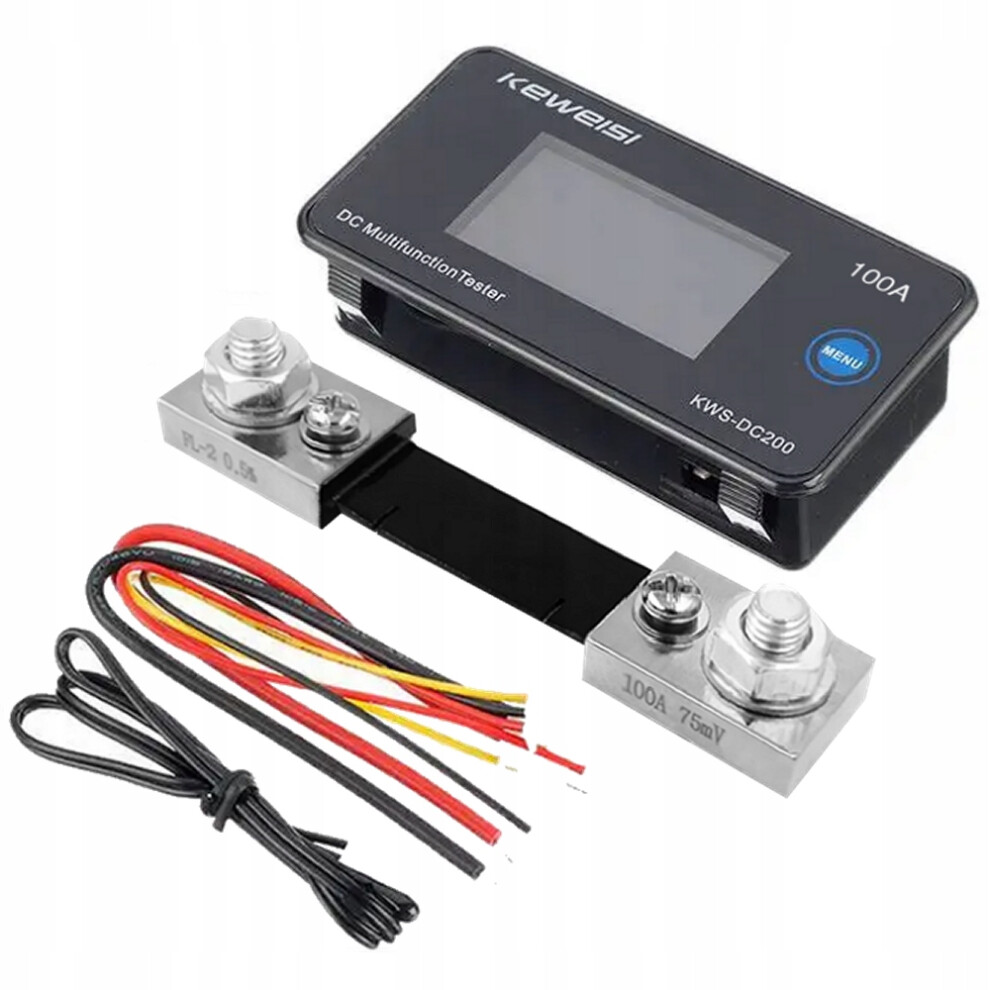

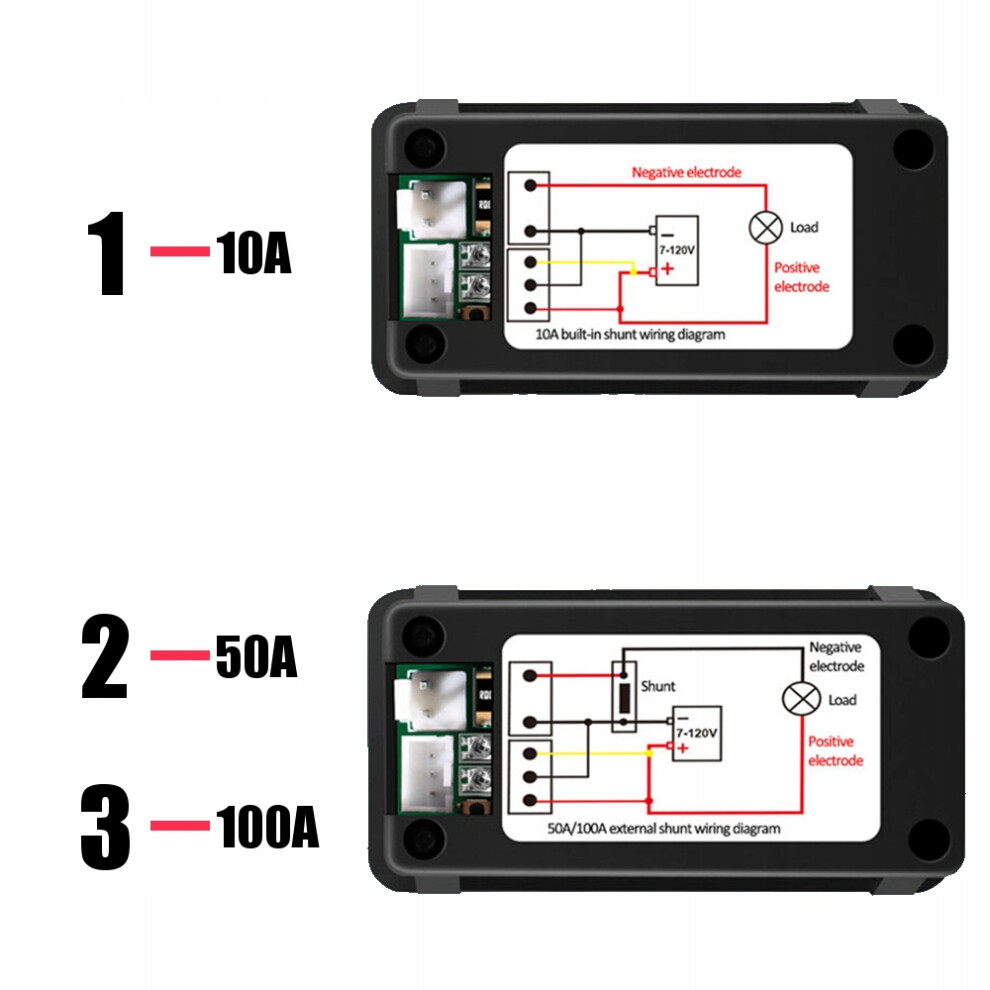

• ✅ Product Variants: KWS-DC200-10A - Built-in shunt. KWS-DC200-50A - Includes external shunt. KWS-DC200-100A - Includes external shunt. *You can find them among our other products. This offer applies to the 100A model. ✅ Technical Specifications: Applicable Model: KWS-DC200-100A External Power Supply Voltage: 8-120V Test Voltage: 0-200V Current: 0-100A Power: 0-20,000W Ah: 0-19,999Ah Watt-Hours: 0-19,999Wh Time Range: 0-200h Temperature: -9°C to +99°C

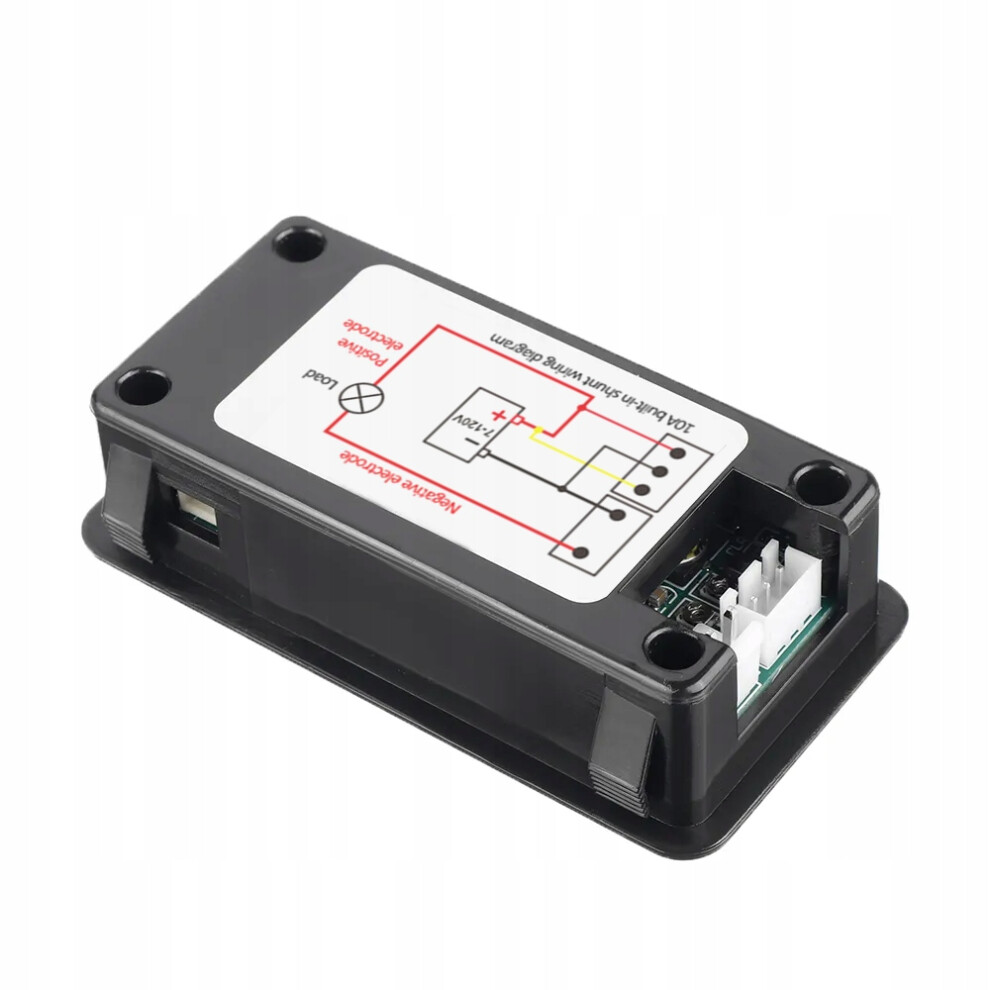

• ✅ Dimensions: KWS-DC200 Amperemeter External Panel Dimensions: Device Front: Width: 85mm Height: 44mm Device Back: Depth: 20.7Mm Width: 79mm Height: 37.5Mm ✅ Reading Adjustment: A potentiometer is located on the back of the device for correcting readings. The potentiometer adjusts current. The potentiometer is used to adjust both current and voltage. Reset Button: Press and hold for 3 seconds to reset the current value. A. Shunt B. Positive electrode C. Load D. Negative electrode
