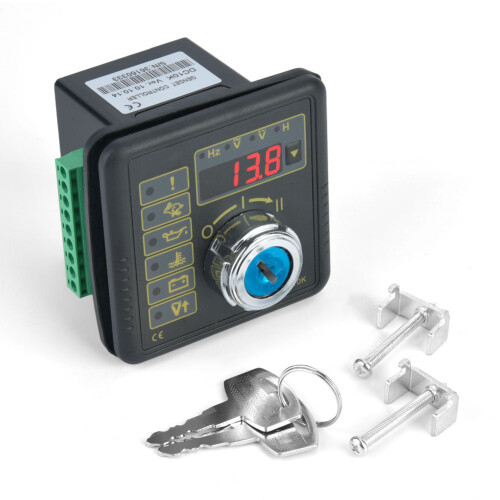

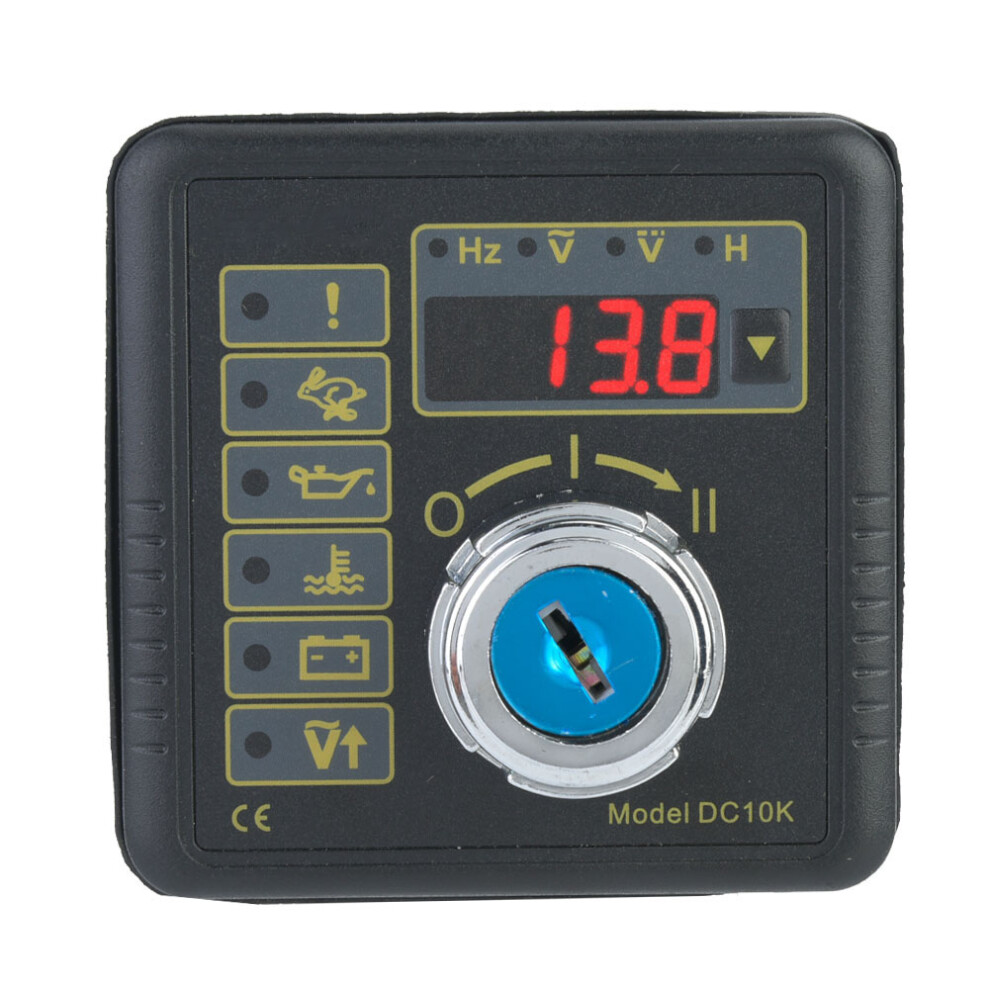

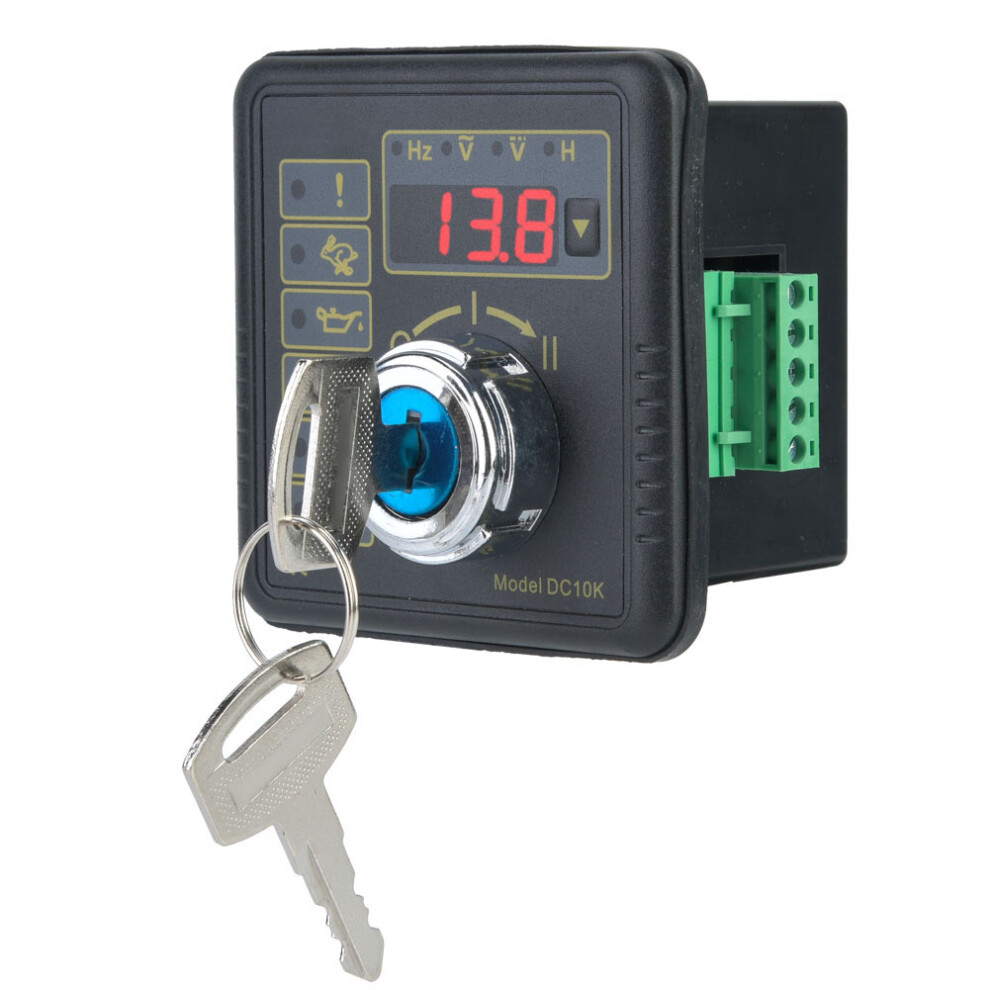

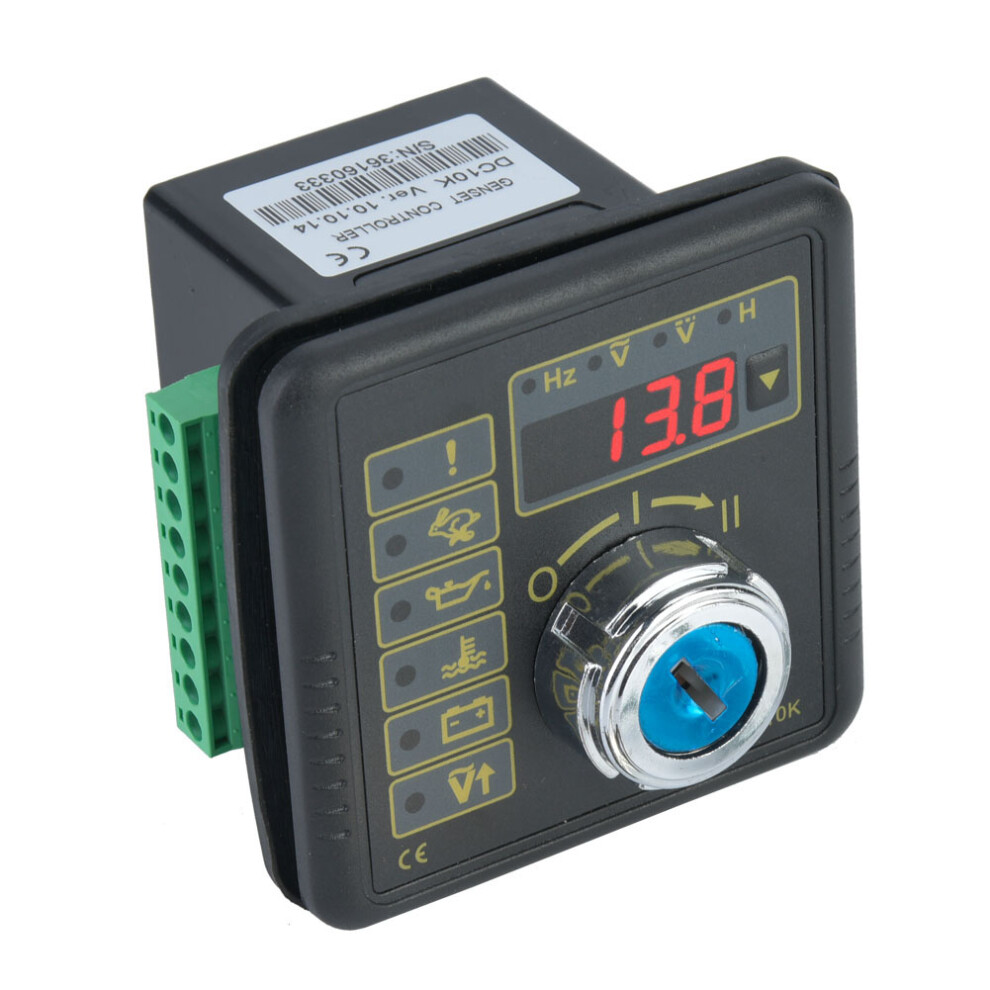

DC10K Engine Manual Start Generator Controller Module

DC10K Engine Manual Start Generator Controller Module Description

1、With parameter setting function, you can set parameters through computer connection. 2、Using 32-bit imported high-performance single-chip control. 3、4-digit digital display, which can be switched automatically or manually. 4、With a variety of alarm protection features, stable performance. 5、All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.
Controller DC10K is designed as one of the engine manual start controller.
Features:
1. Using 32-bit imported high-performance single-chip control.
2. 4-digit digital display, which can be switched automatically or manually.
3. Durable with a vehicle starter key.
4. With parameter setting function, you can set parameters through computer connection.
5. With a variety of alarm protection features, stable performance.
6. Standard waterproof ring, the rear panel has waterproof function.
7. All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.
The parameter display:
Generator frequency
Cumulative running time of the unit
Alarm protection
Speeding
Overclocking
Low oil pressure
High water temperature
External instant parking alarm
Power generation overvoltage
Charging failure warning
Specification:
Condition: 100% Brand New
Item Type: Generator Controller
Power supply: 8-33VDC
Power consumption: MAX 2W
Speed input: Freq 300Hz-10kH
Fuel output: MAX 16
Motor output: MAX 10
Excitation Output: MAX 80m
Alarm output: MAX 16
Operating temperature: -30-75
Storage temperature: -40-85
Dimensions: Approx. 78 * 78 * 72mm / 3.1 * 3.1 * 2.8in
Hole Size: Approx. 67 * 67mm / 2.6 * 2.6in
Package List:
1 * Controller
1 * Key
1 * Interface wiring
Note:
1. Please allow slight error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
