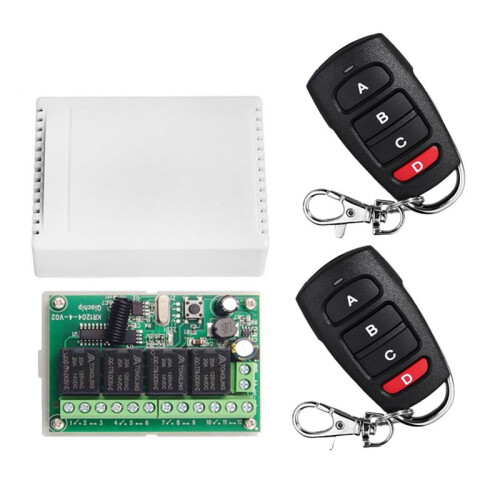

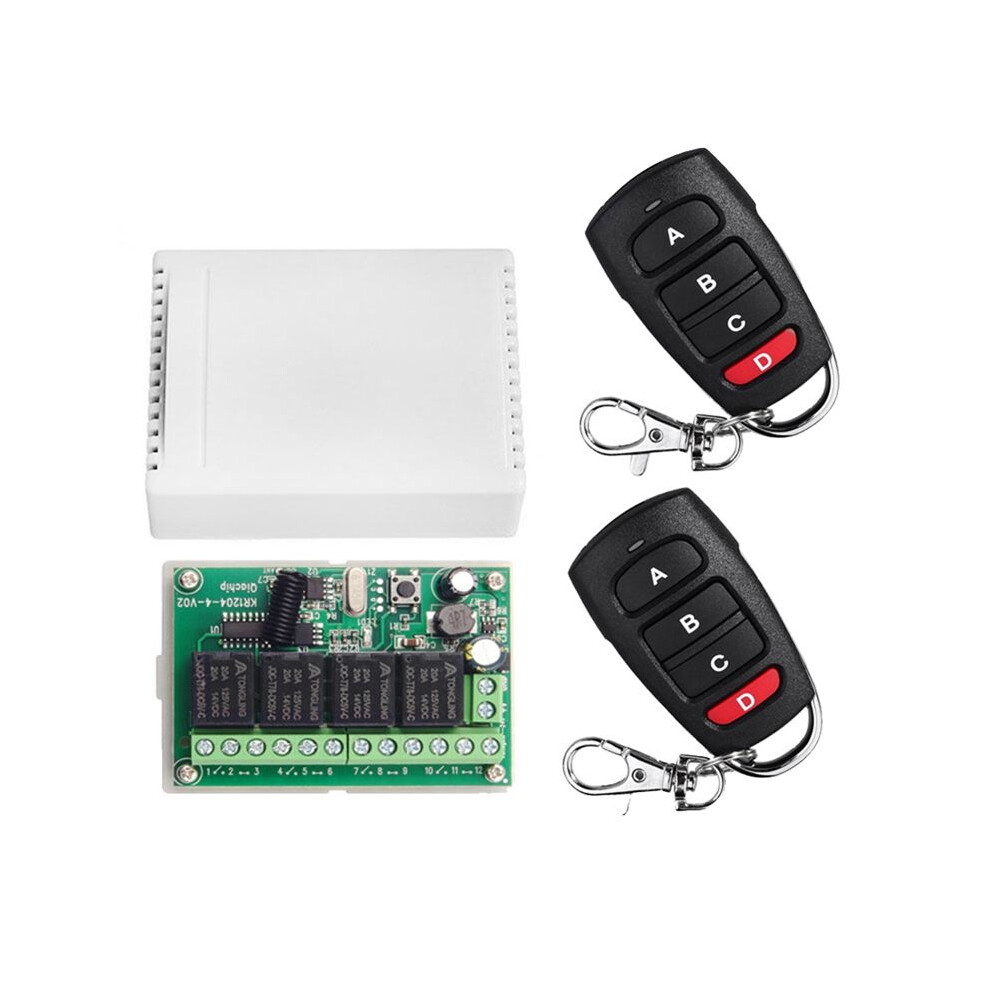

DC12V 24V 4CH Remote Control 433M Receiving Control Four-Way Relay Module
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 133,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Tue 15th - Thu 17th Sep
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Summary
- 1. Input voltage: DC 6V~30V
- 2. Receiving frequency: 433MHz
- 3. Standby current: 5mA
- 4. Compatible chip: EV1527
- 5. Receiving sensitivity: -108dbm
DC12V 24V 4CH Remote Control 433M Receiving Control Four-Way Relay Module Description
1. Input voltage: 6V~30V
2. Receiving frequency: 433MHz
3. Standby current: 5mA
4. Compatible chip: EV1527
5. Receiving sensitivity: -108dbm
6. Remote control distance: 20-50m
7. Working mode: jogging, interlocking, self-locking, two-way jogging + two-way self-locking, two-way self-locking + two-way interlocking, two-way jogging + two-way interlocking. (All methods are selected by the controller buttons)
8. Terminals: NO (normally open), COM (common), NC (normally closed)
9. Extreme working temperature: -15~75C
10. Modulation method: ASK
1. (+V-Positive input of power supply)
2. (GND-power supply negative input)
3. (1 relay normally open terminal) (2 relay common terminal) (3 relay normally closed terminal)
4. (4 relay normally open terminal) (5 relay common terminal) (6 relay normally closed terminal)
5. (7 relay normally open terminal) (8 relay common terminal) (9 relay normally closed terminal)
6. (10 relay normally open terminal) (11 relay common terminal) (12 relay normally closed terminal)
Colour:As shown
Material:ABS
Package Contents:
1 x Relay
1 x Module
2 x remote control
Details
| OPC | PXXMJVG |
|---|---|
| Brand | Exogio |
| Codes | 4712804119890 (EAN) |
Product Data
| Height | 4cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.1335kg |
| Colour | As Shown |
| Material | ABS |
