DC12V -36V 4CH Wireless Remote Control LED Light S

DC12V -36V 4CH Wireless Remote Control LED Light S Description

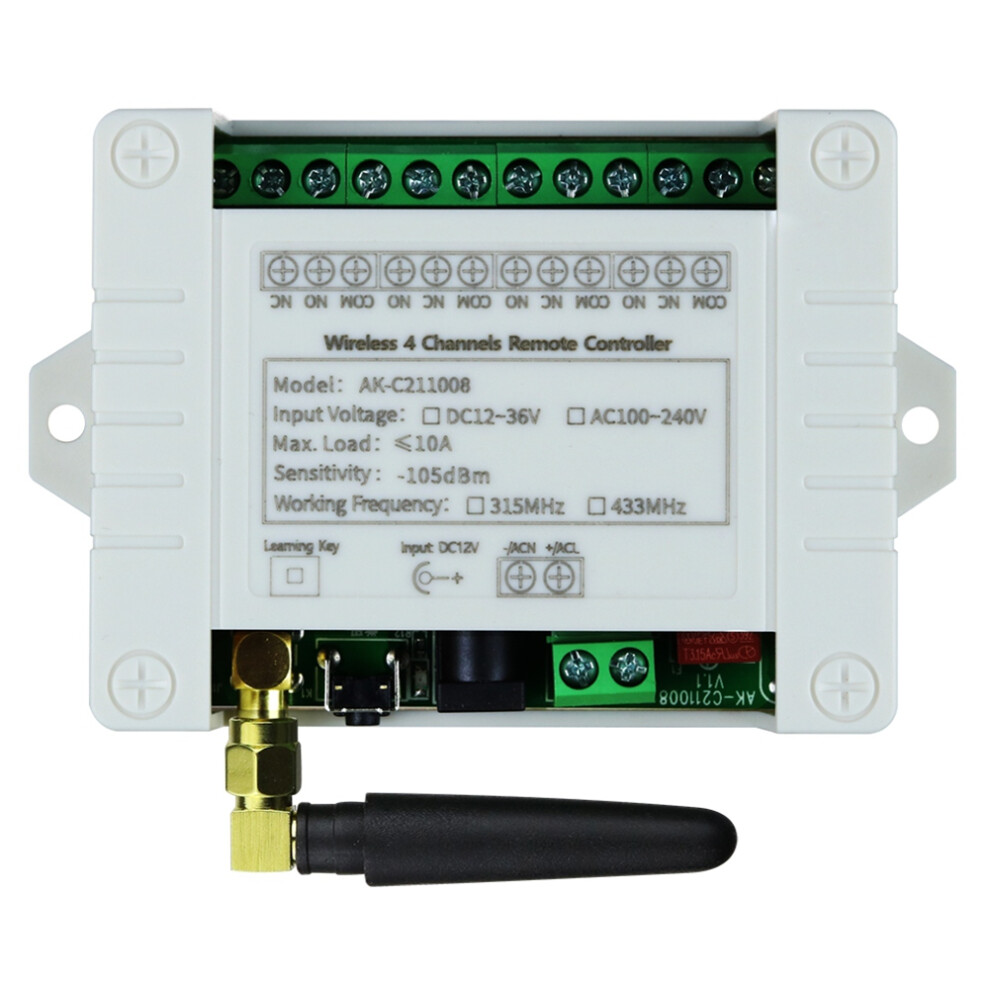

About Receiver:1. Working voltage: DC12V-36V;2. Quiescent condition: Less than 6mA; 3. Working temperature: -40 Degree +80 Degree; 4. Receiver sensitivity: more than -105dBm; 5. Working frequency: 433mhz; 6. Output voltage: DC and AC is optional; 7. Max load current: 10A
About Learning and clearing Method:Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need); Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay not Respond ,it means clearning code successful.

About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold - On; Release - Off.
Toggle: Press the Learning Button 2 times.
Relay: Press - On; Press same button again - Off·
Latched: Press the Learning Button 3 times.
Relay: Press - On; Press other button - Off.
2channel Momentary +2channel Latched: Press the Learning Button 4 times.
2channel Momentary +2channel Toggle: Press the Learning Button 5 times.
2channel Toggle +2channel Latched: Press the Learning Button 6 times.

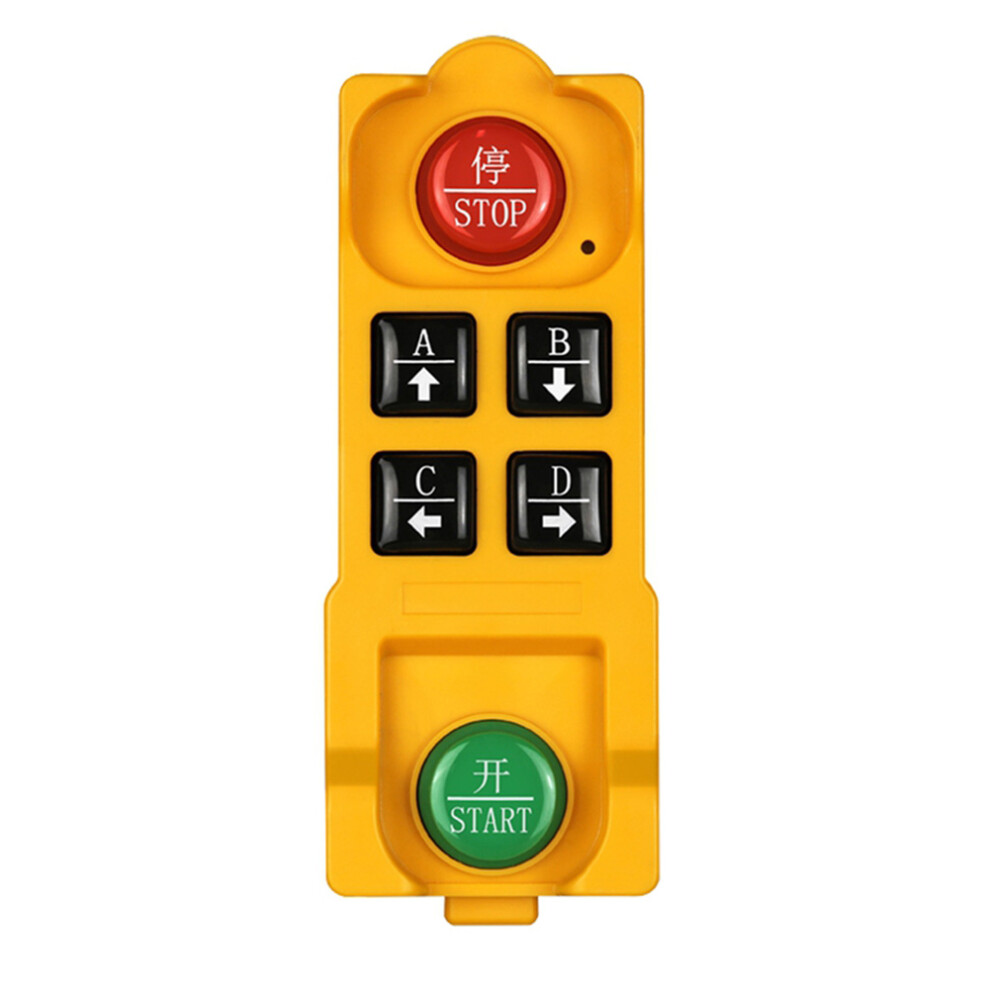

About Transmitter:
1.Buttons: 4 Buttons
2.Working Voltage:DC3V battery AA*2 not included
3.Operating frequency :433MHz
4.Remote Distance: 200-1000M
5.Operating Current: 13 mAh
6.Encode: EV1527 code
Due to different product batches, the appearance , which does not affect the use
Colour:As Shown
Material:plastic

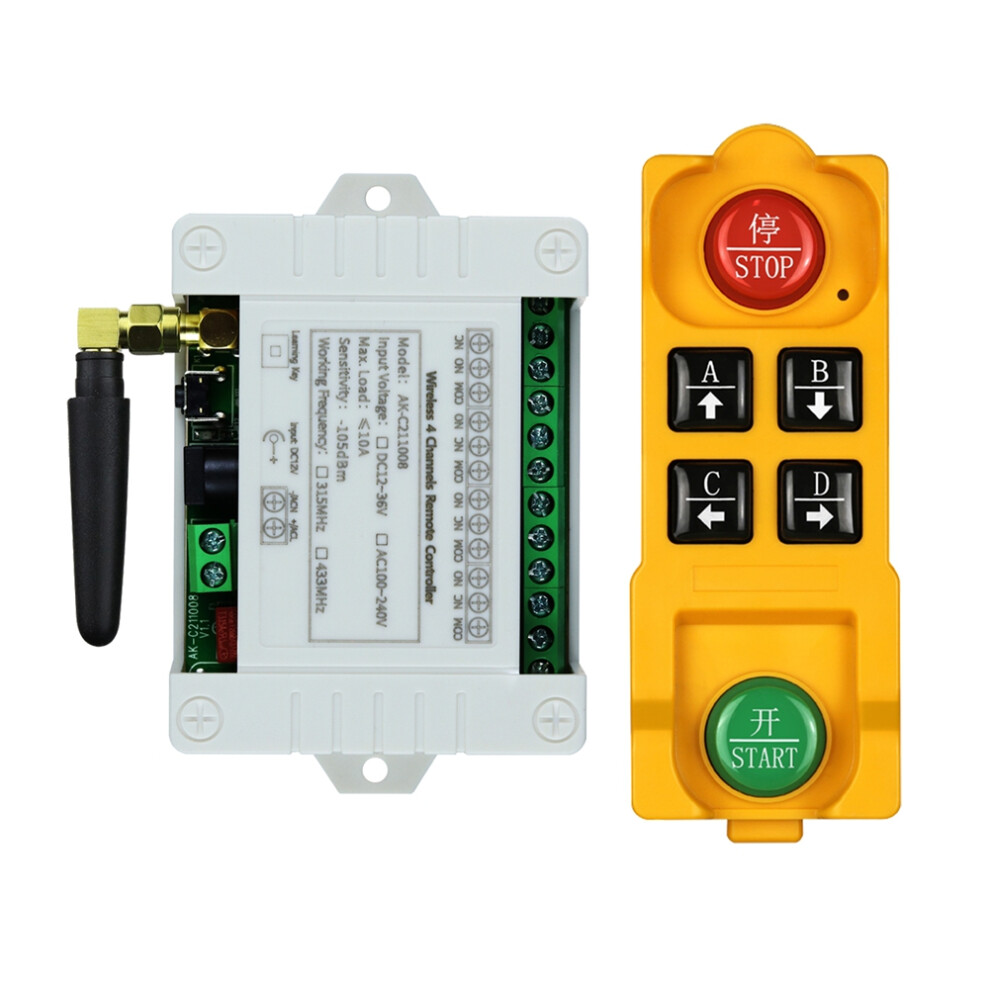

Package Contents:
1 x controller
1 x remote controller(Without 2 x AA batteries)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
