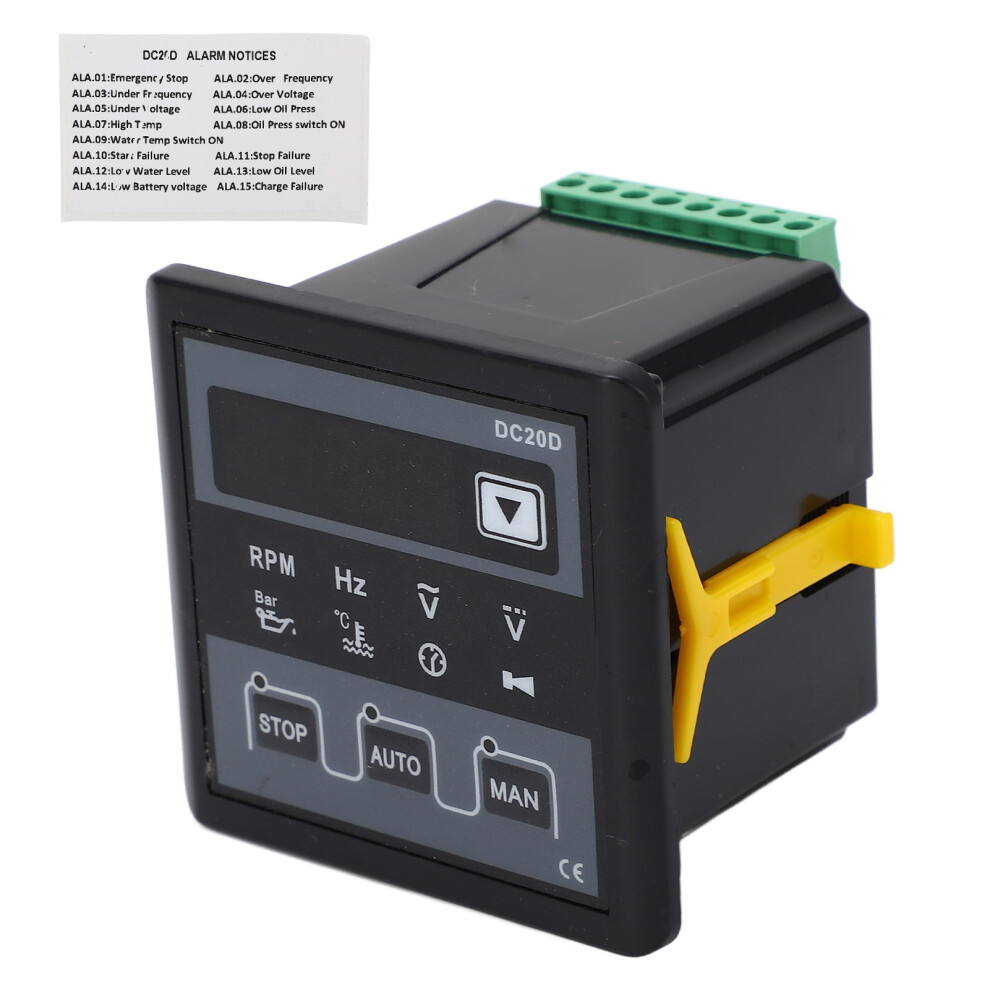

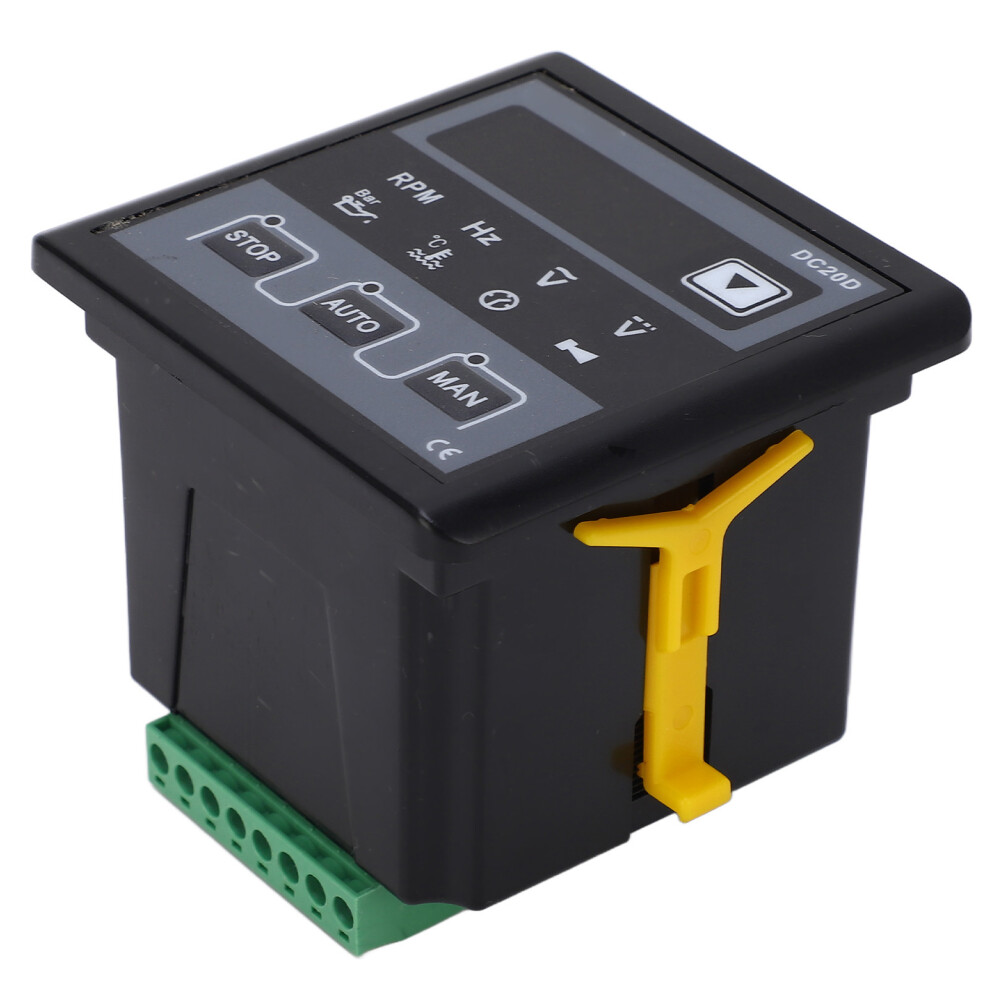

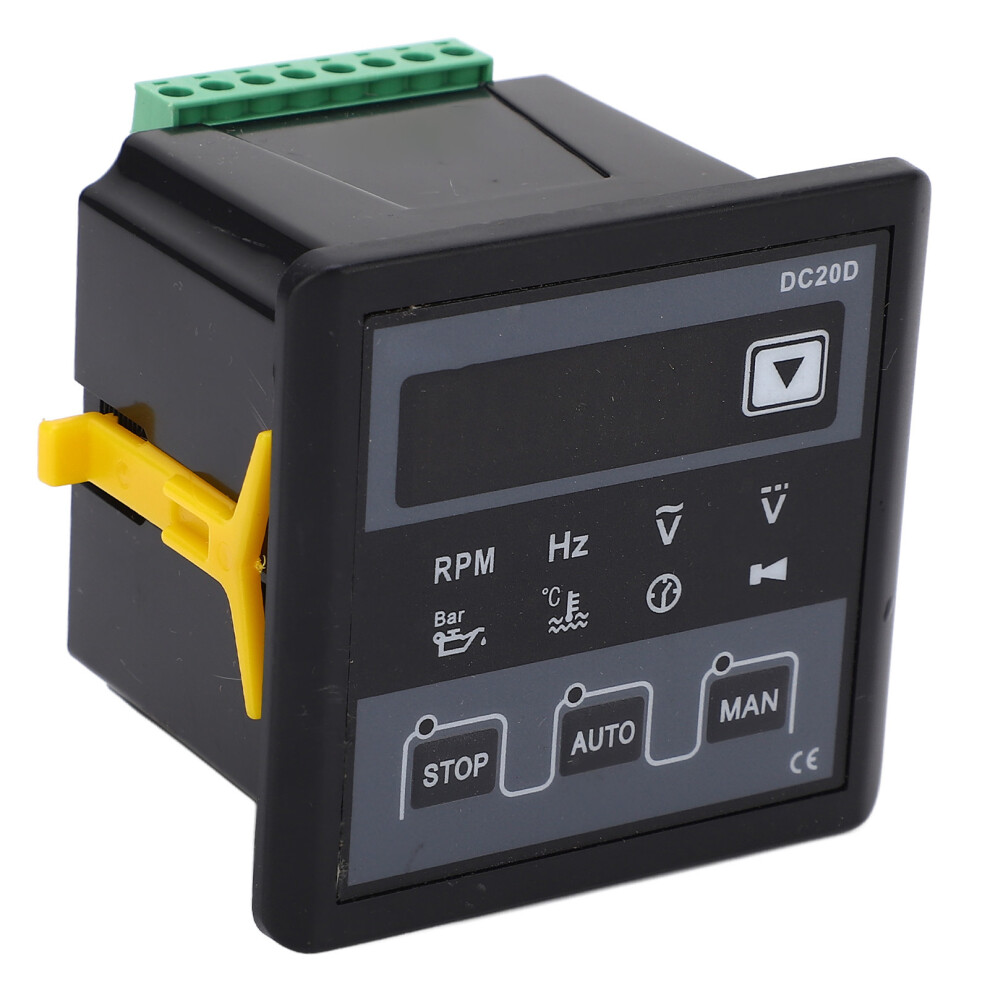

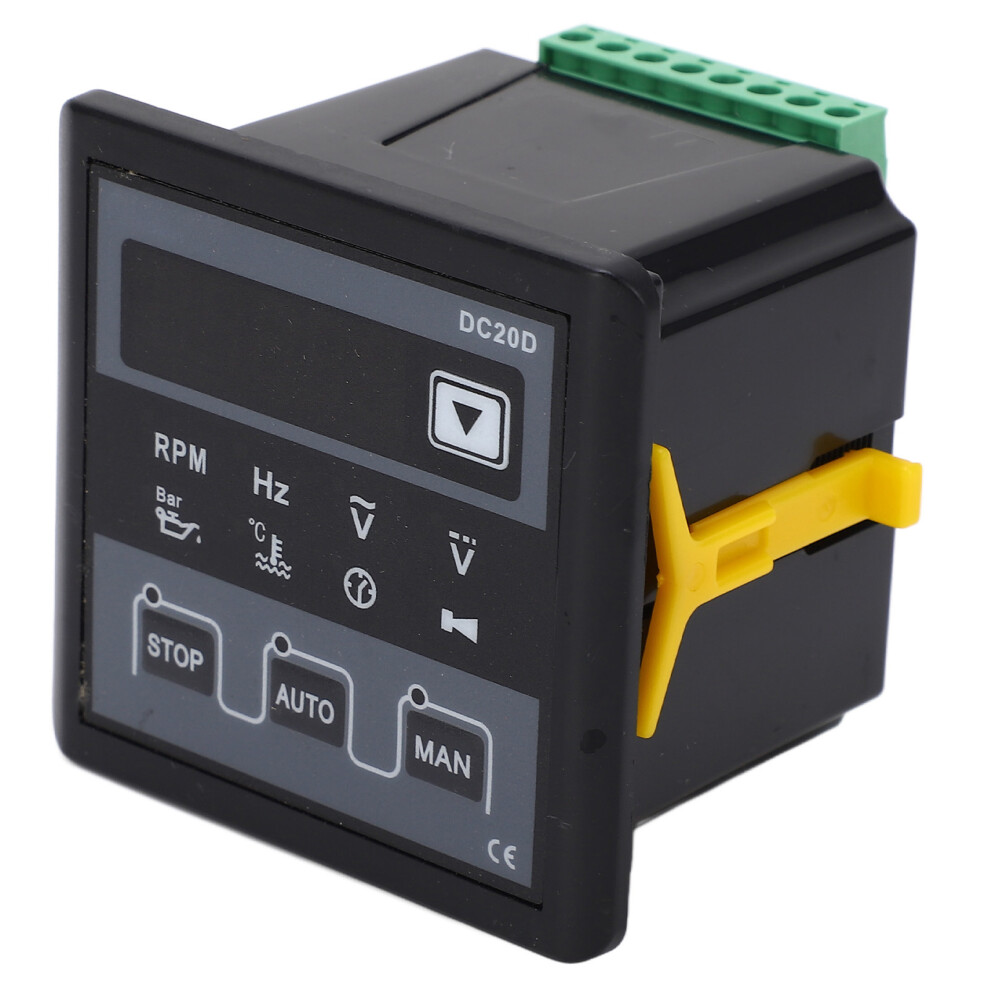

DC20D Generator Controller 5-Digit LED Air Cooled Diesel AC20-276V

DC20D Generator Controller 5-Digit LED Air Cooled Diesel AC20-276V Description

1、Minicomputer Control: This DC20D generator controller has microcomputer control, manual or automatic start and stop. 2、5 Digit LED Tube: The DC20D generator controller has a 5 digit LED tube display, making your observation more intuitive. 3、Output Relays: Our generator controller features two sets of programmable output relays with universal custom settings for a wide range of models. 4、LED Indicator: This DC20D generator controller has LED indicator and fault coding display alarm indication. 5、Protection Function: The generator controller has low lubricating oil pressure protection, low cooling water level protection, high cooling water temperature protection, generator over voltage protection, etc.
Item Type: Diesel Generator Controller
Model: DC20D
Power Supply: DC8-36V
Power Consumption: Maximum 3W
Frequency Signal Input: 10-70Hz
Relay Output
Starter Output: Maximum 3.5A
Fuel Output: Maximum 3.5A
Configurable Relay Output: Maximum 3.5A
Excitation Output: Maximum 3.5A
Control Function
Automatic Coil Control
Start Delay Control
Local Manual Start Stop
Remote Automatic Start Stop
Automatic Start Motor Rewind Since, Oil Pressure Switch Rewind Motor
Preheat Control
Cold Engine Control
Stop Idle Speed Control
Parameter Display.
Engine Speed
Generator Frequency
Engine Oil Pressure
Engine Water Temperature
Accumulated Running Time
Protection Function
Lube Oil Pressure Low Protection
Cooling Water Level Low Protection
Cooling Water Temperature High Protection
Over Frequency Over Speed Protection
Emergency Stop Of Generator Set
Engine Stop Failure
Engine Start Failure
Low Fuel Level Warning
Configuration Method.
Configure Parameters Via The Controller Front Panel Buttons
DC20D Genset Control Module Introduction
The output contact adopts relay, which can withstand large output current, and the system parameters can be set according to the keypad, so as to meet the application of different situations.
1 x DC20D Generator Controller
1 x Manual
1 x Label
