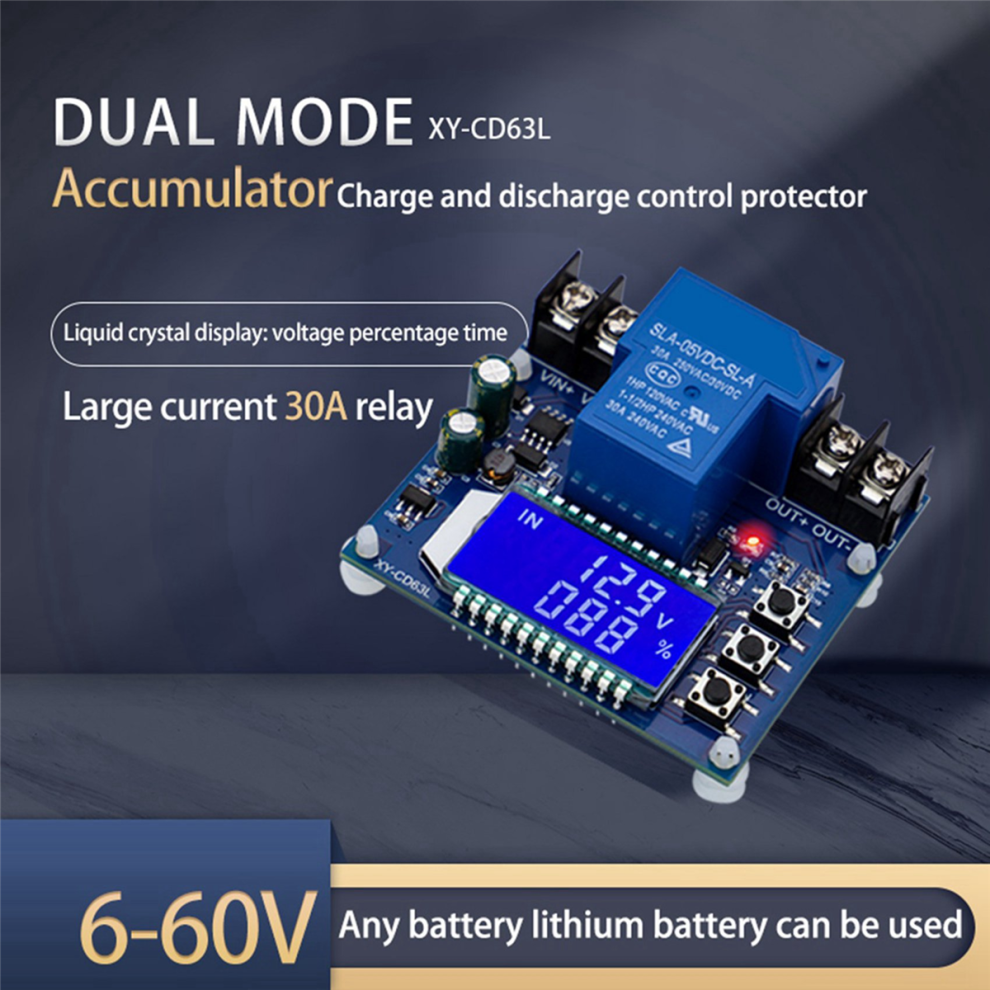

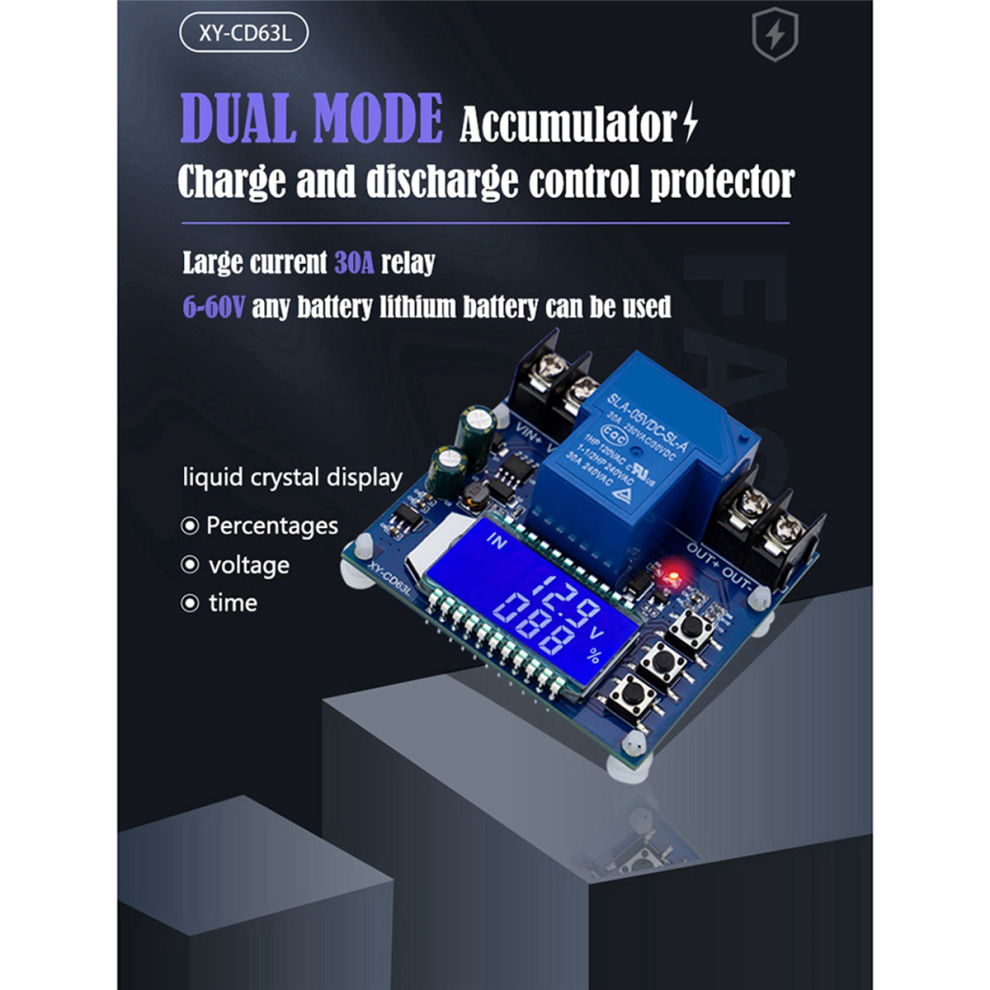

DC6-60V 30A Battery Charging Control Module LCD Display XY-CD63L

DC6-60V 30A Battery Charging Control Module LCD Display XY-CD63L Description

Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage ; when the battery voltage less than or equal to the lower limit voltage , the relay is turned on, and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage UP, the relay is disconnected to complete an automatic charging; the relay is turned on, IN flashes, indicating that it is charging.

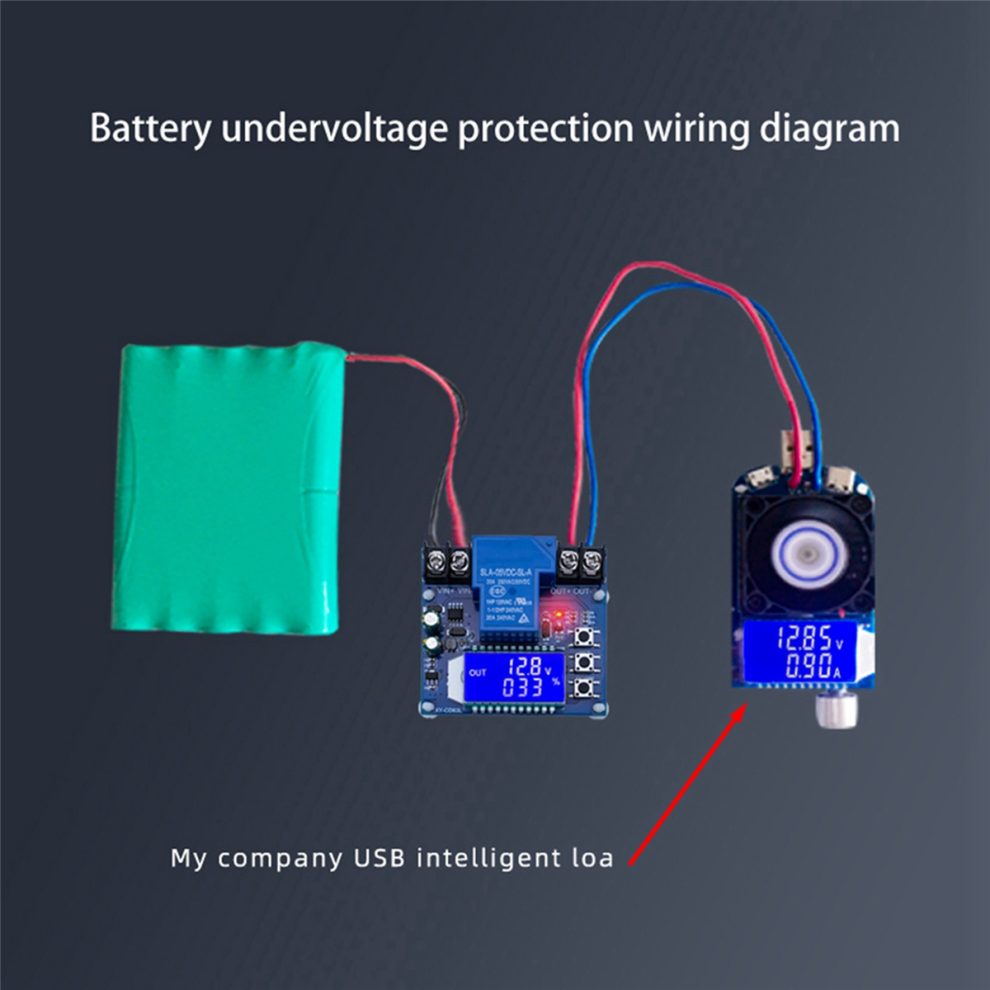

Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage ; when the battery voltage greater or equal to the upper limit voltage UP, the relay is turned on and starts to discharge; when the battery voltage less than or equal to the lower limit voltage , the relay is disconnected to complete an automatic discharge function; the relay is turned on and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn on and off the output. It only functions as a switch and cannot be transformed.

Function Description:
1. Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
2. Button function:
UP button: Short to switch display% and time, long for 5 seconds to switch mode, charging mode: IN, discharging mode: OUT
SET button: short to view the currently set parameters; long the SET button to enter the parameter setting interface, set UP: voltage upper limit, : voltage lower limit, OP: conduction time, : delayed conduction time (0-999 seconds) , There is FOP in discharge mode: forced conduction time (0-10 seconds)
DOWN button: Short to turn off/on the relay enable (emergency stop function) after it is turned off, the LCD display is OFF, and the relay is disconnected
Colour: blue
Material: plastic
Size: 62 x 57 x 22mm
kage Contents:

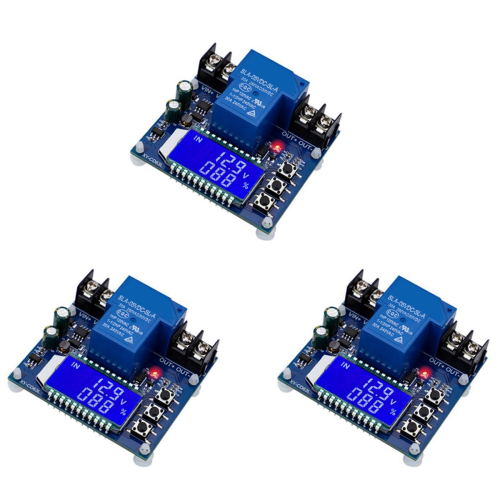

3x 30A battery charging control module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
