DC7.5V-18V 30W Brushlesss Motor Controller Motor

DC7.5V-18V 30W Brushlesss Motor Controller Motor Description

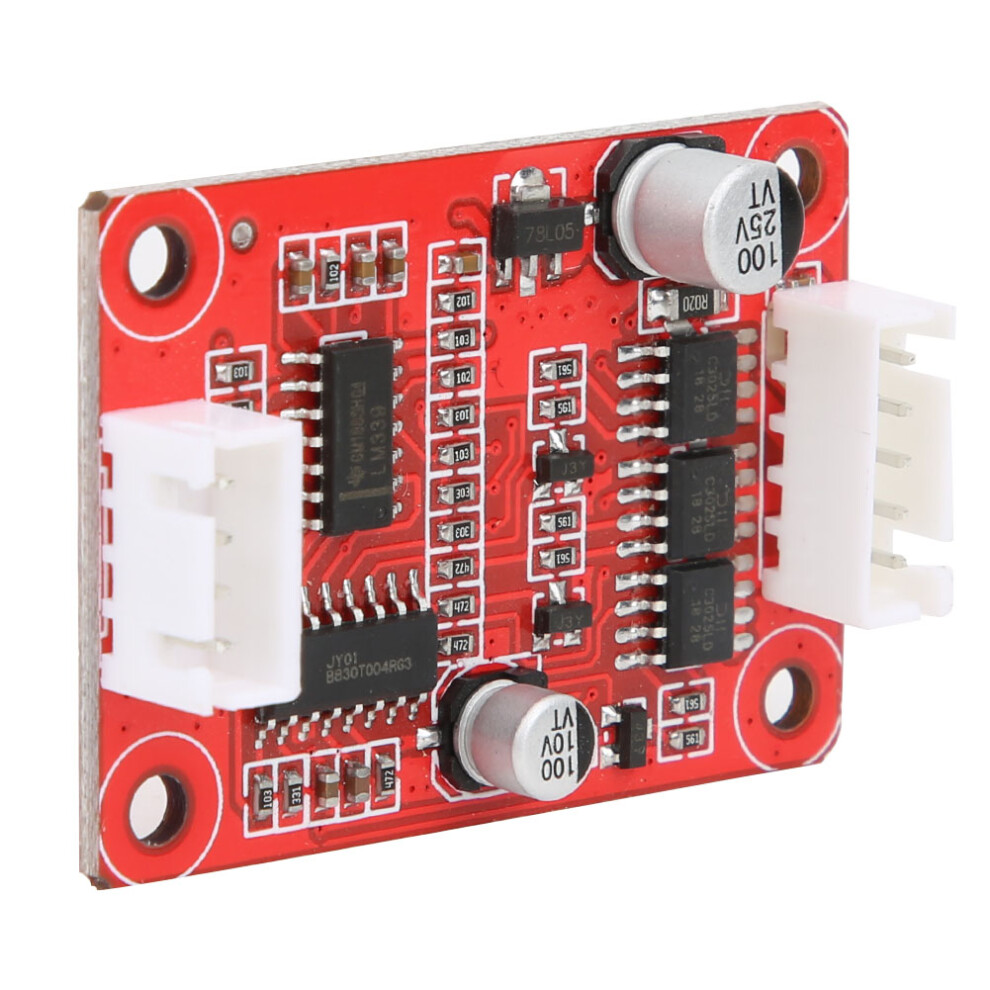

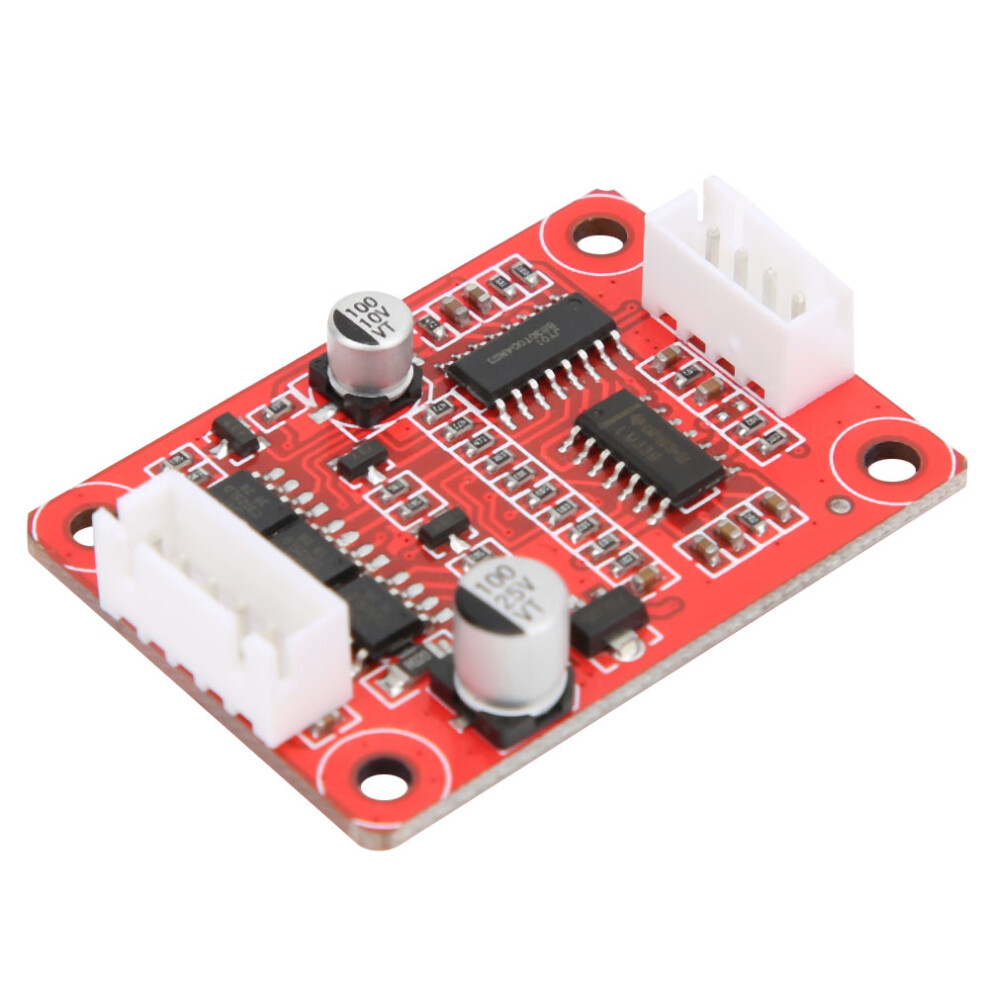

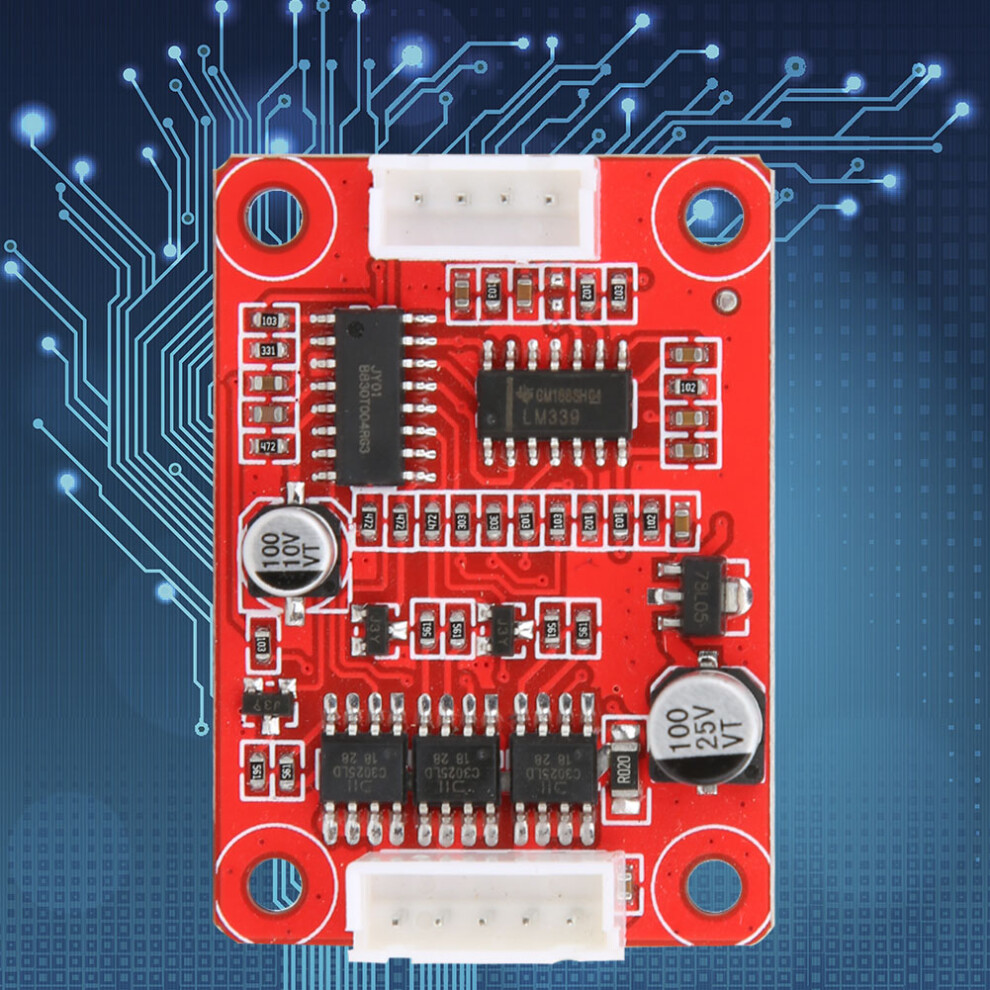

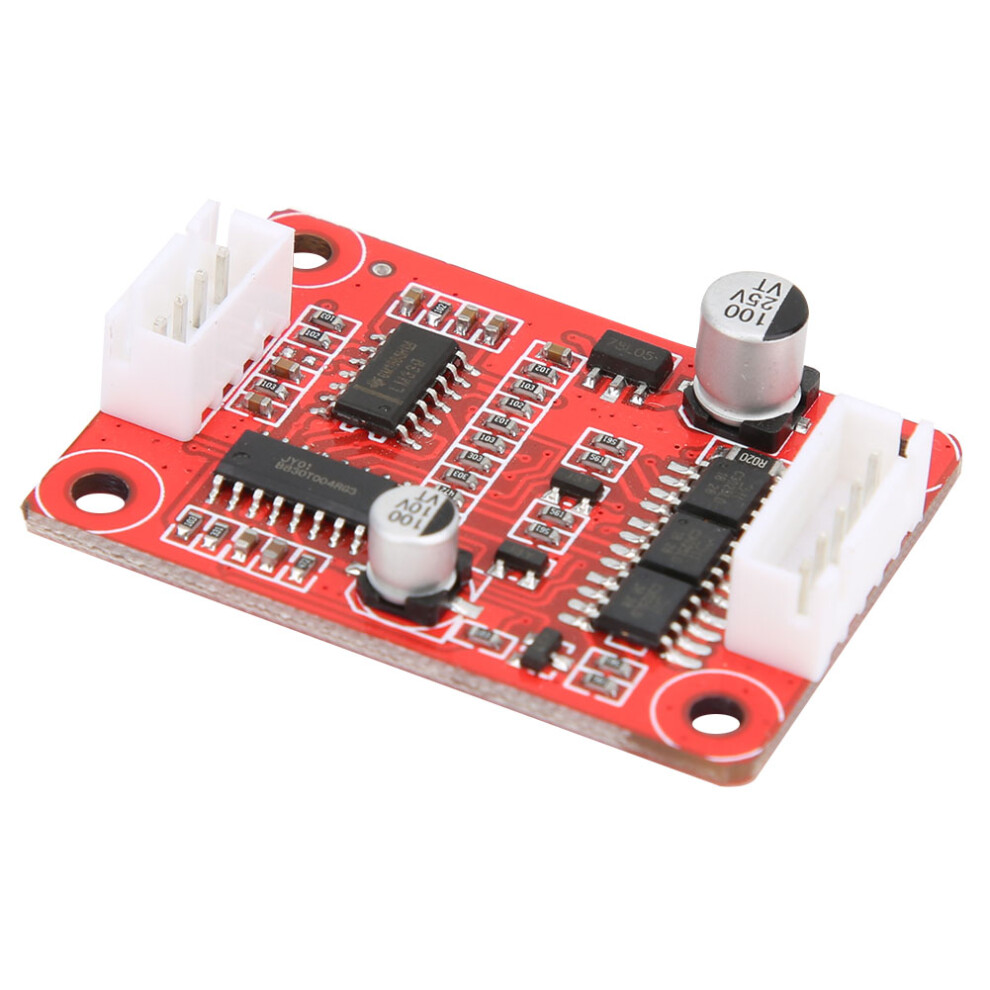

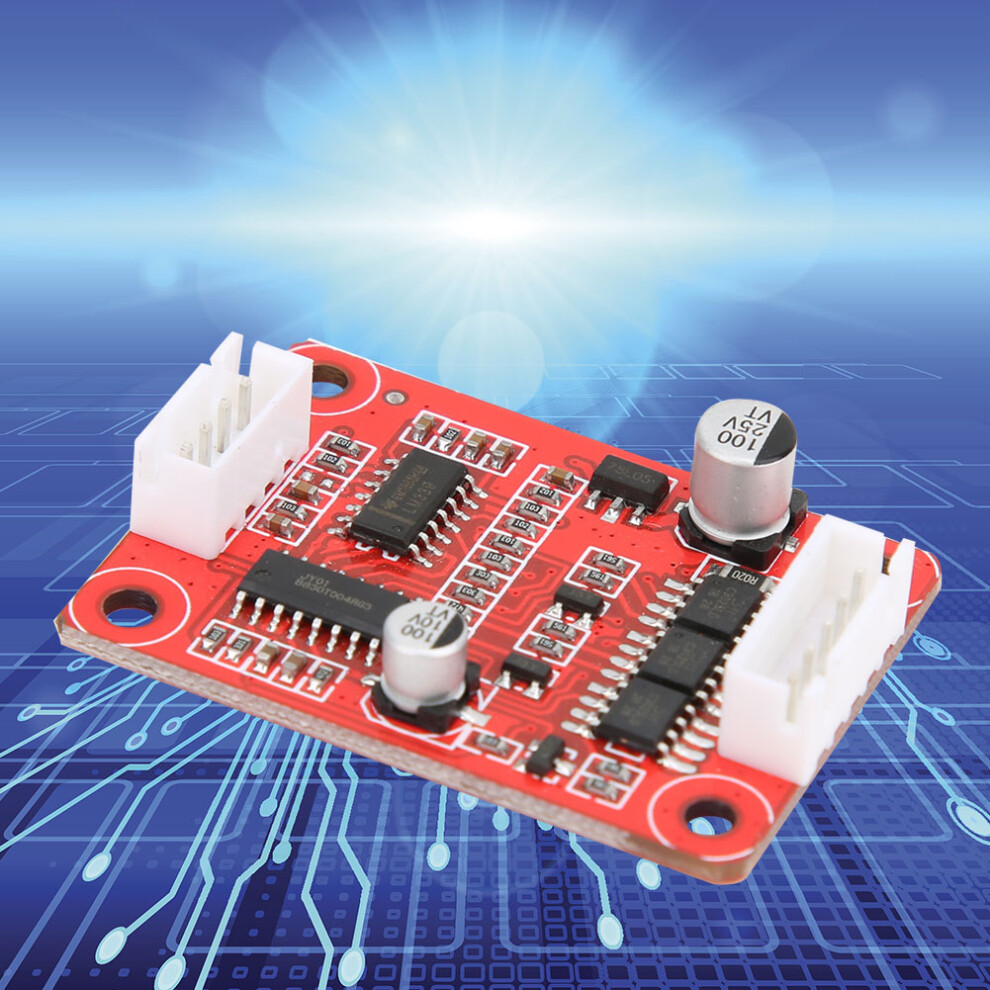

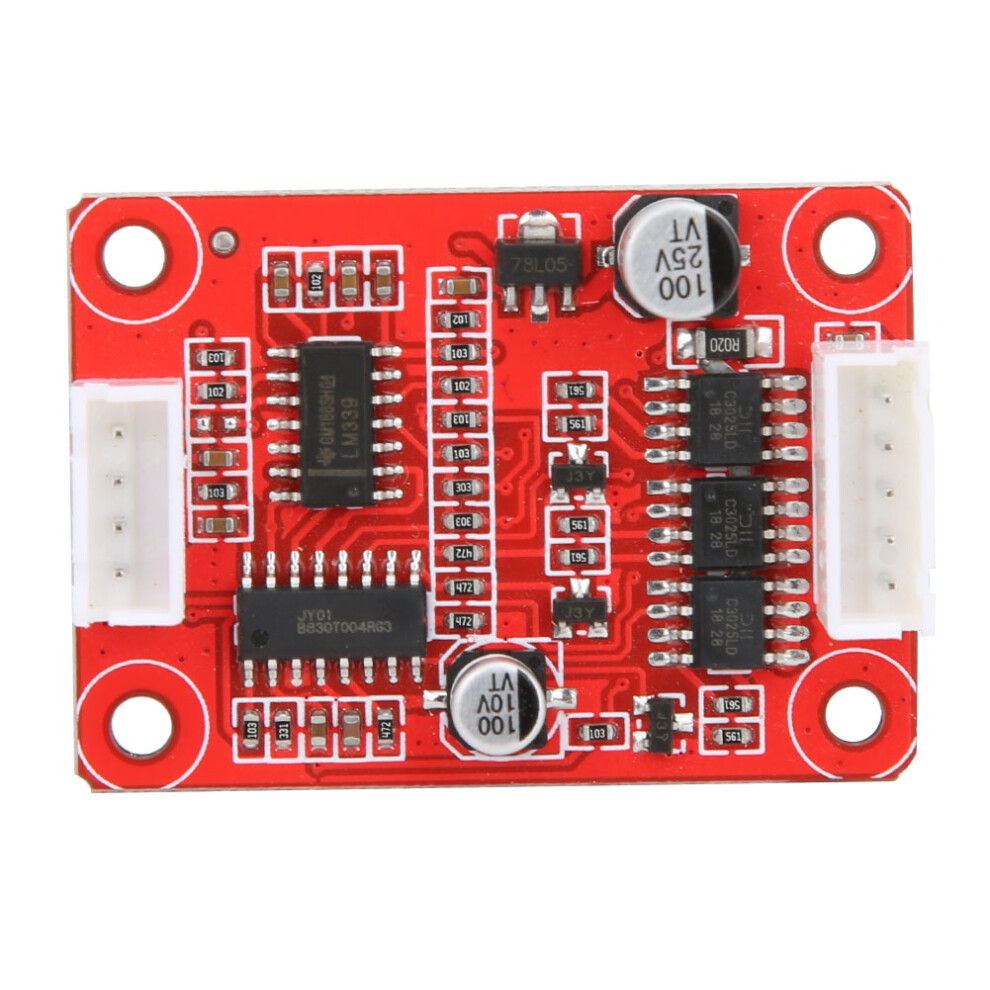

DC7.5V-18V 30W Brushlesss Motor Controller Motor Driving Board CW CCW Rotation

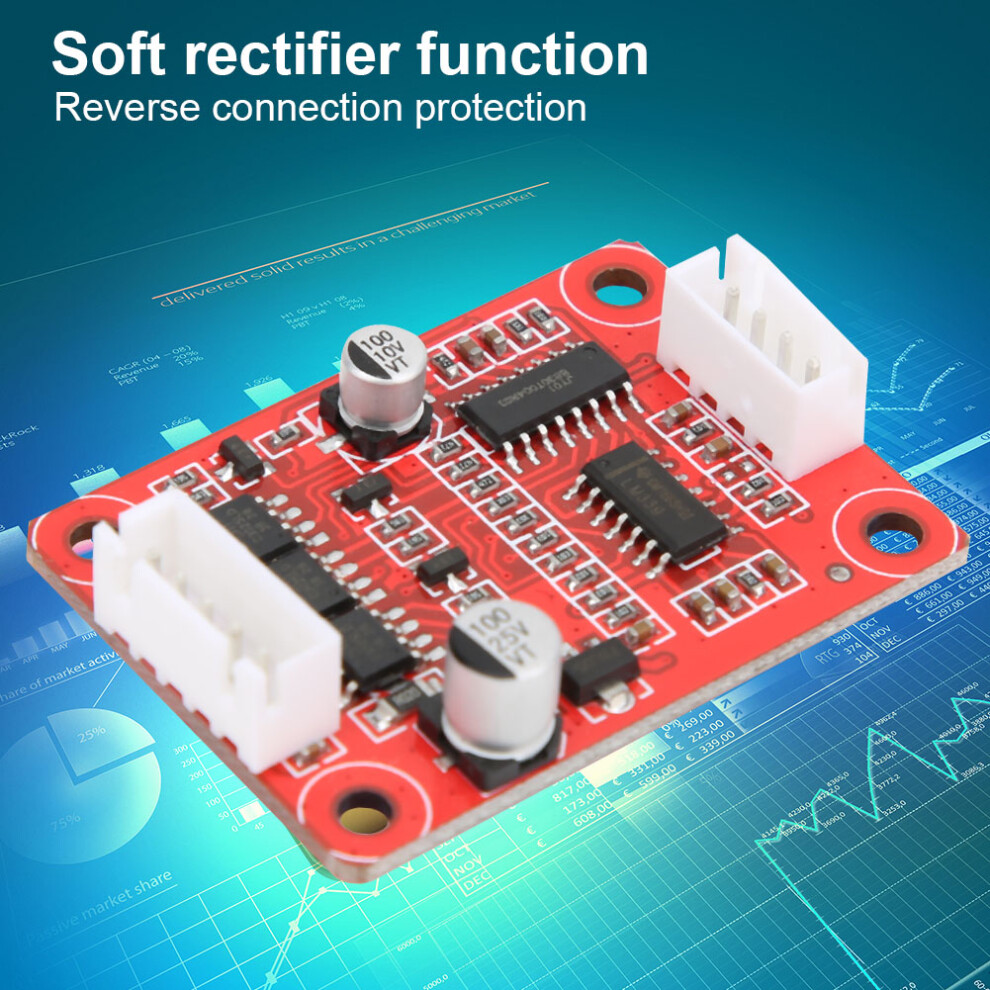

1、The controller is integrates with soft rectifier function. 2、With over current protection and reverse connection protection. 3、The board can control the motor speed during 5~100%. 4、With a potentiometer to adjust the speed of the motor. 5、The controller board can also control the rotation direction of the motor.

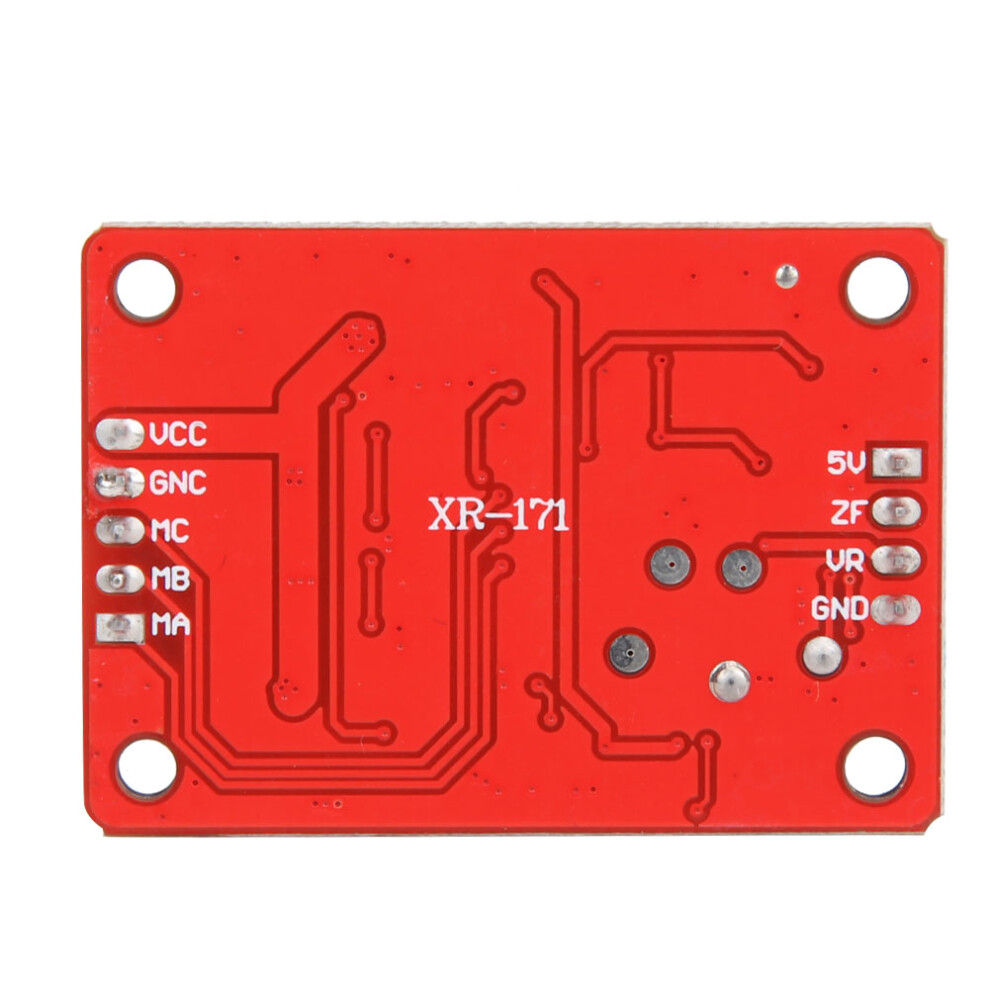

Item Type:Motor Driver Board Working voltage: DC7.5V-18V Working current: 3A Speed voltage: 0.25V-5V Speed range: 5%-100% Drive power: 30W Wiring instructions: 1. Control terminal: 5V: Driver board output voltage, external speed potentiometer when used (empty when not in use) ZF: Motor rotation direction control terminal, grounding or 5V can change the direction of the motor (can be left, the steering is fixed) VR: speed signal input, voltage 0.25V-5V (when the voltage of the motor is less than 0.25V the motor does not rotate) GND: shared control terminal 2, the output: Power +: Connect the positive pole of the power supply, the voltage is 7.5volts 18V --- Power - : Power ground, then power negative MA / U: Turn off every three wires of the motor MB / V: every three lines of the motor MC / W: every three lines of the motor

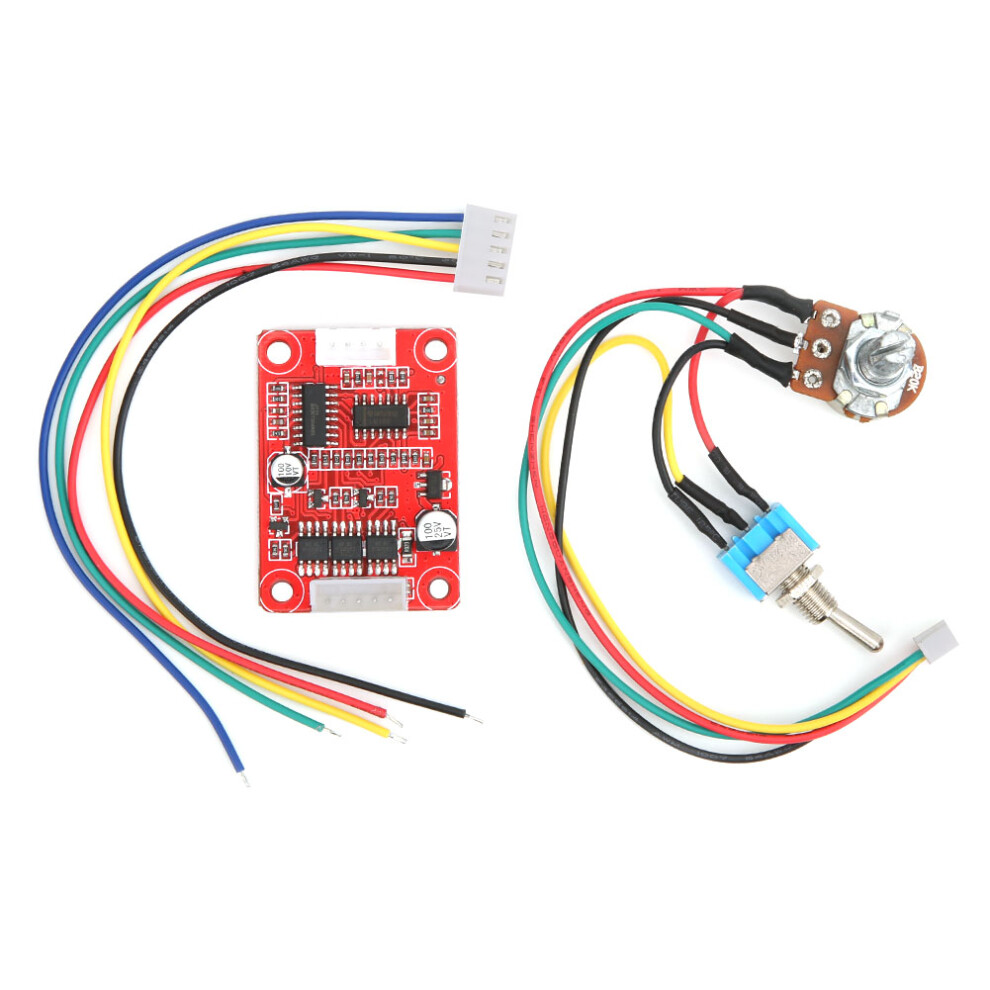

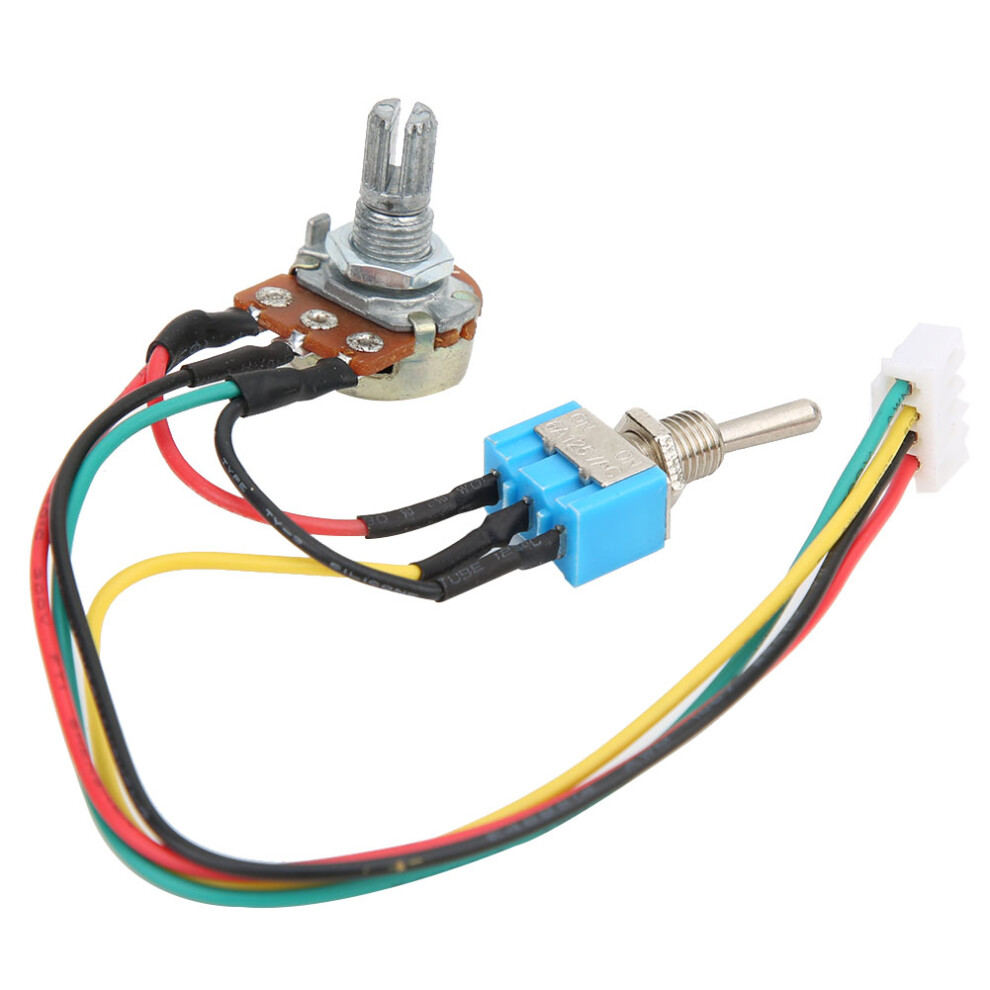

1 x Brushless Motor Driver Board 1 x Speed Adjuster + Positive and Negative Switch 1 x 5Pin Output Control Cable(Random Color)
