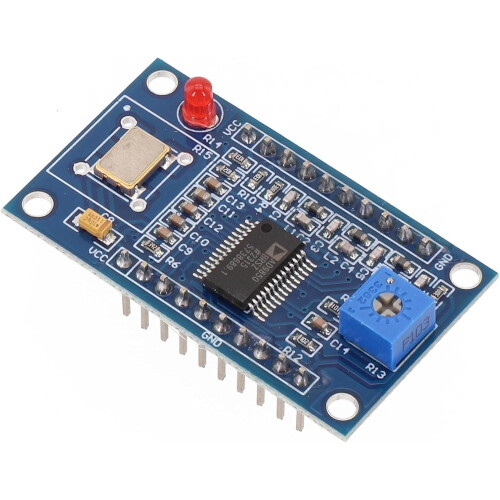

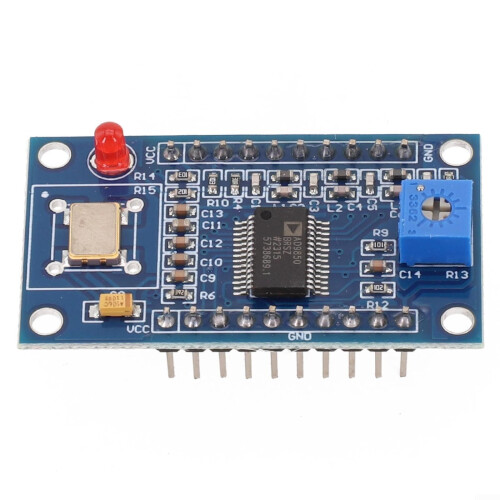

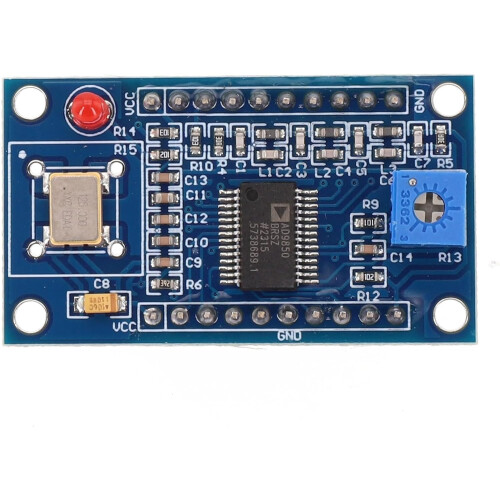

DDS Signal Generator AD9850 Module with Dual Output Sine and Square Waves Adjustable Amplitude

DDS Signal Generator AD9850 Module with Dual Output Sine and Square Waves Adjustable Amplitude Description

Key benefits Improved waveform quality: A 70 MHz lowpass filter enhances the signaltonoise ratio of the waveform, reducing frequency content that can affect measurement accuracy. Easy amplitude adjustment via accessible pin: The pin that generates the DA reference is accessible for convenient adjustment of the output waveform amplitude to suit your specific application. Flexible square wave duty cycle: The duty cycle of the square wave output can be adjusted by changing the variable resistor, allowing different timing characteristics for your circuits. Stable and accurate oscillators: The AD9850 module uses a 125 MHz active oscillator, while the AD9851 module uses a 30 MHz active oscillator, providing reliable and predictable frequency generation. Flexible data input: The design allows selection between parallel and serial data input to fit your control interface and project needs. Compact form factor: Dimension is 4.5 cm x 2.6 cm, suitable for compact test setups and crowded boards. Wide output options and clear specifications: The module provides 2 sine waves and 2 square waves as outputs, with defined frequency ranges and operating parameters described below. Specifications AD9850 frequency range: 040 MHz. Output signals: 2 sine waves and 2 square waves. Harmonic distortion: May increase above 2030 MHz. Square Wave frequency range: 01 MHz. Signal quality: Improved waveform signaltonoise ratio with a 70 MHz lowpass filter. Data input: Supports parallel and serial data input selection. Amplitude adjustment: Accessible pin for easy amplitude adjustment. Duty cycle adjustment: Square wave duty cycle adjustable via the variable resistor. Oscillators: Stable 125 MHz active oscillator for AD9850; stable 30 MHz active oscillator for AD9851. Dimensions: 4.5 cm x 2.6 cm. Applications Laboratory signal generation for RF and communications experiments: generate stable sine and square waves within the specified ranges to test filters, amplifiers, and mixers. Microcontroller or FPGA waveform generation: use the parallel or serial data input options to feed digital systems and test timing, PWM, and waveform synchronization. Calibration and equipment testing: provide reference waveforms for calibration of measurement instruments or for validating timing and frequency response in test benches.
