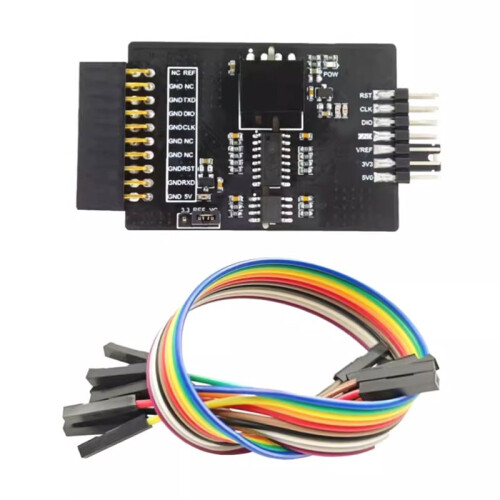

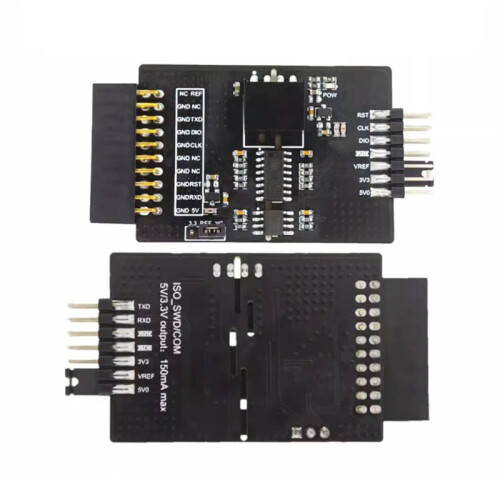

Debugger Emulator High Voltage Isolation Board for J-LINK, USB to SWD Debugger Adapter,MCU Programming Development Tool
Brand Exogio
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£18.17
£22.42
19% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Mon 12th - Wed 14th Oct
Sold by: JKSYshop
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- This product features a 510-ohm current-limiting resistor to protect the pins of the isolation chip, ensuring safe bidirectional signal transmission. It is designed for emulators with a DIO line, where excessive internal series resistance may hinder communication. Most emulators with a 100-ohm resistor will operate effectively, making it a reliable choice for seamless connectivity.
- Debugger Emulator Isolation Board
- Debugger Adapter
- J-LINK Isolation Board
- Isolation Board
Debugger Emulator High Voltage Isolation Board for J-LINK, USB to SWD Debugger Adapter,MCU Programming Development Tool Description
This product features a 510-ohm current-limiting resistor to protect the pins of the isolation chip, ensuring safe bidirectional signal transmission. It is designed for emulators with a DIO , where excessive internal series resistance may hinder communication. Most emulators with a 100-ohm resistor will operate effectively, making it a reliable choice for seamless connectivity.
No current-limiting resistors or pull-/pull-down resistors should be added to the DIO pins of the target board's microcontroller.

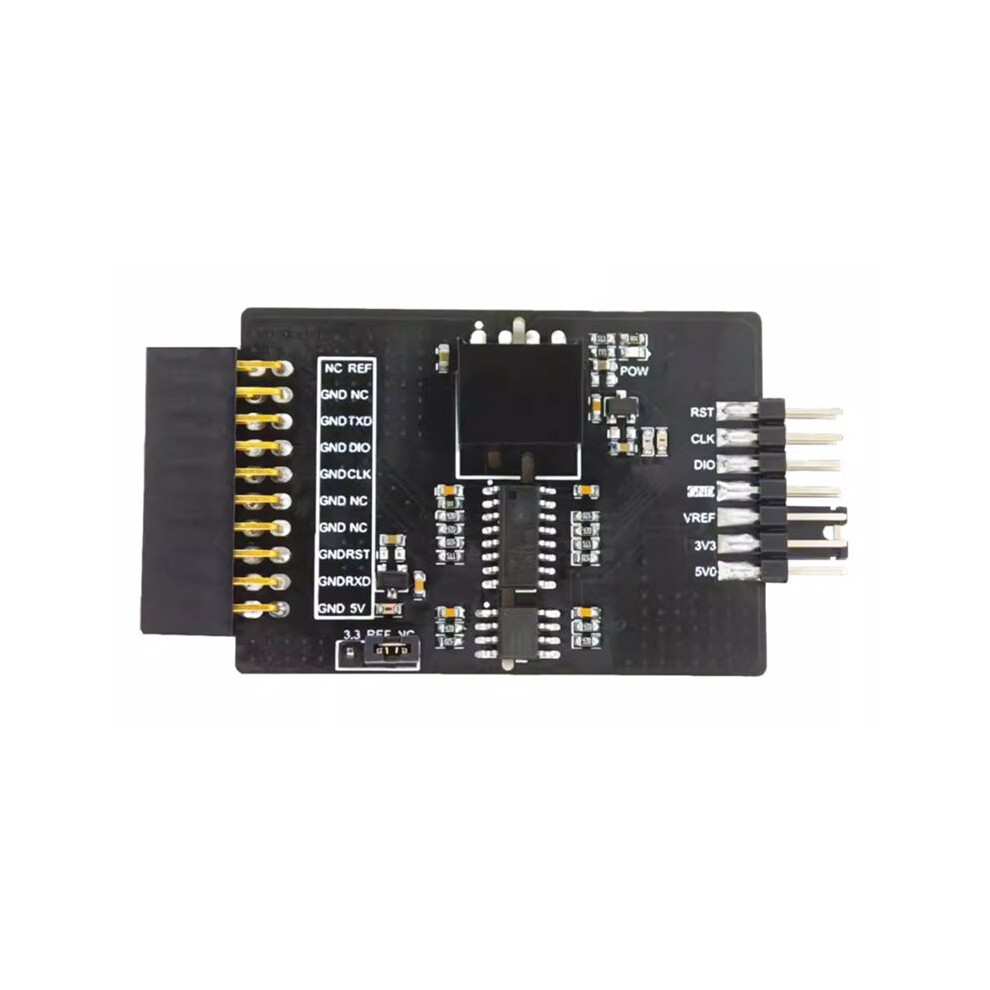

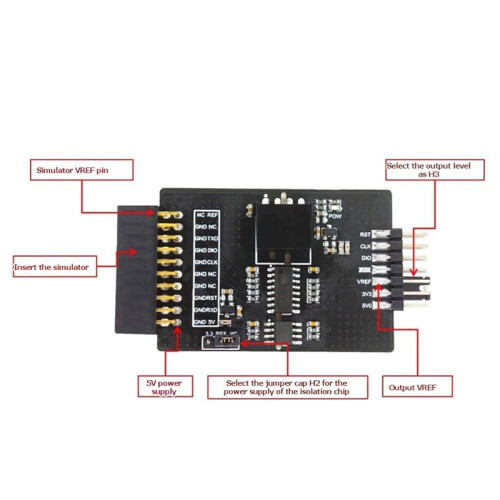

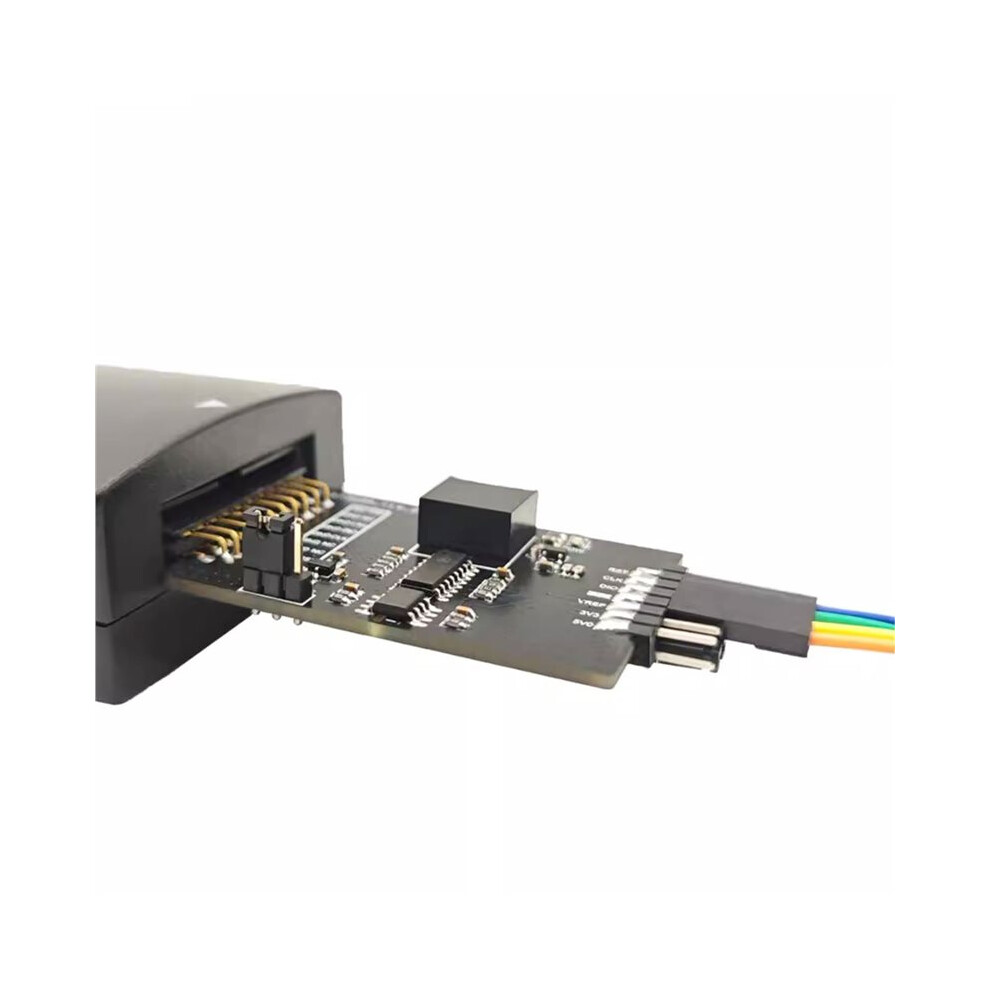

The ISO_SWD/COM isolation board is specifically designed for debugging high-voltage boards. It supports isolated SWD and serial communication for J-Link emulators, with a maximum isolation voltage of 1500 Vrms.
Parameters:

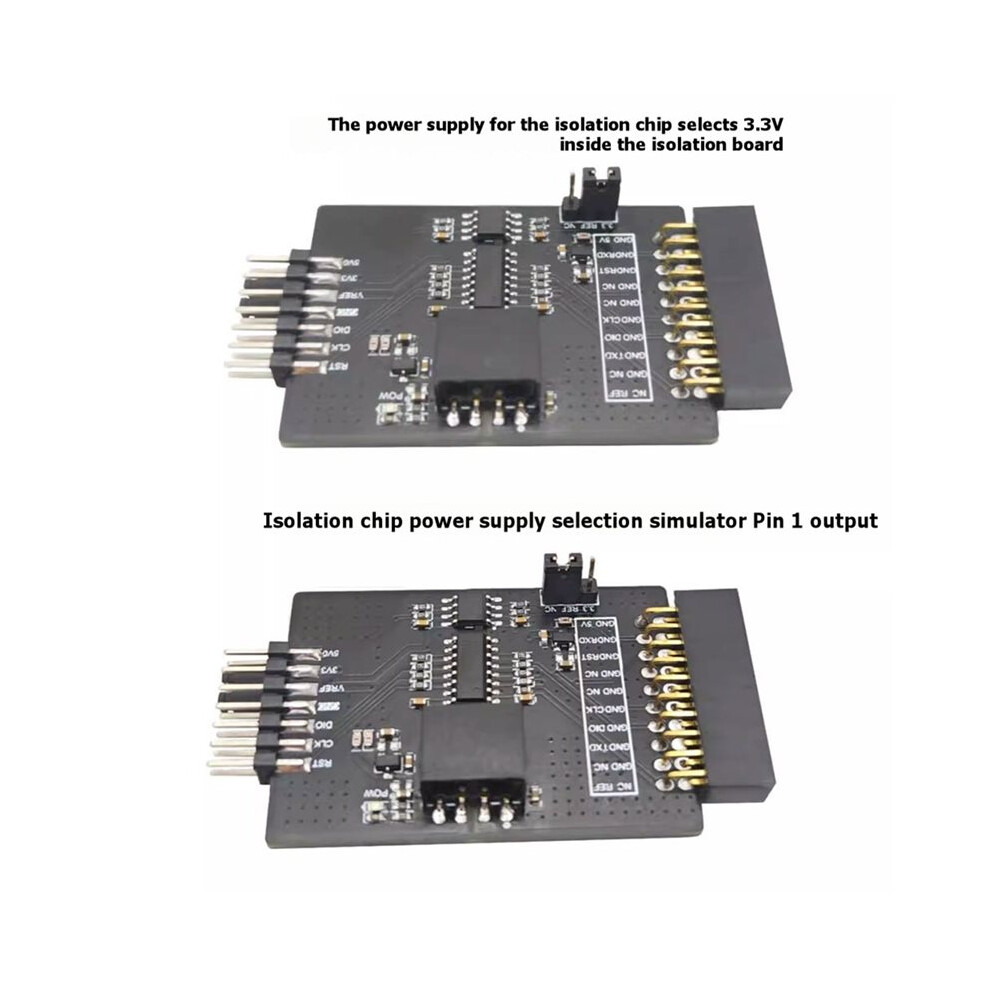

Output Level: Selectable (5V or 3.3V)
Maximum Isolation Voltage: 1500 Vrms
Maximum Output Current (5V/3.3V): 150 mA
Maximum SWD Speed: 6 MHz (Measured; Target MCU: GD32F103RCT6)

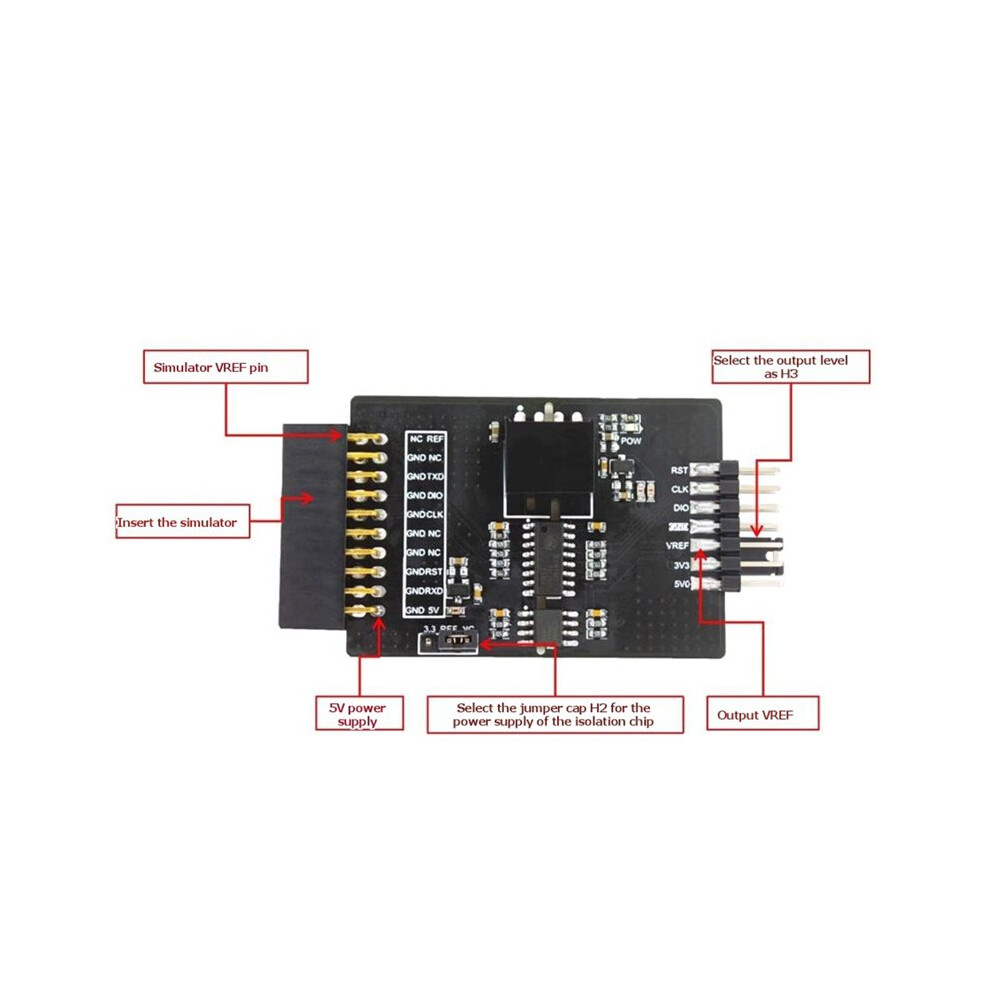

Download Interface: DIO (Data), CLK (Clock), RST (Reset)
Maximum Serial Port Baud Rate: 2 Mbps (Requires emulator support)
Serial Port Interface: TXD (Transmit), RXD (Receive)
Color: Black
Material: ABS
Package Contents:

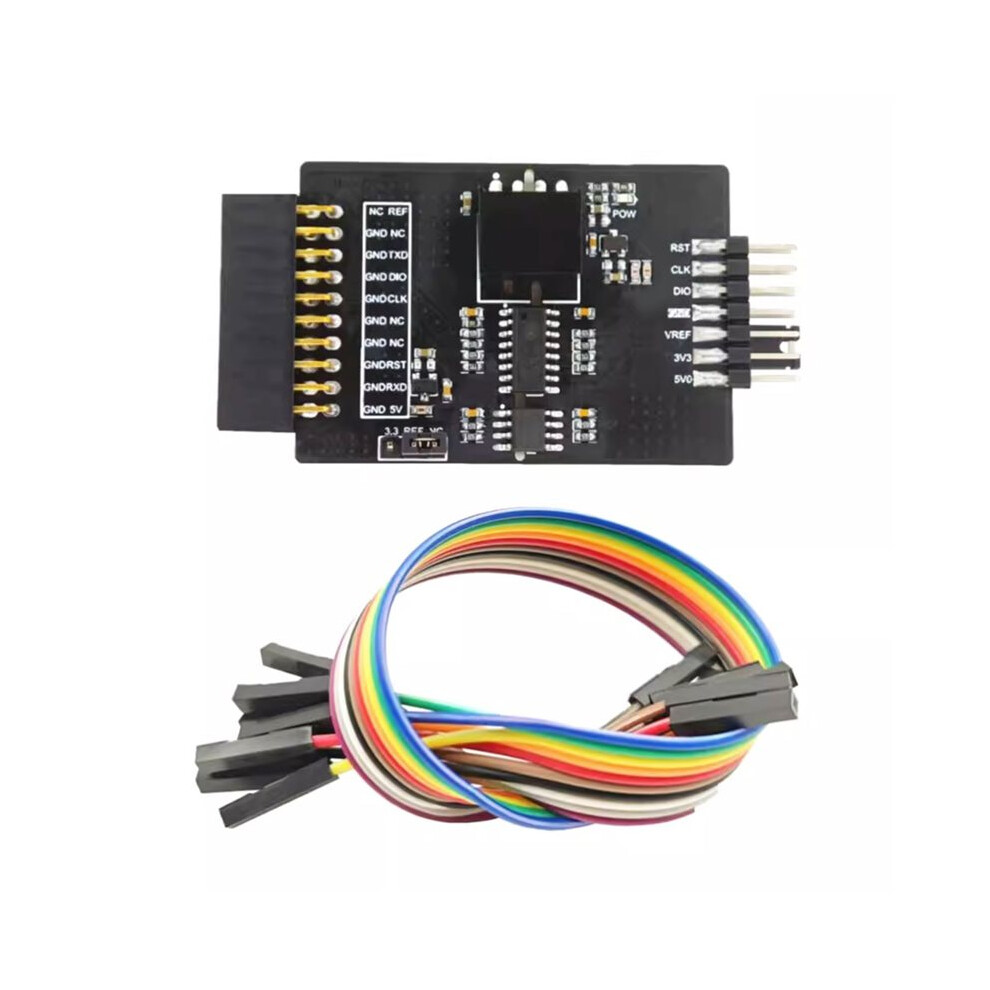

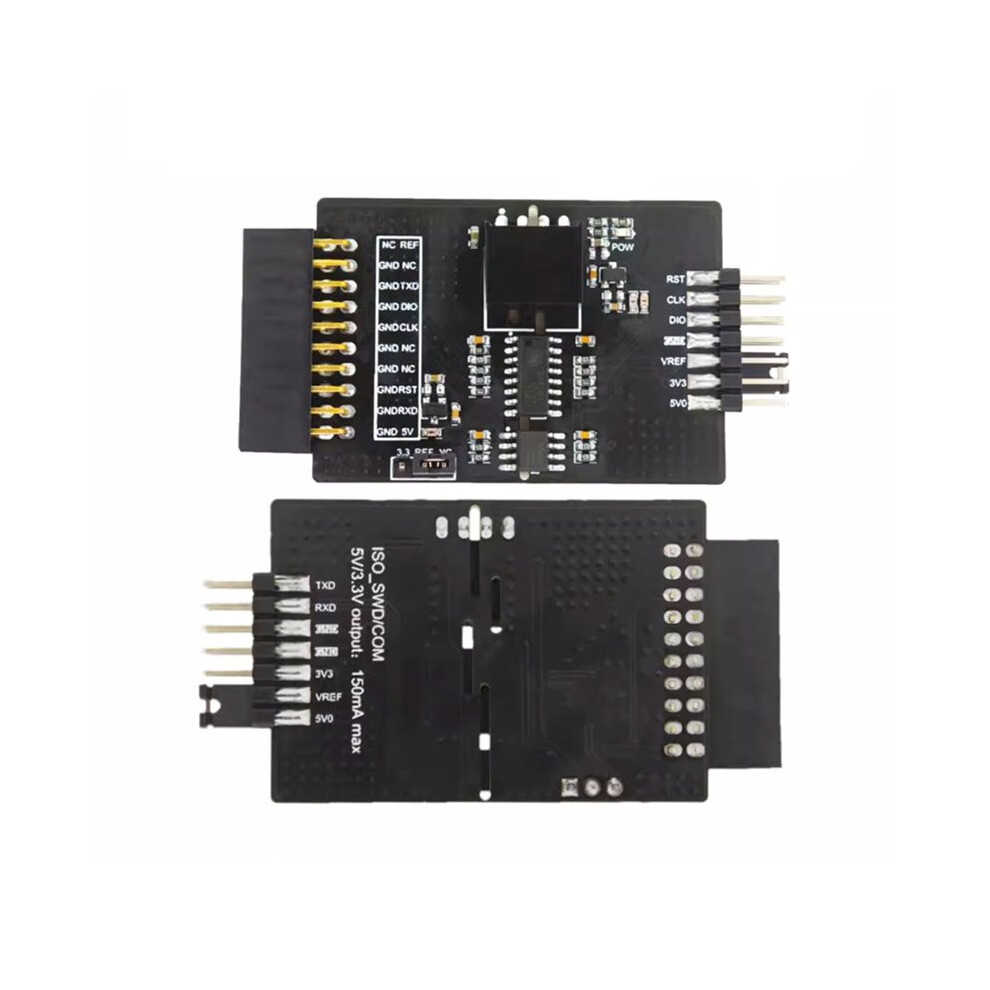

1*Isolation Board
1*Dupont Cable
Details
| OPC | PTDS99P |
|---|---|
| Brand | Exogio |
| Codes | 4712913448751 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.0205kg |
| Colour | Black |
| Material | ABS |
