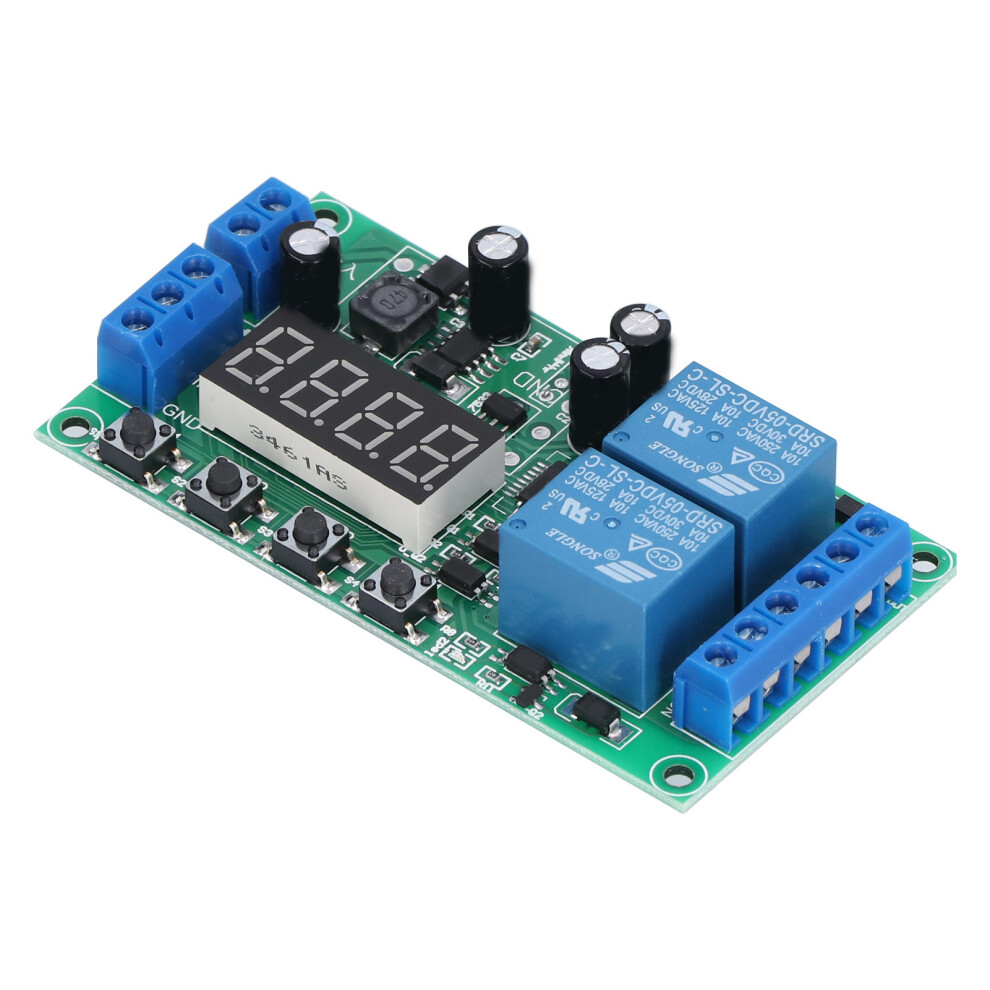

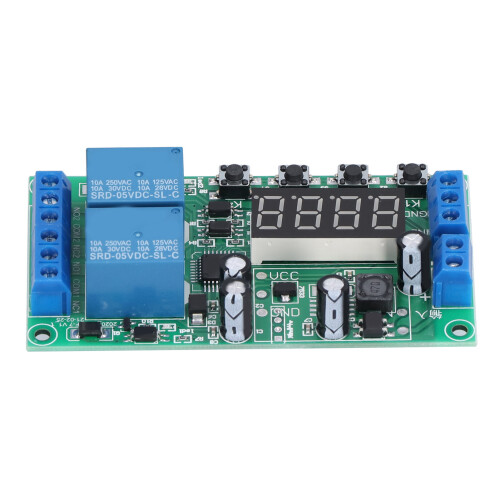

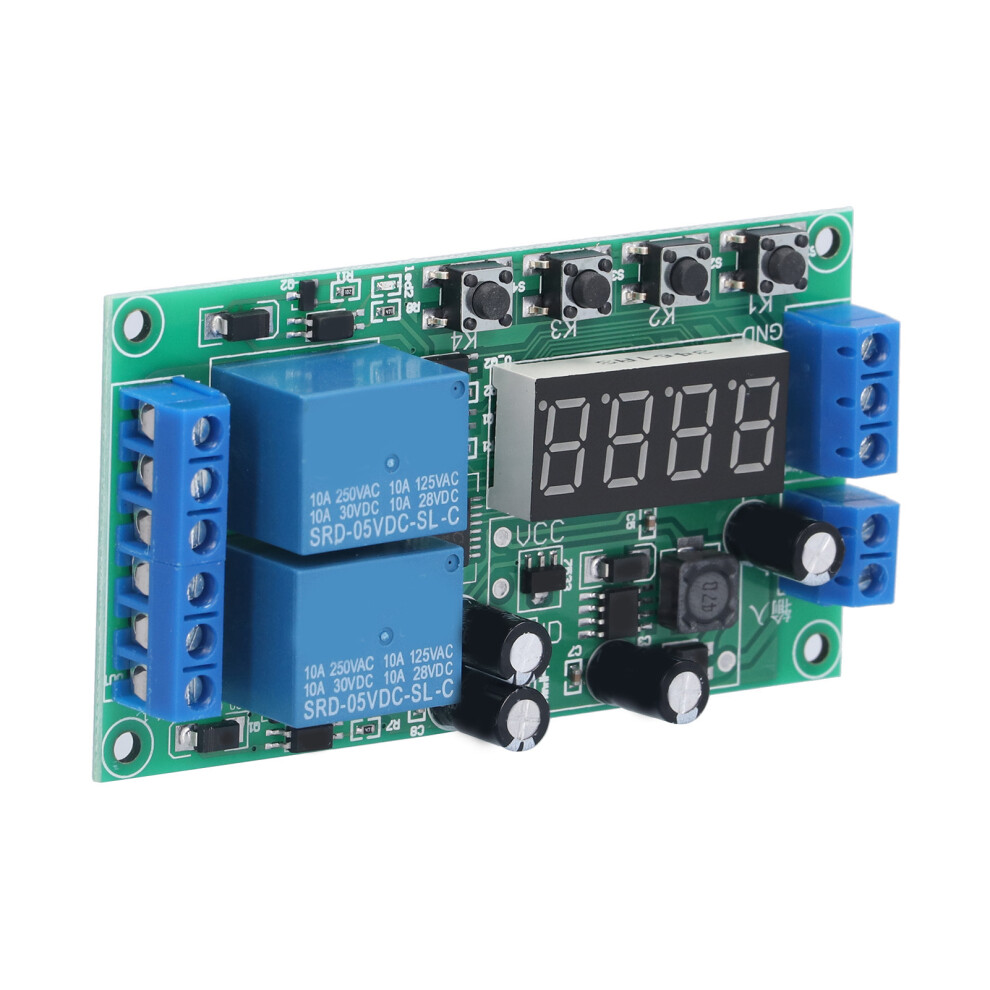

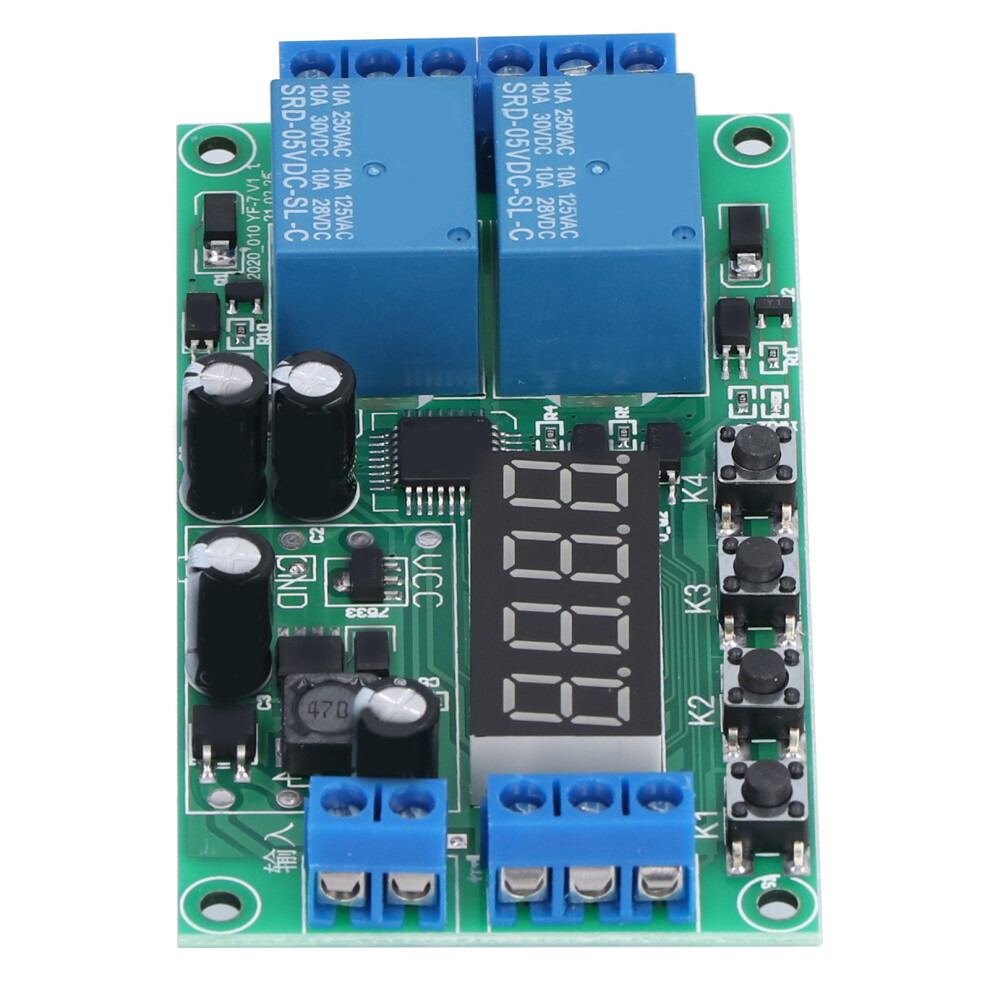

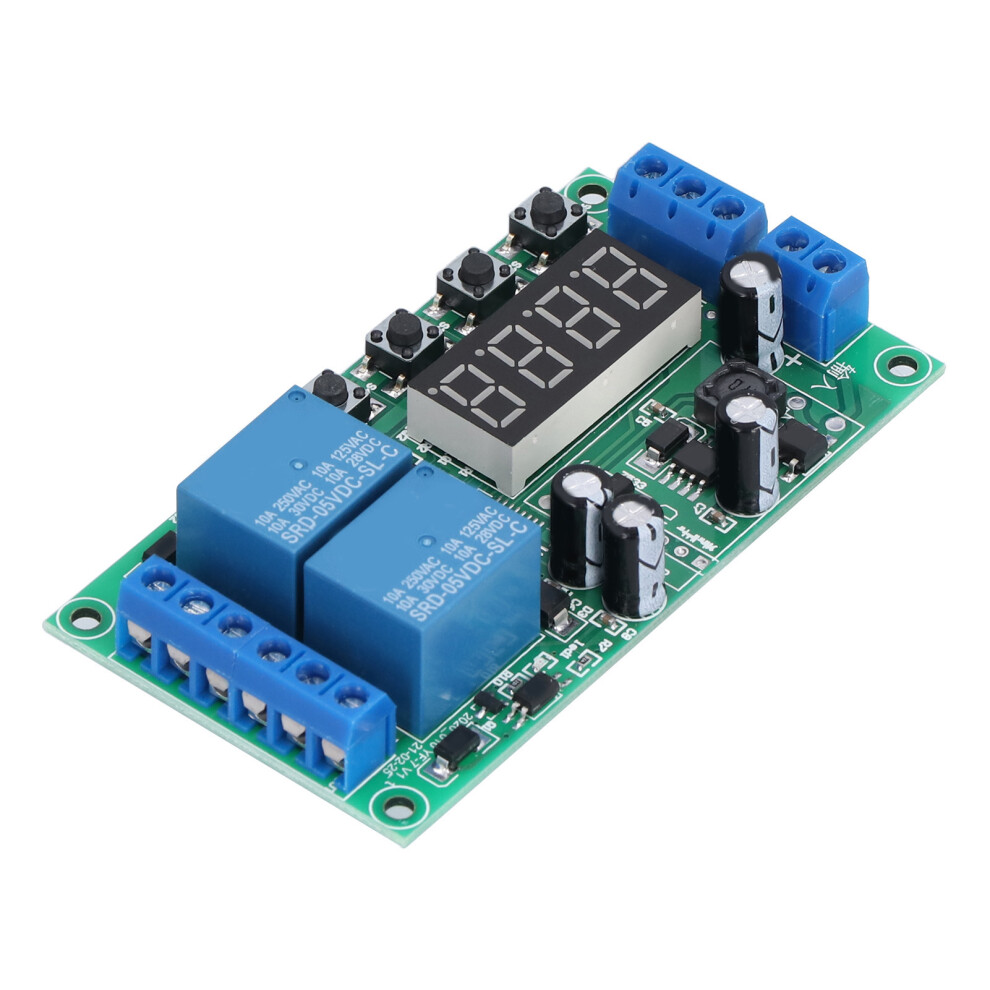

Delay Relay Module 2 Channel Timer Switch 7-30VDC

Delay Relay Module 2 Channel Timer Switch 7-30VDC Description

1、Power Off Memory Function: Possess power off memory function, no need to reset, convenient and practical 2、32 Common Functions: Delay relay module contain 32 common functions to meet more application needs 3、0.01s to 999m Adjustable Delay Time: Delay time range from 0.01 second to 999 minutes adjustable, in line with a variety of application scenarios 4、Control Various Device: Relay board can control solenoid valves, water pumps, motors, light strips, etc. to run freely 5、Control DC or AC Loads Within 5A: The input voltage is DC 7~30V, and the output power can control DC or AC loads within 5A
Item Type: Delay Relay Module
Product Model: YF-7
Input Voltage: DC 7~30V
Output Power: Can control DC or AC load within 5A
Time Range: 0.01 second - 999 minutes any time adjustable
Wiring Port Description:
Left 1, +: Input power positive
Left 2, -: Input power negative
Left 3. Signal 1: Positive signal input terminal
Left 4. Signal 2: Positive signal input terminal
Left 5. Common Wire: Negative pole of signal input terminal (signal 1 and signal 2 share a negative pole)
Right 1, Normally Closed 1: Relay 1 normally closed interface, the relay is suspended before being closed, and shorted to COM after being closed
Right 2, Public 1: Relay 1 public interface
Right 3. Normally Open 1: Relay 1 normally open interface, shorted to COM before the relay is closed, and suspended after being closed
Right 4. Normally Closed 2: Relay 2 normally closed interface, the relay is suspended before the pull in, and short circuited with COM after it is pulled in
Right 5. Common 2: Relay 2 common interface
Right 6. Normally Open 2: Relay 2 normally open interface, the relay is short connected with COM before the pull in, and it hangs after pull in
Function List: You can set the function arbitrarily after you buy it, and the manual is provided; any parameter set can be memorized when the power is off
All the functions in P-11 to P-44 are as follows; signal 1 corresponds to relay 1; signal 2 corresponds to relay 2;
The two channels can be triggered at the same time; independent of each other; do not affect each other; the respective relays of the respective signal tubes
P-11: Jog (to pull in the signal relay, the signal disappears and the relay stops)
P-12: Self locking (turn on the signal relay once, and stop the signal relay again)
P-13: Give the signal, and the relay will automatically stop after closing for A second; triggering is invalid during the delay period
P-14: Give the signal, the relay will stop automatically for A second; trigger to re timing during the delay period
P-15: Give the signal, the relay will stop automatically for A second; during the delay period, the superposition timer will be triggered
P-16: Give the signal, and the relay will stop automatically for A second; trigger reset during the delay period
P-17: Give the signal, the relay is closed, the input signal is disconnected, and the power is turned off after the start of timing A second, and the signal is kept output during the delay period, and the timing stops
P-18: After the power is turned on, the relay will be closed immediately, and the power will be turned off after a delay of A seconds; until the next time the power is turned on
P-21: Give the signal, after a delay of A second, the relay is closed
P-22: Give the signal, after more than A second, the relay is closed, the signal disappears, and the relay stops
P-23: After the signal disappears for more than A second, the relay is closed, the signal disappears, and the relay stops
P-24: There is a signal. After A second, the relay is closed. After the signal disappears for more than A second, the relay stops.
P-25: There is a signal. After A second, the relay is closed. When there is another signal for more than A second, the relay stops.
P-26: When there is a signal, the relay will stop after closing for A second, and when the signal disappears, the relay will stop after closing again for A second.
P-27: If there is a pulse signal, the relay stops; if there is no pulse signal, the relay will be closed for A second; (the signal continues or the signal disappears will be regarded as no pulse signal)
P-28: After power on, after a delay of A seconds, the relay will be closed until the power is off
P-31: After power on, the relay is closed for A second, disconnected for B second, infinite loop; power off stops
P-32: When there is a signal, start P-31 infinite loop; when the signal disappears, terminate the loop
P-33: Give a signal to start P-31 infinite loop; give another signal to terminate the loop
P-34: After power on, the relay will be closed after a delay of A seconds, and stop after being closed for B seconds
P-35: There is a signal, after a delay of A second, the relay will be closed, and the relay will be closed after being closed for B seconds.
P-36: When there is a signal, after A second, the relay will be closed, and after B second, the relay will stop, the signal disappears, and the timer will be cleared and stopped.
P-37: If there is a signal, the relay will stop automatically for A second when the relay is closed, and then it will count for B seconds after it stops. The signal trigger is invalid within the time A+B.
P-38: When there is a signal, the relay will automatically stop when it is closed for A second, and after stopping and counting for B seconds, it will stop automatically when it is closed again for A second.
P-41: No action when there is a signal; trigger when the signal disappears; the relay is disconnected after a delay of A time
P-42: The signal disappears, after delaying time A, the relay works; working time B ends
P-43: The signal disappears. After the time A exceeds, the relay works; the working time B ends
P-44: After giving the signal more than A times, the relay will be closed for B seconds and stop
P-45: After power on, relay 1 will work for A second and then disconnect; Relay 2 will work for B second and disconnect
P-46: Give signal 1, after relay 1 works for A seconds and disconnects; relay 2 works for B seconds and disconnects
P-47: Give signal 1, after relay 1 works for A second; relay 2 starts to work; after B second, relays 1, 2 are disconnected at the same time
P-48: After power on, relay 1 works for A seconds and then disconnects; stops for B seconds; relay 2 works for C seconds and disconnects and stops for D seconds; cycle
Button Setting Instructions: Power on display "----" means entering the standby state;
Press K1 For The First Time, (it Takes More Than 1 second to be effective to prevent false triggering) Display: P-11: K2 adjustment main mode, K3K4 adjustment function
Press K1 For The Second Time, The Screen Displays: A00x: K2 and K3 adjust the first time A, K4 adjusts the decimal point (time unit)
Press K1 For The Third Time, The Screen Displays: b00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press K1 The Fourth Time, The Screen Displays: C00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press K1 For The 5th Time, The Screen Displays: d00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press K1 for the 6th time, display "----" to indicate that the setting is completed and enter the standby state
Press K4 in standby mode to permanently turn off/on the display and switch to low power consumption mode
1 x Delay Relay Module
