Demo Kit for -F Tester Board HAM Filter Attenuator

Demo Kit for -F Tester Board HAM Filter Attenuator Description

Made of fine quality material, practical, has a long service life.
Compact and , easy to operate and use.
This is a vector network analyzer learner tool.

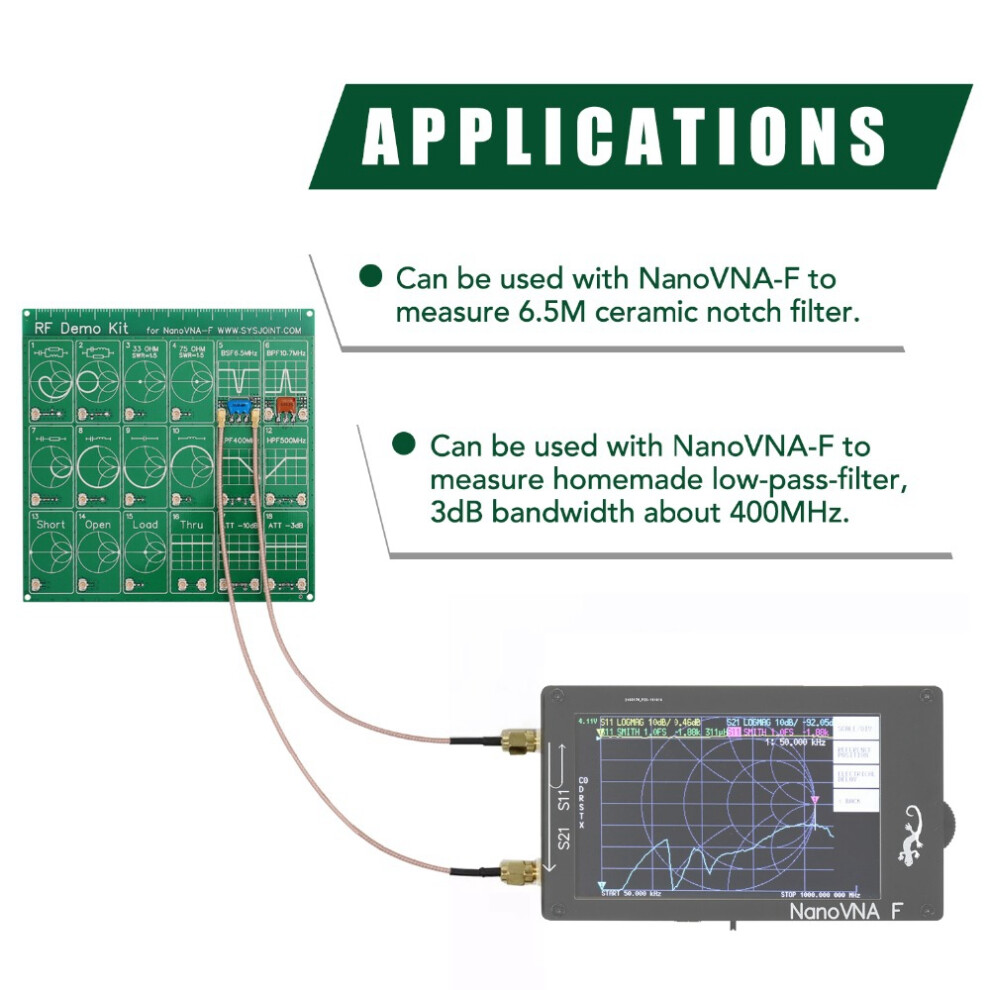

Can be used with -F to measure 6.5M ceramic filter.
Can be used with -F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.

RLC series and parallel circuit 1
RLC series and parallel circuit 2
33 ohm resistance, SWR=1.5
75 ohm resistance, SWR=1.5
BSF ceramic filter, center frequency 6.5MHz
BPF ceramic filter, centre frequency 10.7MHz
RC series circuit
LC series circuit
Capacitor
Inductance
Homemade low-pass filter, 3dB bandwidth 400MHz
Homemade high-pass filter, 3dB bandwidth 500MHz
Short-circuit calibration circuit
Open-circuit calibration circuit
50 ohm load calibration circuit
Straight-through
10dB attenuation circuit
3dB attenuation circuit

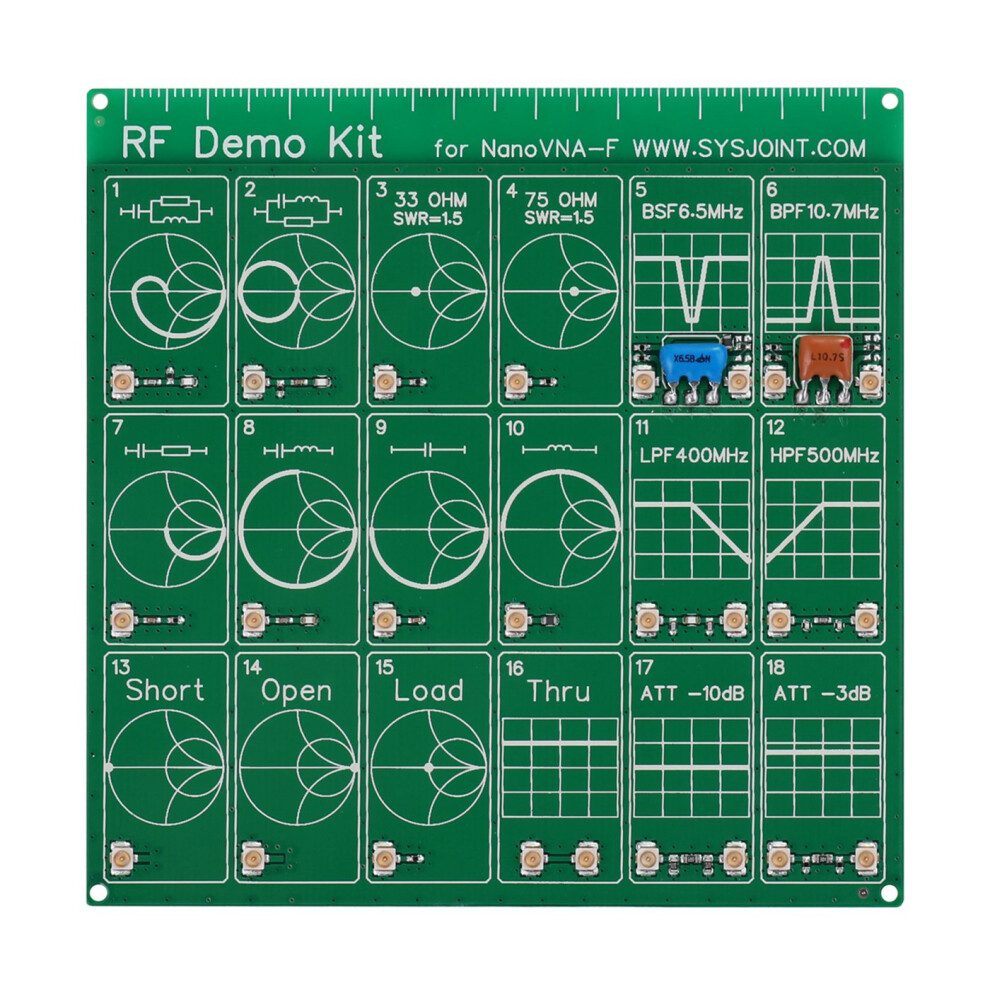

Each set of functional circuits
Colour:green
Material:PCB

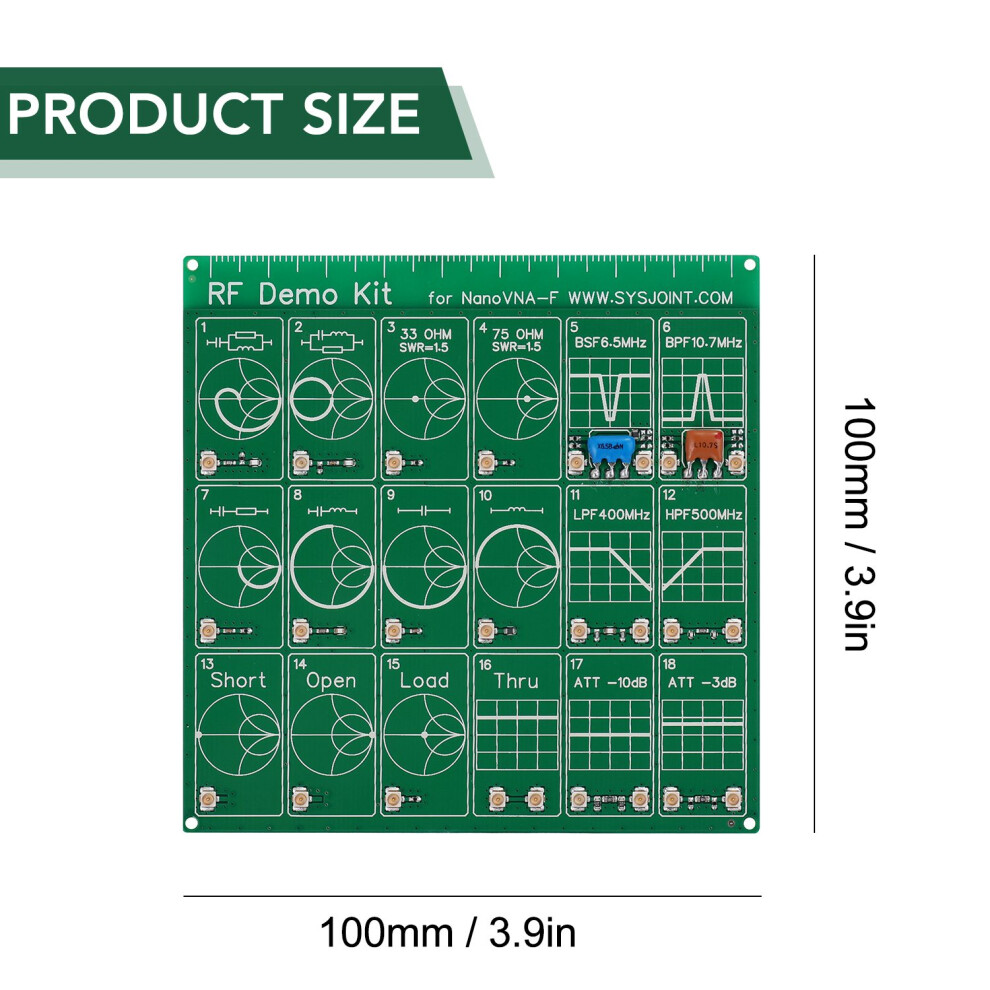

Size: 100 x 100MM

Package Contents:
1 x test board

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
